Tripp Lite B164-101-WIR Manuel utilisateur

Owner’s Manual

Wireless IR Signal

Extender

Model: B164-101-WIR

Este manual esta disponible en español en la

página de Tripp Lite: www.tripplite.com/support

Ce manuel est disponible en français sur le site

Web de Tripp Lite : www.tripplite.com/support

Русскоязычная версия настоящего руководства

представлена на веб-сайте компании Tripp Lite

по адресу: www.tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

PROTECT YOUR INVESTMENT!

peace of mind. You could also win an ISOBAR6ULTRA

surge protector—a $100 value!

www.tripplite.com/warranty

19-01-461-9338E5-EN.indd 1 2/1/2019 10:49:35 AM

Product Features

Package Includes

• Extend the range of your IR-enabled equipment up to

656 ft. (200 m)

• Compatible with IR signal frequency ranges from 20 to

60 kHz

• High-performance IR technology provides real-time

signal transmission without delay

• Durable aluminum housing enhances heat dissipation

for reliable performance

• Compact and portable design allows for convenient

placement

• Power-saving design with USB-powered transmitter and

receiver units

• IR transmitter and receiver included

• B164-101-WIR Wireless IR Extender

• IR-Out Cable

• IR-In Cable

• (x2) USB Power Cables

• (x2) Wireless Signal Antennas

• Owner’s Manual

19-01-461-9338E5-EN.indd 2 2/1/2019 10:49:35 AM

Feature Identiﬁcation

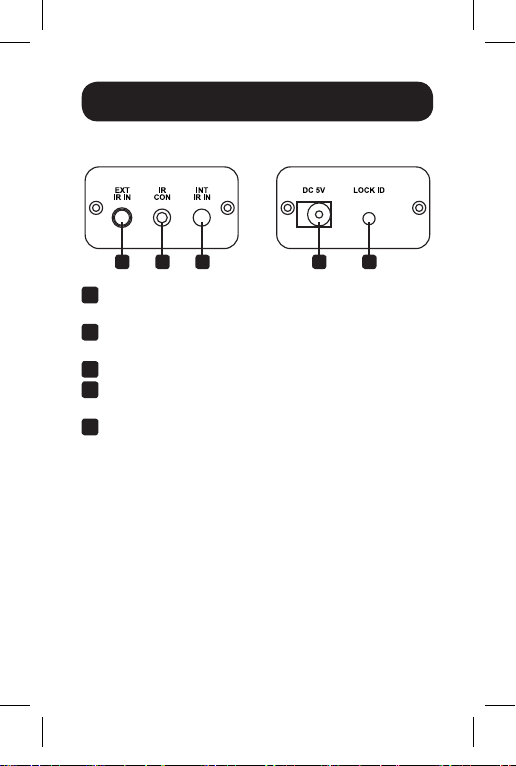

IR Transmitter (TX) Unit:

A B C D E

AEXT IR IN: Connect the included IR-In cable to receive

the IR signal.

BIR CON: This blue LED indicator illuminates when the

IR signal is working.

CINT IR IN: Built-in IR signal receiver head.

DDC 5V: Connect one of the included USB Power cables

to power the unit.

ELOCK ID: This button pairs the transmitter and receiver

units.

19-01-461-9338E5-EN.indd 3 2/1/2019 10:49:35 AM

A B C D E

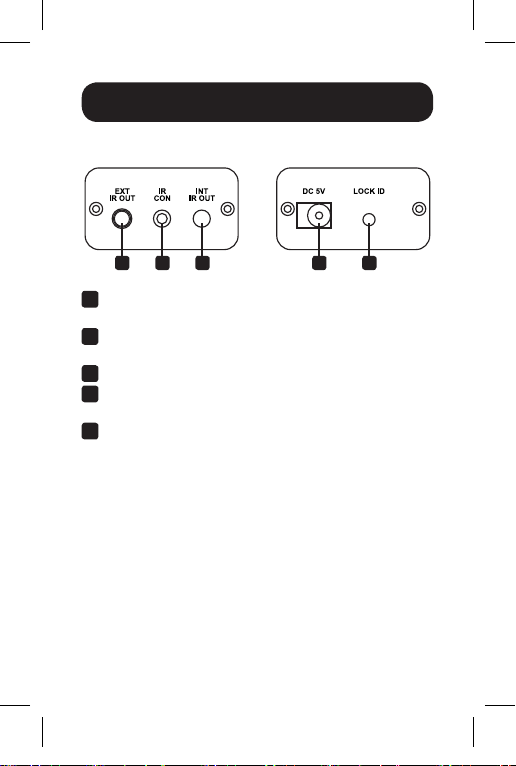

IR Receiver (RX) Unit:

Feature Identiﬁcation

AEXT IR OUT: Connect the included IR-Out cable to

allow the unit to send the IR signal.

BIR CON: This blue LED indicator illuminates when the

IR signal is working.

CINT IR OUT: Built-in IR signal emitter head.

DDC 5V: Connect one of the included USB Power cables

to power the unit.

ELOCK ID: This button pairs the transmitter and receiver

units.

19-01-461-9338E5-EN.indd 4 2/1/2019 10:49:35 AM

Pairing Instructions

1. Power the IR Transmitter and Receiver units using the

included USB Power cables.

2. Press and hold the IR Receiver’s LOCK ID button for

4 seconds or until the built-in blue IR CON LED begins

to blink.

3. Once the IR Receiver unit is in pairing mode, press and

hold the IR Transmitter’s LOCK ID button for 4 seconds

or until the IR Transmitter unit is paired with the IR

Receiver unit.

Note: The blue IR CON LED on the IR Receiver unit will stop

blinking and turn off once the IR Transmitter and Receiver units

have been paired.

Note: The TX and RX units must be paired before use.

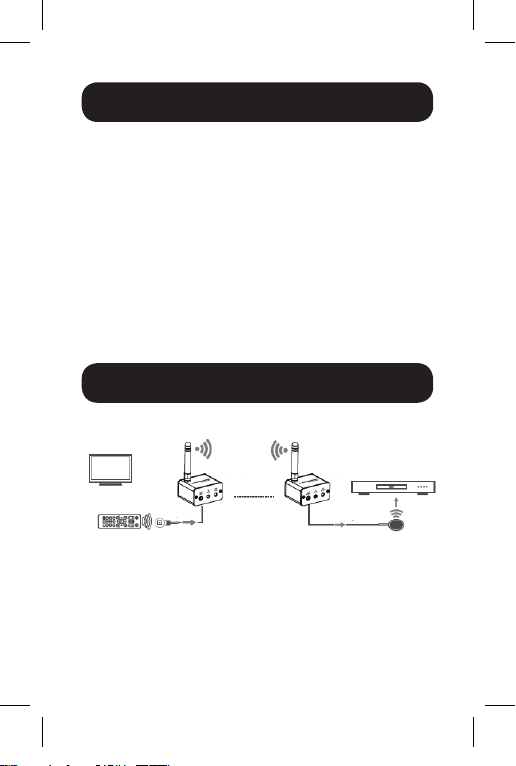

HDMI Display

IR Input IR Output

DVD

Transmitter

(TX) Receiver

(RX)

1. Position the IR Transmitter unit in a place where you

wish to control your IR-enabled device from up to

656 ft. (200 m) away.

2. Connect the included IR-In cable to the IR Transmitter

unit.

Place the IR Receiver unit near the IR-enabled equipment

you wish to control (Blu-ray™, cable box, etc).

Installation

19-01-461-9338E5-EN.indd 5 2/1/2019 10:49:35 AM

Speciﬁcations

Model B164-101-WIR

Material of Construction Aluminum

IR Frequency 20-60 kHz

Transmission (RF)

Frequency

915M

Power Gain 10 dBm

Transmission Distance 656 ft. (200 m)

Dimensions TX: 0.9 x 1.7 x 1.4 in.

(23 x 44 x 36 mm)

RX: 0.9 x 1.7 x 0.9 in.

(23 x 44 x 23 mm)

Weight TX: 1.4 oz. (40 g)

RX: 1.4 oz. (40 g)

Power Consumption TX: <300mV

RX: <300mV

Operating Temperature 32° to 104°F (0° to 40°C)

Storage Temperature -4° to 140°F (-20° to 60°C)

Relative Humidity 10% to 90%, Non-Condensing

4. Connect the included IR-Out cable to the IR Receiver

unit.

Note: Make sure there are no obstructions between your

IR-enabled equipment and the IR-Out cable’s emitter head.

5. Reconnect the included USB Power cables to the IR

Transmitter and Receiver units.

Installation

19-01-461-9338E5-EN.indd 6 2/1/2019 10:49:35 AM

Warranty and

Product Registration

3-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in

materials and workmanship for a period of three (3) years

from the date of initial purchase. TRIPP LITE’s obligation

under this warranty is limited to repairing or replacing (at its

sole option) any such defective products. To obtain service

under this warranty, you must obtain a Returned Material

Authorization (RMA) number from TRIPP LITE or an authorized

TRIPP LITE service center. Products must be returned to

TRIPP LITE or an authorized TRIPP LITE service center with

transportation charges prepaid and must be accompanied by

a brief description of the problem encountered and proof of

date and place of purchase. This warranty does not apply to

equipment which has been damaged by accident, negligence

or misapplication or has been altered or modiﬁed in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. Some states do not permit limitation or exclusion

of implied warranties; therefore, the aforesaid limitation(s) or

exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE

BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF

THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGE. Speciﬁcally, TRIPP LITE is not liable for any

costs, such as lost proﬁts or revenue, loss of equipment, loss

of use of equipment, loss of software, loss of data, costs of

substitutes, claims by third parties, or otherwise.

19-01-461-9338E5-EN.indd 7 2/1/2019 10:49:35 AM

PRODUCT REGISTRATION

Visit www.tripplite.com/warranty today to register your new

Tripp Lite product. You’ll be automatically entered into a

drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions

apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers

and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment

(WEEE) Directive and implementing regulations, when

customers buy new electrical and electronic equipment

from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-

like basis (this varies depending on the country)

• Send the new equipment back for recycling when this

ultimately becomes waste

WARNING

Use of this equipment in life support applications where failure

of this equipment can reasonably be expected to cause the

failure of the life support equipment or to signiﬁcantly affect its

safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Product

speciﬁcations are subject to change without notice.

Warranty and

Product Registration

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

19-01-461 93-38E5_RevB
