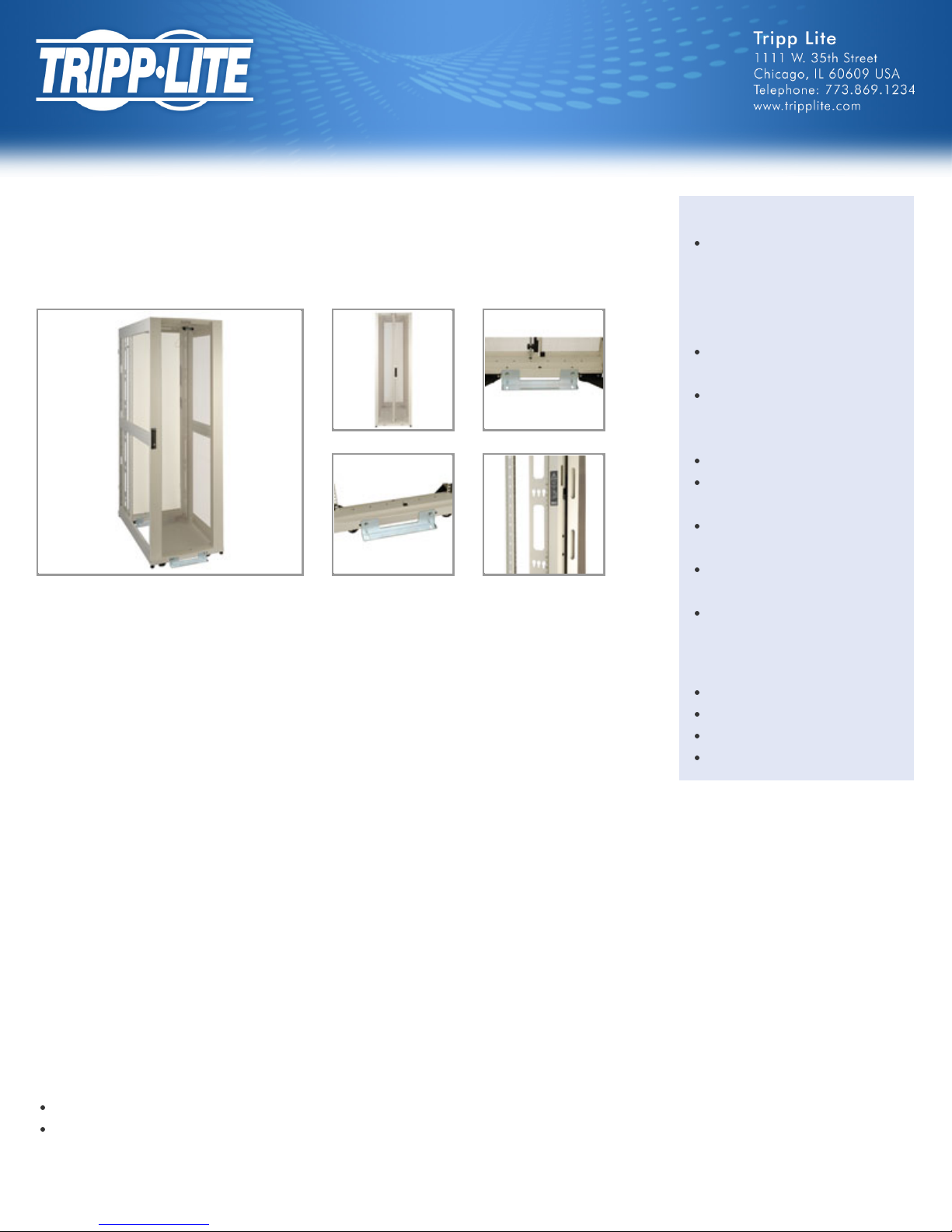

Tripp Lite SR42UWEXP Guide d'installation
42U White SmartRack Premium Enclosure (no side
panels included)
MODEL NUMBER: SR42UWEXP
Description
The SR42UWEXP is an expansion model used when several cabinets are bayed together. It has doors and a
roof but no side panels. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data
center application. The SR42UWEXP is also compatible with hot aisle/cold aisle configurations.
The SR42UWEXP houses 3000lbs of standard 19-inch rack equipment in 42U. Offers vendor-neutral square
hole/cage nut mounting for guaranteed compatibility with all EIA-310-E compliant 19" equipment. Its front and
rear pairs of vertical rails are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and
an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
Each rack space within the enclosure is numbered for ready reference. Two of these adjustable vertical mounting rails support toolless button-mount 0U
installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.
The top panel of the SR42UWEXP is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for
cable routing, and can be quickly removed without tools. To facilitate cable access, the SR42UWEXP is open-bottom.
All components of the SR42UWEXP are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility
earth ground. The removable front and rear doors feature quick-release ground wires.
To simplify deployment, the SR42UWEXP comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be
secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure
over long distances.
Features
Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters (casters are removable)
Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures
consistent rail placement without requiring time-consuming measurements.
Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting
Highlights
42U White SmartRack enclosure
with doors and NO side panels.
'EXP' version is an expansion
model for when several cabinets
are bayed together
4 interior vertical posts with
unthreaded square hole openings
Standard 24" (600mm) width and
42" (1050mm) depth for
optimizing floor space
Ships fully assembled
Massive front to rear ventilation
capacity
3000 lb stationary / 2250 lb rolling
load capacity
Locking, removable, reversible
front and rear doors
Rolls through standard 7 foot
doorway
Package Includes
SR42UWEXP
Keys
Mounting Hardware
Owners Manual
1 / 4
Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting
slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable
managers side-by-side (four items per enclosure).
Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws
Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.
Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements.
Maximum usable internal depth of 37 inches (front to rear rail).
Weight ratings of 3000 lb stationary and 2250 lb rolling.
Front door is locking, reversible and removable.
Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be placed closer
to a wall.
Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center
floor tiles.
Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable.
Compact design allows the enclosure to roll through standard height commercial doorways.
Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and
rear doors include quick-release ground wires.
Open bottom for cable access.
Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first.
Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack.
Compatibility with airflow optimization accessories as well as cable management accessories.
Specifications
PHYSICAL
Installed whole system maximum
rack depth (inches) 37
Installed whole system maximum
rack depth (cm) 94.0
Installed whole system minimum
rack depth (inches) 4
Installed whole system minimum
rack depth (cm) 10.16
Rack Height 42U
Shipping Dimensions (HWD/in) 85 x 26 x 45
Shipping weight (lbs) 245
Unit Dimensions (in.) EXTERNAL DIMENSIONS: 78.5 x 23.63 x 43 (HWD)
Unit weight (lbs) 209
Color White
Style Floor Standing
Weight Capacity - Stationary (lbs) 3000
2 / 4
Weight Capacity - Rolling (lbs) 2250
Units per Pallet 1
Factory preset rack depth (cm) 70.49
Factory preset rack depth (inches) 27.75
SPECIAL FEATURES
Grounding lug Front and Back door frames
CERTIFICATIONS
Certifications UL60950; RoHS; CE
NOM (Mexico) Tested to NOM (Mexico)
Approvals EIA/ECA-310-E
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
Related Items
Optional Products
Model Number Description Qty.
SRBOLTDOWN Bolt-Down Kit (Secures included stabilizing brackets or optional stabilizing plates to facility floor.) 1
SRCABLEDUCTVRT 6-ft. (1.8 m) Vertical Cable Manager (Double finger duct with cover; toolless mounting.) 1
SRCABLEDUCT1U 1U Horizontal Cable Manager (Finger duct with cover.) 1
SRCABLELADDER 10-ft. x 1-ft. (3 m x 0.3 m) Cable Ladder (Includes 2 sections; requires SRCABLETRAY or
SRLADDERATTACH) 1
SRCABLERINGVRT 6-ft. (1.8 m) Vertical Cable Manager (Flexible ring type; toolless mounting.) 1
SRCABLERING1U 1U Horizontal Cable Manager (Flexible ring type.) 1
SRCABLERING2U 2U Horizontal Cable Manager (Flexible ring type.) 1
SRCABLETRAY Roof-Mounted Cable Trough (Provides cable routing and power/data cable segregation.) 1
SRCABLETRAYEXP Roof-Mounted Cable Trough Vertical Expansion (Requires SRCABLETRAY.) 1
SRCAGENUTS Square Hole Hardware Kit (Includes 50 M6 screws and washers.) 1
SRCOMBO Door Handles with Combination Lock (2-pack for front and rear doors; includes bypass key.) 1
SRFANROOF Roof-Mounted Fan Panel, 120V (6 high-performance fans; 630 CFM; 5-15P plug; toolless
mounting) 1
SRFAN3U 3U Fan Panel, 120V (3 high-performance fans; 210 CFM; 5-15P plug.) 1
SRSHELF2P 2U Cantilever Fixed Shelf (60 lb / 27 kg capacity; 18-in. / 457 mm depth.) 1
SRSHELF4PHD Heavy-Duty Fixed Shelf (250 lb / 113 kg capacity; 26 in / 660 mm depth.) 1
3 / 4
SRSHELF4PKYBD Keyboard Shelf (25 lb / 11 kg capacity; 16-in. / 406 mm depth.) 1
SRSHELF4PSL Standard Sliding Shelf (50lb / 23 kg capacity; 28 1/4 in/ 660 mm depth.) 1
SRSHELF4PSLHD Heavy-Duty Sliding Shelf (200 lb / 91 kg capacity; 26 in / 660 mm depth.) 1
SRSTABILIZE Anti-Tip Stabilizing Plate Kit (Provides extra stability for standalone enclosures.) 1
SRSWITCH Magnetic Door Switch Kit for front and rear doors; requires ENVIROSENSE 1
SRXFANROOF Roof-Mounted Fan Panel, 208-240V (6 high-performance fans; 420 CFM; C14 inlet; toolless
mounting.) 1
SRXFAN3U 3U Fan Panel, 230V (3 high-performance fans; 315 CFM; C14 inlet.) 1
SR1UPANEL10 1U Blanking Panel Kit (10 pieces; toolless mounting.) 1
SR1UPANEL50 1U Blanking Panel Kit (50 pieces; toolless mounting.) 1
UPSHDEARKIT Heavy-Duty 2-post Front Mounting Ear Kit 1
SRCASTERHDKIT Heavy-Duty Rolling Caster Kit (includes 4 casters) 1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at:
http://www.tripplite.com/sku/SR42UWEXP.
© 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
