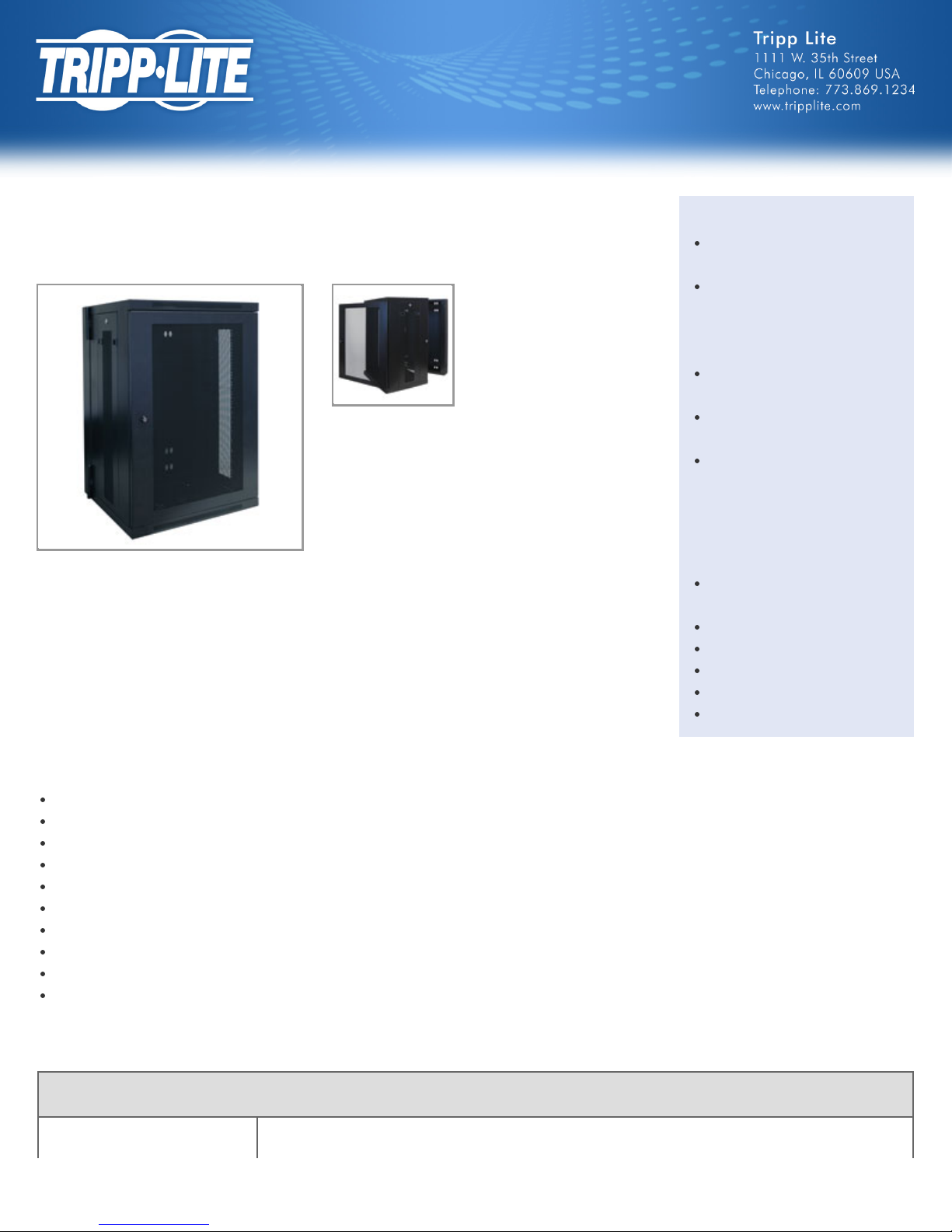

Tripp Lite SmartRack SRW18US Manuel utilisateur

SmartRack 18U Wall-Mount Rack Enclosure Cabinet

MODEL NUMBER: SRW18US

Description

The SRW18US 18U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy

equipment access, and cable management in IT network applications with limited floor space. Ventilated front

door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with

square mounting holes accommodate up to 18U of standard 19' rackmount equipment. Supports up to 250lbs of

equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away

from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for

cable routing.

Features

18U wall-mounted enclosure

Adjustable mounting depths from 3" to 20.5" inches

Heavy duty construction to handle added leverage

Ventilated front door and side panels for increased airflow

Hinged cabinet swings away from wall bracket for easy equipment and cable access

Locking, reversible front door

Locking, removable side panels

Top and bottom panel cable access openings

Fully assembled for quick installation

Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Specifications

PHYSICAL

Installed whole system maximum

rack depth (inches) 20.5

Highlights

18U with adjustable front and

rear vertical rackmount rails

Hinged cabinet swings away

from wall bracket for easy

equipment access (swing

direction is reversible)

Locking, reversible front door and

locking, removable side panels

Fully assembled for quick

installation

Meets all enclosure requirements

towards PCI DSS (Payment Card

Industry Data Security Standard)

Compliance

Package Includes

SRW18US Wallmount Rack

Enclosure

(42) M6 screws

(42) M6 cage nuts

(42) M6 washers

(2) Keys

Owner's Manual

1 / 3

Installed whole system maximum

rack depth (cm) 52.07

Installed whole system minimum

rack depth (inches) 3

Installed whole system minimum

rack depth (cm) 7.62

Rack Height 18U

Shipping Dimensions (HWD/in) 41.3 x 25.5 x 23.6

Shipping Dimensions (HWD/cm) 104.9 x 64.77 x 59.9

Shipping weight (lbs) 110

Shipping weight (kg) 49.9

Unit Dimensions (in.) EXTERNAL DIMENSIONS: 35.6 x 23.6 x 21.6 (HWD)

Unit weight (lbs) 96

Unit weight (kg) 43.54

Unit Dimensions (cm) EXTERNAL DIMENSIONS: 90.42 x 60 x 54.9 (HWD)

Color Black

Style Wall Mounted

Weight Capacity - Stationary (lbs) 250

Weight Capacity - Stationary (kg) 113.4

Factory preset rack depth (cm) 24.99

Cable Access Hole Measurement

(inches) 9.812 x 2.35 (l x w)

Factory preset rack depth (inches) 9.84

SPECIAL FEATURES

Grounding lug Front and Back door frames

CERTIFICATIONS

NOM (Mexico) Tested to NOM (Mexico)

Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHS

WARRANTY

Product Warranty Period (Worldwide) 5-year limited warranty

Related Items

Optional Products

Model Number Description Qty.

2 / 3

SRFANWM Wall-Mount Roof Fan Kit, 120V (2 high-performance fans; 5-15P plug) 1

SRFAN3U 3U Fan Panel, 120V (3 high-performance fans; 210 CFM; 5-15P plug.) 1

SRXFAN3U 3U Fan Panel, 230V (3 high-performance fans; 210 CFM; C14 inlet.) 1

SR1UPANEL10 1U Blanking Panel Kit (10 pieces; toolless mounting.) 1

SRCABLEDUCT1U 1U Horizontal Cable Manager (Finger duct with cover.) 1

SRCABLERING1U 1U Horizontal Cable Manager (Flexible ring type.) 1

SRCABLERING2U 2U Horizontal Cable Manager (Flexible ring type.) 1

SRSHELF2P1U 1U Cantilever Fixed Shelf (40 lb / 18 kg capacity; 12-in. / 305 mm depth.) 1

SRSWITCH Magnetic Door Switch Kit for front and rear doors; requires ENVIROSENSE 1

SRCAGENUTS Square Hole Hardware Kit (Includes 50 M6 screws and washers.) 1

SRCASTER Heavy-Duty Rolling Caster Kit (Includes 4 casters. Casters are included with 48/42/25U

enclosures.) 1

UPSHDEARKIT Heavy-Duty Mounting Ear Kit - Supports 2U cabinets up to 65 lb / 29 kg from front vertical rails in

4-post or 2-post racks and enclosures. ) 1

SRCABLEDUCT1UHD 1U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1

SRCABLEDUCT2UHD 2U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1

More information, including related products, owner's manuals, and additional technical specifications, can be found online at:

http://www.tripplite.com/sku/SRW18US.

Specifications are subject to change without notice. Photos may differ slightly from final products.

3 / 3
