Tripp Lite SmartRack SRW6U Manuel utilisateur

Specications

Model SRW6U

Rack Spaces 6U

Equipment Mounting Depth Up to 16.5 in (419 mm)

Load Rating* 200 lb (90.7 kg)

Unit Dimensions (H x W x D) 14.5 x 23.63 x 17.5 in (368 x 600.2 x 445 mm)

Shipping Dimensions (H x W x D) 17.5 x 26.5 x 20.5 in (445 x 673 x 521 mm)

Unit Weight 29 lb (13.2 kg)

Shipping Weight 32 lb (14.5 kg)

Standards Tested to EIA-310-E, IEC 60297-3-100, DIN 41494,

IP20, UL 60950, RoHS, PCI-DSS, NOM

* The load rating includes the combined weight of the unit and installed equipment. The unit must be

mounted to a stable surface with user-supplied anchors capable of bearing the full load. TrippLite

has a policy of continuous improvement. Specications are subject to change without notice.

MODEL:

SRW6U

SmartRack®Wall-Mount Rack Enclosure Cabinet

6 Rack Units 200 lb

Load Rating

Sturdy Steel

Construction

Locking Doors

& Side Panels

Standard

19” Rack Width

Convenient

Cable Access

Adjustable

Mounting Rails

Ventilated for

Ample Airow

Reversible

Cabinet

Square Hole

Mounting

• Wall-mountenclosuresprovideconvenient,locking

storage for rackmount IT devices and other equipment

that should be o the oor, out of the way and secure

• Thecabinetisfullyreversible,allowinginstallers

to change door hinges from left to right by simply

rotating the unit 180 degrees before mounting

SEE NEXT PAGE FOR DETAILED UNIT MEASUREMENTS

AFront Door

(Lockable/Removable/Reversible)

B Adjustable Mounting Rails (2)

CSide Panels (2)

(Lockable/Removable)

DMounting Plate

(Removable. Includes mounting

hooks for cabinet.)

ECable Access Port Covers (2)

(Removable)

FVentilation Fan Ports (4)

(Support optional SRFANWM fan kit.)

GKeys (2)

Also Includes: Owner’s manual, mounting

plate screws (3), cabinet ground screw, pre-

installed front door ground wire and rackmount

equipment mounting hardware (12 cage nuts,

12 mounting screws, 12 nylon cup washers).

1111 W. 35th Street

Chicago, IL 60609 USA

773.869.1234

www.tripplite.com

6U EIA

310-E

200

Floor-Standing Installation: Optional SRCASTER

kit adapts cabinet to roll under desks, tables or

counters. (Kit includes 4 casters.)

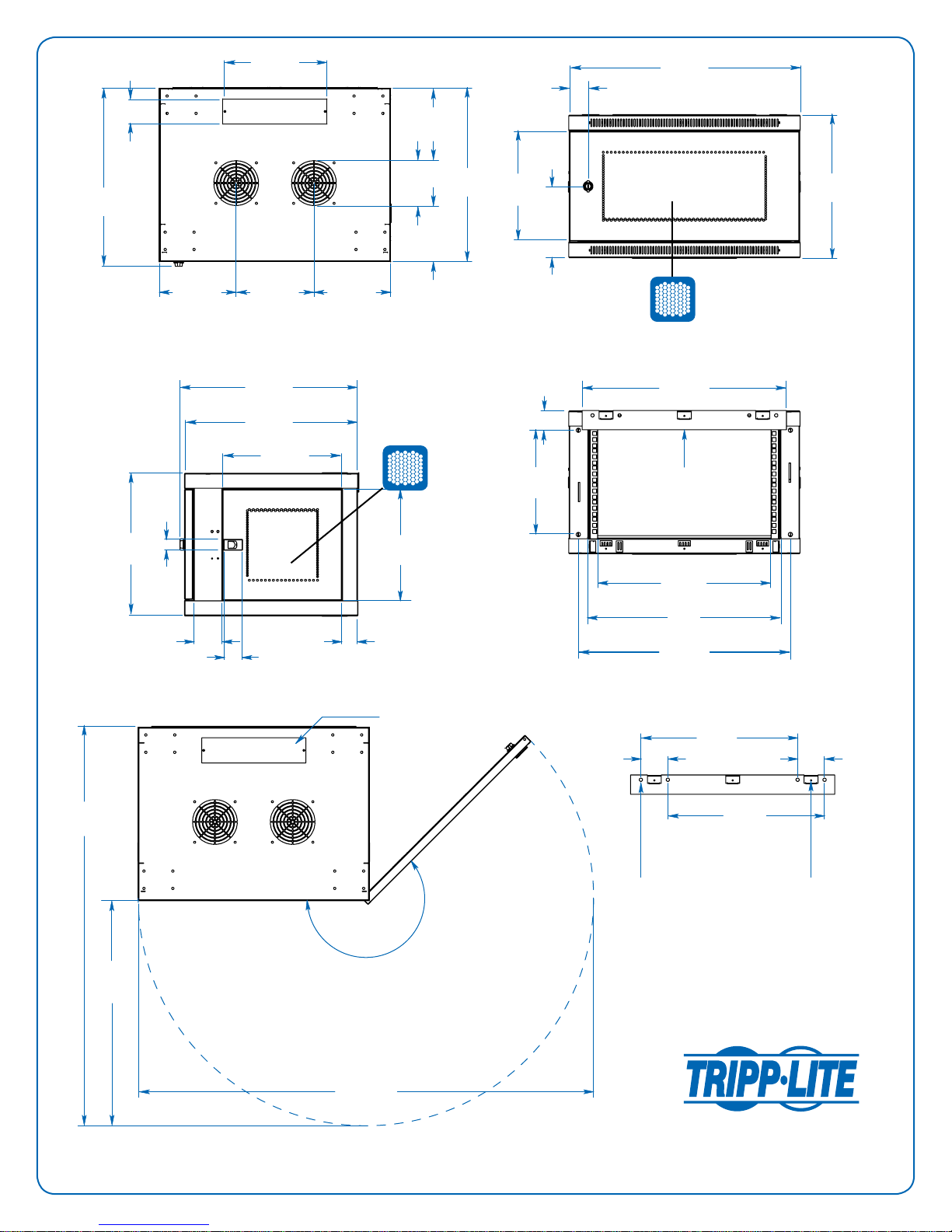

TOP/BOTTOMVIEW

SIDEVIEW

TOPVIEW

225º

REARVIEW (FRONTDOOR NOTSHOWN)

MOUNTINGPLATE

FRONTVIEW

[270]

10.63

[65]

2.56

[116]

4.56

[189]

7.44

[146]

5.76

[450]

17.72

[462]

18.20

[447]

17.61

[306]

12.06

[459]

18.06 [530]

20.87

[550]

21.65

[500]

19.71

[455]

17.91

[600]

23.63

[49]

1.92

[202]

7.94

[197]

7.75 [197]

7.75

[368]

14.48 [26]

1.02

[48]

1.89

[71]

2.80

[284]

11.19

[270]

10.64

[50]

1.97

[1038]

40.88

[585]

23.04

[37]

1.46

[70]

2.75

[406]

16.00 [70]

2.75

[406]

16.00

[1181]

46.53

[369]

14.53

[281]

11.08

[186]

7.31

MOUNTINGPLATE

(SEE BELOW)

CABLEACCESS

USER-SUPPLIED

M8OR 5/16”

BOLTSANCHOR

PLATETO WALL

INCLUDED

SCREWS

SECURE

HOOKSTO

CABINET

Dimensions: [mm] INCHES

Tripp Lite has a policy of continuous improvement. Specications are subject to change without notice.

MODEL:

SRW6U

1111 W. 35th Street

Chicago, IL 60609 USA

773.869.1234

www.tripplite.com
