Installation Guide
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2019 Tripp Lite. All rights reserved.
Español 7 • Français 13 • Русский 19
NEMA-4 Plastic Wi-Fi Access
Point Enclosure
Model: EN1309N4
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
surge protector in our monthly drawing!
tripplite.com/warranty
2

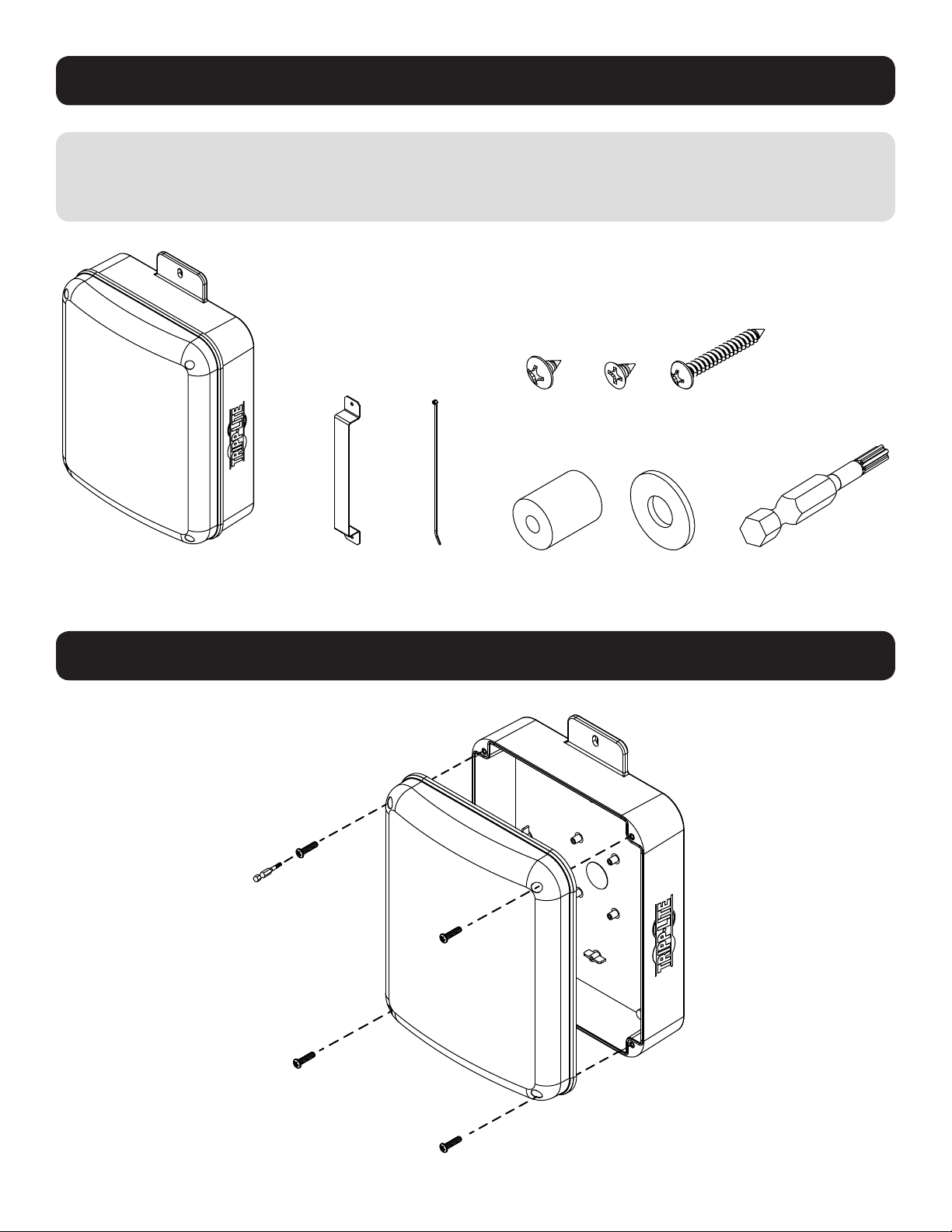

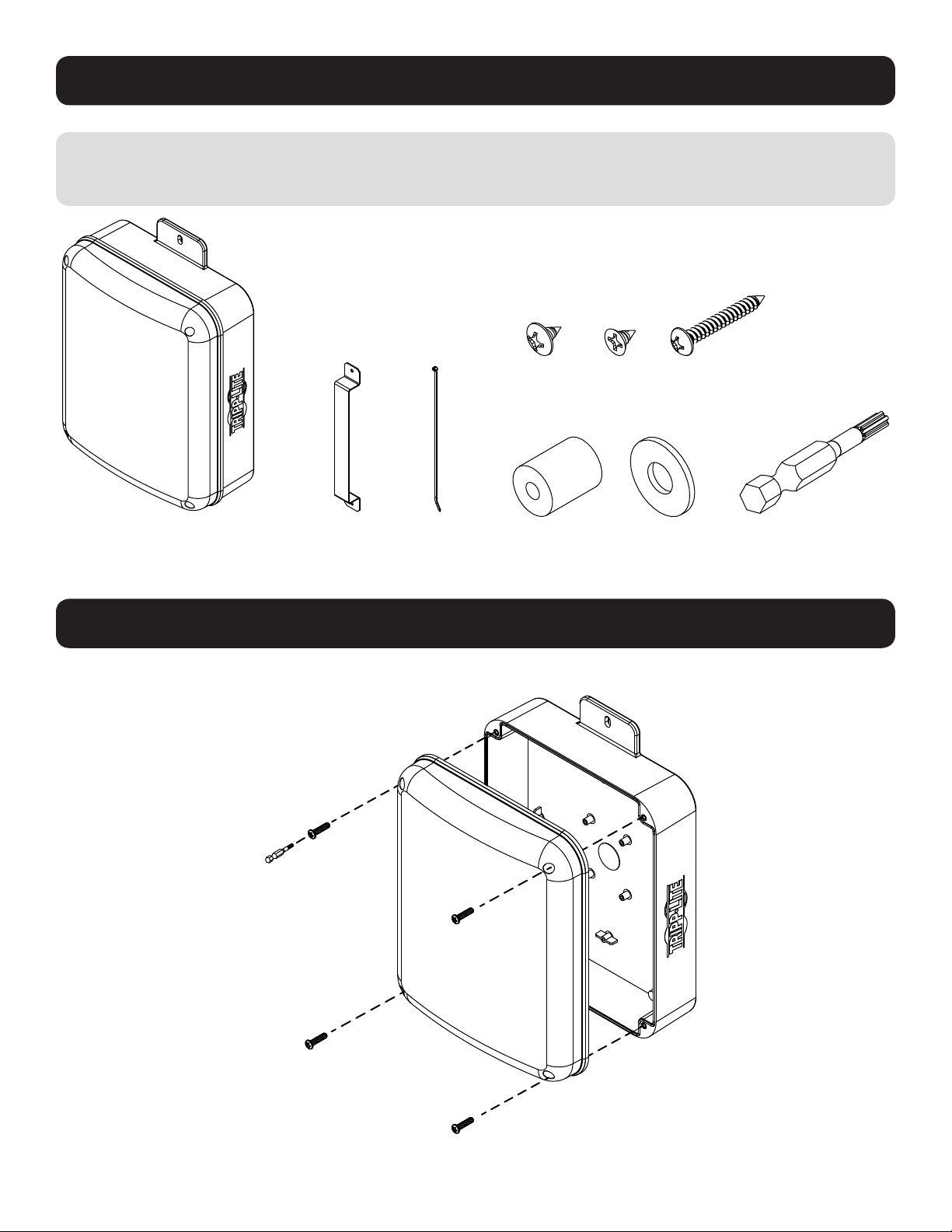

Components List
Installation
IMPORTANT:
Ensure you have received all parts according to the component checklist prior to installing. If any parts are
missing or faulty, visit tripplite.com/support for service.
x1
x4 x4 x2
Security Torx Bit x1x2 x4x1 x1
1. Remove Enclosure Cover
3
Installation
• Installers are responsible for providing wall-mounting hardware. Use a minimum of two #10 x 2” or larger screws (not
included) to secure the enclosure in place.
• Make sure mounting screws are anchored into the center of the studs. Use of a stud finder is highly recommended.
• If there is no stud at the mounting location, it is recommended you use anchors to secure the enclosure in place. Due
to the weight of the enclosure, plastic expansion wall anchors are not recommended for drywall installations. Suitable
anchors include: threaded drywall anchors, threaded drywall toggles, sleeve-type hollow wall anchors (a.k.a. molly bolts)
or toggle bolts.
• If placing the enclosure over a telecommunications receptacle, remove the wall plate, then fasten the enclosure to the
wall. Once secured, fasten the wall plate over the receptacle.
• If no telecommunications receptacle is available, a surface mount box (or biscuit jack) and equipment cord can be
mounted inside the unit.
• Use an adhesive-backed surface mount box.

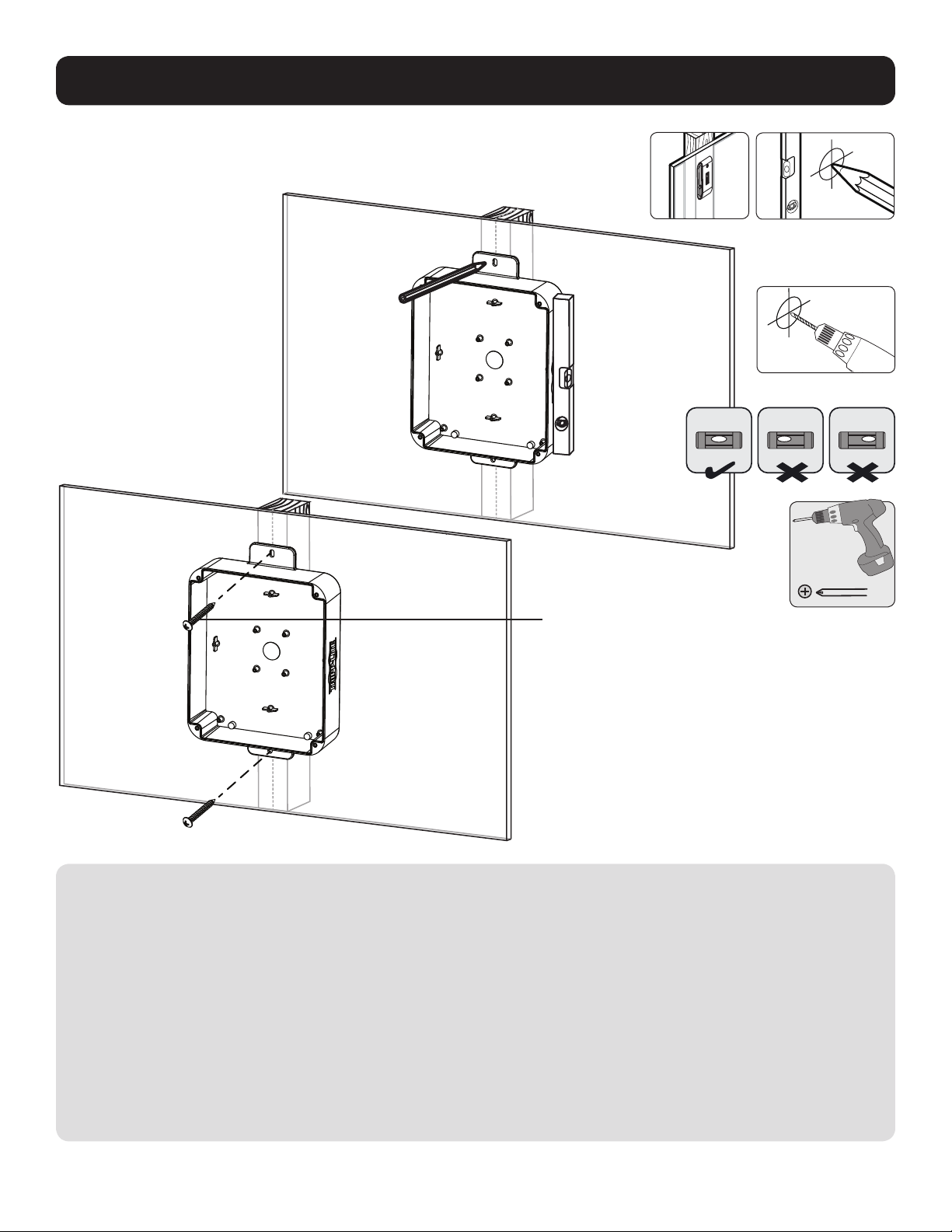

2. Mount Enclosure to Wall
Mark the exact
location of the
mounting holes
Attach the
enclosure onto
the wall
Drill pilot holes
Find a wood stud
location for mounting
the enclosure
(Mounting Hardware
Not Included)
4
Installation

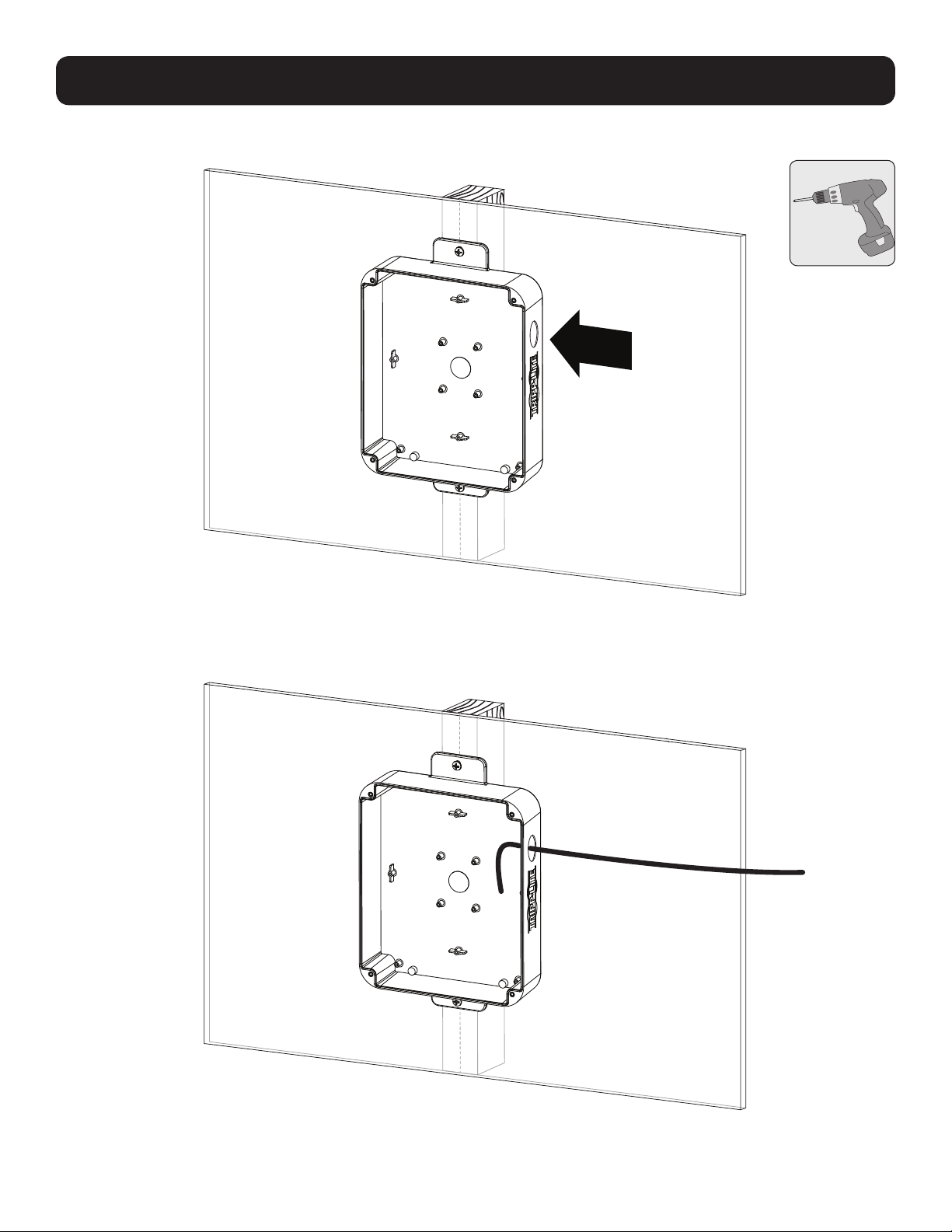

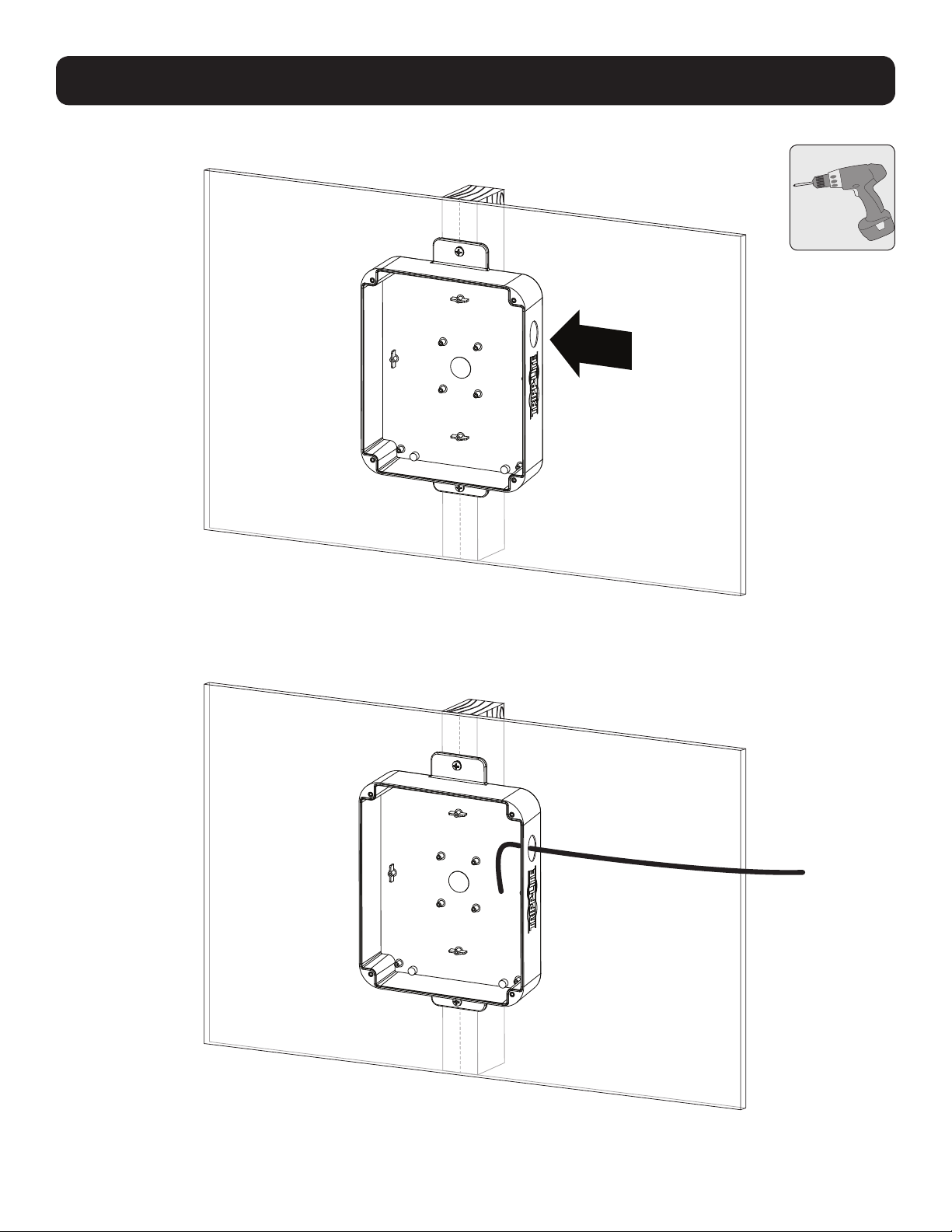

3. Use a Drill to Create a Rear or Side Conduit Cutout
4. Run Data and Power Cable (If Required) Through the Conduit Cutout
Note: To maintain a NEMA
rating, use sealed fittings in
the cutouts when connecting
to conduit.
5
Installation

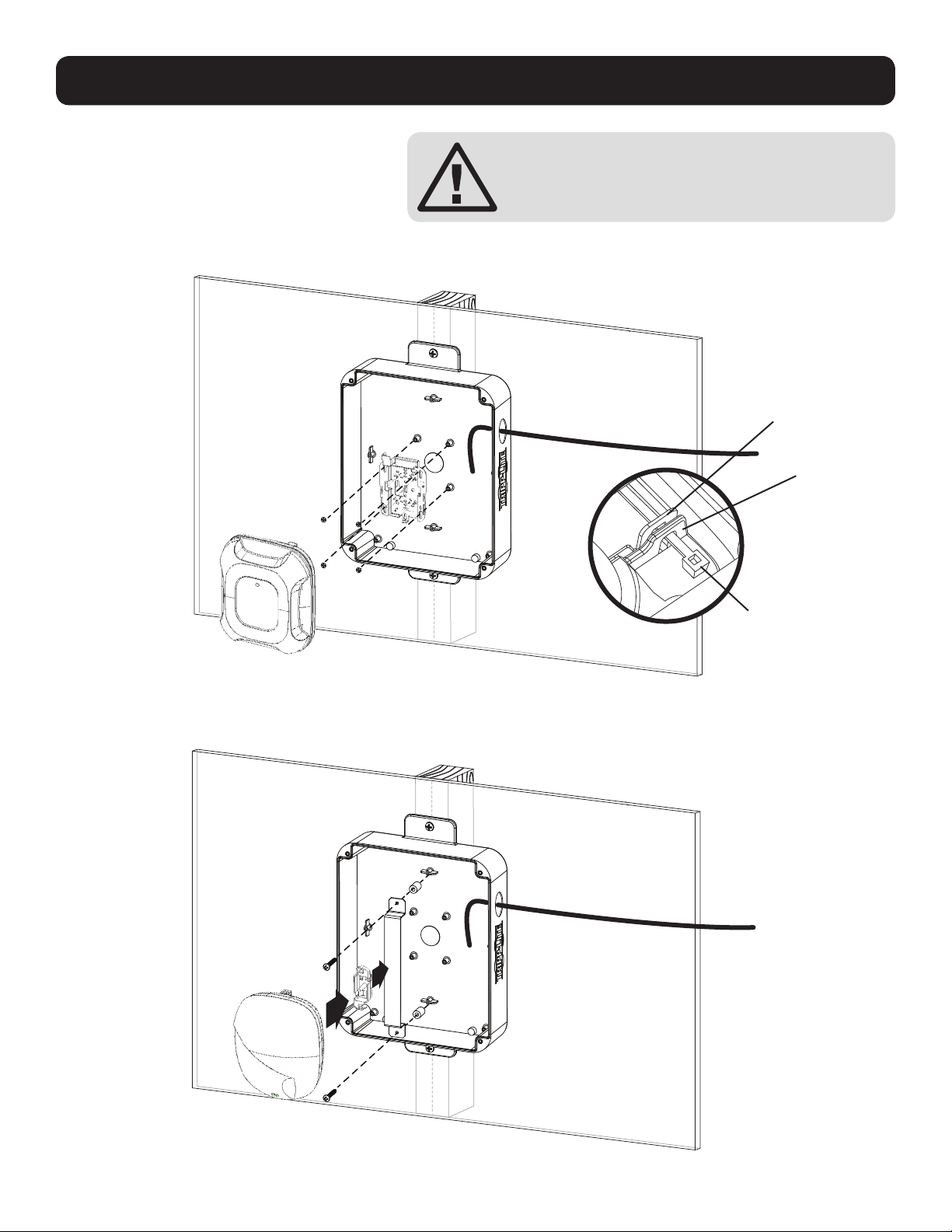

5. Using the Provided Screws,
Attach the Access Point
5a. Cisco Universal Bracket (AIR-AP-BRACKET-2)* Installation
5b. Aruba or Other T-Bar Mounted Access Point Installation
IMPORTANT:
Attach all data and power cables to the access
point prior to attaching to the enclosure.
AIR-AP-BRACKET-2
Security Tab
Access Point
Security Tab
Zip Tie
(Included)
* Cisco brackets not included.
6
Installation
Warranty and Product Registration

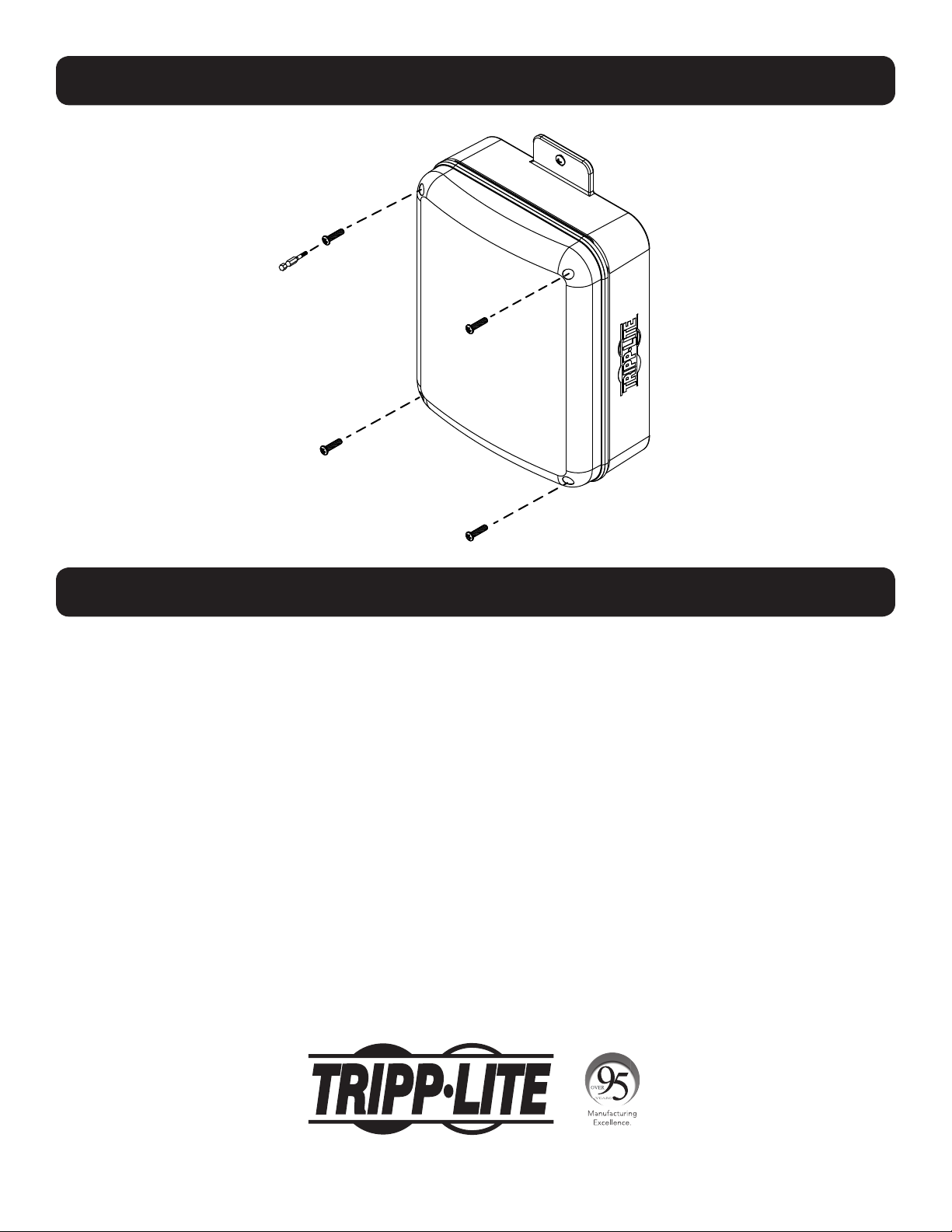

6. Reattach the Enclosure Cover
Note: Tighten screws to 8 in.•lb. torque
(0.9 n•m) using the Security Torx Bit to
properly seal the enclosure.
5-year Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and
workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within
that period, Seller will repair or replace the product, in its sole discretion.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER
MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION
TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL
DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you
specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).
WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use
intended. Since individual applications are subject to great variation , the manufacturer makes no representation or warranty as to the
suitability or fitness of these devices for any specific application.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a
FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ
slightly from actual products.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
19-09-375 93-37F7_RevC
7
Guía de Instalación
1111 W. 35th Street, Chicago, IL 60609, EE. UU. • tripplite.com/support
Copyright © 2019 Tripp Lite. Todos los derechos reservados.
English 1 • Français 13 • Русский 19
Gabinete de Plástico NEMA-4
para Punto de Acceso Wi-Fi
Modelo: EN1309N4
8
Lista de Componentes
Instalación
IMPORTANTE:
Antes de proceder a instalar, asegúrese de haber recibido todas las partes de acuerdo con la lista de
comprobación de componentes. Si faltase cualquier parte o estuviese dañada, visite tripplite.com/support para
solicitar servicio.
1. Retire la Cubierta del Gabinete
x1
x4 x4 x2
Punta Torx de Seguridad x1x2 x4x1 x1
9
Instalación
• Los instaladores son responsables de suministrar los accesorios para instalación en la pared. Use un mínimo de dos
tornillos #10 x 2" o más grandes (no incluidos) para fijar el gabinete en su lugar.
• Cerciórese que los tornillos de instalación estén anclados en el centro de los travesaños. Es muy recomendable usar un
detector de travesaños.
• Si no hay algún travesaño en el lugar de instalación, se recomienda que utilice taquetes para fijar el gabinete en
su lugar. Debido al peso del gabinete, no se recomiendan taquetes de expansión de plástico para instalaciones en
tablarroca. Los taquetes adecuados incluyen: taquetes roscados para tablarroca, tornillos roscados tipo mariposa para
tablarroca, taquetes expansivos (también conocidos como tornillos molly) o tornillos de anclaje.
• Si coloca el gabinete sobre un receptáculo de telecomunicaciones, retire la placa de pared, luego fije el gabinete a la
pared. Una vez asegurado, fije la placa de pared sobre el receptáculo.
• Si no está disponible un receptáculo de telecomunicaciones, una caja de instalación sobre superficie (o conector sobre
superficie) y un cable de equipo pueden ser instalados dentro de la unidad.
• Use una caja de instalación sobre superficie con respaldo adhesivo.
2. Instalación del Gabinete a la Pared
Marque la posición
exacta de los orificios
de instalación
Coloque el
gabinete sobre
la pared
Perfore los orificios
piloto
Localice un punto
en el travesaño
de madera para
la instalación del
gabinete
(No Incluye
Accesorios de
Instalación)
10
Instalación
3. Utilice un Taladro para Crear un Recorte para Conducto Posterior o Lateral
4. Conduzca el Cable de Datos y Alimentación (Si se Requiere) A Través del
Recorte para el Conducto
Nota: Para mantener una
especificación NEMA, utilice
accesorios sellados en
los recortes al conectar a
conductos.
