Quick Installation Guide
TEW-690AP
1.01
Table of Contents
Version 11.09.2010
English 1
1. Before You Start
2. Hardware Installation 2
1
Troubleshooting 7
Wireless Tips 8
1. Before You Start
Ÿ
ŸA computer with a network adapter or wireless adapter properly installed.
ŸA router with an available network LAN port.
ŸAn available DHCP Server – routers usually have a built-in DHCP server.
Web Browser: Internet Explorer (6 or higher).
Package Contents
Ÿ
ŸMulti-Language Quick Installation Guide
ŸCD-ROM (Utility and User's Guide)
ŸPower Adapter (12V DC, 0.5A)
ŸCat. 5 Ethernet Cable (0.6m/2ft.)
TEW-690AP
System Requirements
1
2. Hardware Installation
2
1. Insert Utility CD-ROM into your computer's
CD-ROM drive.
Note:
1. Locate an optimum location for the Access Point. The best place for the Access Point
is usually at the center of your wireless network.
2. Disable any anti-virus and firewall programs before starting hardware installation.
2. Click Run Setup.exe (Windows 7/Vista only)
4. Click I accept the terms in the License
Agreement and then click Next.
5. Connect the provided RJ-45 cable from a LAN
port on your Router to the LAN port on the
TEW-690AP. Then click Next.
For Windows Users
3. Click Setup Wizard.
3

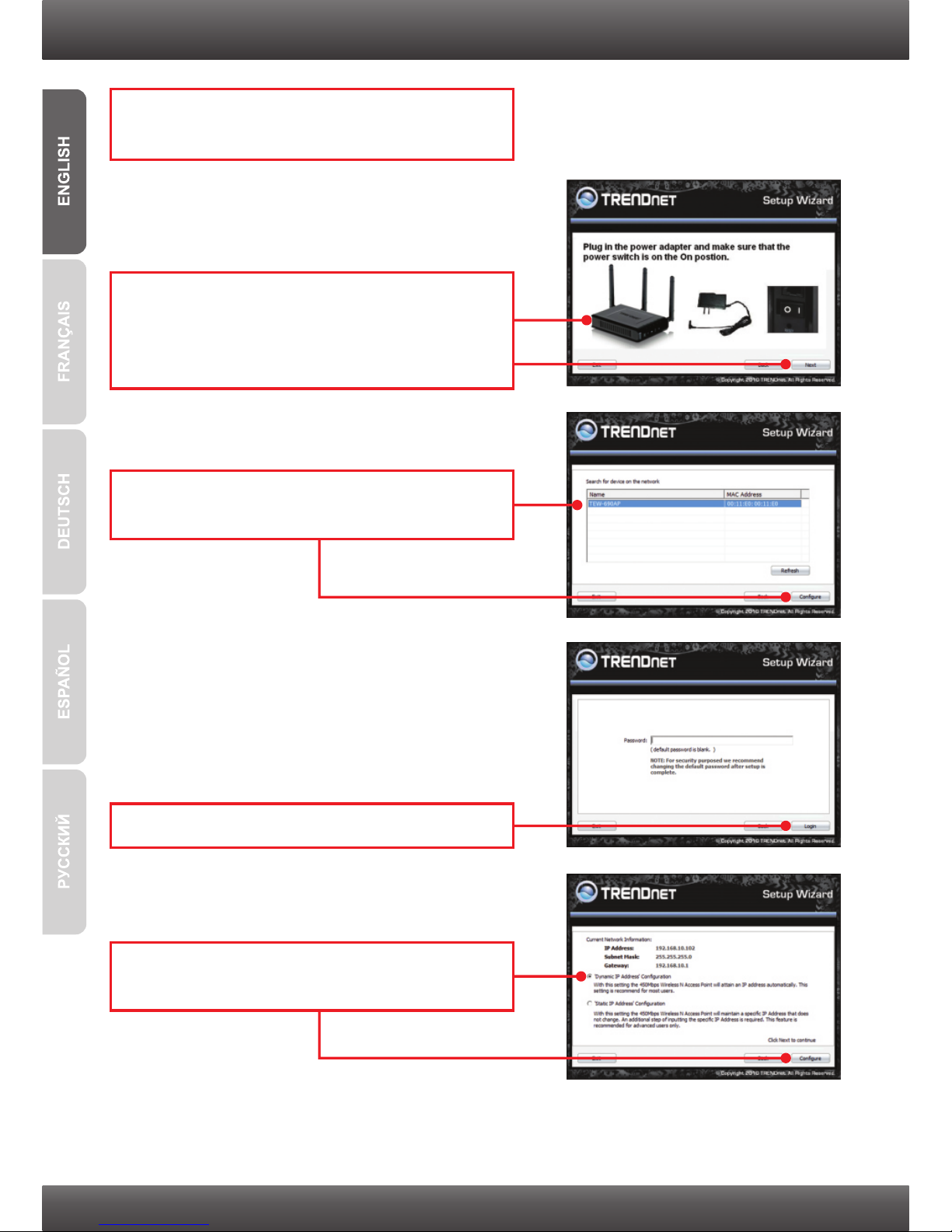

6. Connect a RJ-45 cable from a LAN port on your
Router to the Ethernet port on your computer.
7. Connect the Power Adapter to the Access Point
and then to a power outlet. Verify that the
power switch is set to the on position
(EU version only). Then click Next.
8. Select the TEW-690AP from the list and then
click Configure.
9. By default, there is no password. Click Login
10. Select Dynamic IP Address Configuration
and then click Configure.
4
12. Enter a SSID (Wireless Network Name) and
then click Next. By default, the SSID is
TRENDnet690.
13. Select the desired Wireless Mode and then
click Next.
14. Select a Security Mode and then click Next.
(example shows WPA-PSK).
11. Select Manual Setup and then click Next.
5
15. Select the desired WPA mode, enter
characters for your Pre-Shared key and then
click Next. For WPA-PSK or WPA2-PSK, the
Pre-Shared Key must be between 8 and 63
ASCII or 64 HEX characters. Make sure to
copy down the Pre-Shared Key.
16. Click Save (optional). This saves your
configuration settings in a file, which can be
reloaded when needed.
18. Click Configure to apply the settings.
17. Give the file a name, then click Save.
Note:
1. To protect your network from any unauthorized access it is recommended to enable wireless
encryption.
2. The fexample below is for WPA2-PSK security. If you select WPA-PSK or WPA2-PSK, make
sure your wireless adapters support WPA or WPA2. If your wireless adapters do not support
WPA or WPA2, then select WEP.
6
19. Click Exit.
20. Click Yes to exit.
Note:
To connect a wireless computer to the TEW-690AP, please refer to the first question in the
troubleshooting section.
Your installation is now complete
For detailed information regarding the TEW-690AP, configuration and advanced settings,
please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or
TRENDnet's website at http://www.trendnet.com.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
21. Connect the 2dBi detachable antennas to the
TEW-690AP.
1. All the settings are correct, but I can not make a wireless connection to the Access Point.
1. Double check that the wireless LED on the Access Point is lit.
2. Power cycle the Access Point. Unplug the power to the Access Point. Wait 15 seconds, then
plug the power back in.
3. Contact the manufacturer of your wireless network adapter. Make sure the wireless network
adapter is configured with the proper SSID. The default SSID of the Access Point is
TRENDnet690AP. If you have enabled any encryption on the Access Point, make sure to
configure the wireless network adapter with the same security key.
2. I am trying to connect additional wireless adapters, but I don't remember the encryption
(network) key. What should I do?
From a wired computer, log on to the access point configuration page. Click Wireless Ž Security.
The encryption key will be listed here.
3. I have a wireless adapter that supports WiFi Protected Setup (WPS) push button setup. How do
I setup WPS between the TEW-690AP and my wireless adapter?
1. Press on the WPS button on the front of the TEW-690AP for 10 seconds.
2. Refer to your wireless adapters for instructions on setting up WPS.
4. I inserted the Utility CD-ROM into my computer's CD-ROM Drive but the installation menu does
not appear automatically. What should I do?
1. For Windows 7, if the installation menu does not appear automatically, click on the Windows
Icon on the bottom left hand corner of the screen, click the “Search programs and files” box,
and type D:\Setup.exe, where “D” in “D:\Setup.exe” is the letter assigned to your CD-ROM
Drive, and then press the ENTER key on your keyboard
2. For Windows Vista, if the installation menu does not appear automatically, click on the Windows
Icon on the bottom left hand corner of the screen, click on the “Start Search” box, and
type D:\Setup.exe, where “D” in “D:\Setup.exe” is the letter assigned to your CD-ROM Drive,
and then press the ENTER key on your keyboard.
3. For Windows XP/2000 if the window does not appear automatically, click Start, click Run and
type D:\Setup.exe where “D” in “D:\Setup.exe” is the letter assigned to your CD-ROM Drive, and
then press the ENTER key on your keyboard.
5. I do not have a DHCP server or DHCP is disabled on my network and I am unable to configure
the TEW-690AP. What should I do?
1. Go to the TCP/IP settings on your computer and assign a static IP address on your computer's
network adapter in the subnet of 192.168.10.x. Since the default IP address of the TEW-690AP
is 192.168.10.100, do not assign a static IP address of 192.168.10.100 on your computer's
network adapter.
2. Open Internet Explorer and enter http://192.168.10.100 into the address bar. The default
user name is admin. By default, there is no password.
6. I followed the Quick Installation Guide and setup a new password. When I log in to the browser
configuration an access error message appears. What should I do?
With a pin or paperclip, press and hold the reset button for 10 second and release it. The default
user name is admin. By default, there is no password.
If you still encounter problems or have any questions regarding the TEW-690AP, please contact
TRENDnet's Technical Support Department.
Troubleshooting
7
8
The following are some general wireless tips to help minimize the impact of interference within an
environment.
Assign your network a unique SSID. Do not use anything that would be identifying like “Smith
Family Network”. Choose something that you would easily identify when searching for available
wireless networks.
Do not turn off the SSID broadcast. The SSID broadcast is intended to be on and turning it off can
cause connectivity issues. The preferred method of securing a wireless network is to choose a
strong form of encryption with a strong and varied encryption key.
Change the channel. Most wireless access points and routers are defaulted to channel 6. If you
have a site survey tool that will display the channels you can plan your channel selection around
neighboring access points to minimize interference from them. If your site survey tool does not
display the channel try using channels 1 or 11.
If using 802.11n you should be securing the network with WPA2 security.
Please also make sure that the wireless hardware is not placed in any type of shelving or
enclosures.
Avoid stacking hardware on top of each other to prevent overheating issues. Maintain enough free
space around the hardware for good ventilation and airflow. There should also be plenty of free
space around the antennas to allow the wireless signal to propagate.
There are a number of other environmental factors that can impact the range of wireless devices.
1. Adjust your wireless devices so that the signal is traveling in a straight path, rather than at
an angle. The more material the signal has to pass through the more signal you will lose.
2. Keep the number of obstructions to a minimum. Each obstruction can reduce the range of
a wireless device. Position the wireless devices in a manner that will minimize the
amount of obstructions between them.
Note: after setting up the SSID, encryption type and encryption key/passphrase, please make a
note of them for future reference. You will need this information to connect your wireless computers
to the wireless router/access point.
Note: Due to Wi-Fi certification considerations if you choose WEP, WPA or WPA2-TKIP encryption
this device may operate in legacy wireless mode (802.11b/g). You may not get 802.11n
performance as these forms of encryption are not supported by the 802.11n specification.
Wireless Tips
