TRENDnet TEW-610APB Manuel utilisateur

TRENDnet

TRENDware, USA

What's Next in Networking

TEW-610APB

Version 8.19.2005

Quick Installation Guide

Table of Contents

English ......................................................................................................

Troubleshooting...........................................................................................

1. Prepare for Installation ......................................................................

2. Install Hardware ................................................................................

3. Configure TCP/IP Settings ................................................................

4. Configure the Access Point ...............................................................

5. Configure your Wireless Network Adapter ........................................

Thank you for purchasing TRENDnet's TEW-610APB 108Mbps 802.11g MIMO

Wireless Access Point.

This guide will help you set-up your Access Point quickly and easily. Just follow

the step-by-step instructions below, and enjoy the benefits of accessing the

Internet/network without ever being tied down to wires! If you run into

problems, please refer to the Troubleshooting section. If you need further

technical support, please visit www.TRENDNET.com or call technical support

by phone.

Verify Equipment

Before setting up the Access Point, you should have:

1. A Computer with a Wired (RJ45) or Wireless network card.

2. TCP/IP protocol installed on the Computer.

3. A Web Browser such as Internet Explorer (5.0 or higher) or

Netscape Navigator (4.7 or higher).

4. A Hub or Switch connecting your existing wired network.

5. An RJ-45 Network Cable for connecting the Access Point to your

network Switch.

Verify Package Contents

Please make sure you have everything in the box:

External Power Adapter 1.5M RJ45 cable

CD-ROM (User’s Guide)

Quick Installation Guide

TEW-610APB

1. Prepare for Installation

English QIG

English

TRENDnet

TRENDware,USA

What's Next in Networking

TEW-610APB

Version 8.19.2005

Quick Installation Guide

1. Locate an optimum location for the Access Point. The best place for the

Access Point is usually at the center of your wireless network.

2. Connect the RJ-45 network cable to the Access Point, then connect the

other end of the network cable to a Switch or Hub. The Access Point is now

connected to your 10/100Mbps network.

3. Connect the power adapter to the Access Point. Make sure you use the

power adapter supplied with the Access Point; using a different power

adapter may damage the unit.

2. Install Hardware

Make sure the front panel lights are on: Power, LAN, MIMO.

Verify Hardware Installation

NOTE: If you are using a wired computer to configure the Access Point,

please connect this computer to the same Switch or Hub the

TEW-610APB is connected to.

POWER MIMO

LAN

TEW-610APB

English

3. Configure TCP/IP Settings

Before the Access Point can be accessed and configured, the computer's

TCP/IP settings need to be changed. (That includes your wireless card's IP

address, too.)

English

Windows 2000/XP

1. Find the Start button located on the Desktop.

2. Click Start, and click on Control Panel. For Windows 2000, click Start,

highlight Settings, and click Control Panel.

3. Double-Click the Network Connection icon.

4. Right-Click on the Local Area Connection icon, then click on Properties.

The Local Area Connection Properties box will appear.

5. Under the General tab, locate and select Internet Protocol TCP/IP and

then click Properties. The Internet Protocol (TCP/IP) Properties box will

appear.

6. Click on Use the following IP address. Enter 192.168.0.50 for IP address

and 255.255.255.0 for Subnet, and click OK.

8. Your computer is now ready to access and configure the Access Point.

7. Click OK.

English

4. Configure the Access Point

From a Wired Computer

http://192.168.0.100 at the address bar, then press the Enter key. Type

admin for username, and type admin for your password. Click OK.

Open a web browser (Internet Explorer or Netscape) and enter

English

2. Click admin and scroll down to the IP Settings section. Change the default

IP address, subnet mask, and default gateway to match your current

network settings. Your default gateway's IP address should be your router's

IP Address. Type your router's IP address for your default gateway address.

Click Save.

3. Click Reboot.

6English

5. Configure your Wireless Network

Adapter

In this example, the TEW-601PC Wireless Utility will connect to the

TEW-610APB.

1. Double-click the wireless computer icon in your system tray (next to the

clock in the bottom right corner of your screen).

2. Click Site Survey, click Refresh, and select the desired access point. Click

Connect.

3. Click OK.

4. Please verify your connection status.

Congratulations! Installation is now complete.

Troubleshooting

Q1:

A1:

Q2:

A2:

Q3.

A3:

Q4.

A4:

I specified the IP address http://192.168.0.100 in my Internet browser's

address bar, but error message says "The page cannot be displayed". How can I

get into the TEW-610APB's web configuration page?

Please check your hardware and TCP/IP settings again by following the

instructions sections 1~3, make sure the Power, LAN, MIMO on the Access

Point's front panel are on and the TCP/IP configurations are correct. then try

accessing http://192.168.0.100 again.

If my network's IP is different than the Access Point's range, what should I

do?

You should still configure the access point first. After all the settings are applied,

go to the Access Point's configuration page, click on TCP/IP settings and change an

IP address for the Access Point to match your network's IP.

After I successfully configured the Access Point to meet my network settings,

I cannot connecting to my network using wireless computers.

If you have a DHCP server in your network, you need to go into TCP/IP

settings again and re-select "Obtain an IP automatically" for Windows 98/ME and

"Obtain an IP Address automatically" for Windows 2000/XP to allow the PC to

regain an IP address from your DHCP server.

All the settings are set correctly, but I still can't use the Access Point, what

should I do?

You can find additional information in the User's Guide. If you still have

Problems, contact our Technical Support by email or phone.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received.

Including interference that may cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

TRENDnet

TRENDware, USA

What's Next in Networking

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDware’s website at http://www.TRENDNET.com

TRENDware International, Inc.

3135 Kashiwa Street. Torrance, CA 90505

http://www.TRENDNET.com

TRENDnet Technical Support

Contact

Telephone:

Fax:

Email:

1(310) 626-6252

1(310) 626-6267

[email protected]

Tech Support Hours

7:30am - 6:00pm Pacific Standard Time

Monday - Friday

Tech Support Hours

Telephone

Fax:

Deutsch :+49 (0) 6331 / 268-460

Français :+49 (0) 6331 / 268-461

08-00-90-71-61 (numéro vert)

Español :+49 (0) 6331 / 268-462

English :+49 (0) 6331 / 268-463

Italiano :+49 (0) 6331 / 268-464

Dutch :+49 (0) 6331 / 268-465

+49 (0) 6331 / 268-466

8:00am - 6:00pm Middle European Time

Monday - Friday

US/Canada Support Center European Support Center

Contact

Autres manuels pour TEW-610APB

Table des matières

Autres manuels TRENDnet Point d'accès sans fil

TRENDnet

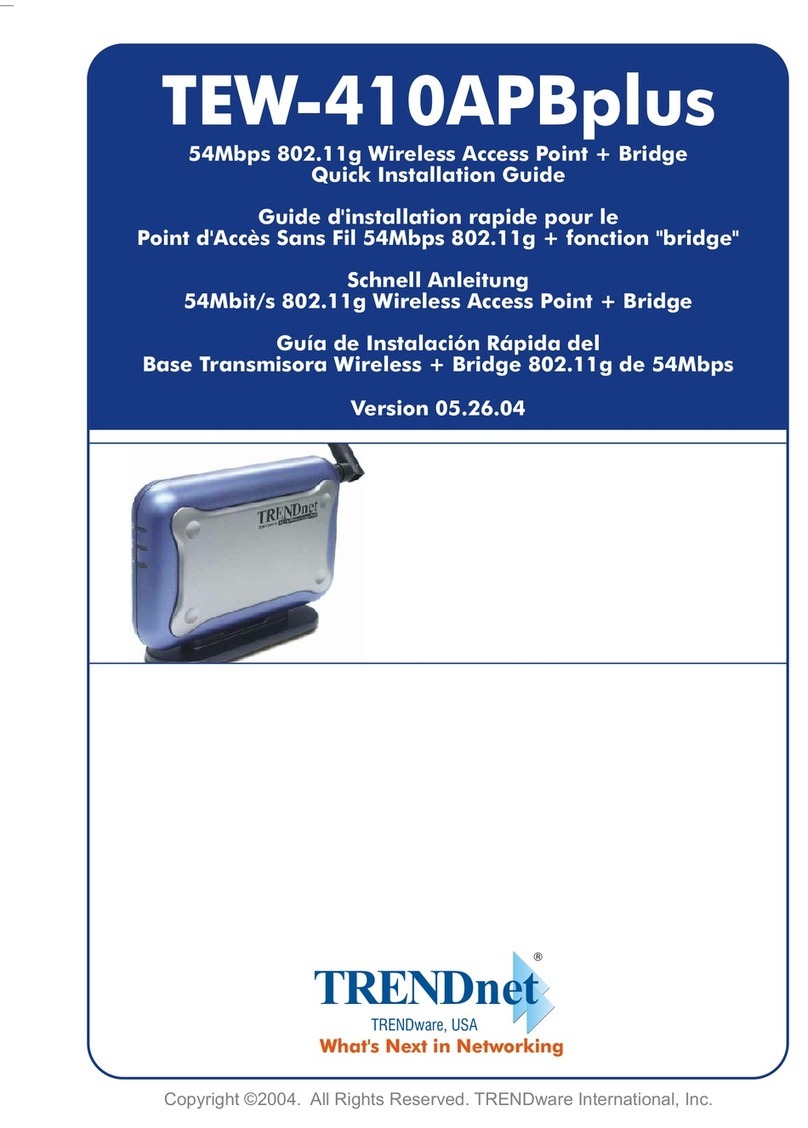

TRENDnet TEW-410APBplus Manuel utilisateur
