TRENDnet TK-204UK - DVI USB KVM Switch Manuel utilisateur

TK-204UK

H/W: V1.0R

Quick Installation Guide

Specifications ............................................................................................

Troubleshooting .........................................................................................

English .....................................................................................................

1. Before You Start

2. How to Install .....................................................................................

3. Operation ...........................................................................................

4. Using the KVM Utility ..........................................................................

................................................................................

System Requirements

?TK-204UK

?Utility and User Guide CD-ROM

?Quick Installation Guide

?AC Power Adapter (5V DC, 2A)

?2 sets of DVI Audio KVM Cables

?2 sets of Type A to Type B USB

Cables

Package Contents

Application

?USB Keyboard

?USB Mouse

?DVI Monitor

?PC with DVI port

?Speakers (optional)

?Microphone (optional)

?Windows 98SE/ME/2000/XP/2003 Server/Vista, Linux, Mac.

English

1. Before You Start

PC 1 PC 2

2-Port DVI USB KVM Switch

with Audio Kit

(TK-204UK)

Monitor USB

Keyboard

USB

Mouse

Microphone

Speakers

KVM USB DVI

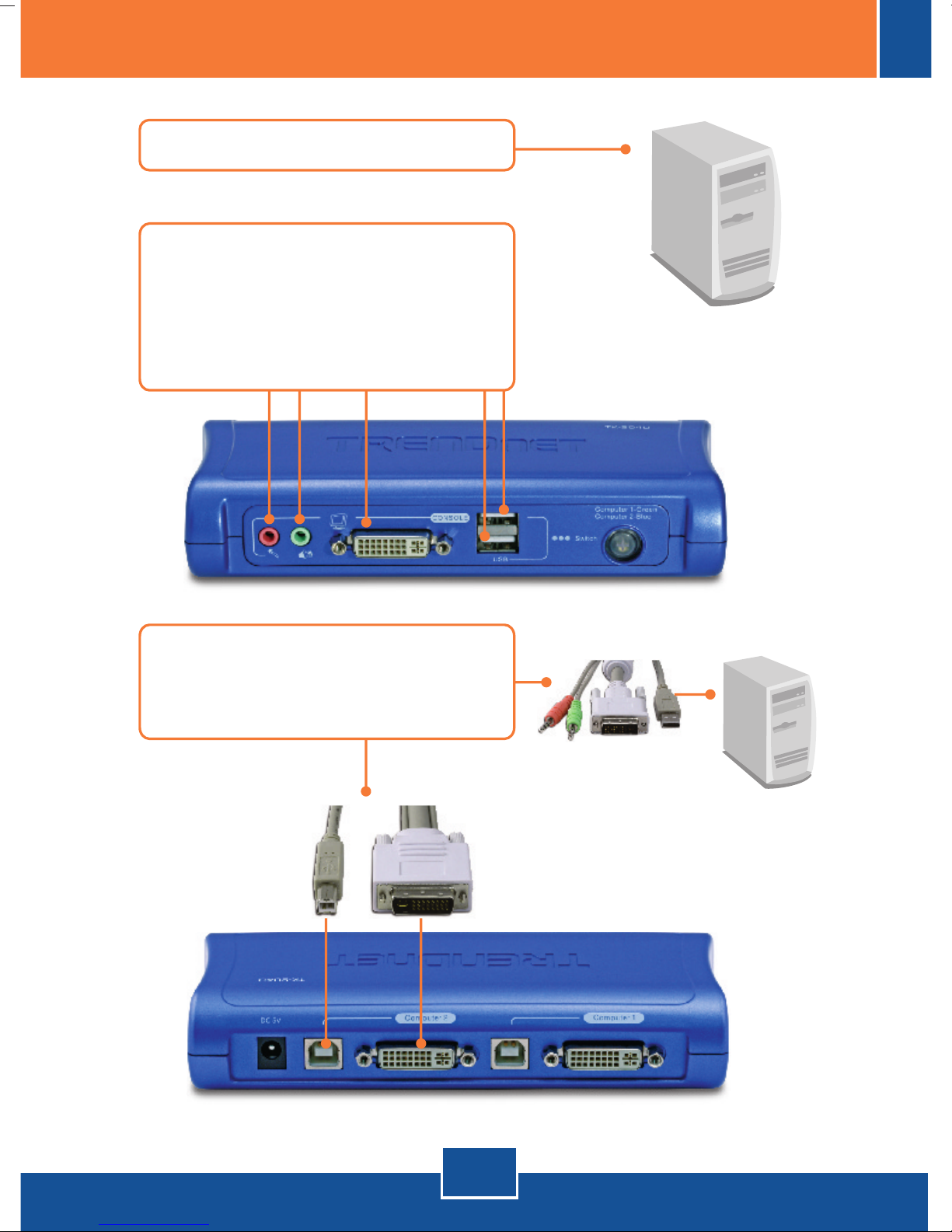

2. How to Install

English

1. Turn OFF all computers.

2. Connect the shared USB

keyboard, DVI monitor, USB

mouse, speakers (optional) and

microphone (optional) to the KVM

switch's Console Port.

To KVM

To Computer

3. Use the KVM and USB cables to

connect your PCs to the KVM

Switch.

English

Your installation is now complete.

5. Turn ON the connected computers

one-by-one and wait until each

computer's desktop appears.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

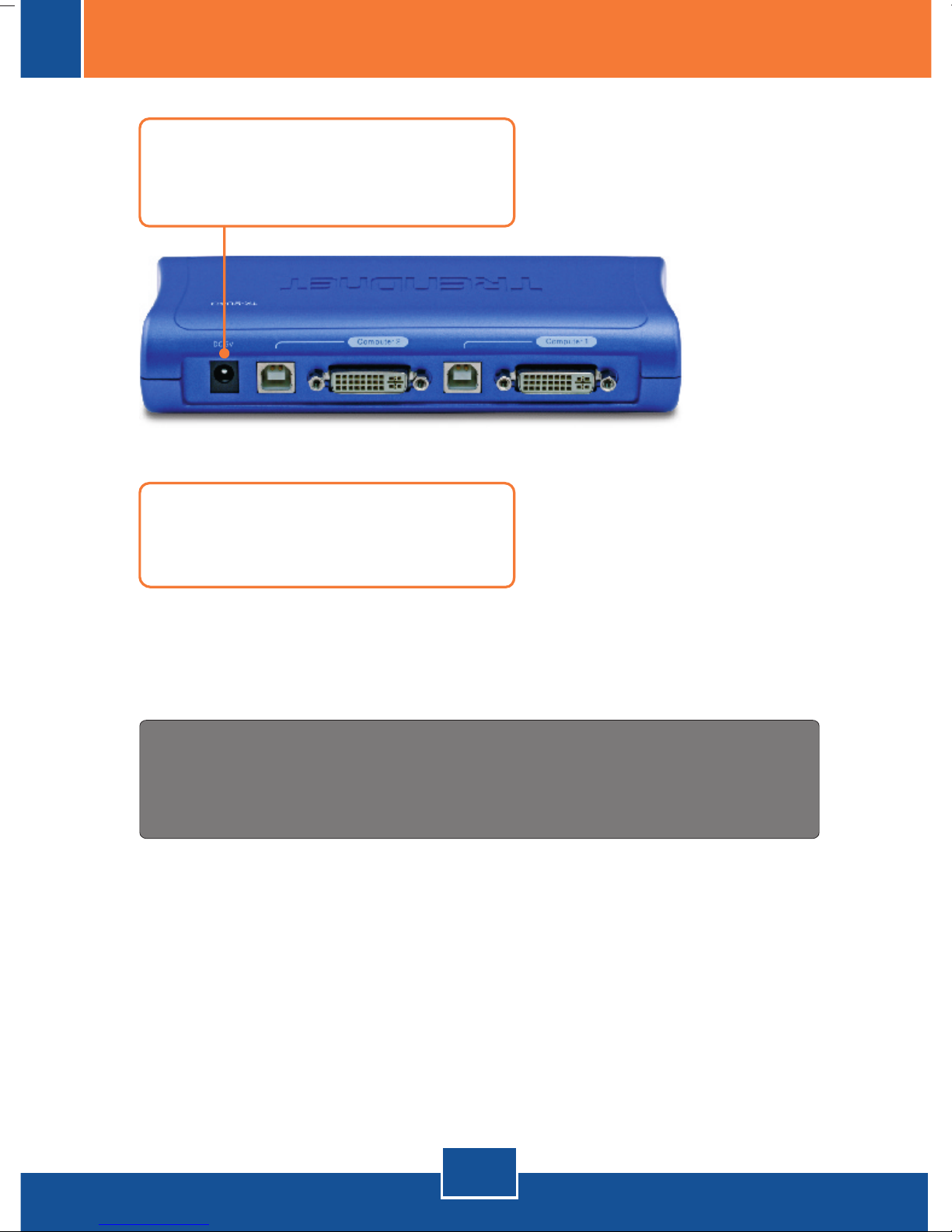

4. Connect the included AC Power

Adapter to the KVM switch and

then to a power outlet.

English

3. Operation

Note: To switch between computers, you can use the face-panel buttons of the

KVM Switch, a hot-key command sequence via keyboard, or the Client

Software Utility (Windows only).

Push Buttons

Press the push buttons to switch

between computers.

Hot-Key Commands

After pressing the ScrLk key, you have 2 seconds to press the ScrLk key again.

You then have another 2 seconds to press a command key. A beep confirms

that the KVM switch is in "Hot-Key" mode. If you do not press a key within 2

seconds, the switch will exit hot-key mode.

To switch between computers, press:

User Definable Hot Key Command

When using the below command, you must press on all the keys

simultaneously.

Y represents any symbol as defined in the KVM Utility program. By default, Y =

1 for port 1 and Y = 2 for port 2. For information on using the KVM Utility

program, see section 4 Using the KVM Utility.

LED Indicators

Green LED light: Computer 1

Blue LED light: Computer 2

English

4. Using the KVM Utility

For Windows Users

4. Double click on the KVM Utility

icon.

3. Click Finish.

1. Click Utility Install.

2. Click Next. Then follow the Setup

Wizard instructions.

English

5. If you would like to modify the hot

key, type in a character. You can

enter any number, letter or symbol.

Control keys such as Alt, Ctrl, Shift,

CAPS LOCK, Tab, Esc, and Num

Lock and function keys can not be

used.

Example: CTRL + ALT + A.

6. Click on the check box for Fix

Audio to a port and then select the

port from the dropdown list.

7. Select a desired Auto Scan period

(10~60). Options are in

increments of 5 seconds.

8. Once you made all desired

changes, then click OK.

9. Right click on the KVM utility icon

in the system tray. If your

computer is connect to computer 1

port, you should see an icon with

the number 1. If your computer is

connected to computer 2, you

should see an icon with the

number 2.

English

10. Select the PC and you want to

switch to.

11. Click Start Auto-Scan to start

Auto-Scan. Right click the KVM

Utility icon and select

Stop Auto-Scan to stop Auto-

Scan.
