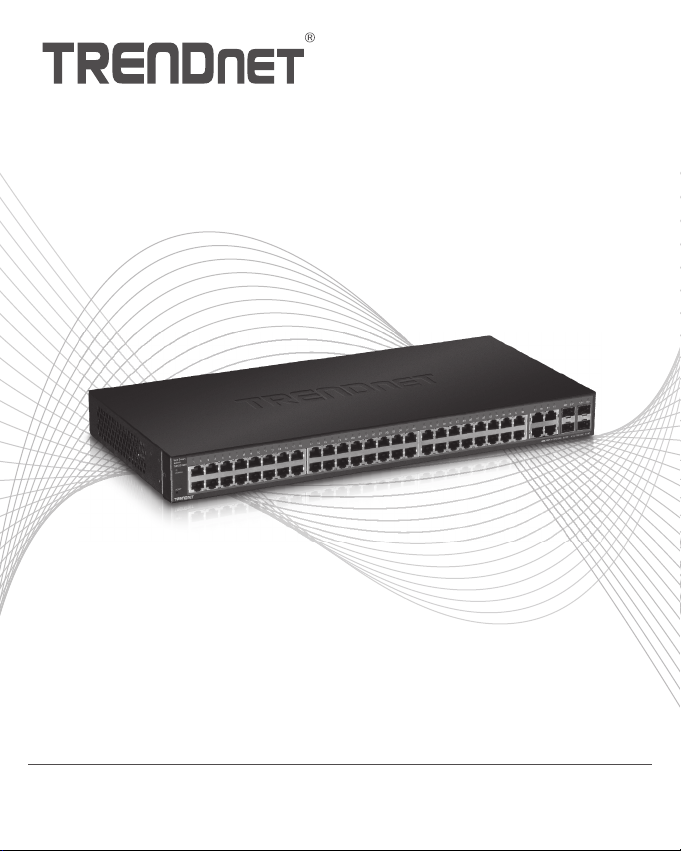

TRENDnet TEG-524WS Manuel utilisateur

TEG-524WS (V1)

Quick Installation Guide

Table of Contents

1 English

1. Before You Start

2. Hardware Installation and Configuration

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

1. Before You Start

Package Contents

ŸTEG-524WS

ŸQuick Installation Guide

ŸCD-ROM (Utility and User's Guide)

ŸPower cord (1.8m / 6 ft.)

ŸRack mount kit

Minimum Requirements

ŸComputer with an Ethernet port and web browser

ŸNetwork cable

Optional Equipment

ŸEIA standard 19” rack

ŸMini-GBIC modules (e.g. TEG-MGBSX, TEG-MGBS10, TEG-MGBS40,TEG-MGBS80)

2. Hardware Installation and Configuration

3. Assign a Static IP address to your computer's network adapter in the subnet of 192.168.10.x

(e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.

4. Open your web browser, type the IP address of the switch in the address bar, and then press

Enter. The default IP address is 192.168.10.200.

http://192.168.10.200

TEG-524WS

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

7. Configure the switch to match the requirements of your network. Then click Apply.

5. Enter the User name and Password, and then click Login. By default:

User Name: admin

Password: admin

Note: User Name and Password are case sensitive.

8. Click OK.

6. Click System and then click IPv4 Setup.

WARNING

The management session will be disconnected. Use new

IP address to connect to device.

Cancel

Switch Info

System

§ System Management

§ IPv4 Setup

§ IPv6 Setup

§ IPv6 Neighbor

§ IP Access List

§ Administration

§ Timeout

§ System Time

§ SSL

§ DHCP Auto Configuration

§ DNS

IPv4 Setup

System MAC

Address:

System IP Address:

System Subnet

Mask:

System Default

Gateway:

System IP Mode:

00:01:02:03:04:05

192 168 10 200

. ..

255 255 255 0

0000

Apply

Static

IPv4 Setup

10. Click Save Settings to Flash (button).

Note:

1. If you would like to easily discover all the Web Management Switches on the network, assign

IP Address, change the password, and upgrade new firmware, then install the Web Smart

Switch Management Utility. Follow the steps provided on the User's Guide.

2. For detailed information regarding the TEG-524WS’s configuration and advanced settings,

please refer to the User's Guide on the provided CD-ROM.

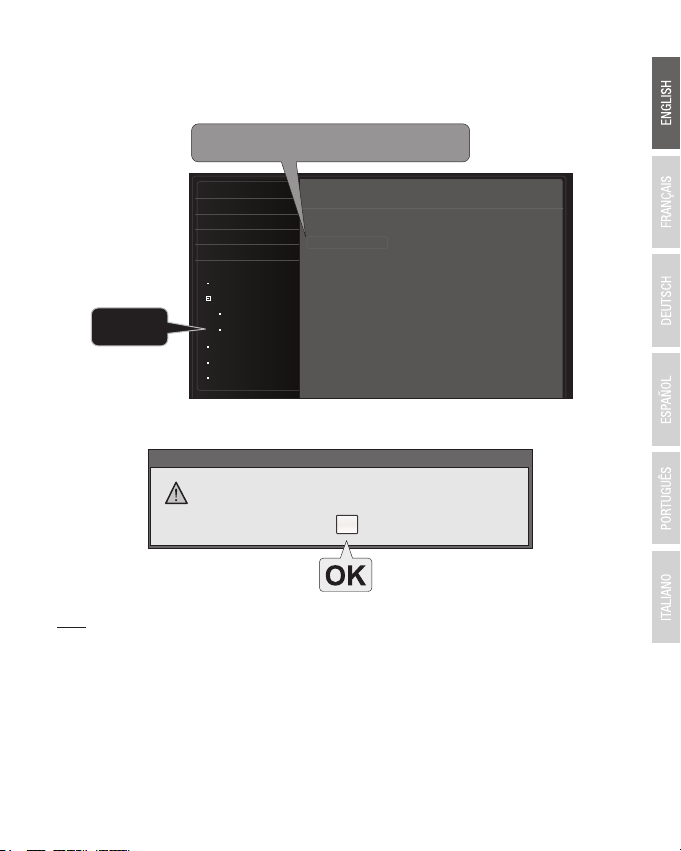

11. Click OK.

WARNING

Save configuration finished.

Switch Info

System

Network

Security

Tools

Firmware Upgrade

QoS

Backup/Restore

Configuration

Save

Diagnostics

Reboot

Ping

Note: The switch will stop responding while saving the current configuration to flash.

Save Settings to Flash

Save

9. In the left hand panel, click Tools, click on Configuration, and click Save.

Manufacturer’s Name and Address

TRENDnet, Inc.

20675 Manhattan Place

Torrance, CA 90501 USA

Zwolsestraat 156 2587 WB

The Hague The Netherlands

Product Information:

Product Name:

Model Number:

Trade Name:

Safety

EN 55032:2012+AC: 2013 (CISPR32:2012) (Class A)

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 55024:2010

AS/NZS CISPR 32:2013

Directives

Date: July 12, 2017

Title: Director of Technology

Person responsible for this declaration.

Place of Issue: Torrance, California, USA

Name: Sonny Su

Signature:

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

WEEE Directive 2012/19/EU

REACH Regulation (EU) No. 1907/2006

Low Voltage Directive 2014/35/EU

TRENDnet hereby declare that the product is in compliance with the essential requirements

and other relevant provisions under our sole responsibility.

EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

EMC

This product is herewith confirmed to comply with the Directives

TRENDnet

TEG-524WS

52-Port Gigabit Web Smart Switch

Certifications

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received.

Including interference that may cause undesired operation.

TRENDnet

20675 Manhattan Place

Torrance, CA 90501

USA

Applies to PoE Products Only: This product is to be connected

only to PoE networks without routing to the outside plant.

Note

The Manufacturer is not responsible for any radio or TV

interference caused by unauthorized modifications to this

equipment. Such modifications could void the user’s authority

to operate the equipment.

Advertencia

En todos nuestros equipos se mencionan claramente las

caracteristicas del adaptador de alimentacón necesario para

su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo

conectado. El adaptador de alimentación debe operar con

voltaje y frecuencia de la energia electrica domiciliaria exitente

en el pais o zona de instalación.

Product Warranty Registration

Please take a moment to register your

product online. Go to TRENDnet’s website at:

www.trendnet.com/register

Technical Support

If you have any questions regarding the product

installation, please contact our Technical Support.

Toll free US/Canada: 1-866-845-3673

Regional phone numbers available

at www.trendnet.com/support

Waste electrical an electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with your

Local Authority or Retailer for recycling advice.
