Travis Industries PB36CF Manuel utilisateur

Lower Trim – ProBuilder 36/42 CF

sku# 95900356 (PB36CF) sku# 95900357 (PB42CF)

Page 1 of 3 17602094 Printed 10/31/19

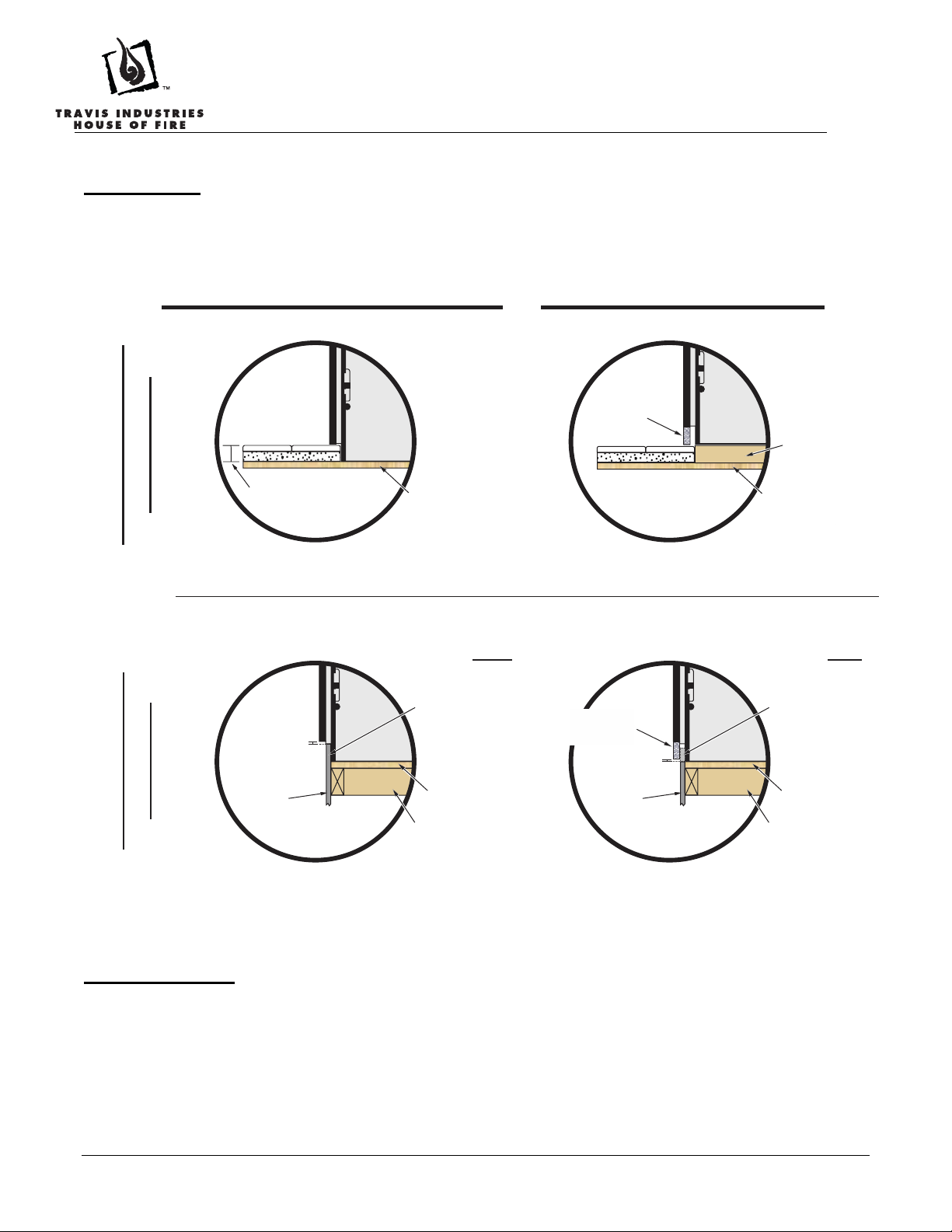

Overview

The optional lower trim attaches to the bottom of the screen assembly, covering the area near the base of the fireplace.

When it is installed, the installer will not need to install facing (or hearth) in the area below the screen assembly (see

illustrations below).

Packing List

Lower Trim

Lower Thick Facing Guide

(2) #8 x 3/8" Phillips head screws

Plywood

Lower Trim

Installed Platform level

with hearth

Hearth

Max 1” Plywood

1/8”

Framing

Plywood

Combustible

Facing

1/8”

Framing

Plywood

Combustible

Facing

Without Lower Trim With Lower Trim

With Hearth

Elevated Install

No Hearth

Combustible

facing must

overlap 1” of

the lower

front of the

fireplace

Combustible

facing may

overlap up to

1” of the

lower front of

the fireplace

Lower Trim

Installed

Lower Trim – ProBuilder 36/42 CF

sku# 95900356 (PB36CF) sku# 95900357 (PB42CF)

Page 2 of 3 17602094 Printed 10/31/19

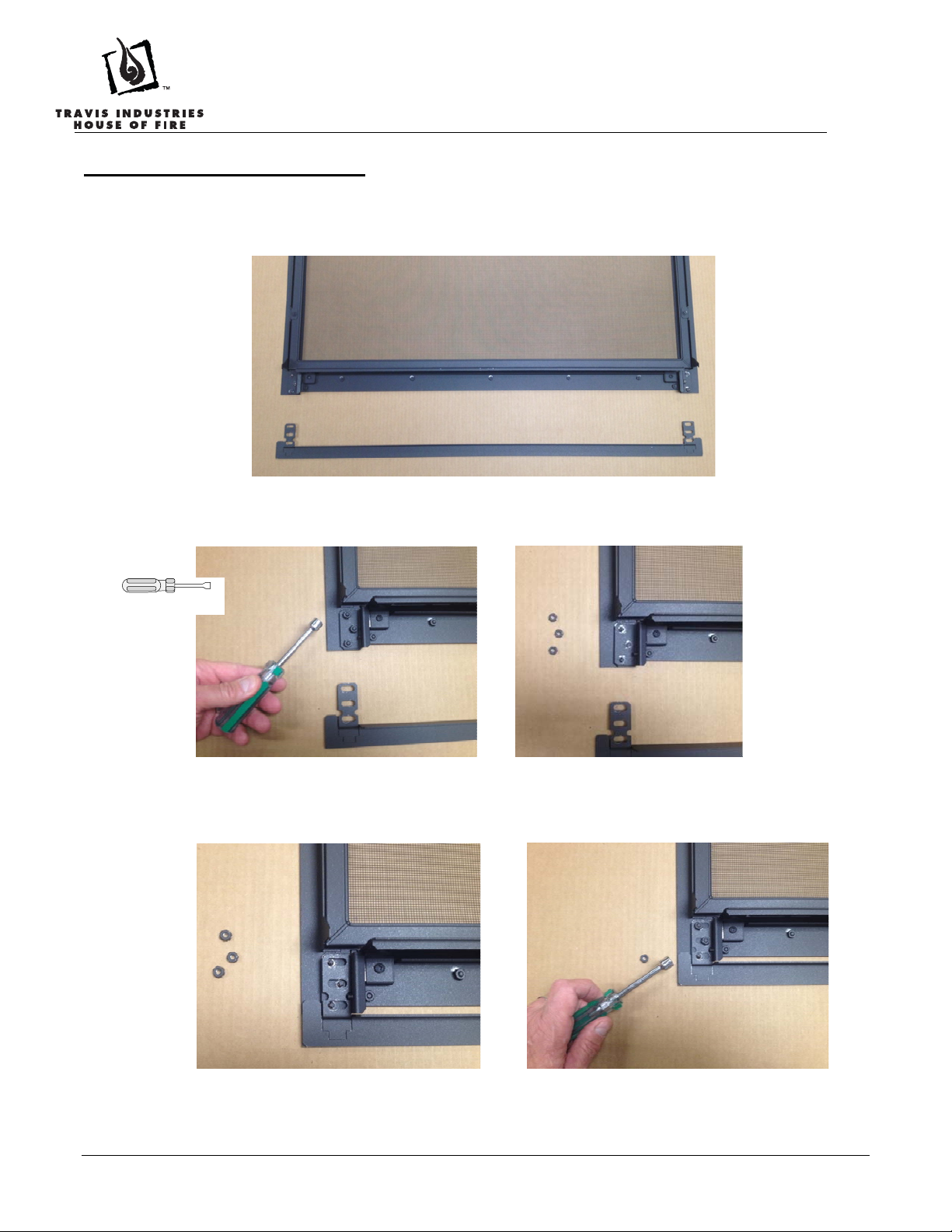

Lower Trim Installation

The lower trim should be installed prior to installation. Follow the directions below to install.

1. Remove the screen assembly from the fireplace and place it face down on a non-scratching surface (e.g.:

cardboard). Place the lower trim face down below the trim (see picture below).

2. Remove the 3 nuts holding the each door hinge in place (both sides).

NOTE: Do not move or lift the face during installation – the door hinge may come loose and bind.

3. Place the lower trim over the 3 exposed studs (both sides). Replace the 3 nuts (both sides) to secure the lower

trim.

NOTE: You may need to loosen the nuts and adjust the trim to achieve correct alignment.

4. Replace the screen assembly on the fireplace.

11/32" Nutdriver

Lower Trim – ProBuilder 36/42 CF

sku# 95900356 (PB36CF) sku# 95900357 (PB42CF)

Page 3 of 3 17602094 Printed 10/31/19

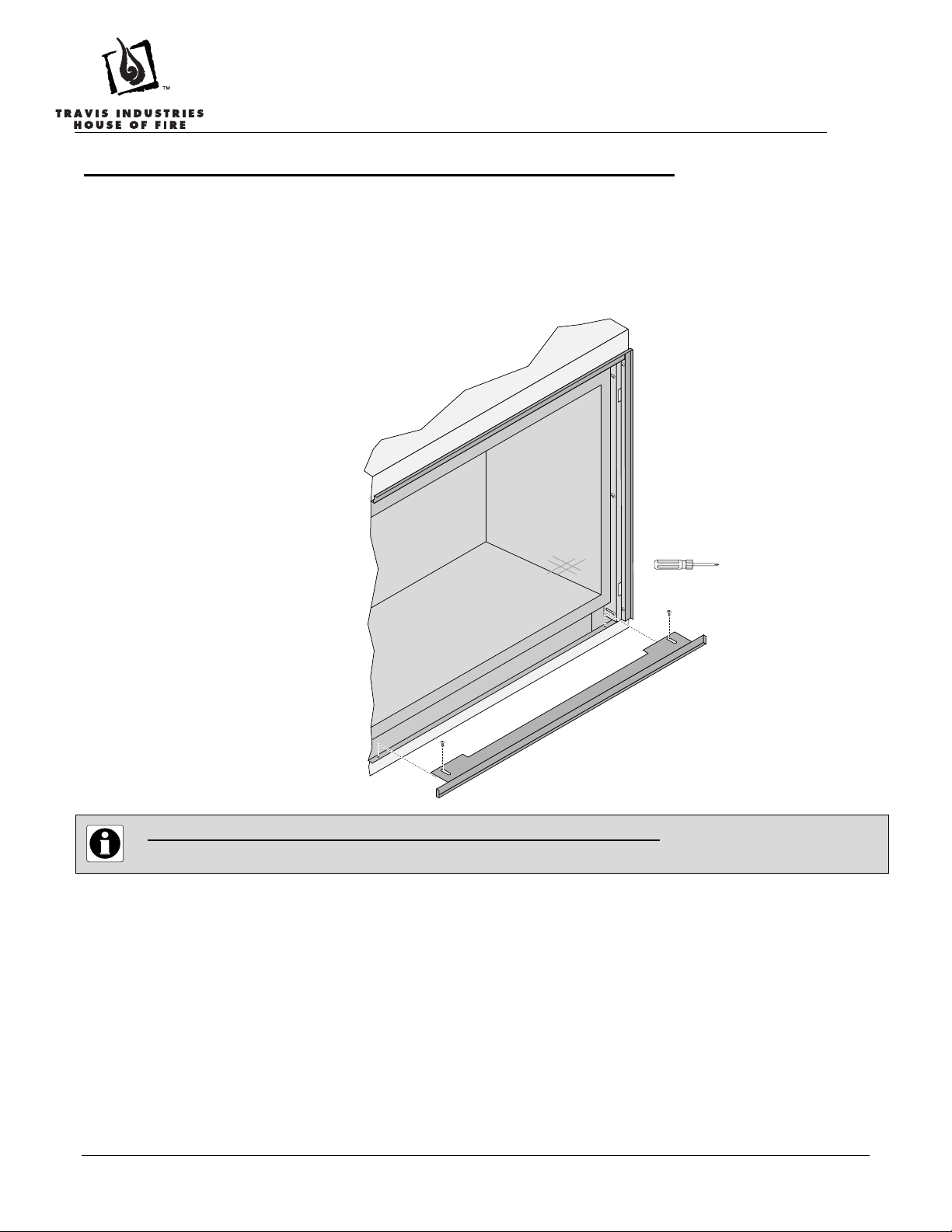

Lower Thick Facing Guide Installation (optional)

The lower thick facing guide is installed if using thick facing (see installation manual for details). When installed, it acts as

an installation guide for thick facing to prevent any material from protruding over the trim assembly.

1. Remove the screen assembly from the fireplace and place it aside.

2. Attach the lower thick facing guide to the fireplace using the 2 included screws (see illustration below).

NOTE: The thick facing guide extends to the base of the fireplace. Take care when moving the fireplace to prevent

damage to the guide.

Make sure the thick facing guide is pushed fully in during facing installation. The slots on the guide allow for

the guide to be moved out after the facing is in place. See the installation manual for further details.

Phillips

Screwdriver
