Travis Industries Shield 6015 Manuel utilisateur

3615, 4415, 6015 Firebacks

3615 – Black Enamel 96100942, Black Painted 96100943, Silver Painted 96100945

4415 – Black Enamel 96100972, Black Painted 96100973, Silver Painted 96100975

6015 – Black Enamel 96100982, Black Painted 96100983, Silver Painted 96100985

Page 1 of 4 17601804 - 5/19/15 Travis Industries, Inc.

Packing List

Rear Fireback

(2) Side Firebacks

Installation

STAINLESS STEEL WARNINGS

HANDLING THE FIREBACKS: The stainless steel firebacks are shipped in vinyl to prevent marring the surface

of the stainless steel. Before installation, peel back the corners 3” to 4”. Install the firebacks, then

remove the vinyl by peeling away from the corners.

COLORATION AND CLEANING: These stainless steel firebacks will obtain a slight “patina” (brown tint) after

use. Do not clean the firebacks. This patina becomes consistent. Any cleaning may lead to unequal coloring.

If soot forms on the fireback, we recommend brushing it off with a soft cloth or brush.

CLEANING ENAMEL FIREBACKS

We recommend cleaning the enamel surface with glass cleaner and a soft cloth.

1 Access the firebox (see Owner’s Manual).

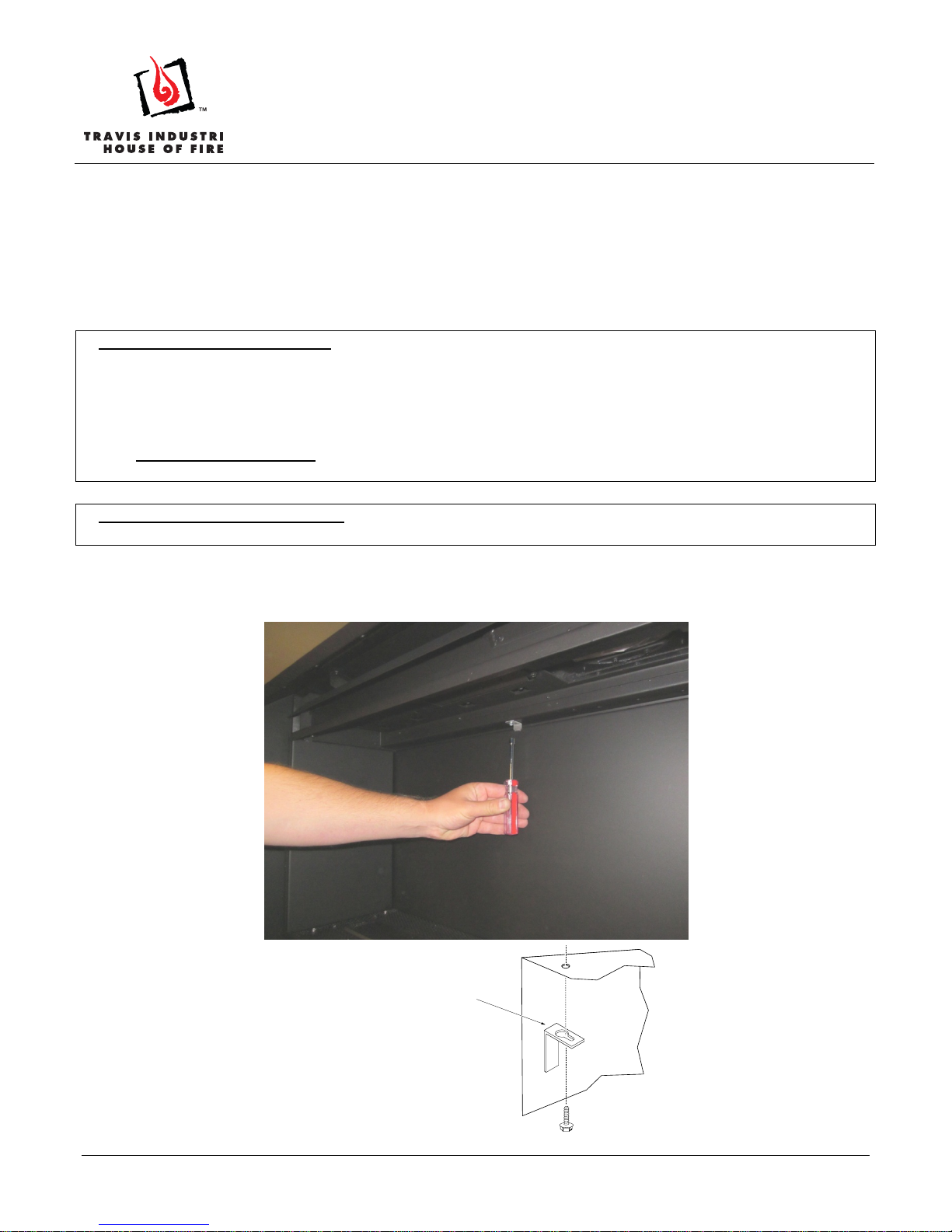

2 Remove the two rear fireback clips from the firebox ceiling (1/4” nutdriver). The clips are located along the

upper rear edge of the firebox.

The fireback clip has a

keyhole slot. It can be

removed by loosening

the screw and sliding

the clip out.

3615, 4415, 6015 Firebacks

3615 – Black Enamel 96100942, Black Painted 96100943, Silver Painted 96100945

4415 – Black Enamel 96100972, Black Painted 96100973, Silver Painted 96100975

6015 – Black Enamel 96100982, Black Painted 96100983, Silver Painted 96100985

Page 2 of 4 17601804 - 5/19/15 Travis Industries, Inc.

3 Install the rear fireback.

Special Note for Older 4415 Firebacks

Older 4415 rear firebacks (2013) have notches that must face upwards when installed.

Newer firebacks are symmetrical and may be installed either side up.

Hold the fireback at an angle while installing to allow it to pass through the firebox opening.

3615, 4415, 6015 Firebacks

3615 – Black Enamel 96100942, Black Painted 96100943, Silver Painted 96100945

4415 – Black Enamel 96100972, Black Painted 96100973, Silver Painted 96100975

6015 – Black Enamel 96100982, Black Painted 96100983, Silver Painted 96100985

Page 3 of 4 17601804 - 5/19/15 Travis Industries, Inc.

4 Replace the rear fireback clips to secure the rear fireback in place.

5 Remove the two side fireback clips from the firebox ceiling (1/4” nutdriver). They are located at the outward

edges of the firebox near the glass opening.

The side fireback clip

has a keyhole slot. It

can be removed by

loosening the screw

and sliding the clip out.

3615, 4415, 6015 Firebacks

3615 – Black Enamel 96100942, Black Painted 96100943, Silver Painted 96100945

4415 – Black Enamel 96100972, Black Painted 96100973, Silver Painted 96100975

6015 – Black Enamel 96100982, Black Painted 96100983, Silver Painted 96100985

Page 4 of 4 17601804 - 5/19/15 Travis Industries, Inc.

6 Install the side firebacks.

Make Sure to Position Each Fireback Right Side Up

Each side fireback has an upper and lower end. The upper end is is slightly shorter

(0.39”) – see the photo below. Make sure the short end is facing upwards.

Place the side fireback in position and replace the fireback clip to secure the fireback in place. Repeat this

step for the opposite side.
