USER’S GUIDE

J/FE-CF-04 Stand-Alone Media

Converter

•Fast Ethernet™

• Copper to Fiber

• 100Base-TX to 100Base-FX

• USB Port

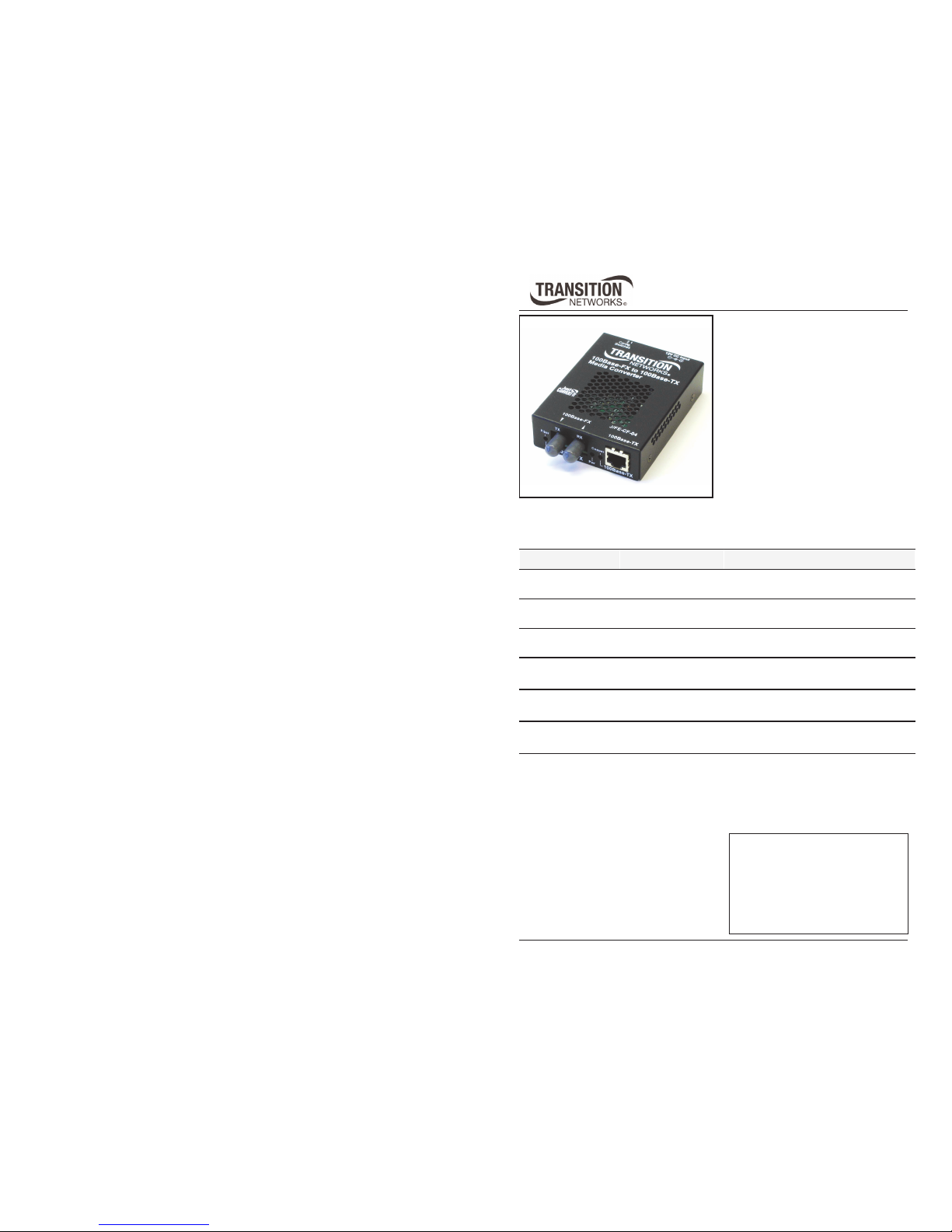

Transition Networks J/FE-CF-04 Fast

Ethernet™ media converter connects 100

Mb/s twisted-pair copper cable to a duplex

100 Mb/s fiber-optic cable.

Use the J/FE-CF-04 series media

converters to extend over fiber, the distance between two 100BASE-TX devices (hub,

switch, workstation, etc.).

Part Number Port One - Copper Port Two - Duplex Fiber-Optic

J/FE-CF-04 RJ-45, 100Base-TX

100 m (328 ft)*

ST, 100Base-FX, 1300 nm multimode

2 km (1.2 miles)*

J/FE-CF-04(SC) RJ-45, 100Base-TX

100 m (328 ft)*

SC , 100Base-FX, 1300 nm multimode

2 km (1.2 miles)*

J/FE-CF-04(LC) RJ-45, 100Base-TX

100 m (328 ft)*

LC, 100Base-FX, 1300 nm multimode

2 km (1.2 miles)*

J/FE-CF-04(SM) RJ-45, 100Base-TX

100 m (328 ft)*

SC, 100Base-FX, 1310 nm single mode

20 km (12.4 miles)*

J/FE-CF-04(SMLC) RJ-45, 100Base-TX

100 m (328 ft)*

LC, 100Base-FX, 1310 nm single mode

20 km (12.4 miles)*

J/FE-CF-04(LH) RJ-45, 100Base-TX

100 m (328 ft)*

SC, 100Base-FX, 1310 nm single mode

40 km (24.9 miles)*

*Typical maximum cable distance. Actual distance is dependent upon the physical

characteristics of the network installation.

Installation . . . . . . . . . . . . . . . . . . . . .3

Operation . . . . . . . . . . . . . . . . . . . . . .6

Cable Specifications . . . . . . . . . . . . .7

Technical Specifications . . . . . . . . . .8

Troubleshooting . . . . . . . . . . . . . . . .9

Compliance Information . . . . . . . . .11

J/FE-CF-04-xxx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Part Number Description

WMBD Optional Din-Rail Mount

Length: 4.9 in. (124.46 mm) Fits converter length: 3.9 in. (99 mm)

WMDB-FS Optional Din-Rail Mount

Width: 3.1 in. (78.7 mm) Fits converter width: 3.0 in (78 mm)

WMBS Optional Wall Mount Brackets

Length: 3.2 in. (81 mm), Fits converter length: 3.9 in. (99 mm)

SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone Wide-

Input; Output: 12.6VDC, 1.0 A

SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-Back Wide-Input;

Output: 12.6VDC, 1.0 A

Options Accessories (sold separately)

Part Number Port One - Copper Port Two - Duplex Fiber-Optic

J/FE-CF-04-100 RJ-45, 100Base-TX

100 m (328 ft)*

SC, 1310 mn TX/1550 nm RX, 20 km

(12.4 miles)*

J/FE-CF-04-101 RJ-45, 100Base-TX

100 m (328 ft)*

SC, 1550 mn TX/1310 nm RX, 20 km

(12.4 miles)*

Note: Install the J/FE-CF-04-100 and the J/FE-CF-04-101 in the same network as

local and remote peers.

Single Fiber Optic (install in pairs)

*Typical maximum cable distance. Actual distance is dependent upon the physical

characteristics of the network installation.

[email protected] -- Click the “Transition Now” link for a live Web chat.

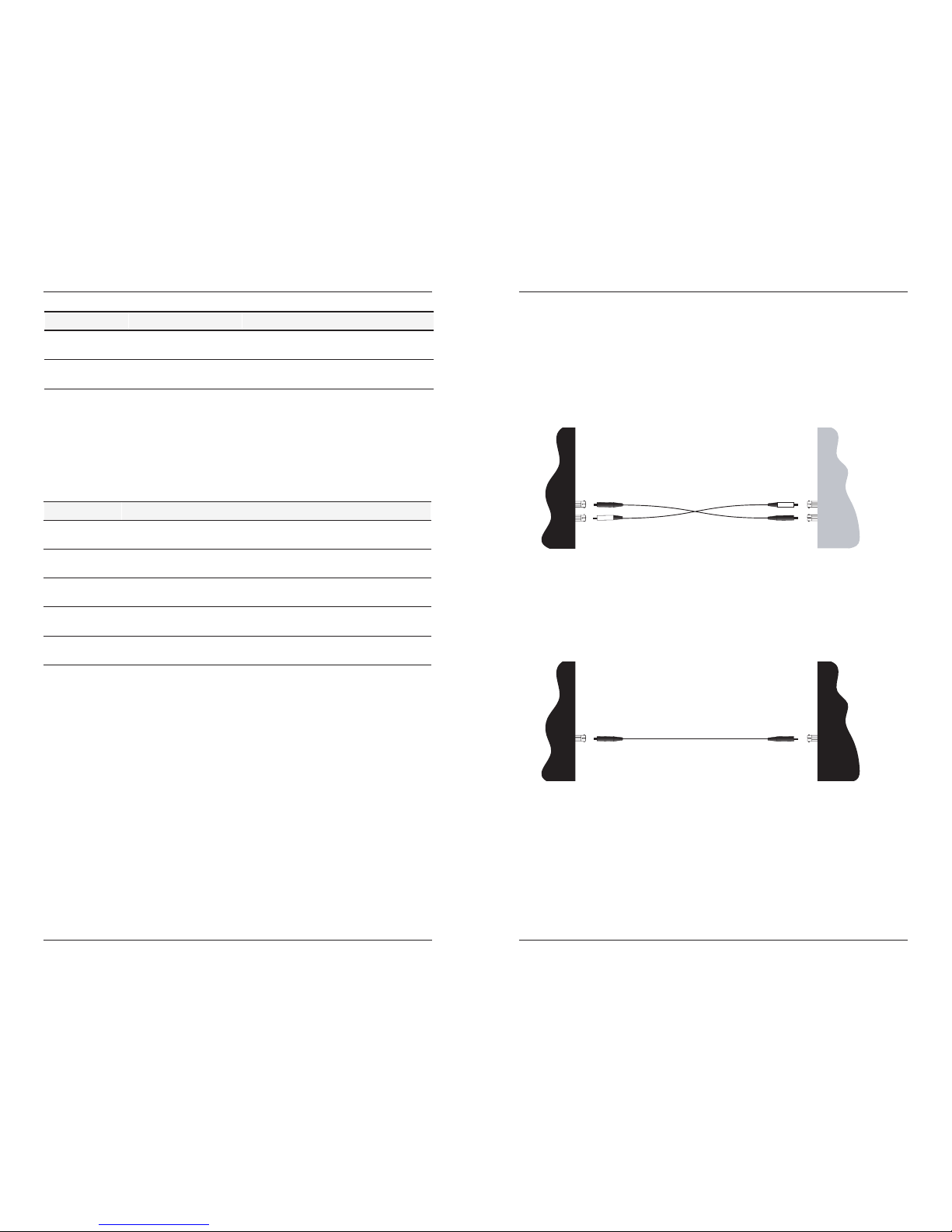

Installation

Installing the Cable

Fiber

1. Locate a 100Base-FX compliant, two-strand fiber cable with the appropriate

male connectors installed on both ends.

2. Connect the fiber cable to the J/FE-CF-04 media converter and to its mating

device as shown below.

Connectfibercable

to media converter

asshown.

Connectfibercable

to otherdevice

(media converter,

hub, etc.) asshown

Connectfibercable

to the J/FE-CF-100

media converter

Connectfibercable

otherendto the

J/FE-CF-101

media converter

100 101

Installing single-fiber cable to matched pair converters

1. Locate a 10Base FX compliant, single-strand fiber cable with the appropriate

male connectors installed on both ends.

2. Connect the single fiber cable to the matched pair converters as shown below.

J/FE-CF-04-xxx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Setting the two-position DIP switch

A two-position DIP switch (located on the back of the media converter) supports

selecting Auto-Negotiation and Full- or Half-Duplex. Typically, most installation

will work with both switches in the UP position. Use a small, flat-blade screwdriver

(or a similar device) to set the switches according to the site requirements; see the

illustration and explanation below.

Auto-Negotiation:

UP Enable Auto-Negotiation

DOWN Disable Auto-Negotiation

Full/Half Duplex (functions only when Auto-Negotiation is enabled.)

UP Full Duplex -- Advertises 100 Mb/s full-duplex only during Auto-

Negotiation.

DOWN Half Duplex -- Used primarily when connecting to a hub. Operates at

100 Mb/s in duplex mode of the attached device.

Note: The configuration of the DIP switches should match that of the RJ-45 port

configuration of the connecting device

Full/Half Duplex - UP=Full

Auto-Negotiation - UP=Enable

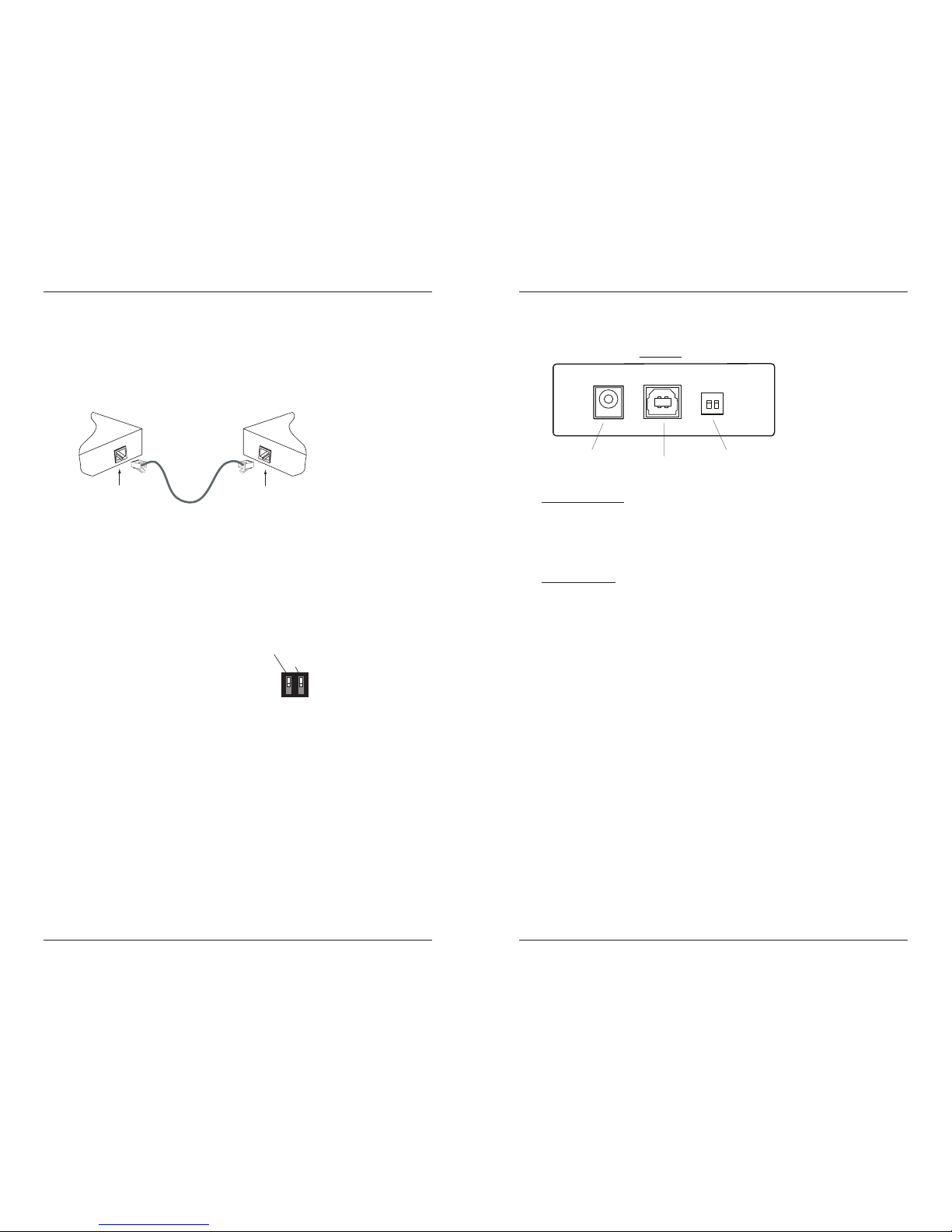

Installation -- Continued

Copper

1. Locate or build 100Base-TX compliant copper cable with male, RJ-45

connectors installed at both ends.

2. Connect one end of the RJ-45 cable to the J/FE-CF-04 media converter and

the other end to its mating device as shown below.

RJ-45 port

on the otherdevice

(switch, work station, etc.)

RJ-45 port

on the media

converter

[email protected] -- Click the “Transition Now” link for a live Web chat.

Installation -- Continued

Powering the media converter

DC power adapter:

1. Insert the power adapter barrel into the barrel connector located on the back of

the media converter, shown above.

2. Connect the power adapter plug into AC power.

3. Observe that the power ON LED is lit.

USB port power:

Use a USB 2.0 Type A to B male-to-male cable to enable powering the media

converter via an active USB port.

Note: When using the USB port to power the media converter, make sure that the

output USB port is turned ON (some laptops and PCs can turn OFF the

USB port).

The media converter can also be powered via the USB port. When powering the

media converter with the power adapter and through the USB power, the media

converter has redundant power (no load balancing which means the device draws

operating current from higher voltage source, adapter or USB). If the power

adapter is removed, the media converter will be powered via the active USB port.

Note: The USB port provides power to the device only; it is not used to transfer

data.

Rear Panel

Male Input Power Port

Barrel Connector USB Port

DIP

Switches

J/FE-CF-04-xxx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

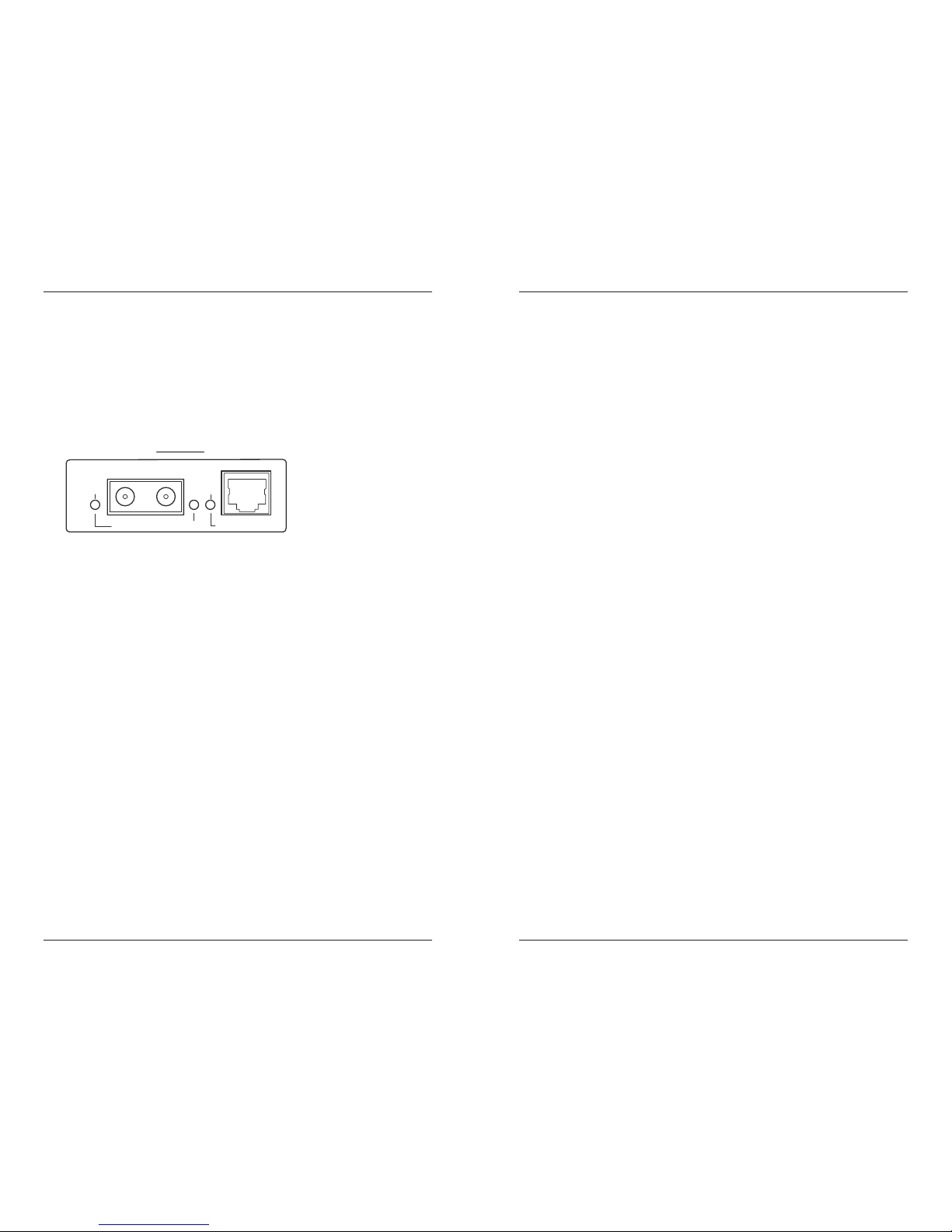

Fiber

TX RX

Copper

Pwr

Front Panel

100Base-FX 100Base-TX

Operation

Using status LEDs

Use the status LEDs to monitor the media converter operation in the network.

Power LED ON indicates connection to adapter power or USB power.

Fiber LED ON indicates fiber link connection.

Copper LED ON indicates copper link connection.

LED FLASHING indicates activity.

Auto-Negotiation

The Auto-Negotiation feature allows the media converter to be used with

10/100Base-TX ports. When using Auto-Negotiation, the media converter brings up

the copper link to the highest speed and best duplex mode possible for all attached

network devices.

Full-Duplex network

In a full-duplex network, maximum cable lengths are determined by the type of

cables that are used. (The 512-Bit Rule does not apply in a full-duplex network.) See

front cover for available J/FE-CF-04 models.

Half-Duplex network (512-Bit Rule)

In a half-duplex network, the maximum cable lengths are determined by the round

trip delay limitations of each Fast Ethernet collision domain. (A collision domain is

the longest path between any two terminal devices, e.g., a terminal, switch, router,

etc.)

The 512-Bit Rule determines the maximum length of cable permitted by calculating

the round-trip delay in bit-times (BT) of a particular collision domain. If the result

is less than or equal to 512 BT, the path is good.

For more information on the 512-Bit Rule, see the white paper titled “Collision

Domains” on the Transition Networks website at:

http://www.transition.com/learning/white papers

Cable Specifications

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Fiber cable

Bit Error Rate: <10-9

Singlemode fiber (recommended): 9 μm

Multimode fiber (recommended): 62.5/125 μm

Multimode fiber (optional): 100/140, 85/140, 50/125 μm

J/FE-CF-04 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

J/FE-CF-04(SC) 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

J/FE-CF-04(LC) 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

J/FE-CF-04(SM) 1310 nm single mode

Fiber Optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber Optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Link Budget: 16.0 dB

J/FE-CF-04(SMLC) 1310 nm single mode

Fiber Optic Transmitter Power: min: -15.2 dBm max: -8.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -3.0 dBm

Link Budget: 17.3 dB

J/FE-CF-04(LH) 1310 nm single mode

Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 26.0 dB

J/FE-CF-04-100 1310 nm (TX)/1550 nm (RX) simplex

J/FE-CF-04-101 1550 nm (TX)/1310 nm (RX) simplex

Fiber-optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

[email protected] -- Click the “Transition Now” link for a live Web chat.

Operation -- continued

AutoCross™

The AutoCross feature allows the use of straight-through MDI or crossover MDI-X

cables for connecting to10Base-T or 100Base-TX devices. AutoCross determines

the characteristics of the connection and automatically configures the unit to link

up, regardless of the cable configuration: MDI or MDI-X. This feature is

permanently enabled.

Copper cable

Category 5:

Gauge: 24 to 22 AWG

Attenuation: 22.0 dB/100m @ 100 MHz

Maximum Cable Distance: 100 meters

•Straight-Through or Crossover cable may be used.

• Shielded Twisted-Pair (STP) or Unshielded Twisted-Pair (UTP) may be used.

• Pins 1&2 and 3&6 are the two active pairs in an Ethernet™ network .

• Use only dedicated wire pairs for the active pins:

(e.g., blue/white & white/blue, orange/white & white/orange, etc.)

• Do not use flat or silver satin wire.

J/FE-CF-04-xxx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Technical Specifications

For use with Transition Networks Model J/FE-CF-04 or equivalent

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

Standards: IEEE 802.3™

Data Rate: 100 Mb/s

Case Dimensions: 3.9" x 3.0" x 1.0" (100mm x 76mm x 25mm)

Shipping Weight: 2 pounds (0.9 kilograms)

Power Consumption: 2.4 watts, 200 mA @ 12 VDC

Input Voltage:

• AC/DC Adapter: 12 VDC, 0.5 A output

minimum output regulation: 5% connector:

2.1mm barrel, center pin positive

• USB 2.0 Port: 5 VDC, 0.5A

MTBF* 48,135 hours

(MIL217F2 V5.0) (MIL-HDBK-217F)

128,553 hours (Bellcore7 V5.0)

Environment:

Tmra**: 0 to 60°C (32 to 140°F)

Storage Temp: -20 to 85°C (-4 to 185°F)

Humidity: 5-95%, non-condensing

Altitude: 0-10,000 feet

Warranty: Lifetime

*MTBF is estimated using the predictability method. This method is based on MIL-

217F at 25°C ambient temperature, typical enclosure heat rise of 10°C, and nominal

operating conditions and parameters. Installation and configuration specific MTBF

estimates are available upon request. Contact Technical Support.

**Manufacturer’s rated ambient temperature.

[email protected] -- Click the “Transition Now” link for a live Web chat.

Troubleshooting

If the media converter fails, isolate and correct the failure by determining the answers

to the following questions and then taking the indicated action:

1. Is the Power LED on the media converter illuminated?

• Is the power adapter the proper type of voltage and cycle frequency for

the AC outlet?

• Is the power adapter properly installed in the media converter and in the

outlet?

• Is the external power source active and at the proper voltage level?

• If powering the device via the USB port, make sure that the USB cable is

properly connected at both ends and that the USB port is powered up.

• Contact Technical Support at (800) 260-1312.

YES

• Proceed to step 2.

2. Is the Copper LED illuminated?

• Check the copper cable for proper connection.

• Contact Technical Support at (800) 260-1312.

YES

• Proceed to step 3.

3. Is the Fiber LED illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are connected to

the RX and TX ports, respectively, on the other 100BASE-FX device.

• Contact Technical Support at (800) 260-1312.

YES

• Contact Technical Support at (800) 260-1312.

Technical Specifications -- continued

WARNING: Visible and invisible laser radiation when open. Do not stare into the

beam or view the beam directly with optical instruments. Failure to observe this

warning could result in an eye injury or blindness.

WARNING: Use of controls, adjustments or the performance of procedures other

than those specified herein may result in hazardous radiation exposure.

CAUTION: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB,

RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are intended to be connected to

intra-building (inside plant) link segments that are not subject to lightening transients

or power faults. Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB,

RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are NOT to be connected to

inter-building (outside plant) link segments that are subject to lightening transients or

power faults. Failure to observe this caution could result in damage to equipment.

J/FE-CF-04-xxx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Declaration Of Conformity

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 U.S.A.

Model: J/FE-CF-04 Series Media Converters

Part Number(s): J/FE-CF-04;J/FE-CF-04(SC); J/FE-CF-04(LC); J/FE-CF-04(SC),

J/FE-CF-04(LC); J/FE-CF-04(LH); J/FE-CF-04-100,

J/FE-CF-04-101

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the J/FE-CF-04-xxx to which this declaration refers

is in conformity with the following standards.

EN 55022:1994; EN 55024:1998; FCC Part 15 Class A;

A4:1997; 21 CFR subpart J

I, the undersigned, hereby declare that the equipment specified above conforms to the

above Directive(s) and Standard(s).

July, 2007_____

Stephen Anderson, Vice-President of Engineering Date

Technical support

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition NOW

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

6475 City West Parkway

Minneapolis, MN 55344, U.S.A.

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

[email protected] -- Click the “Transition Now” link for a live Web chat.

Compliance Information

Power Supply UL Listed

Power Supply C-UL Listed (Canada)

CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a class A digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which

case the user will be required to correct the interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out

on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables

aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage

radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in

which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses

Gerätes Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für entsprechende

Gegenmaßnahmen werantwortlich ist.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des

interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques

appropriées.

In accordance with European Union Directive 2002/96/EC of the European Parliament

and of the Council of 27 January 2003, Transition Networks will accept post usage

returns of this product for proper disposal. The contact information for this activity can

be found in the 'Contact Us' portion of this document.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

graphic, electronic, or mechanical - without written permission from Transition Networks.

Printed in the U.S.A. 33372.B

J/FE-CF-04-xxx

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks M/E-PSW-FX-01SC Manuel utilisateur

Transition Networks

Transition Networks E-MCR-02 Manuel utilisateur

Transition Networks

Transition Networks RS485-CF-0x Manuel utilisateur

Transition Networks

Transition Networks CRS2F31-100 Series Manuel utilisateur

Transition Networks

Transition Networks CRS4F3111-100 Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-05(L) Manuel utilisateur

Transition Networks

Transition Networks F-SM-MM-05 Manuel utilisateur

Transition Networks

Transition Networks C/E-CX-FRL-04 Manuel utilisateur

Transition Networks

Transition Networks M/GE-PSW-LX-01 Manuel utilisateur

Transition Networks

Transition Networks SGPOE1013-100 Manuel utilisateur

Transition Networks

Transition Networks SBFTF1011-140 Manuel utilisateur

Transition Networks

Transition Networks C/F-SM-MM-05 Manuel utilisateur

Transition Networks

Transition Networks SSDTF1011-100 Manuel utilisateur

Transition Networks

Transition Networks SSDTF3011-115 Manuel utilisateur

Transition Networks

Transition Networks CGETF1013-110 Manuel utilisateur

Transition Networks

Transition Networks NANOMETER E-100BTX-SX-01 Manuel utilisateur

Transition Networks

Transition Networks CRMFE1011-200 Manuel utilisateur

Transition Networks

Transition Networks CGFEB10xx-12x Manuel utilisateur

Transition Networks

Transition Networks M/GE-SW-SFP-01-U Series Manuel utilisateur

Transition Networks

Transition Networks SI-IES-111D-LRT Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FX-04(LH) Manuel utilisateur

Transition Networks

Transition Networks SPS-1872-CC Manuel utilisateur

Transition Networks

Transition Networks CFETF1011-205 Manuel utilisateur

Transition Networks

Transition Networks M/GE-xSW-SFP-01-xx-U Series Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
