Transition Networks F-SM-MM-05 Manuel utilisateur

Multimode Singlemode

Singlemode Fiber

Multimode Fiber

F-SM-MM-05

Single Mode/Multimode

Media Converter

The protocol-independent TRANSITION Networks media converter, F-SM-MM-05, is

designed for installation EITHER in a 10Mb/s Ethernet environment OR in a 16Mb/s

Token Ring environment.

The F-SM-MM-05 media converter provides an ST fiber RX (receive) and TX (transmit)

connector to 1300nM singlemode fiber-optic cable and an ST fiber RX and TX

connector to 850nM multimode fiber-optic cable. Fiber’s low signal loss and high

resistance to radio frequency noise allow extended distances between devices (up to

2 kilometers for multimode, up to 20 kilometers for singlemode).

The media converter functions in half-duplex mode or, when connected to devices

capable of full-duplex connectivity, in full-duplex mode.

Status LEDs on the connector side of the media converter provide the following

information:

10Mb/s Ethernet™ OR 16Mb/s Token Ring

Single Mode/Multimode Media Converter

F-SM-MM-05

USER’S GUIDE

Compliance Information

UL Listed

C-UL Listed (Canada)

CISPR/EN55022 Class A

FCC Regulations

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference, in which case the user will be

required to correct the interference at the user’s own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on

the radio interference regulations of the Canadian Department of Communications.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in which

case the user may be required to take adequate measures.

graphic, electronic, or mechanical – without written permission from TRANSITION Networks.

Trademark Notice

All registered trademarks and trademarks are the property of their respective owners. 33063.B

MEDIA CONVERTER TECHNICAL SPECIFICATIONS

Case dimensions 3.9" x 3.0" x 1.0" (99mm x 76mm x 25mm)

Maximum number of

media converters in series: Two (2)

Environment Temperature: 0-40°C (32° to 104° F )

Humidity 10-90%, non condensing

Altitude 0-10,000 feet

Warranty Lifetime

Pwr (Power) Illuminated green LED

indicates connection to external

AC power.

Link Steady green LED indicates that

fiber link is connected properly.

Power Supply Requirements Replace power supply with only the equivalent

input rating (see below) and output rating (regulated 9VDC at 0.5 A).

TN PN Requirement Location

3517 240 volts, 50 hertz United Kingdom

3516 230 volts, 50 hertz Europe

3518 120 volts, 60 hertz USA/Canada/Mexico

3514 100 volts, 50-60 hertz Japan

3515 240 volts, 50 hertz Australia

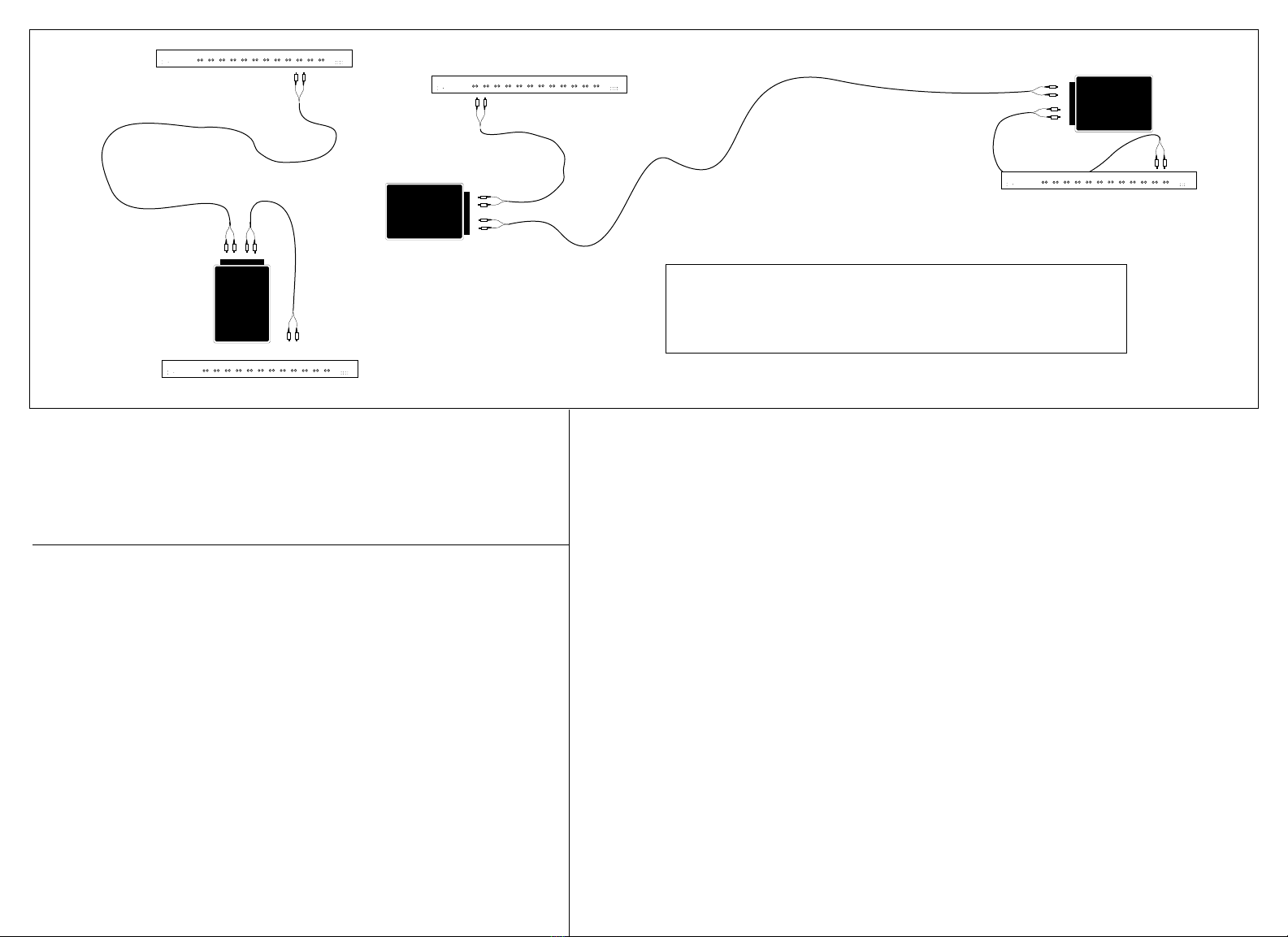

20 Kilometers

Singlemode Fiber

Multimode Fiber

2 Kilometers

Multimode Fiber

2 Kilometers

20 Kilometers

Singlemode Fiber

Multimode Fiber

2 Kilometers

1. Is the power LED on the media converter illuminated?

NO • Is the power adapter the proper type of voltage and cycle frequency for your AC outlet?

NOTE: Refer to the “Power Supply Requirements” on the back page.

• Is the power adapter properly installed in the media converter and in the outlet?

• Contact Technical Support at (800) 260-1312/ (800) LAN-WANS.

YES • Proceed to step 2.

2. Is the multimode fiber Link LED illuminated?

NO • Check fiber cables for proper connection.

• Verify that TX and RX cables on media converter are connected to RX and TX ports,

respectively, on the other device.

• Refer to Tech Tips available at: http://www.transition.com

• Contact Technical Support at (800) 260-1312/ (800) LAN-WANS.

YES • Proceed to step 3.

3. Is the singlemode fiber Link LED illuminated?

NO • Check fiber cables for proper connection.

• Verify that TX and RX cables on media converter are connected to RX and TX ports,

respectively, on the other device.

• Refer to Tech Tips available at: http://www.transition.com

YES • Contact Technical Support at (800) 260-1312/ (800) LAN-WANS.

Troubleshooting the Media Converter

If the singlemode to multimode fiber-optic media converter fails, ask the following:

SINGLEMODE

Fiber Optic Cable Recommended: 9/125 µm singlemode fiber

Fiber Optic Transmitter Power: Average: -16 dBm

Fiber Optic Receiver Sensitivity: Average: -33 dBm

Wavelength: 1300nM

Bit error rate: ≤10-9

Maximum Cable Distance: 5-20 kilometers

MULTIMODE

Fiber Optic Cable Recommended: 62.5 / 125 µm multimode fiber

Optional: 100 / 140 µm multimode fiber

85 / 125 µm multimode fiber

50 / 125 µm multimode fiber

Fiber Optic Transmitter Power: Average: -15 dBm

Fiber Optic Receiver Sensitivity: Average : -33 dBm

Wavelength: 850nM

Bit error rate: ≤10-10

Maximum Cable Distance: 2 kilometers (6,600 feet)

NOTE: This product is NOT a repeater. Therefore, maximum

distances depend on specific characteristics of the installation.

The full distances of BOTH singlemode and multimode fiber

shown MAY NOT be supported in the same installation.

• Connect the power supply cable to the media converter BEFORE

connecting to the outlet.

• Install unit with PSU provided. (Output 9 VDC regulated, 500 mA).

Installation Notes

Fiber Optic Cable Specifications
