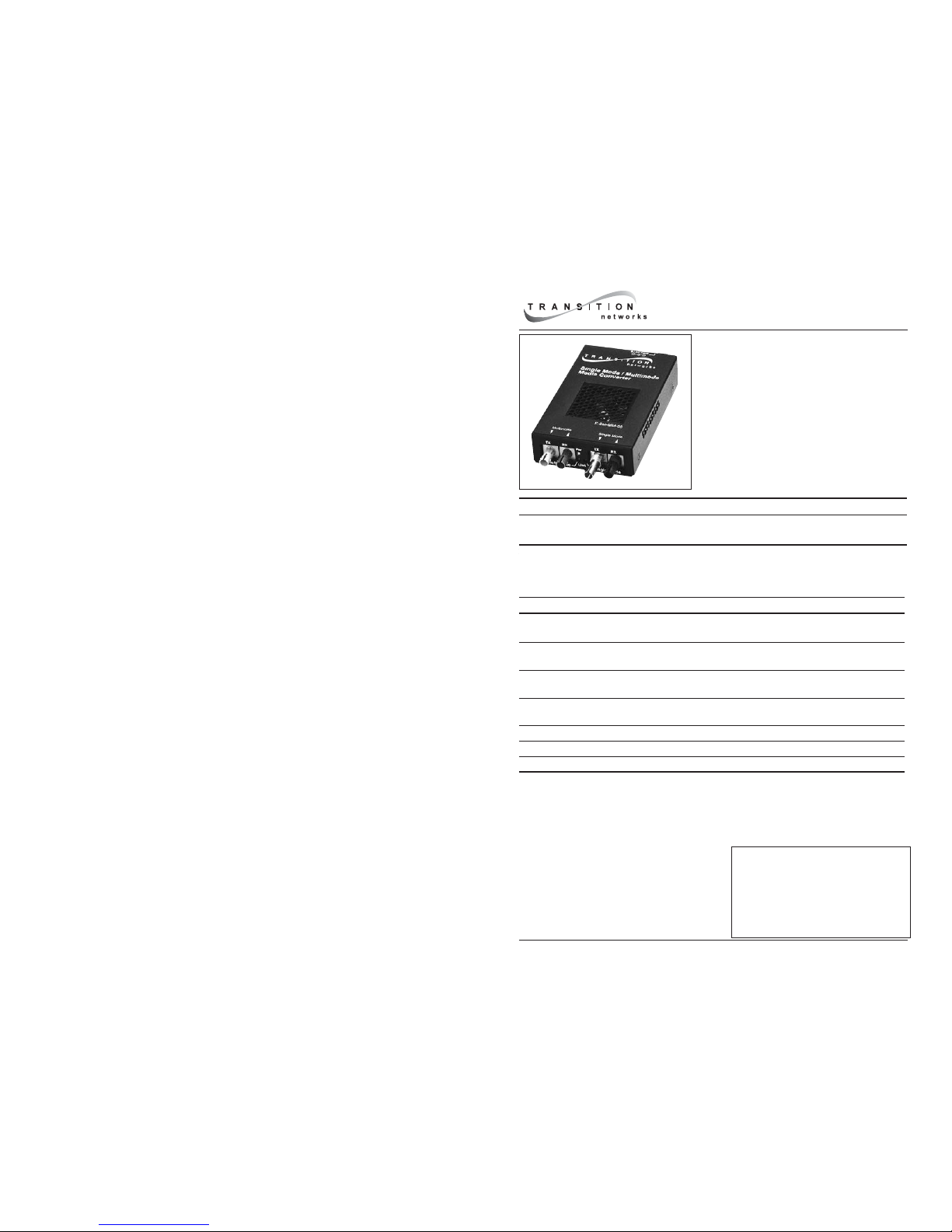

USER’S GUIDE

F-SM-MM-05

Stand-Alone Media Converter

• 10 Mb/s Ethernet

• 16 Mb/s Token Ring

• Singlemode to Multimode

Transition Networks F-SM-MM-05 Media

Converter extends Ethernet or Token Ring

networks over singlemode fiber-optic cable

up to 20 km.

Part Number Port One - Fiber-Optic Port Two - Fiber-Optic

F-SM-MM-05 ST, 850 nm multimode

2 km (1.2 miles)*

ST, 1310 nm singlemode

20 km (12.4 miles)*

* Typical maximum cable distance. (Actual distance is dependent upon the

physical characteristics of the network.)

Optional Accessories (sold separately)

Installation . . . . . . . . . . . . . . . . . .2

Operation . . . . . . . . . . . . . . . . . . .3

Cable Specifications . . . . . . . . . . .4

Technical Specifications . . . . . . . .5

Fault Isolation and Correction . . .6

Compliance Information . . . . . . . .8

Part Number Description

SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone

Output: 12.6VDC, 1.0 A

SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-back;

Output: 12.6VDC, 1.0 A

E-MCR-03 12-Slot Media Converter Rack (includes universal internal power

supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)

WMBL Optional Wall Mount Brackets

Length: 4.0 in. (102 mm), Fits converter length: 4.7 in. (119 mm)

WMBV Optional Vertical Mount Bracket; Length: 5.0 in. (127 mm)

WMBD Optional DIN Rail Mount Bracket; Length: 5.0 in. (127 mm)

WMBD-F Optional DIN Rail Mount Bracket (flat); Length: 3.3in. (84 mm)

F-SM-MM-05

Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00)

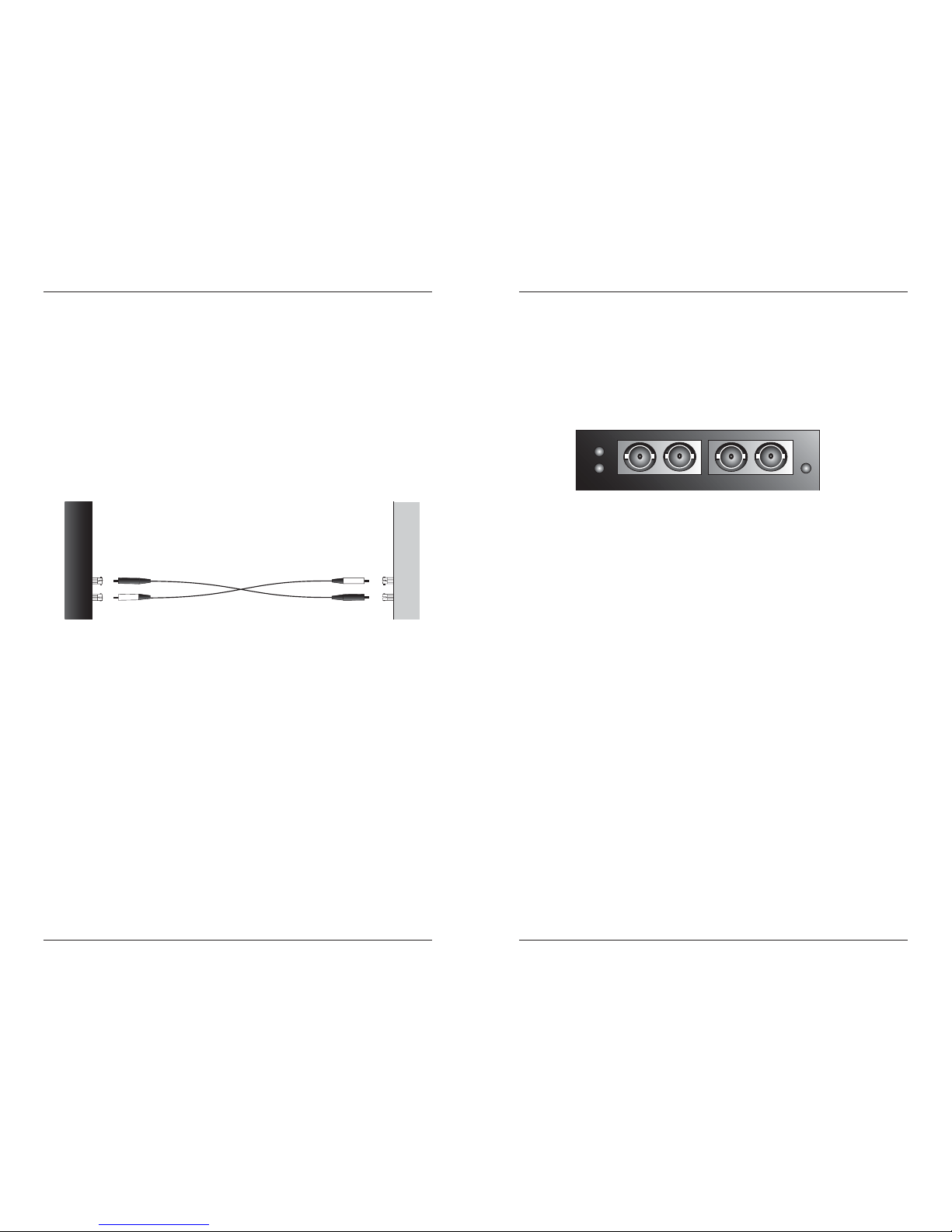

INSTALLATION

Installing the Cable

FIBER

1. Locate or build fiber cable with male, two-stranded TX to RX connectors

installed at both ends.

2. Connect the fiber cables to the Media Converter as described:

• Connect the male TX cable connector the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter,

hub, etc.) as described:

• Connect the male TX cable connector the female RX port.

• Connect the male RX cable connector to the female TX port.

Connect the fiber cable

to the Media Converter

as shown.

Connect the fiber cable

to the other device

(media converter,

hub, etc.) as shown

Power the Media Converter

1. Install the power adapter cord to the back of the Media Converter.

2. Connect the power adapter plug to AC power.

3. Verify that the Media Converter is powered by observing the illuminated

LED power indicator light.

Consult the User’s Guide for the Transition Networks SPS1872-xx DC External

Power Suppy for powering the Media Converter.

[email protected] -- Select the “Transition Now” Link for a Live Web Chat 3

Link

Pwr

Link

Multimode

(TX) (RX)

Singlemode

(TX) (RX)

OPERATION

Using Status LEDs

Use the status LEDs to monitor the Media Converter operation in the network.

Pwr Steady LED indicates connection to external AC or DC power.

Link (left) Steady LED indicates multimode fiber link connection.

Link (right) Steady LED indicates singlemode fiber link connection.

F-SM-MM-05

Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00)

CABLE SPECIFICATIONS

The physical characteristics must meet or exceed IEEE802.5j specifications.

Bit Error Rate: <10-10

Multimode 850 nm

Recommended: 62.5/125 µm

Optional: 100/140, 85/125, 50/125 µm

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Link Budget: 13.5 dB

Typical maximum cable distance* 2 km (1.2 miles)

Singlemode 1310 nm

Recommended: 9 µm

Fiber Optic Transmitter Power: min: -23.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Link Budget: 9.5 dB

Typical maximum cable distance* 20 km (12.4 miles)

* Actual distance is dependent upon the characteristics of the network

installation.

[email protected] -- Select the “Transition Now” Link for a Live Web Chat

TECHNICAL SPECIFICATIONS

For use with Transition Networks Model F-SM-MM-05 or equivalent

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

Standards: IEEE802.5j

Data Rate: 4 to 16 Mb/s

Case Dimensions: 4.7" x 3.0" x 1.0" (119 mm x 76 mm x 25 mm)

Weight: 10 oz. (283 g) (approximate)

Power Consumption: 3.1 W

Power Supply 12VDC, 0.4 A (minimum)

DC Output: minimum output regulation: 5%

Connector: 2.1mm barrel, center pin positive

MTBF: 51,185 hours (MIL217F2 V5.0) (MIL-HDBK-217F)

124,339 hours (Bellcore7 V5.0)

Environment: Tmra*: 0 to 50°C (32 to 122°F)

Storage Temp: -20 to 85°C (-4 to 185°F)

Humidity: 10 to 90%, non condensing

Altitude: 0 to 10,000 feet

Warranty: Lifetime

*Manufacturer’s rated ambient temperature.

CAUTION: Visible and Invisible Laser Radiation When Open. Do Not Stare

Into Beam Or View Directly With Optical Instruments.

CAUTION: Use of controls, adjustments or the performance of procedures

other than those specified herein may result in hazardous radiation exposure.

F-SM-MM-05

Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00)

FAULT ISOLATION and CORRECTION

If the Media Converter fails, isolate and correct the failure by determining the

answers to the following questions and then taking the indicated action:

1. Is the PWR LED on the Media Converter illuminated?

• Is the power adapter the proper type of voltage and cycle frequency

for the AC outlet?

• Is the power adapter properly installed in the Media Converter and in

the outlet?

• Contact Technical Support: US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the multimode

Link

LED (on the left) illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the Media Converter are

connected to the RX and TX ports, respectively, on the other device.

• Contact Technical Support: US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the singlemode

Link

LED (on the right) illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the Media Converter are

connected to the RX and TX ports, respectively, on the other device.

• Contact Technical Support: US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Contact Technical Support: US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600. DECLARATION OF CONFORMITY

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 USA

Model: F-SM-MM-05 Series Media Converters

Part Number(s): F-SM-MM-05

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the

F-SM-MM-05

to which this declaration refers is in

conformity with the following standards.

EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992;

EN 60950 A4:1997; IEC 801.2, 801.3, 801.4; IEC 950; 21 CFR subpart J

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

January 1, 1997

Stephen Anderson, Vice-President of Engineering Date

[email protected] -- Select the “Transition Now” Link for a Live Web Chat 7

Technical Support

Technical support is avialable 7:00 AM - 6:00 PM CST (GMT -6:00)

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition Now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based Seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

6475 City West Parkway

Minneapolis, MN 55344, USA

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

COMPLIANCE INFORMATION

UL Listed

C-UL Listed (Canada)

CISPR22/EN55022 Class A

CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a class A digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference, in which case the user will be required to correct the

interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus

set out on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la class A prescrites dans le Règlement sur le

brouillage radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb

dieses Gerätes Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für

entsprechende Gegenmaßnahmen werantwortlich ist.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer

des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures

spécifiques appropriées.

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

means - graphic, electronic, or mechanical - without written permission from Transition

Networks.

Printed in the U.S.A. 33063.C

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks CGETF1013-100 Manuel utilisateur

Transition Networks

Transition Networks ARCNET AR-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks SPOEB1011-100 Manuel utilisateur

Transition Networks

Transition Networks J/FE-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks CDFTF1111-100 Manuel utilisateur

Transition Networks

Transition Networks J/E-CF-02(SC) Manuel utilisateur

Transition Networks

Transition Networks M/E-PSW-FX-01SC Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-N-01 Manuel utilisateur

Transition Networks

Transition Networks C/F-SM-MM-02(LH) Manuel utilisateur

Transition Networks

Transition Networks CFMFF1314-210 Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-05(10x) Manuel utilisateur

Transition Networks

Transition Networks C/E-R-TX-FX-01 Manuel utilisateur

Transition Networks

Transition Networks FD-CD-01 Manuel utilisateur

Transition Networks

Transition Networks SAPTF33xx-100 Manuel utilisateur

Transition Networks

Transition Networks F-xM-MM-05 Manuel utilisateur

Transition Networks

Transition Networks M/GE-PSW-SX-01 Manuel utilisateur

Transition Networks

Transition Networks ARCNET C/AR-CF-02(SC) Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FRL-03(SC) E-100BTX-FRL-03(SM) Manuel utilisateur

Transition Networks

Transition Networks CGFEB10xx-12x Manuel utilisateur

Transition Networks

Transition Networks CBFTF10xx-1xx Manuel utilisateur

Transition Networks

Transition Networks SSRFB10xx-100 Manuel utilisateur

Transition Networks

Transition Networks 10BASE-2 Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FX-04(LH) Manuel utilisateur

Transition Networks

Transition Networks F-SM-MM-05 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
