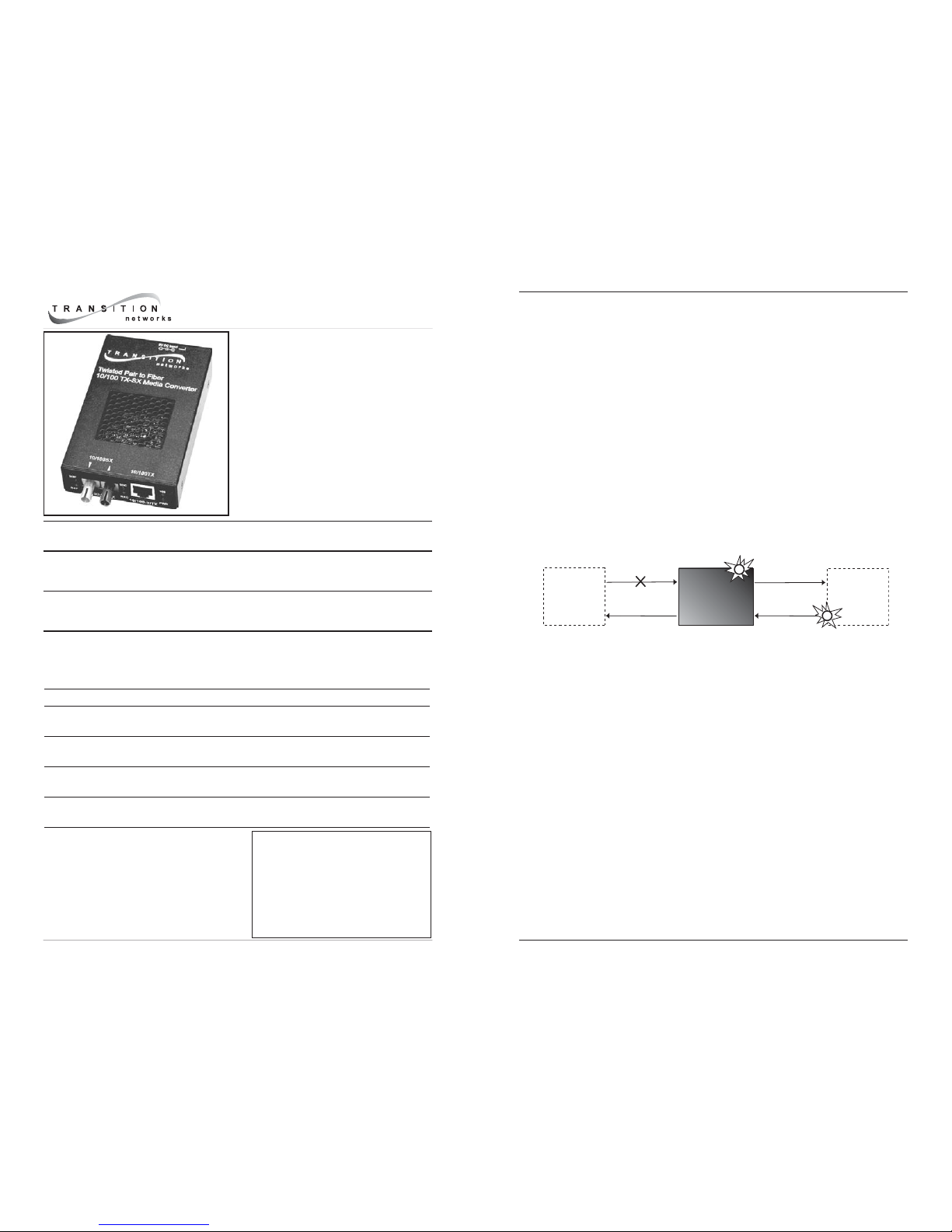

USER’S GUIDE

SSETF10xx-200

Stand-Alone Media Converter

• Ethernet™ and Fast Ethernet™

• 10Base-T / 100Base-TX to

10Base-FL / Base-SX

TRANSITION Networks SSETF10xx-200

series Ethernet™ and Fast Ethernet™

Media Converters connect 10Base-T or

100Base TX shielded or unshielded

twisted-pair copper cable to 10Base-FL or

100Base-SX fiber-optic cable.

* Typical maximum cable distance. (Actual distance is dependent upon the

physical characteristics of the network installation.)

Optional Accessories (sold separately)

Installation . . . . . . . . . . . . . . . . . .3

Operation . . . . . . . . . . . . . . . . . . .4

Cable Specifications . . . . . . . . . . .5

Technical Specifications . . . . . . . .6

Half-Duplex Network . . . . . . . . . .7

Fault Isolation and Correction . . .8

Compliance Information . . . . . . .11

Part Number Port One - Copper

10Base-T/100Base-TX

Port Two - Fiber-Optic

10Base-FL/100Base-SX

SSETF1011-200 RJ-45

100 m (328 ft)*

ST, 850 nm multimode

2 km (1.2 mi)* @ 10 Mb/s

300 m (980 ft)* @ 100 Mb/s

SSETF1013-200 RJ-45

100 m (328 ft)*

SC, 850 nm multimode

2 km (1.2 mi)* @ 10 Mb/s

300 m (980 ft)* @ 100 Mb/s

Part Number Description

E-MCR-03 12-Slot Media Converter Rack (includes universal internal power

supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)

WMBP Optional Wall Mount Brackets

Length: 5.0 in (127 mm) Fits converter length: 4.716 in. (120 m)

SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone Wide-

Input; Output: 12.6VDC, 1.0 A

SPS-1872-PS Optional External Power Supply; 18-72VDC Piggy-Back Wide-

Input; Output: 12.6VDC, 1.0 A

SSETF10xx-200

Tech Su

ort: 800-260-1312 International: 952-941-7600 7am-6

m CST

(

GMT-6:00

)

Product Features

Full-Duplex / Half-Duplex

The SSETF10xx-200 receives and transmits network signals in either full-

duplex or half-duplex mode (depending upon the network devices to which

the Media Converter is attached).

Fast Ethernet™ in full-duplex mode allows the maximum cable distances

listed on page 1.

Fast Ethernet™ in half-duplex mode requires attention to the 512-bit Rule

(See page 7).

LinkAlert

The SSETF10xx-200 series Media Converter LinkAlert™ feature allows the

Media Converter to pass 10Base-T/100Base-TX-side link faults over the link to

the 10Base-T/100Base-SX side and to pass 10Base-FL/100Base-SX-side link

faults over the link to the 10Base-FL/100Base-TX side.

If the SSETF10xx-200 Media Converter does not detect a good link on the

10Base-T/100Base-TX side, the Media Converter disables all transmission

(including active-idle) on the 10Base-FL/100Base-SX side.

AutoCross*

The AutoCross™ feature allows either straight-through (MDI) or crossover

(MDI-X) cables to be used when connecting to 10Base-T or to 100Base-TX

devices, such as hubs, transceivers, or network interface cards (NICs).

AutoCross determines the characteristics of the cable connection and

automatically configures the unit to link up, regardless of the cable

configuration.

Auto-Negotiation*

The SSETF10xx-200 series Media Converter Auto-Negotiation™ feature

allows the Media Converter to be used with 10Base-T, 100Base-TX, 10Base-

FL and 100Base-SX ports. Using Auto-Negotiation, the Media Converter brings

up the copper and fiber links in the highest speed and mode possible for all

the attached network devices.

NOTE: The SSETF10xx-200 series Media Converter does NOT support rate

conversion between 10Mb/s and 100Mb/s network devices.

*Requires no operator intervention.

10Base-T or

100Bas-TX

Device

Media Converter

LINK FAULT INDICATION

10Base-FL or

100Base-SX

Device

techsu

[email protected] -- Select the “Transition Now” Link for a Live Web Chat

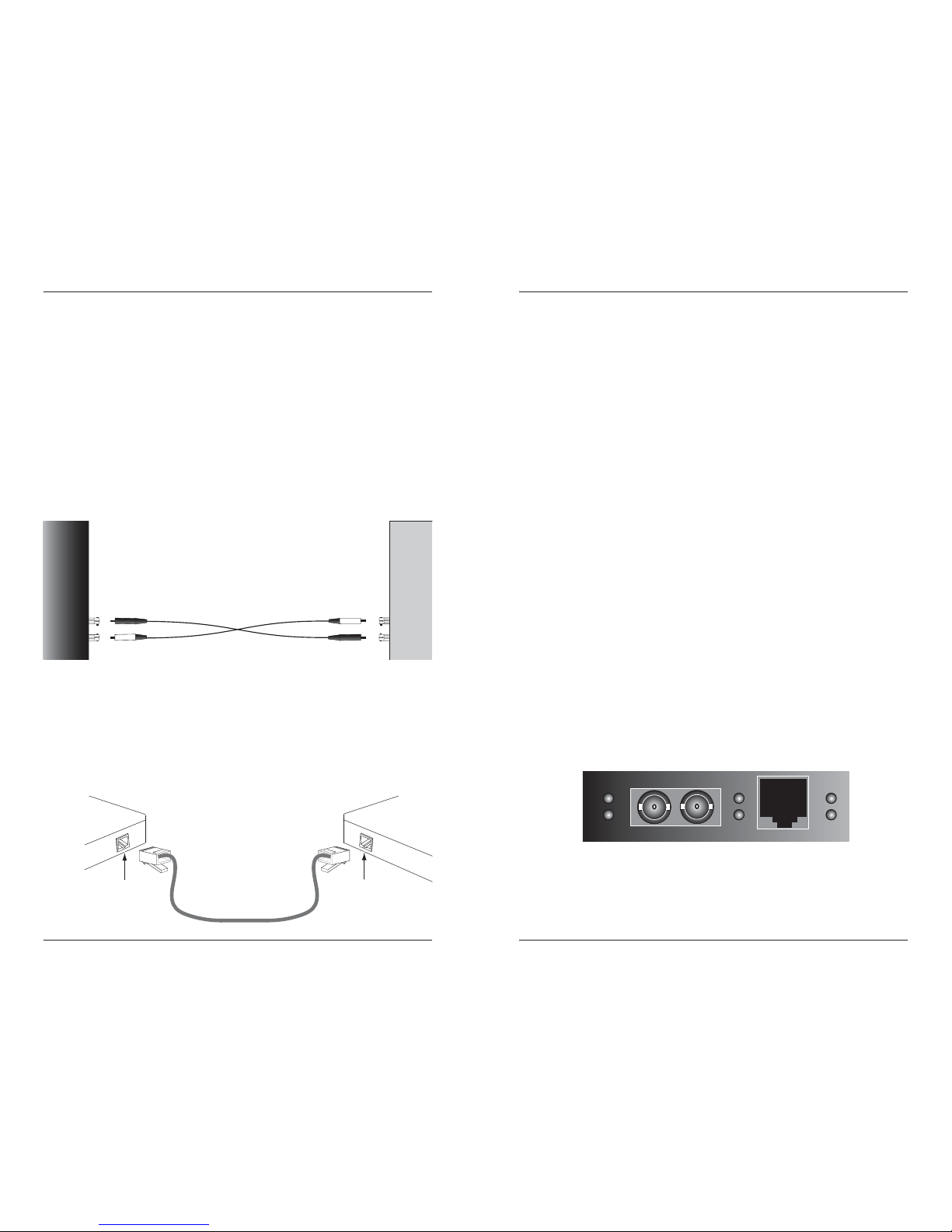

INSTALLATION

Installing the Cable

FIBER

1. Locate or build 10Base-FL or 100Base-SX compliant fiber cable with

male, two-stranded TX to RX connectors installed at both ends.

2. Connect the fiber cables to SSETF10xx-200 Media Converter as

described:

• Connect the male TX cable connector the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another Media Converter,

hub, etc.) as described:

• Connect the male TX cable connector the female RX port.

• Connect the male RX cable connector to the female TX port.

COPPER

1. Locate or build 10Base-T or 100Base-TX compliant copper cables with

male, RJ-45 connectors installed at both ends.

2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on

the SSETF10xx-200 Media Converter.

3. Connect the RJ-45 connector at the other end of the cable to the RJ-45

port on the other device (switch, workstation, etc.).

Connect the fiber cable

to the Media Converter

as shown.

Connect the fiber cable

to the other device

(media converter,

hub, etc.) as shown

RJ-45 port

on the Media

Converter

RJ-45 port

on the other device

(switch, work station, etc.)

SSETF10xx-200

Tech Su

ort: 800-260-1312 International: 952-941-7600 7am-6

m CST

(

GMT-6:00

)

INSTALLATION -- Continued

Power the Media Converter

1. Install the power adapter cord to the back of the Media Converter.

2. Connect the power adapter plug to AC power.

3. Verify that the Media Converter is powered by observing the illuminated

LED power indicator light.

OPERATION

Using Status LEDs

Use the status LEDs to monitor the SSETF10xx-200 Media Converter

operation in the network.

100 Speed Dark LED indicates 10 Mb/s operation.

Slow blinking LED indicates speed is not yet

selected.

Fast blinking LED indicates 100 Mb/s.

PWR Power Steady LED indicates connection to the external

AC power.

RXF Fiber Receive Flashing LED indicates reception of the data on

the fiber link.

LKF Fiber Link Steady LED indicates fiber link connection.

Dark LED indicates a lack of power OR a downed

link.

RXC Copper Receive Flashing LED indicates data reception on the

copper link.

LKC Copper Link Steady LED indicates copper link connection.

Dark LED indicates a lack of power OR a downed

link.

PWRRXF RXC

SDF

10/100-TX

SDC

10/100-FL/SX

100

techsu

[email protected] -- Select the “Transition Now” Link for a Live Web Chat

CABLE SPECIFICATIONS

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Fiber Cable

Bit Error Rate: <10-9

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

Wavelength: 850 nm mulitmode

Attenuation: <3.75 dB/km @ 850 nm

SSETF1011-200, SSETF1013-200

Fiber Transmitter Power: min: -16.0 dBm max: -10.0 dBm

Fiber Receiver Sensitivity (10Base-T): min: -32.5 dBm max: -7.2 dBm

Fiber Receiver Sensitivity (100Base-TX): min: -24.0 dBm max: -7.2 dBm

Link Budget: 13.5 dB

Copper Cable

Category 5:

Gauge: 24 to 22 AWG

Attenuation: 22.0 dB /100m @ 100 MHz

Maximum Cable Distance: 100 meters

• Straight-Through OR Crossover cable may be used.

• Shielded Twisted-Pair (STP) OR Unshielded Twisted-Pair (UTP) may be used.

• Pins 1&2 and 3&6 are the two active pairs in an Ethernet™ network .

• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-

• Use only dedicated wire pairs for the active pins:

(e.g., blue/white & white/blue, orange/white & white/orange, etc.)

• Do not use flat or silver satin wire.

Crossover Cable

Straight-Through Cable

Twisted Pair #1

Twisted Pair #2

SSETF10xx-200

Tech Su

ort: 800-260-1312 International: 952-941-7600 7am-6

m CST

(

GMT-6:00

)

TECHNICAL SPECIFICATIONS

Standards: IEEE 802.3™

Data Rate: 10 Mb/s, 100 Mb/s

Dimensions: 3.4" x 0.86" x 5.0" (86 mm x 22 mm x 127 mm)

Weight: 8 oz (227 g) (approximate)

Power Supply DC Output: 12VDC, 500 mA (minimum)

minimum output regulation: 5%

Connector: 2.1mm barrel, center pin positive

Environment: Operating Temperature: 0° to 50°C (32° to 122°F)

Storage Temperature: -20° to 85°C (-4° to 185°F)

Humidity: 10-90%, non condensing

Altitude: 0-10,000 feet

Warranty: Lifetime

techsu

[email protected] -- Select the “Transition Now” Link for a Live Web Chat 7

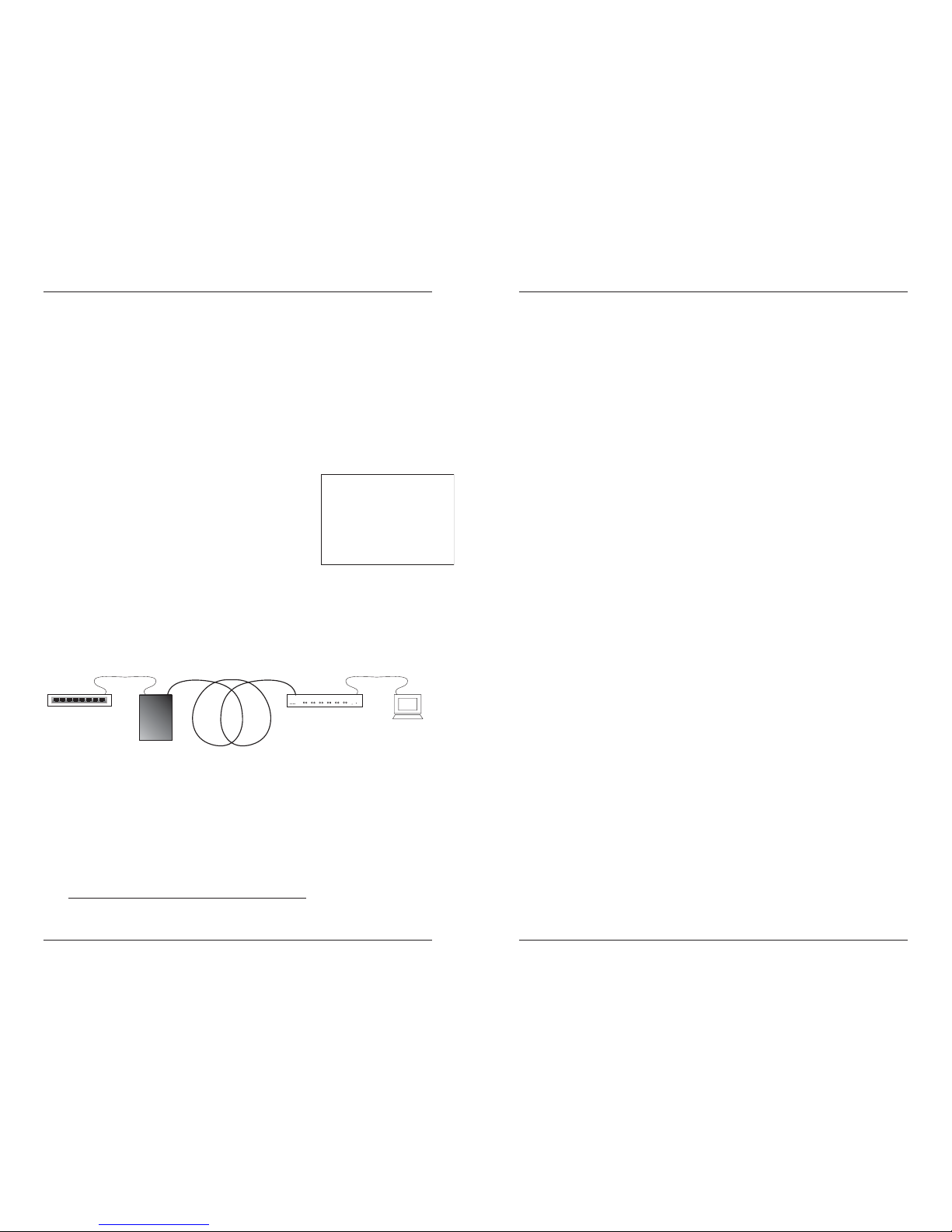

HALF-DUPLEX NETWORK

512-Bit Rule

In a half-duplex network, the maximum cable lengths are determined by the

round trip delay limitations of each Fast Ethernet™ collision domain. (A

collision domain is the longest path between any two terminal devices, e.g. a

terminal, switch, or router.)

The 512-Bit Rule determines the maximum length of cable permitted by

calculating the round-trip delay in bit-times (BT) of a particular collision

domain. If the result is less than or equal to 512 BT, the path is good.

To calculate the round-trip delay for a collision domain:

1. Find the collision domain, i.e. the longest

path between any two terminal devices

(e.g., terminal, switch, and/or router).

2. Calculate the round-trip delay in bit-times

for each length of cable.

4. Determine the bit-time values for each

device (see table to the right).

3. Add the bit-time values for each length of

cable and the bit-times for each device.

NOTE: The 512-Bit Rule applies separately to each collision domain.

The example below illustrates a collision domain bound by a router on one

end and a terminal on the other.

Since the total of the bit-times in this example is less than 512 (see chart

below), the path is good.

Terminal

= 50 BT

10 meters TP

= 11.1BT 150 meters fiber = 150BT

Class I Hub = 140BTSwitch = 50BT

Media Converter

= 12BT

10 meters TP

= 11.1BT

Sum of the bit-times for the example collision domain:

Router = 50.0 BT

10 m TP cable (10m x 1.11 BT/m) = 11.1 BT

SSETF101xx-200 =12.0 BT

150 m fiber cable (150 m x 1.0 BT/m) = 150.0 BT

Class I hub = 140.0 BT

10 m TP cable (10m x 1.11 BT/m) = 11.1 BT

Terminal = 50.0 BT

Total = 424.2 BT

Class I hub 140 BT

Class II hub 92 BT

terminal/router 50 BT

1 meter TP cable 1.11 BT

1 meter fiber cable 1 BT

Fast Ethernet switch 50 BT

SSETF10xx-200 12 BT

SSETF10xx-200

Tech Su

ort: 800-260-1312 International: 952-941-7600 7am-6

m CST

(

GMT-6:00

)

FAULT ISOLATION and CORRECTION

If the Media Converter fails, isolate and correct the fault by determining the

answers to the following questions and then taking the indicated action:

1. Is the P(o)W(e)R LED on the Media Converter illuminated?

• Is the power adapter the proper type of voltage and cycle frequency

for AC outlet?

• Is the power adapter properly installed in the Media Converter and in

the outlet?

• Does the grounded AC outlet provide power?

• Contact Technical Support: US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the LKC LED illuminated?

• Check the twisted pair cables for proper connection.

• Contact Technical Support: US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the LKF LED illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the Media Converter are

connected to the RX and TX ports, respectively, on the other device.

• Contact Technical Support: US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Proceed to step 4.

4. Is the 100 LED illuminated?

• The Media Converter has selected 10 Mb/s operation. If this is not the

correct speed, disconnect and reconnect the 10/100Base-TX cable to

restart the initialization process.

• Proceed to step 5.

YES - SLOWLY FLASHING

• The Media Converter is selecting between 10 Mb/s and 100 Mb/s

speed or one or both of the links is down. If persistent, disconnect

and reconnect either cable to restart the initialization process.

• Proceed to step 5.

YES

• The Media Converter has selected 100 Mb/s operation. If this is not

the correct speed, disconnect and reconnect the 10/100Base-TX

cable to restart the initialization process.

• Proceed to step 5.

techsu

[email protected] -- Select the “Transition Now” Link for a Live Web Chat

5. Is the RXC LED flashing?

• If there is no activity on the 10Base-T/100Base-TX port, proceed to

step 6.

• If there is activity on the 10Base-T/100Base-TX port, disconnect and

reconnect the 10Base-T/100Base-TX cable to restart the initialization

process.

• Restart the workstation to restart the initialization process.

• Contact Technical Support: US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Proceed to step 6.

6. Is the RXF LED flashing?

• If there is no activity on the 10Base-FL/100Base-SX port, continue

below

• If there is activity on the 10Base-FL/100Base-SX port, disconnect and

reconnect the 10Base-FL/100Base-SX cable to restart the initialization

process.

• Verify that TX and RX cables on Media Converter are connected to

RX and TX ports, respectively, on other device.

• Restart the workstation to restart the initialization process.

• Contact Technical Support: US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Contact Technical Support: US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

SSETF10xx-200

Tech Su

ort: 800-260-1312 International: 952-941-7600 7am-6

m CST

(

GMT-6:00

)

DECLARATION OF CONFORMITY

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 USA

Model: SSETF10xx-200 Series Media Converters

Part Number(s): SSETF1011-200, SSETF1013-200

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the

SSETF10xx-200

to which this declaration refers is in

conformity with the following standards.

EN55022:1994; EN 55024:1998; FCCPart 15 Class A & B; EN 60950 A4: 1997; UL 1950

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

_April 16, 2002_____

Stephen Anderson, Vice-President of Engineering Date

Technical Support

Technical support is avialable 7:00 AM - 6:00 PM CST (GMT -6:00)

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition NOW

Chat live via the Web with TRANSITION Networks Technical Support.

Log onto www.transition.com and click the TRANSITION NOW link.

Web-Based Seminars

TRANSITION Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

TRANSITION Networks

6475 City West Parkway

Minneapolis, MN 55344, USA

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

techsu

[email protected] -- Select the “Transition Now” Link for a Live Web Chat 11

COMPLIANCE INFORMATION

UL Listed

C-UL Listed (Canada)

CISPR22/EN55022 Class A & B + EN55024

CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class A & B digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference, in which case the user will be required to correct the

interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A & B limits for radio noise for digital

apparatus set out on the radio interference regulations of the Canadian Department of

Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la class A prescrites dans le Règlement sur le

brouillage radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb

dieses Gerätes Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für

entsprechende Gegenmaßnahmen werantwortlich ist.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer

des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures

spécifiques appropriées.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

SSETF10xx-200

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

means - graphic, electronic, or mechanical - without written permission from TRANSITION

Networks.

Printed in the U.S.A. 33178.B

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks E-TBT-FRL-1200 Manuel utilisateur

Transition Networks

Transition Networks CSETF1011 Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-1007 Manuel utilisateur

Transition Networks

Transition Networks CGFEB1013-100 Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FX-04(LH) Manuel utilisateur

Transition Networks

Transition Networks E-TX-SX-02 Manuel utilisateur

Transition Networks

Transition Networks SPS-1872-CC Manuel utilisateur

Transition Networks

Transition Networks C/TR-CF-01(SM) Manuel utilisateur

Transition Networks

Transition Networks C/E-R-TX-FX-01 Manuel utilisateur

Transition Networks

Transition Networks M/GE-PSW-PSE-01 Manuel utilisateur

Transition Networks

Transition Networks CSDTF3011-115 Manuel utilisateur

Transition Networks

Transition Networks C/E-PSW-FX-03(LH) Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-N-02 Manuel utilisateur

Transition Networks

Transition Networks SSETF1011-205 Manuel utilisateur

Transition Networks

Transition Networks C4TEF1011-100 Manuel utilisateur

Transition Networks

Transition Networks TN-GB-xM5 Manuel utilisateur

Transition Networks

Transition Networks SISTG10 211-LR Series Manuel utilisateur

Transition Networks

Transition Networks CSETF1011-205 Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-04(L) Manuel utilisateur

Transition Networks

Transition Networks SSDTF1011-100 Manuel utilisateur

Transition Networks

Transition Networks CFETF10 Series Manuel utilisateur

Transition Networks

Transition Networks SGPOE10 1 Series Manuel utilisateur

Transition Networks

Transition Networks J/E-CF-02(SC) Manuel utilisateur

Transition Networks

Transition Networks E-PSW-SX-01(SC) Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
