Transition Networks SMACF10XX Manuel utilisateur

Install SMACF10xx in Network

1. Unpack and Install SMACF10xx Units Place SMACF10xx units

on table or other flat, stable surface in well-ventilated area.

2. Power On SMACF10xx Units Install power adapter cord at back

of each SMACF10xx unit. Connect power adapter plug to AC

power. Verify power by observing illuminated LEDs.

3. Connect SMACF10xx Units to Ethernet™Network Locate path

to Ethernet™segment. Use Category 5 twisted-pair cable and

appropriate fiber cable to connect SMACF10xx Management Unit

through any port (optionally through a hub or switch) to the

Ethernet™segment. Connect

AT LEAST ONE port

EACH

installed SMACF10xx Reporting Unit (optionally through a hub or

switch) to the same Ethernet™segment.

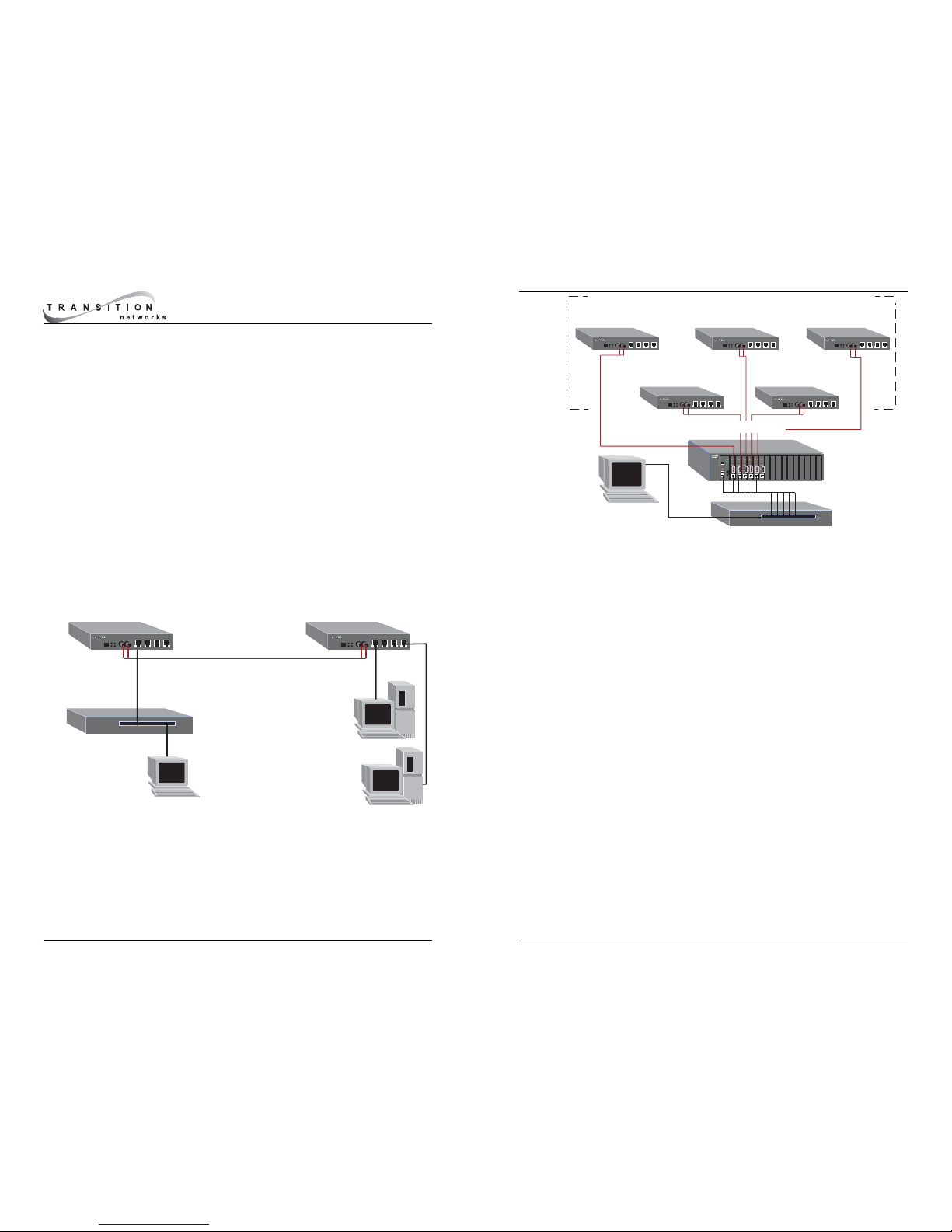

Network managed by SMACF10xx Management Unit.

SMACF10xx Management Aggregation Converter

QUICK START GUIDE

Main Management Unit Reporting Unit

MM or SM Fiber

In-Band Management

VLAN Segmentation

10 or 100 Mb/s Speed Selection

SNMP Management

of Both Main Management

and Reporting Units

LAN Switch

CAT 5

Network managed by CPSMM-xxx PointSystem

™

Management

Module connected to switch on same segment as Reporting Units.

Configure Main Management Unit or Management Module

Installed in Chassis

NOTE: The SMAC10xx Management Unit contains both a Management

Unit and a Reporting Unit. Each must be configured separately.

4. Connect Management Unit or Management Module to Terminal

Locate null modem DB-9 serial port cable with female DB-9

connector. Attach DB-9 serial port female cable connector to

DB-9 serial port male connector on SMACF10xx Management

Unit OR on CPSMM-xxx

PointSystem

™

Management Module

installed in Media Conversion Center. Attach other end of DB-9

serial port cable to ASCII terminal or terminal emulator.

5. Verify Terminal Settings Default terminal settings are 9600

Baud/ 8 data bits/ 1 stop bit/ no parity. If necessary, use methods

appropriate to terminal to modify settings.

6. Bring up Management Unit Interface at Terminal

(SMACF10xx

Management Unit ONLY)

First set switch at back of SMACF10xx

Management Unit to UP position.

(SMACF10xx Management

Unit and CPSMM-xxx PointSystem

™

Management Module)

Press

<enter>

at terminal keyboard to bring up command-line prompt.

7. Enter

superuser

Mode At command-line prompt, type and enter

the su command, using the

case-sensitive

Transition Networks

default password

private

CPSMM100> SU=private

Manufacturing

& Logistics

SNMP Management

of all Remote Reporting Units

MM or SM Fiber

Sales & Marketing

Corporate

Management Accounting Technical

Publications

Remotely

Managed

Converters

PointSystem

Modular Chassis

Copper Switch

8. Optionally Change Passwords To optionally set on-site

passwords by changing the default community names, at the

superuser

command-line prompt, type and enter:

[SU] CPSMM100> SET PUBLIC=<

public name

[SU] CPSMM100> SET PRIVATE=<

private name

[SU] CPSMM100> SAVE

9. Set IP, Gateway, and Subnet Addresses At the

superuser

command-line prompt, type and enter IP, gateway, and subnet

addresses

(in format: nnn.nnn.nnn.nnn):

[SU] CPSMM100> SET IP=<

IP address

[SU] CPSMM100> SET NETMASK=<

mask

[SU] CPSMM100> SET GATEWAY=<

gateway address

[SU] CPSMM100> SAVE

10. Enter "secret word" At the

superuser

command-line prompt,

type and enter:

[SU] CPSMM100> SECRET=<WORD>

[SU] CPSMM100> SAVE

Configure Reporting Unit(s)

11. Connect Reporting Unit to Terminal Refer to steps 4 and 5 for

direction and terminal settings.

12. Bring up Reporting Unit Interface at Terminal

(SMACF10xx

Management Unit ONLY)

First set switch at back of SMACF10xx

Management Unit to DOWN position.

(All SMACF10xx Reporting

Units)

Press

<enter>

at terminal to bring up Reporting Unit Main

Menu.

13. Optionally Change CLI Login Password Pressing

<enter>

is the

default Transition Networks Reporting Unit password. Optionally

set an on-site Reporting Unit log-in password, using the command:

p<xxxxxxxx>

14. Enter "secret word" Enter a secret word

(identical to the secret

word entered in the SMACF10xx Management Unit or the

CPSMM-xxx PointSystem

™

Management Module)

, using the

command:

c<xxxxxxxx>

Repeat steps 11-14 for all installed SMACF10xx Reporting Units.

Manage SMACF10xx Units at Web Interface

15. Open Internet Browser Use browser versions IE 4.0, Netscape

4.0, or Opera 4.0 and above.

16. Enter Management Unit or Management Module IP Address At

WWW location prompt, enter the IP address

(in format:

nnn.nnn.nnn.nnn)

of the configured SMACF10xx Management Unit

or CPSMM-xxx

PointSystem

™

Management Module.

17. Enter Password At the password prompt that comes up, enter

the

case-sensitive

Transition Networks default password

private

(unless password was changed in step 8).

A display showing available SMACF10xx units comes up. Refer to on-

line help available from the display for detailed direction for managing

the SMACF10xx units.

or by any means – graphic, electronic, or mechanical – without written

permission from TRANSITION Networks.

Printed in the U.S.A. 33265.A
