USER’S GUIDE

CRS4Fxxxx-10x

Slide-in-Module Media

Converter

RS485/422 Copper to Fiber

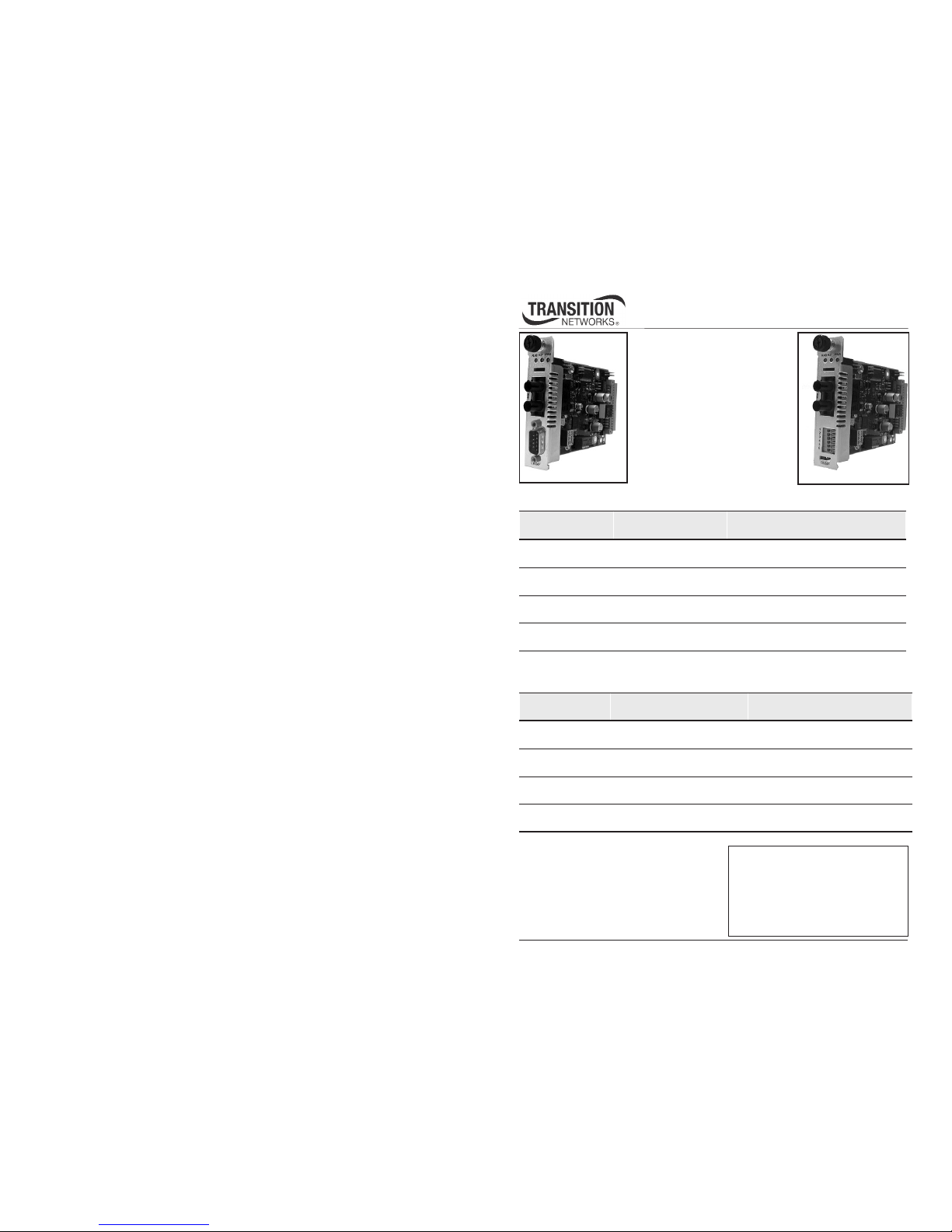

Transition Networks CRS4Fxxxx-

10x series media converters are

designed to be installed in the

PointSystem™ chassis and connect

RS485/422 copper cable to fiber-

optic cable at asynchronous data

rates up to 1.25 Mb/s.

The CRS4F31xx-10x media converters use a male DB-9 port for the copper link:

The CRS4F32xx-10x media converters use a 6-position terminal block for the copper

link:

*Maximum cable distance is 1200m (4000 ft)

@ <90 kb/s decreasing logarithmically to

92m (300 ft) @ 500 kb/s.

**Typical maximum cable distance. Actual

distance is dependent upon the physical

characteristics of the network installation.

Installation . . . . . . . . . . . . . . . . . . . . .3

Operation . . . . . . . . . . . . . . . . . . . . .8

Cable Specifications . . . . . . . . . . . . . .9

Technical Specifications . . . . . . . . . .12

Troubleshooting . . . . . . . . . . . . . . .13

Contact Us . . . . . . . . . . . . . . . . . . .14

Compliance Information . . . . . . . . .15

Part Number Port One - Copper

DB-9 port

Port Two - Fiber-Optic

CRS4F3111-100 RS485/422

1200 m (4000 ft)*

ST, 1300 nm multimode

2 km (1.2 miles)**

CRS4F3113-100 RS485/422

1200 m (4000 ft)*

SC, 1300 nm multimode

2 km (1.2 miles)**

CRS4F3114-100 RS485/422

1200 m (4000 ft)*

SC, 1310 nm single mode

20 km (12.4 miles)**

CRS4F3115-100 RS485/422

1200 m (4000 ft)*

SC, 1310 nm single mode

40 km (24.8 miles)**

Part Number Port One - Copper

6-position terminal block

Port Two - Fiber-Optic

CRS4F3211-100 RS485/422

1200 m (4000 ft)*

ST, 1300 nm multimode

2 km (1.2 miles)**

CRS4F3213-100 RS485/422

1200 m (4000 ft)*

SC, 1300 nm multimode

2 km (1.2 miles)**

CRS4F3214-100 RS485/422

1200 m (4000 ft)*

SC, 1310 nm single mode

20 km (12.4 miles)**

CRS4F3215-100 RS485/422

1200 m (4000 ft)*

SC, 1310 nm single mode

40 km (24.8 miles)**

CRS4F31xx-10x CRS4F32xx-10x

2Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

CRS4Fxxxx-10x

Part Number Part One - Copper

DB-9 Port

Port Two - Fiber Optic

CRS4F3129-100 RS485

1200 m (4000 ft)*

SC, 1310TX/1550RX nm, single mode

20 km (12.4 miles)**

CRS4F3129-101 RS485

1200 m (4000 ft)*

SC, 1550TX/1310RX nm, single mode

20 km (12.4 miles)**

CRS4F3129-102 RS485

1200 m (4000 ft)*

SC, 1310TX/1550RX nm, single mode

40 km (24.8 miles)**

CRS4F3129-103 RS485

1200 m (4000 ft)*

SC, 1550TX/1310RX nm, single mode

40 km (24.8 miles)**

Part Number Part One - Copper -6-

position terminal block

Port Two - Fiber Optic

CRS4F3229-100 RS485

1200 m (4000 ft)*

SC, 1310TX/1550RX nm, single mode

20 km (12.4 miles)**

CRS4F3229-101 RS485

1200 m (4000 ft)*

SC, 1550TX/1310RX nm, single mode

20 km (12.4 miles)**

CRS4F3229-102 RS485

1200 m (4000 ft)*

SC, 1310TX/1550RX nm, single mode

40 km (24.8 miles)**

CRS4F3229-103 RS485

1200 m (4000 ft)*

SC, 1550TX/1310RX nm, single mode

40 km (24.8 miles)**

The CRS4F3129-10x media converters use a male DB-9 port for the copper link:

The CRS4F32xx-10x media converters use a 6-position terminal block for the copper link:

*Maximum cable distance is 1200m (4000 ft) @ <90 kb/s decreasing logarithmically to

92m (300 ft) @ 500 kb/s.

**Typical maximum cable distance. Actual distance is dependent upon the physical

characteristics of the network installation.

[email protected] -- Click the “Transition Now” link for a live Web chat. 3

Installation

CAUTION: Wear a grounding device and observe electrostatic discharge precautions

when setting the switches. Failure to observe this caution could result in damage to,

and subsequent failure of, the media converter.

Set the 6-Position Switch

The 6-position switch is located on the side of the media converter. Use a small flat-

blade screwdriver or a similar device to set the recessed switches. Refer to the

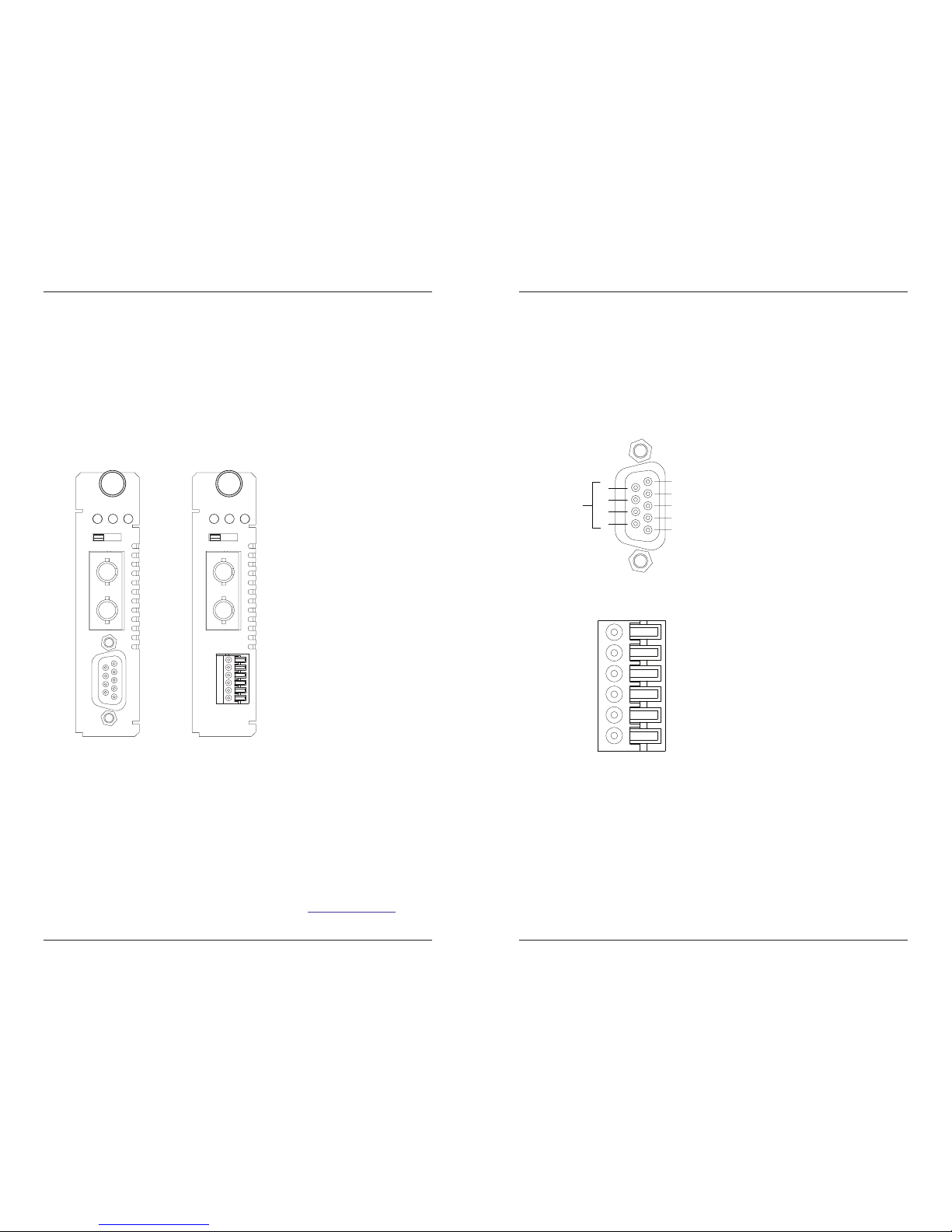

drawing for the locations of the six individual switches.

Switch 1 - 130 ohm resistor on “receive”

up = Disable

down = Enable (Switch 5 must also be set to “4-wire” (down)

When enabled, switch 1 inserts a 130 ohm resistor on the wire pair:

• Receive (-) (B) RS485 4-wire, receive (-) RS422

• Receive (+) (A) RS485 4-wire, receive (+) RS422

Switch 2 - 130 ohm resistor on “transmit”

up = Disable

down = Enable. (Switch 5 must also be set to “2-wire” (up)

When enabled, switch 2 inserts a 130 ohm resistor on the wire pair:

• Transmit/Receive (-) (B) RS485 2-wire, transmit (-) RS422

• Transmit/Receive (+) (A) RS485 2-wire, transmit (+) RS422

Switch 3 - 1K ohm “pull-down”

up = Disable

down = Enable. (Switch 5 must also be set to “2-wire” (up)

When enabled, switch 3 enables a 1K ohm pull-down on the wire:

• Transmit/Receive (-) (B) RS485 2-wire, transmit (+) RS422

130 Ohm Resistor on Receive

1K Ohm Pull-Down

1K Ohm Pull-Up

2-Wire/4Wire

RS485/RS422

130 Ohm Resistor on Transmit

123456

4Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

CRS4Fxxxx-10x

Installation -- Continued

Switch 4 - 1K ohm “pull-up”

up = Disable

down = Enable (Switch 5 must also be set to “2-wire” (up)

When enabled, switch 4 enables a 1K ohm pull-up on the wire:

• Transmit/Receive (+) (A) RS485 2-wire, transmit (+) RS422

Switch 5 - 2-wire/4-wire

up = 2-wire

down = 4-wire

Set switch 5 to 2-wire (up) to enable the wire pair:

• Transmit/Receive (-) (B) RS485 2-wire, transmit (-) RS422

• Transmit/Receive (+) (A) RS485 2-wire, transmit (+) RS422

for RS422 2-wire, half-duplex operation

Set switch 5 to 4-wire (down) to enable the wire pair:

• Receive (-) (B) RS485 4-wire, transmit (-) RS422

• Receive (+) (A) RS485 4-wire, transmit (+) RS422

for RS422 4-wire, full-duplex operation

Switch 6 - RS485 / RS422

up = RS485

down = RS422

Set switch 6 to RS485 (up) to prevent echo in the 2-wire mode.

Set switch 6 to RS422 (down) to allow “transmit only” for the wire pair:

• Transmit/Receive (-) (B) RS485 2-wire, transmit (-) RS422

• Transmit/Receive (+) (A) RS485 2-wire, transmit (+) RS422

[email protected] -- Click the “Transition Now” link for a live Web chat. 5

Installation -- Continued

Install the Slide-In-Module

CAUTION: Wear a grounding device and observe electrostatic discharge precautions

when installing the media converter. Failure to observe this caution could result in

damage to, and subsequent failure of, the media converter.

To install the CRS4Fxxxx-10x media converter slide-in-module:

1. Locate an empty installation slot on the PointSystem™ Chassis.

2. Carefully slide the slide-in-module into the installation slot, aligning the

module with the installation guides.

3. Ensure that the module is firmly seated inside the chassis.

4. Push in and rotate the attached panel fastener screw to secure the module to the

chassis front.

Install the Fiber Cable

1. Locate or build fiber cable with male, two-stranded TX to RX connectors

installed at both ends.

2. Connect the fiber cables to the CRS4Fxxxx-10x media converter as described:

• Connect the male TX cable connector the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter, hub,

etc.) as described:

• Connect the male TX cable connector the female RX port.

• Connect the male RX cable connector to the female TX port.

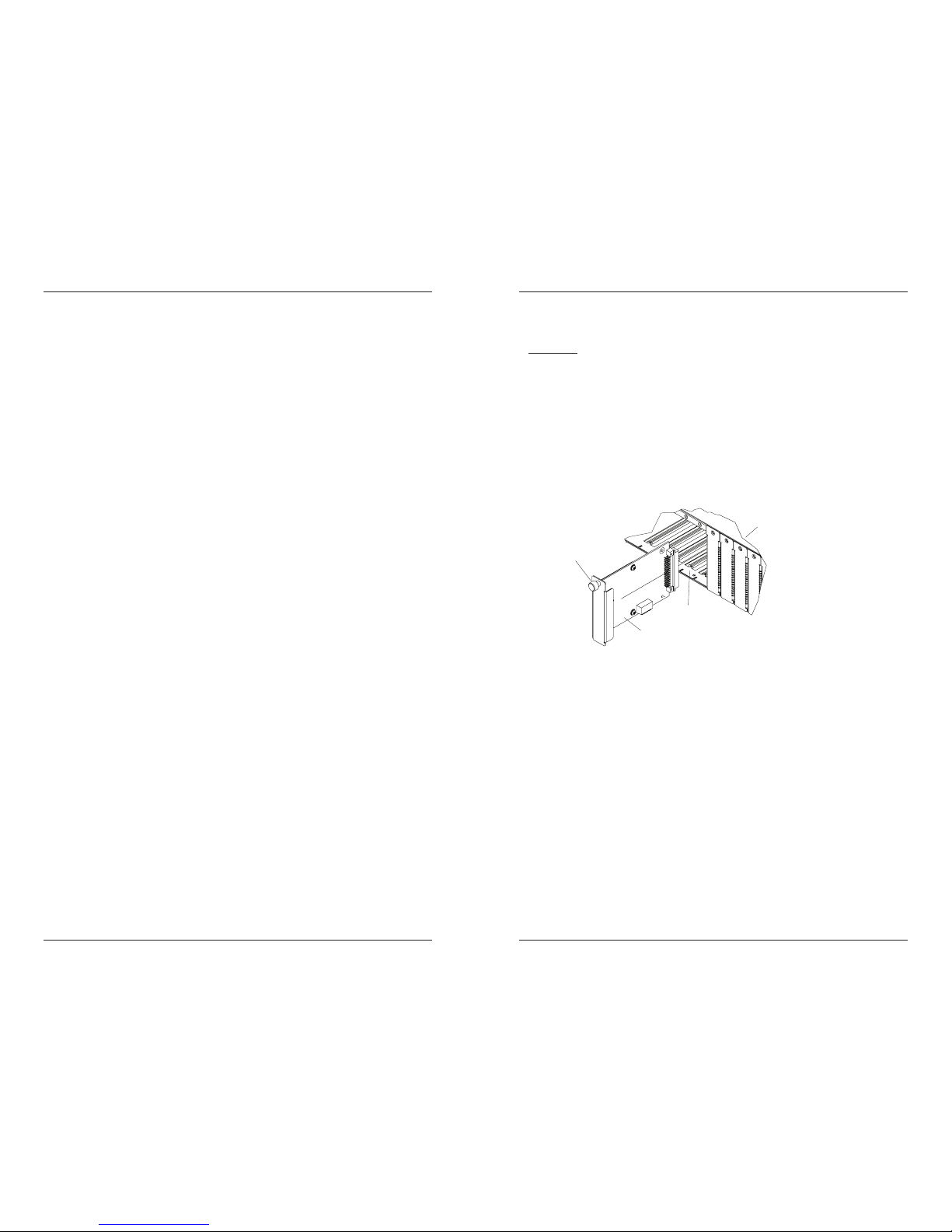

Media Converter

Point System Chassis

Panel Fastener

Slot

6Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

CRS4Fxxxx-10x

Install the Fiber Cable

1. Locate or build fiber cable with male, two-stranded TX to RX connectors

installed at both ends.

2. Connect the fiber cables to the CRS4Fxxxx-100 media converter as described:

• Connect the male TX cable connector the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter, hub,

etc.) as described:

• Connect the male TX cable connector the female RX port.

• Connect the male RX cable connector to the female TX port.

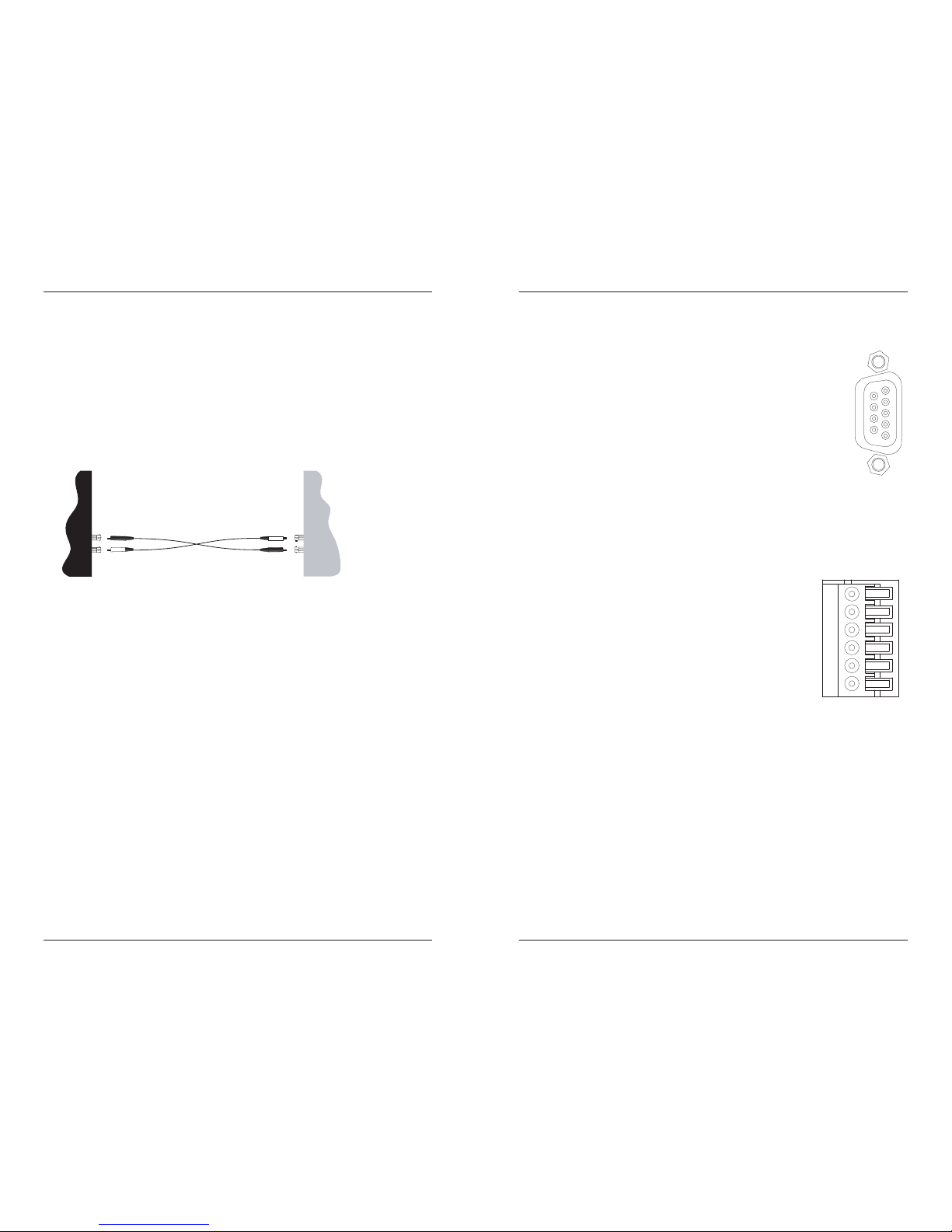

Connect fiber cable

to media converter

as shown.

Connect fiber cable

to other device

(media converter,

hub, etc.) as shown

RX TX

RX

TX

[email protected] -- Click the “Transition Now” link for a live Web chat. 7

Installation -- Continued

Install the Copper Cable (DB-9 port)

Install the copper cable as instructed if the media converter has a

DB-9 copper port (CRS4F31xx-10x models).

Note: Shielded RS485/422 cables are required for EMC

compliance.

1. Locate or build RS485/422 cables with a female DB-9

connector on one end and a DB-9 connector that is

compatible with the other device on the other end of the

cable.

2. Connect the female DB-9 connector at one end of cable to the

male DB-9 port on the CRS4F31xx-10x media converter.

3. Connect the DB-9 connector at the other end of the cable to the DB-9 port on

the other device.

Power the Media Converter

The media converter is powered through the PointSystem™ chassis.

Install the Copper Cable (6-position terminal block)

Install the copper cable as instructed if the media converter

has a 6-position terminal block (CRS4F32xx-100 models).

NOTE: Shielded RS485/422 cables are required for EMC

compliance.

1. Locate or build RS485/422 cables with the six

individual wires stripped at both ends.

2. Insert the individual wires at one end of cable into the

six terminal block ports on the CRS4F32xx-10x media

converter.

3. Insert the individual wires at the other end of the cable

into the six terminal block ports on the other device,

matching the same color of cable with the number of the

port.

DB-9

1

2

3

4

5

6

8Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

CRS4Fxxxx-10x

Operation

After installation, the media converter should function without operator

intervention. Use the status LEDs to monitor the media converter operation in the

network.

PWR On The media converter is connected to external power.

RXF On A link has been established with the fiber link.

RXC On Data has been received on the copper link.

Flashing Data is transferring on the copper link.

CRS4F31xx-100 CRS4F32xx-100

9

-

B

D

rebiF

CRS4F32

RXC RXF PWR

TX RX

9

-

B

D

rebiF

CRS4F31

RXC RXF PWR

TX RX

SNMP

Use SNMP at an attached terminal or at a remote location to monitor the media

converter by monitoring:

• Local fiber link status

• Receive data activity on the copper link

• Local switch settings

(Network commands cannot be entered via SNMP.)

See the on-line documentation that comes with Transition Networks FocalPoint™

software for applicable commands and usage on-line at: www.transition.com

[email protected] -- Click the “Transition Now” link for a live Web chat. 9

Cable Specifications

RS485/422 Copper Cable

Maximum Data Rate: 1.25 Mb/s

Gauge: 24 to 22 AWG

Maximum Cable Distance: 1200m (4000 ft) @ <90 kb/s

decreasing logarithmically to:

92m (300 ft) @ 500 kb/s

Not

Used

5

4

3

2

1

9

8

7

6

Signal Ground

Receive (-) (B) RS485 4-wire, (-) RS422

Receive (+) (A) RS485 4-wire, (+) RS422

Transmit/Receive (+) (A) RS485 2 or 4-wire, (+) RS422

Transmit/Receive (-) (B) RS485 2 or 4-wire, (-) RS422

DB-9 Port:

1

2

3

4

5

6

Signal Ground

Receive (-) (B) RS485 4-wire, (-) RS422

Receive (+) (A) RS485 4-wire, (+) RS422

Transmit/Receive (+) (A) RS485 2 or 4-wire, (+) RS422

Transmit/Receive (-) (B) RS485 2 or 4-wire, (-) RS422

6-Position Terminal Block:

Signal Ground

10 Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

CRS4Fxxxx-10x

Cable Specifications -- Continued

Fiber Cable

Bit Error Rate: <10-9

Single mode fiber (recommended): 9 µm

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

CRS4F3111-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

CRS4F3113-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

CRS4F3114-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Link Budget: 16.0 dB

CRS4F3115-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 26.0 dB

CRS4F3211-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

CRS4F3213-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

CRS4F3214-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Link Budget: 16.0 dB

CRS4F3215-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 26.0 dB

The fiber optic transmitters on this device meet Class I Laser safety requirements

per IEC-825/CDRH standards and comply with 21 CFR1040.10 and

21CFR1040.11.

[email protected] -- Click the “Transition Now” link for a live Web chat. 11

Cable Specifications -- Continued

Fiber Cable

CRS4F3129-100 1310TX/1550TR nm single mode

CRS4F3129-101 1550TX/1310TR nm single mode

Fiber Optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

CRS4F3129-102 1310TX/1550TR nm single mode

CRS4F3129-103 1550TX/1310TR nm single mode

Fiber Optic Transmitter Power: min: -8.0 dBm max: -3.0 dBm

Fiber Optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm

Link Budget: 25.0 dB

CRS4F3229-100 1310TX/1550TR nm single mode

CRS4F3229-101 1550TX/1310TR nm single mode

Fiber Optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

CRS4F3229-102 1310TX/1550TR nm single mode

CRS4F3229-103 1550TX/1310TR nm single mode

Fiber Optic Transmitter Power: min: -8.0 dBm max: -3.0 dBm

Fiber Optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm

Link Budget: 25.0 dB

12 Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

CRS4Fxxxx-10x

Technical Specifications

For use with Transition Networks Model CRS4Fxxxx-10x or equivalent

Data Rate 0 to 1.25 Mb/s

Dimensions 3.4" x 5.0" x 0.86" (86 mm x 127 mm x 22 mm)

Shipping Weight 3 oz. (91 g) approximately

Power Consumption 5 Watts

MTBF 250,000 hours (MIL-HDBK-217F)

687,500 hours (Bellcore7 V5.0)

Environment

Operating Temp: 0 to 50°C (32° to 122° F )

Storage Temp: -40° to 85°C (-40° to 185°F)

Humidity: 5 to 95%, non condensing

Warranty Lifetime

*Manufacturer’s rated ambient temperature. Tmra range for this slide-in-module

depends on the physical characteristics and the installation configuration of the

Transition Networks PointSystem chassis in which this slide-in-module will be

installed.

The information in this user’s guide is subject to change. For the most up-to-date

information on the CRS4Fxxxx-10x media converter, view the user’s guide on-line at:

www.transition.com

Note: The stand-alone version of the media converter is SRS4Fxxxx-10x. For more

information, see the SRS4Fxxxx-10x user guide on-line at:

www.transition.com.

WARNING: Visible and invisible laser radiation when open. Do not stare into the

beam or view the beam directly with optical instruments. Failure to observe this

warning could result in an eye injury or blindness.

WARNING: Use of controls, adjustments or the performance of procedures other than

those specified herein may result in hazardous radiation exposure.

CAUTION: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232,

RS422, RS485, DS1, DS3, Video Coax, etc., are intended to be connected to intra-

building (inside plant) link segments that are not subject to lightening transients or

power faults. Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB,

RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are NOT to be connected to inter-

building (outside plant) link segments that are subject to lightening transients or power

faults. Failure to observe this caution could result in damage to equipment.

[email protected] -- Click the “Transition Now” link for a live Web chat. 13

Troubleshooting

If the media converter fails, isolate and correct the failure by determining the answers

to the following questions and then taking the indicated action:

1. Is the PWR (Power) LED on the media converter illuminated?

NO

• Is the media converter inserted properly into the chassis?

• Is the power cord properly installed in the chassis and in the grounded AC

outlet?

• Does the grounded AC outlet provide power?

• Contact Technical Support: US/Canada: 1-800-260-1312, International:

00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the RXC LED illuminated when data is sent across the

RS485/422 copper link?

NO

• Check the RS485/422 copper cable for proper connection.

• Contact Technical Support: US/Canada: 1-800-260-1312, International:

00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the RXF (fiber link) LED illuminated?

NO

• Disconnect and reconnect the fiber cables to restart the initialization

process.

• Verify that the TX and RX cables on the media converter are connected to

the RX and TX ports, respectively, on the other media converter.

• Contact Technical Support: US/Canada: 1-800-260-1312, International:

00-1-952-941-7600.

YES

• Proceed to step 4.

4. Does the data fail to move across the link, even though both RXC and

RXF LEDs are illuminated?

YES

• Check switches 5 and 6 for proper configuration and check the RS485/422

cables for proper connection.

• Contact Technical Support: US/Canada: 1-800-260-1312, International:

00-1-952-941-7600.

NO

• Contact Technical Support: US/Canada: 1-800-260-1312, International:

00-1-952-941-7600.

14 Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

CRS4Fxxxx-10x

Contact Us

Technical Support

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition Now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based Seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

10900 Red Circle Drive

Minnetonka, MN 55343, U.S.A.

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

Declaration of Conformity

Name of Mfg: Transition Networks

10900 Red Circle Drive, Minneatonka MN 55343 U.S.A.

Model: CRS4Fxxxx-10x Series Media Converter

Part Number: CRS4F3111-100, CRS4F3113-100, CRS4F3114-100,

CRS4F3115-100, CRS4F3211-100, CRS4F3213-100,

CRS4F3214-100, CRS4F3215-100, CRS4F3129-100,

CRS4F3129-101, CRS4F3129-102, CRS4F3129-103,

CRS4F3229-100, CRS4F3229-101, CRS4F3229-102,

CRS4F3229-103

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the CRS4Fxxxx-10x to which this declaration refers is in

conformity with the following standards.

EMC Directive 2004/108/EC; EN 55022:2006+A1:2007 Class A;

EN55024:1998+A1:2001+A2:2003; EN61000-3-2; EN61000-3-3; CFR Title 47 Part 15

Subpart B Class A; Low Voltage Directive: 2006/95/EC; CFR Title 21 Section 1040.10

Class I

I, the undersigned, hereby declare that the equipment specified above conforms to

the above Directive(s) and Standard(s).

August 2010

Stephen Anderson, Vice-President of Engineering Date

[email protected] -- Click the “Transition Now” link for a live Web chat. 15

Compliance Information

CISPR22/EN55022 Class A + EN55024

CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which

case the user will be required to correct the interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set

out on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables

aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage

radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in

which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses

Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für Gegenmaßnahmen

verantwortlich.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des

interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques

appropriées.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

In accordance with European Union Directive 2002/96/EC of the European

Parliament and of the Council of 27 January 2003, Transition Networks will accept

post usage returns of this product for proper disposal. The contact information for this

activity can be found in the 'Contact Us' portion of this document.

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

Copyright Restrictions

© 2004-2010 Transition Networks.

All rights reserved. No part of this work may be reproduced or used in any form or by any means -

graphic, electronic, or mechanical - without written permission from Transition Networks.

Printed in the U.S.A.

33280.E

16

CRS4Fxxxx-10x
