Transition Networks SPSVT26xx-100 Manuel utilisateur

h-Speed Serial Copper-to-Fiber

Slide-in-Module Media Converters

SPSVT26xx-100

USER’S GUIDE

COMPLIANCE INFORMATION

UL Listed

C-UL Listed (Canada)

CISPR/EN55022 Class A

FCC Regulations

This equipment has been tested and found to comply with the limits for a class A

digital device, pursuant to part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct the interference at the

user’s own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital

apparatus set out on the radio interference regulations of the Canadian Department of

Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de la class A prescrites dans le

Règlement sur le brouillage radioélectrique édicté par le ministère des

Communications du Canada.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei

Betrieb dieses Gerätes Rundfunkstörungen auftreten, in weichen Fällen der Benutzer

für entsprechende Gegenmaßnahmen werantwortlich ist.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque

de créer des interférences radioélectriques, il appartiendra alors à l’utilsateur de

prende les measures spécifiques appropriées

Trademark Notice

All registered trademarks and trademarks are the property of their respective owners.

by any means – graphic, electronic, or mechanical – without written permission from

TRANSITION Networks.

Printed in the U.S.A. 33236.A

TRANSITION Networks

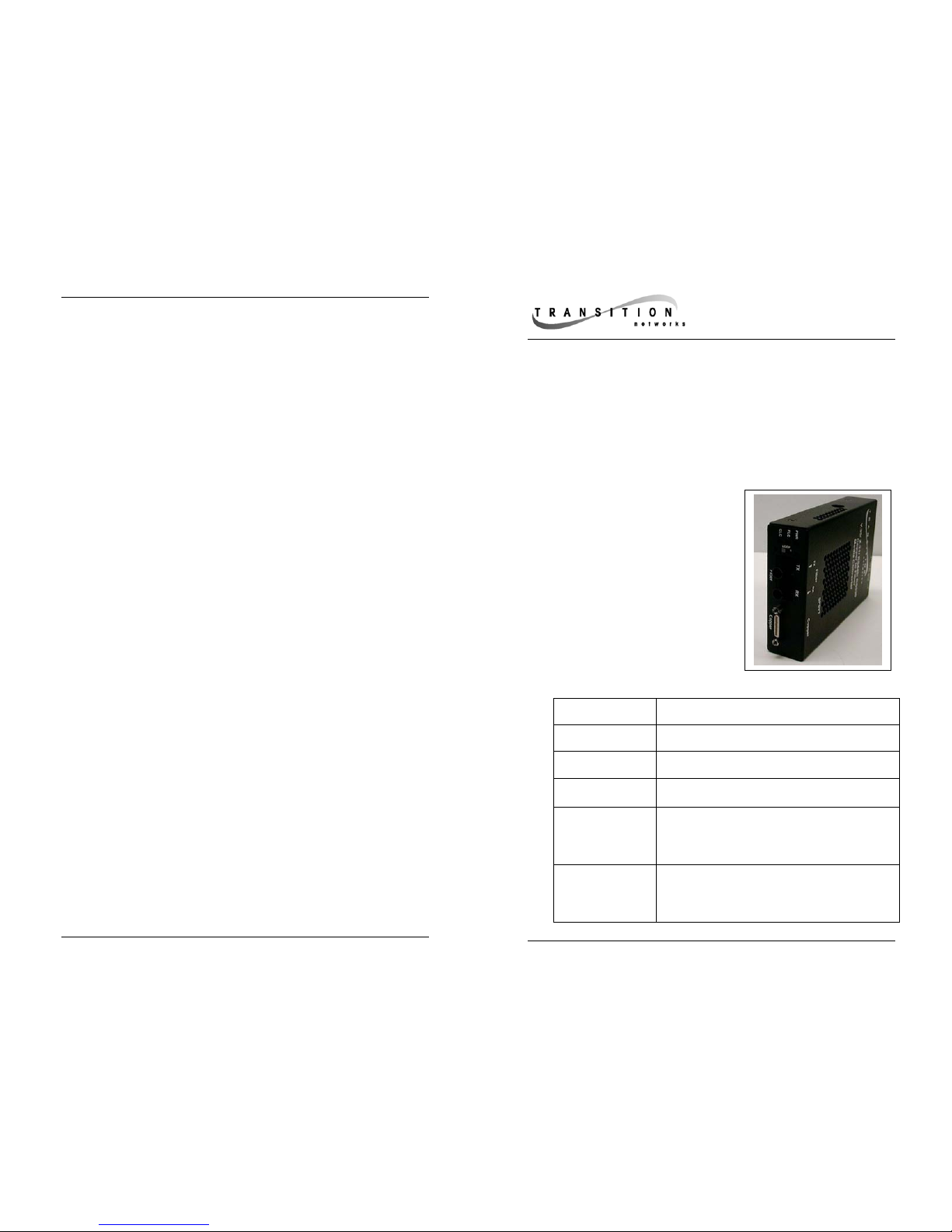

SPSVT26xx-100 series high-speed

serial copper-to-fiber media

converters connect V.35, X.21,

RS-449, RS-530, or RS-232 signals on

copper cable, at speeds up to

10 Mb/s, through a universal

26-pin serial interface connector

to fiber-optic cable. TRANSITION

Networks also supplies cables for

connecting network equipment

to the SPSVT29xx-100 series

media converters.

SPSVT2613-100 Copper high-speed serial 26-pin connector and

SC connector to 1300 nM multimode fiber

SPSVT2611-100 Copper high-speed serial 26-pin connector and ST

connector to 1300 nM multi-mode fiber

SPSVT2612-100 Copper high-speed serial 26-pin connector and

ST connector to 1300 nM singlemode fiber

SPSVT2614-100 Copper high-speed serial 26-pin connector and SC

connector 1300 nM singlemode fiber

SPSVT2629-100/

SPSVT2629-101

Set of two media converters to be installed

together, each high-speed serial 26-pin connector

and RX and TX single fiber connector to

singlemode 20 km fiber-optic cable

SPSVT2629-102/

SPSVT2629-103

Set of two media converters to be installed

together, each high-speed serial 26-pin connector

and RX and TX single fiber connector to

singlemode 40 km fiber-optic cable

____ kilometers

TECHNICAL SPECIFICATIONS

Standards V.35, RS-530, RS-449, RS-232, X.21

Dimensions 2.9" x 4.8" x 1.4"

Weight 9 oz (approximate)

Power Source 12 VDC

Power 6 watts maximum

Consumption

Environment Operating Temperature*: 0° to 50°C (32° to 122°F)

Storage Temperature: -20° to 85°C (-4° to 185°F)

Humidity 10-90%, non condensing

Altitude 0-10,000 feet

Warranty Lifetime

NETWORKING THE SPSVT26xx-100

TRANSITION Networks SPSVT26xx-100 series high-speed serial

copper-to-fiber media converters have the following features:

•Synchronous data rates up to 10 Mb/s

•Asynchronous data rates up to 128 Kb/s

•Interchangeable interface supporting RS-232, V.35, X.21, RS-

449 and RS-530

•Local & remote loopback

•DCE/DTE support

•Support for control signals: RTS, CTS, DTR, DSR, DCD, LL and

•Multimode and singlemode fiber support (850/1300/1500nm)

at distances up to 80km.

•Standalone versions.

NOTE: All interfaces are converted at the physical level, so the

network administrator can “mix and match” signals, as: RS-449 to

V.35, RS-530 to X.21, DTE to DTE, DTE to DCE, DCE to DCE.

DECLARATION OF CONFORMITY

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 USA

Model: SPSVT26xx-100 Series Media Converters

Part Number(s): SPSVT2611-100, SPSVT2612-100, SPSVT2613-100,

SPSVT2614-100, SPSVT2629-100, SPSVT2629-101,

SPSVT2629-102, SPSVT2629-103

Regulation: EMC Directive 89/336/EEC

Purpose : To declare that the SPSVT26xx-100 to which this declaration refers is

in conformity with the following standards.

EN 55022: 1994 Class A; EN 55024:98; UL 1950, 3rd Edition

I, the undersigned, hereby declare that the equipment specified above conforms

to the above Directive(s) and Standard(s).

_____________________ _November 1, 2002_____

Stephen Anderson, Vice-President of Engineering Date

SPSVT26xx-100

INTERFACE STANDARDS AND CABLE OPTIONS SUPPORTED

Interface Cable Options

Function Connector Type Length TN P/N

V.35 DTE 34-pin Rectangular Male 3-Meter 35DTE-3

V.35 DCE 34-pin Rectangular Female 3-Meter 35DCE-3

X.21 DTE 15-pin D-sub Male 3-Meter 21DTE-3

X.21 DCE 15-pin D-sub Female 3-Meter 21DCE-3

RS-232 DTE 25-pin D-sub Male 3-Meter 232DTE-3

RS-232 DCE 25-pin D-sub Female 3-Meter 232DCE-3

RS-449 DTE 37-pin D-sub Male 3-Meter 449DTE-3

RS-449 DCE 37-pin D-sub Female 3-Meter 449DCE-3

RS-530 DTE 25-pin D-sub Male 3-Meter 530DTE-3

RS-530 DCE 25-pin D-sub Female 3-Meter 530DCE-3

RECOMMENDED MAXIMUM CABLE LENGTHS

Recommended cable lengths for each interface at various data rates.

Data Rate: V.35/RS-449/RS-530 X.21 RS-232C

10 Mb/s 35 ft. / 10 m N/A* N/A*

6 Mb/sec 65 ft / 19 m N/A* N/A*

2 Mb/sec 150 ft. / 45 m 50 ft. / 15 m N/A*

1 Mb/sec 300 ft. / 90 m 100 ft. / 30 m N/A*

512 Kb/sec 600 ft. / 180 m 200 ft. / 60 m N/A*

256 Kb/sec 1200 ft./ 365 m 400 ft. / 120 m N/A*

128 Kb/sec 2400 ft. / 730m 800 ft. / 240 m N/A*

56 Kb/sec 3000 ft. / 910 m 1600 ft. / 480 m 10 ft / 3 m

1.2 Kb/sec 3000 ft. / 910 m 3000 ft. / 910 m 50 ft / 15 m

*N/A - Not Applicable (rates not specified for the interface in question)

CABLE SPECIFICATIONS

Fiber Cable

MULTIMODE

Fiber Optic Cable Recommended: 62.5 / 125 µm multimode fiber

Optional: 100 / 140 µm multimode fiber

85 / 125 µm multimode fiber

50 / 125 µm multimode fiber

SPSVT2613-100 1300 nM

Fiber-optic Transmitter Power: min: -19.0 dBm max: -14.0 dB

Fiber-optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Minimum Link Budget 11 dB

Typical Maximum Cable Distance: 2 kilometers

SPSVT2611-100 1300 nM

Fiber-optic Transmitter Power: min: -19.0 dBm max: -14.0 dB

Fiber-optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Minimum Link Budget 11 dB

Typical Maximum Cable Distance: 2 kilometers

SINGLEMODE

Fiber Optic Cable Recommended: 9 µm singlemode fiber

SPSVT2612-100 1300 nM

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Minimum Link Budget 16 dB

Typical Maximum Cable Distance: 20 kilometers

SPSVT2614-100 1300 nM

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Minimum Link Budget 16 dB

Typical Maximum Cable Distance: 20 kilometers

SPSVT2629-100/ 1310 nM TX/1550 nM RX

SPSVT2629-101 1550 nM TX/1310 nM RX

Fiber-optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Minimum Link Budget 9 dB

Typical Maximum Cable Distance: 20 kilometers

SPSVT2629-102/ 1310 nM TX/1550 nM RX

SPSVT2629-103 1550 nM TX/1310 nM RX

Fiber-optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Minimum Link Budget 9 dB

Typical Maximum Cable Distance: 40 kilometers

SPSVT26xx-100

INSTALLATION

CAUTION: Wear a grounding device and observe electrostatic

discharge precautions when removing cover from media converter

and when setting jumpers on the exposed circuit. Failure to observe

this caution could result in damage to, and subsequent failure of,

the media converters.

Set Jumpers

NOTE: Jumpers are located on media converter circuit . : Refer to

pictures that follow for jumper locations. Refer to text that follows

for functions enabled by jumper positions

1. Using small screwdriver, remove four (4) screws that secure

cover to media converter.

2. Carefully remove cover from media converter.

3. Locate each affected two-position jumper on circuit board.

4. Using small needle-nosed pliers or similar device and referring

to drawing for jumper positions, move jumper.

5. Carefully replace cover on media converter.

6. Replace four (4) screws that secure cover to media converter.

SPSVT26xx-100

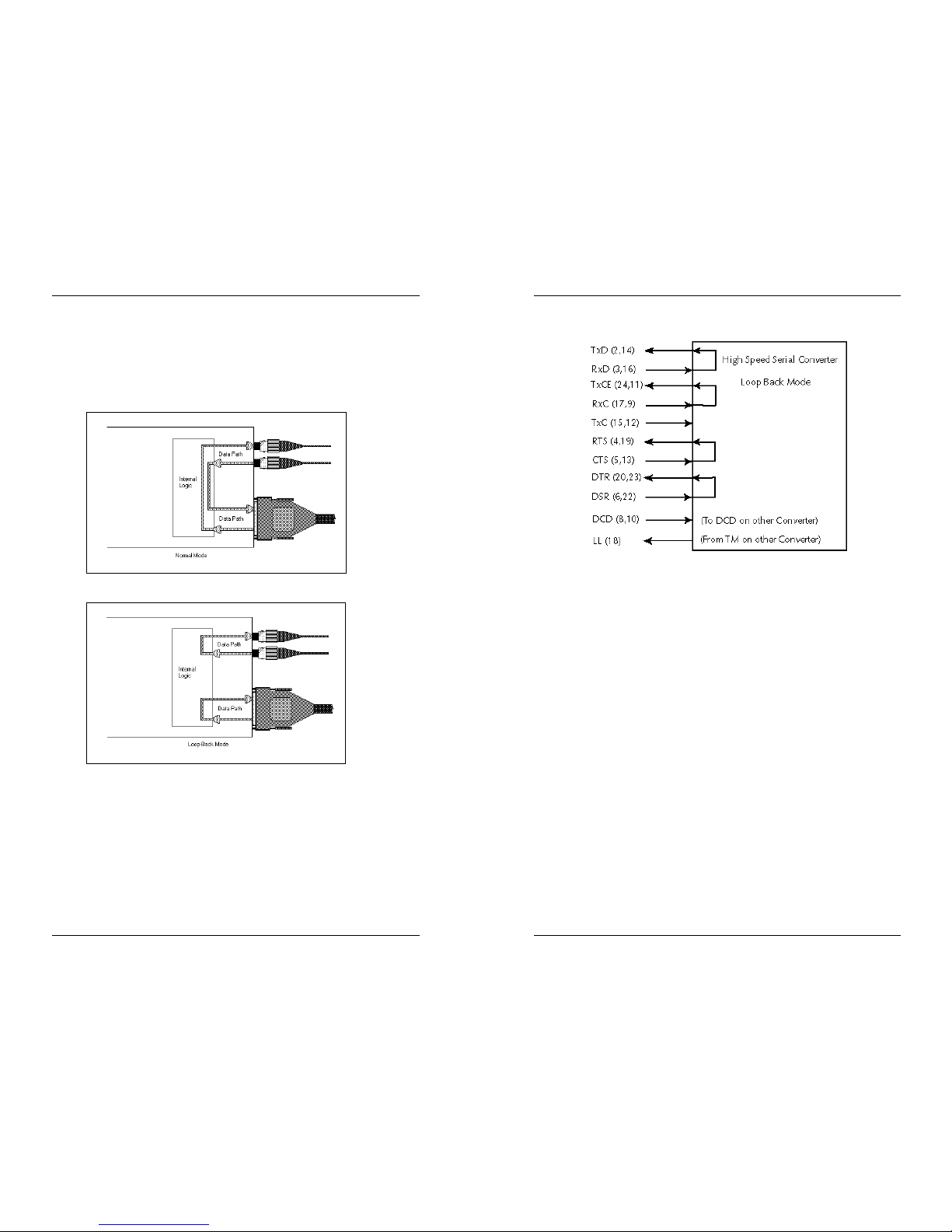

4. Are the C(opper) L(ink) and F(iber) L(ink) LEDs flashin

(indicating loopback mode)?

YES

• Disable loopback function: In Hardware mode, set

loopback switch to “N(ormal)” position.

In Software mode, at SNMP interface, select disable

loopback option.

• Contact Technical Support: (800) 260-1312.

• Proceed to step 5.

5. Is Data Transfer Failing?

YES

• Are clock input and output polarity correct?

• Are correct TRANSITION Networks cables for data

format installed? (If using other cables, contact

Technical Support: (800) 260-1312 for specifications.)

• Is mode on connected device correct mode

(synchronous or asynchronous)?

• Does loopback mode isolate fault?

• Contact Technical Support: (800) 260-1312.

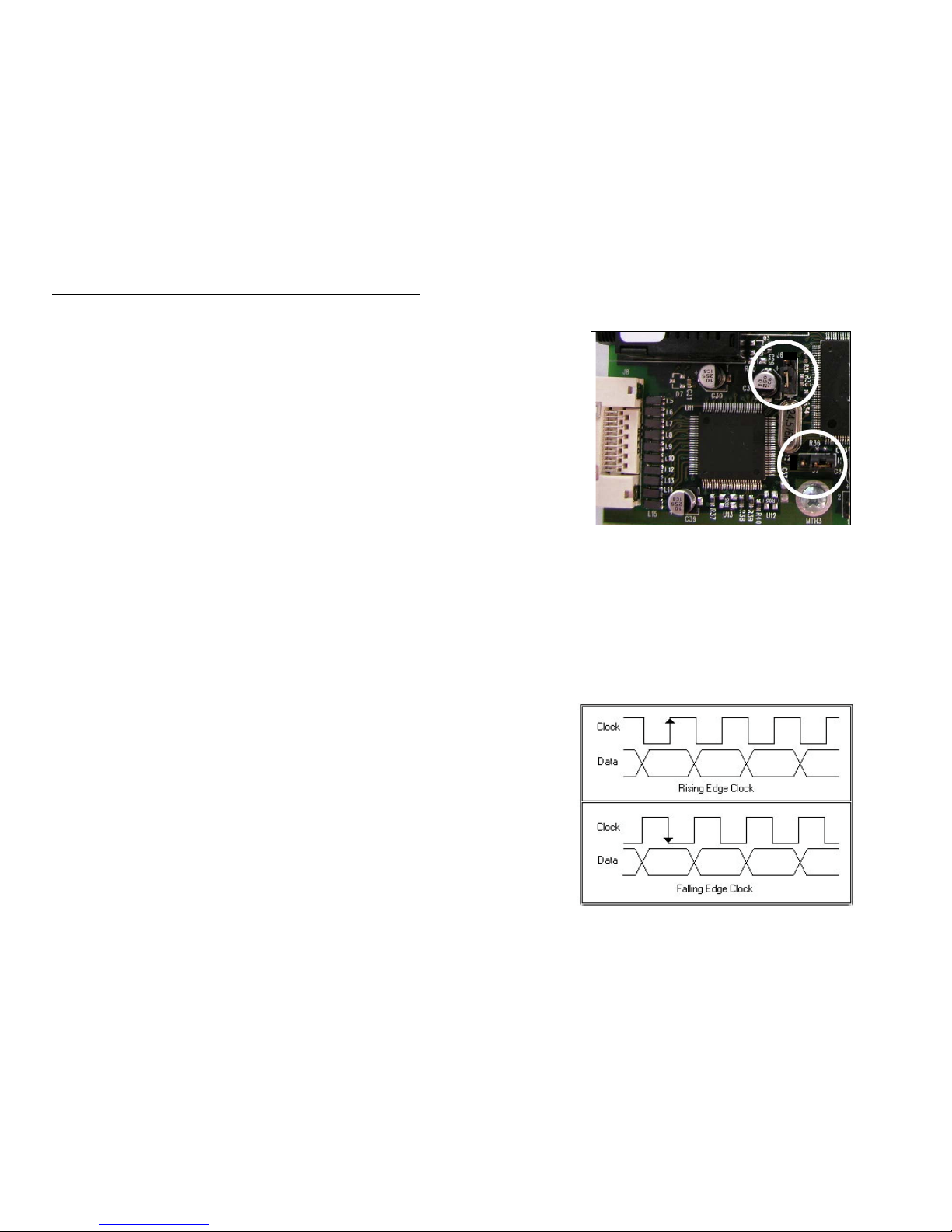

Set RX and TX Clock Polarity Jumpers

J6 – RX Clock Polarity Selects the polarity of the receive clock.

When in A position, receive data (RxD) is sampled on rising edge

of Receive clock (RxC). When in B position, receive data (RxD) is

sampled on falling edge of Receive clock (RxC).

J7 - TX Clock Polarity Selects the polarity of the transmit clock.

When in A position, Transmit Data (TxD) is sampled on rising edge

of Transmit clock (TxC). When in B position, transmit data (TxD) is

sampled on falling edge of Transmit Clock (TxC).

EDGE OPTIONS SELECTED BY JUMPERS

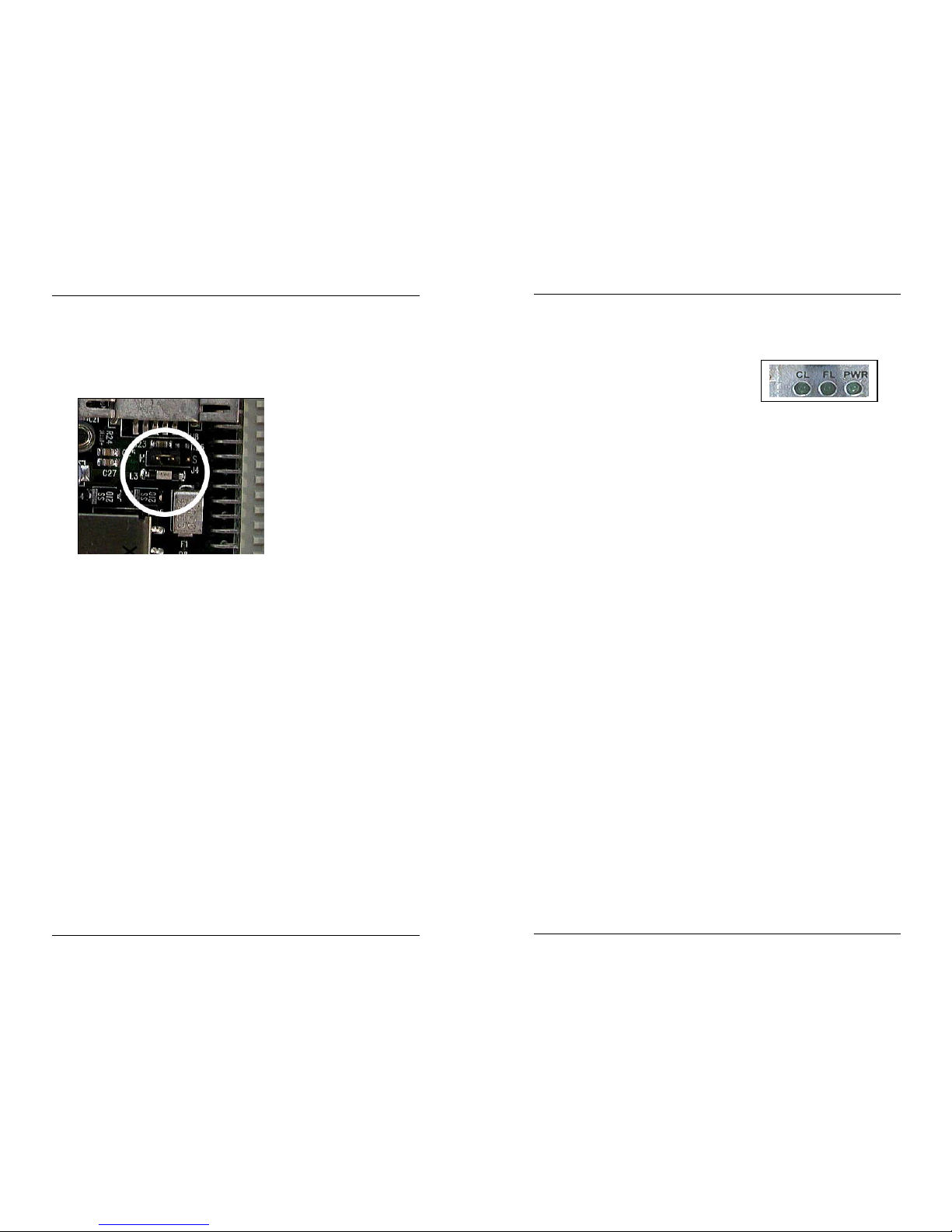

FAULT ISOLATION & CORRECTION

If the media converter fails, isolate and correct the failure by

determining the answers to the following questions and then taking

the indicated action:

1. Is the P(o)W(e)R LED on the media converter illuminated?

• Is the power adapter cord inserted properly into the

media converter?

• Is the power adapter cord installed properly at the

external power source?

• Does the external power source provide power?

• If using SNMP management, has media converter been

powered OFF at software interface?

• Contact Technical Support: (800) 260-1312.

YES

• Proceed to step 2.

2. Is the C(opper) L(ink) LED illuminated?

• Are copper cables connected properly.

• Is device attached to media converter by copper cable

working properly.

• Is data present on the cable?

• Contact Technical Support: (800) 260-1312.

YES

• Proceed to step 3.

3. Is the F(iber) L(ink) LED illuminated?

• Are fiber cables connected properly.

• Are TX and RX cables on media converter connected to

RX and TX ports, respectively, on other media

converter.

• Is data present on the cable?

• Are both media converters in the same mode

(synchronous or asynchronous)?

• Contact Technical Support: (800) 260-1312.

YES

• Proceed to step 4.

SPSVT26xx-100

Set Hardware/Software Jumpe

NOTE: Jumper is located on media converter slide-in-module circuit

board. The default factory setting is H (hardware).

Use small needle-nosed pliers or similar device to set jumper.

J4 - Hardware/Software Defines control of terminal timing and the

loopback function.

In the H(hardware) position, the Terminal Timing Switch controls

terminal timing and the Loopback Switch (located on the

CPSVT29xx-100 front panel) controls the loopback function.

In the S(software) position, the SNMP management agent controls

both terminal timing and the loopback function, disabling the

switches, except when the Terminal Timing switch is set to Position

F (asynchronous mode).

NOTE: Setting the Terminal Timing switch to Position F overrides

the S(software) mode setting and selects Asynchronous mode.

OPERATION

Using Status LEDs

Use the status LEDs to monitor media

converter operation in the network.

C(opper) L(ink) - Steady LED indicates copper link is up; flashing

LED indicates copper link is in loop-back mode. NOTE: In

asynchronous mode, the C(opper) L(ink) LED may flash if data rates

drop below 300 cycles per second.

F(iber) L(ink) - Steady LED indicates fiber link is up; flashing LED

indicates fiber link is in loop-back mode.

P(o)W(e)R- Steady green LED indicates connection to external AC

power.

11SPSVT26xx-100

Install Cable

COPPER

1. Locate or build cables that are compliant with

specifications in this document.

2. Connect 26-pin connector at one end of cable to media

converter 26-pin copper connector.

CAUTION: Ensure that cable screwlocks are tightened

securely. Failure to observe this caution could cause

data transfer to fail.

3. Connect RJ-45 plug connector at other end of cable to

network equipment.

FIBER

1. Locate or build fiber cables that are compliant with

specifications in this document, with male two-stranded

TX to RX connectors installed at both ends.

2. Connect cable with connector installed at TX location

on media converter to RX location on attached device.

3. Connect cable with connector installed at RX location

on media converter to TX location on attached device.

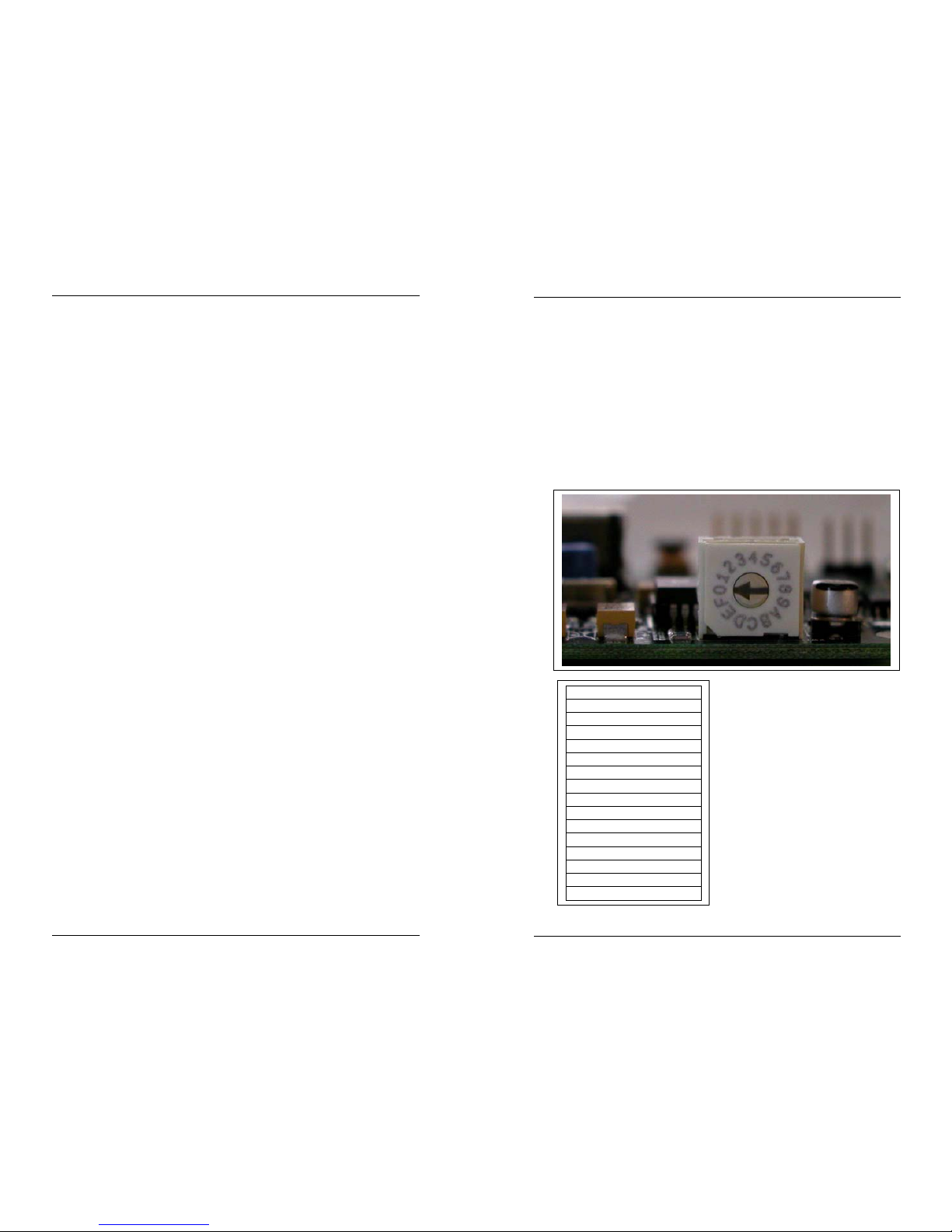

Set Terminal Timing Switch

NOTE: The sixteen-position Terminal Timing switch, located at the

SPSVT29xx-100 media converter side, allows the network

administrator to configure the media converter for network

conditions.

Insert small flatblade screwdriver or similar device into recessed

arrow on Terminal Timing switch, then gently rotate switch to the

position required for the site installation.

Refer to table below for switch position key.

Terminal Timin

Switch Settin

0 – TT = Receive CLK

1 – 56 Kb/s

2 – 64 Kb/s

3 – 112 Kb/s

4 – 128 Kb/s

5 – 256 Kb/s

6 – 384 Kb/s

7 – 512 Kb/s

8 – 768 Kb/s

9 – 1024 Kb/s

A – 1544 Kb/s

B – 2048 Kb/s

C – 3072 Kb/s

D – 4096 Kb/s

E – 6144 Kb/s

F - Asynchronous mode

SPSVT26xx-100

Set Loopback Switch

NOTE: The Loopback switch is located on the CPSVT29xx-100

slide-in-module media converter front, below the LED indicators.

Set the Loopback switch to the N(ormal) position.

Signal connection during loop-back (Illustrating RS530 DCE)

Power the SPSVT29xx Series Media Converter

1. Install Power Adapter cord at back of media converter.

2. Connect Power Adapter 3-prong plug to AC power.

3. Verify that media converter is powered by observing

illuminated LED(s).

SPSVT26xx-100

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks SSETF10XX-200 Manuel utilisateur

Transition Networks

Transition Networks C/F-SM-MM-06 Manuel utilisateur

Transition Networks

Transition Networks CETTF10XX-105 Manuel utilisateur

Transition Networks

Transition Networks CSDTF3011-115 Manuel utilisateur

Transition Networks

Transition Networks CDFTF1111-100 Manuel utilisateur

Transition Networks

Transition Networks CGFEB10xx-12x Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FRL-03 Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-05 Manuel utilisateur

Transition Networks

Transition Networks Milan Raven Series Manuel utilisateur

Transition Networks

Transition Networks C/E-CX-FRL-04 Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-FD-01 Manuel utilisateur

Transition Networks

Transition Networks J/E-CX-TBT-02 Manuel utilisateur

Transition Networks

Transition Networks ARCNET AR-CF-02 Manuel utilisateur

Transition Networks

Transition Networks SISTF10xx-111-LR(T) Manuel utilisateur

Transition Networks

Transition Networks SPS-1872-CC Manuel utilisateur

Transition Networks

Transition Networks J/FE-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks CGETF10XX-10X Manuel utilisateur

Transition Networks

Transition Networks DataBand EV Manuel utilisateur

Transition Networks

Transition Networks SGETF1013-110 Manuel utilisateur

Transition Networks

Transition Networks SAPTF33 series Manuel utilisateur

Transition Networks

Transition Networks F-SM-MM-02(LH) Manuel utilisateur

Transition Networks

Transition Networks SSETF1011-205 Manuel utilisateur

Transition Networks

Transition Networks C/E-TBT-FRL-03(L) Manuel utilisateur

Transition Networks

Transition Networks FD-CD-01 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
