Topfield TBF-100HD Manuel utilisateur

TBF-100HD

User Manual

High Deﬁnition

Digital Terrestrial Receiver

USB PVR-Ready

Default PIN: 2010

Precautions

• Clean with a dry cloth only.

• Do not block any of the ventilation openings.

• When placed in a cabinet, make sure there is a minimum

space of 10 centimetres around it.

• Do not install near any heat sources or in direct sunlight as

this will impair cooling.

• Do not operate this product near water.

• Do not try to change the plug or defeat its safety purpose.

• This product is designed for indoor use only.

• Place the digital receiver on a ﬁrm and level surface.

• Do not lay any objects such as magazines on this unit.

• Do not overload power outlets. Doing so may result in a risk

of ﬁre or electrical shock.

• Never open this unit’s casing under any circumstances, or the

warranty will be void.

• Unplug this unit during lightning storms or when unused for

long periods of time.

• Refer all servicing to qualiﬁed service personnel. Reverse en-

gineering or disassembly is prohibited.

• Batteries, including those which contain no heavy metals,

may not be disposed with other household wastes. Please dis-

pose of used batteries in an environmentally sound manner.

Find out the legal regulations which apply in your area.

• The mains plug shall remain readily operable so that it can be

removed easily to disconnect the power.

• Operate the digital receiver at temperatures between 0 to

45 ◦C.

• Check the mains voltage before plugging the digital receiver

to the wall socket. For the power speciﬁcation, refer to the

table below.

Input voltage 100 to 240 V AC, 50/60 Hz

Power consumption 11 W at maximum in active

1 W in standby

Front Panel

button switches the digital receiver between standby mode and

active mode.

CHANNEL −,+buttons switch to the previous or next service. They are also used

to navigate in menus and interactive screens.

light blinks every time you press a button on the remote control.

STANDBY light lights up while the digital receiver is in standby mode.

Rear Panel

1ANT IN Terrestrial broadcasting signal input socket

(5V, Max.100mA)

2RF LOOP OUT Terrestrial broadcasting signal output socket through the

ANT IN socket for another digital receiver

3USB USB port for ﬁrmware update and data transfer.

(USB 2.0 Host, 5V DC, 500mA Max.)

4HDMI Audio and video output socket for the high deﬁnition tele-

vision set

5AUDIO R/L Stereo audio output socket for the television set or the au-

dio receiver

(white/red)

6VIDEO Composite video output socket for the television set

(yellow)

7DC IN Power jack

Connecting the TV

Connect the cables ﬁrst before plugging the power cord into the wall outlet. If

you encounter any problems setting up your product, please contact your local

retailer.

1. Connect the antenna cable to the ANT IN socket.

ANT IN RF LOOP OUT

2. Choose a setup that matches the connection ports on your TV.

– We recommend using the HDMI connection for the highest quality HD pic-

ture.

– For a basic connection to your television use the composite connection.

a) HDMI connection (HDMI)

b) Composite connection (VIDEO)

Remote Control

NOTE

All buttons on your remote control might not apply to your model.

Please check below.

• switches the digital receiver between standby mode and active mode

(ON).

• mutes the sound. Press again to switch it back on.

•







V.Format changes video resolution.

•







A/R changes aspect ratio.

• not used in this model.

• switches over between television services and radio services.

• Numeric buttons are used to enter a service number for service change or to

specify values for menu options.

• switches over between the current service and the previously viewed

one.

• displays the service information box. Also, displays more information

about a programme.

• selects audio track and sound mode.

• not used in this model.

• selects subtitle track.

• sets sleep timer in 10, 30, 60, 90, 120 minute increments.

•







MENU displays the main menu. Also, returns to the previous menu from a

submenu.

•







GUIDE displays the electronic programme guide.

•







P−,







P+buttons switch to the previous or next service. Also, navigate in

menus and interactive screens.

•







V−,







V+buttons decrease or increase the volume. Also, change values for

menu options.

• displays the services list. Also, selects a menu item.

•







EXIT exits a menu or hides the on-screen information.

•







FAV displays the favourite list.

• has diﬀerent functions per menu. [Red Button]

• has diﬀerent functions per menu. [Green Button]

• has diﬀerent functions per menu. [Yellow Button]

• has diﬀerent functions per menu. [Blue Button]

• starts reverse playback. Subsequent presses increase the rewind speed.

• pauses live television or playback of a recorded programme.

• resumes normal playback speed, or displays the progress bar for naviga-

tion on playback or time-shift. To play a recorded programme, see button

• starts fast forward playback. Subsequent presses increase the playback

speed.

• starts recording.

• stops playback, stops recording, or jumps back to live television from time-

shifted television.

• starts slow motion playback. Subsequent presses change the playback

speed.

• displays the list of recorded programmes that are stored in the external

hard drive.

• has diﬀerent functions per menu.

•during recorded ﬁle playback: jumps back for a certain duration of time

as setted.

during media ﬁle playback: starts playing the previous ﬁle from the USB stor-

age.

•during recorded ﬁle playback: jumps forward for a certain duration of time

as setted.

during media ﬁle playback: starts playing the next ﬁle from the USB storage.

• has diﬀerent functions per menu.

Functions of the colour buttons will be guided on the screen.

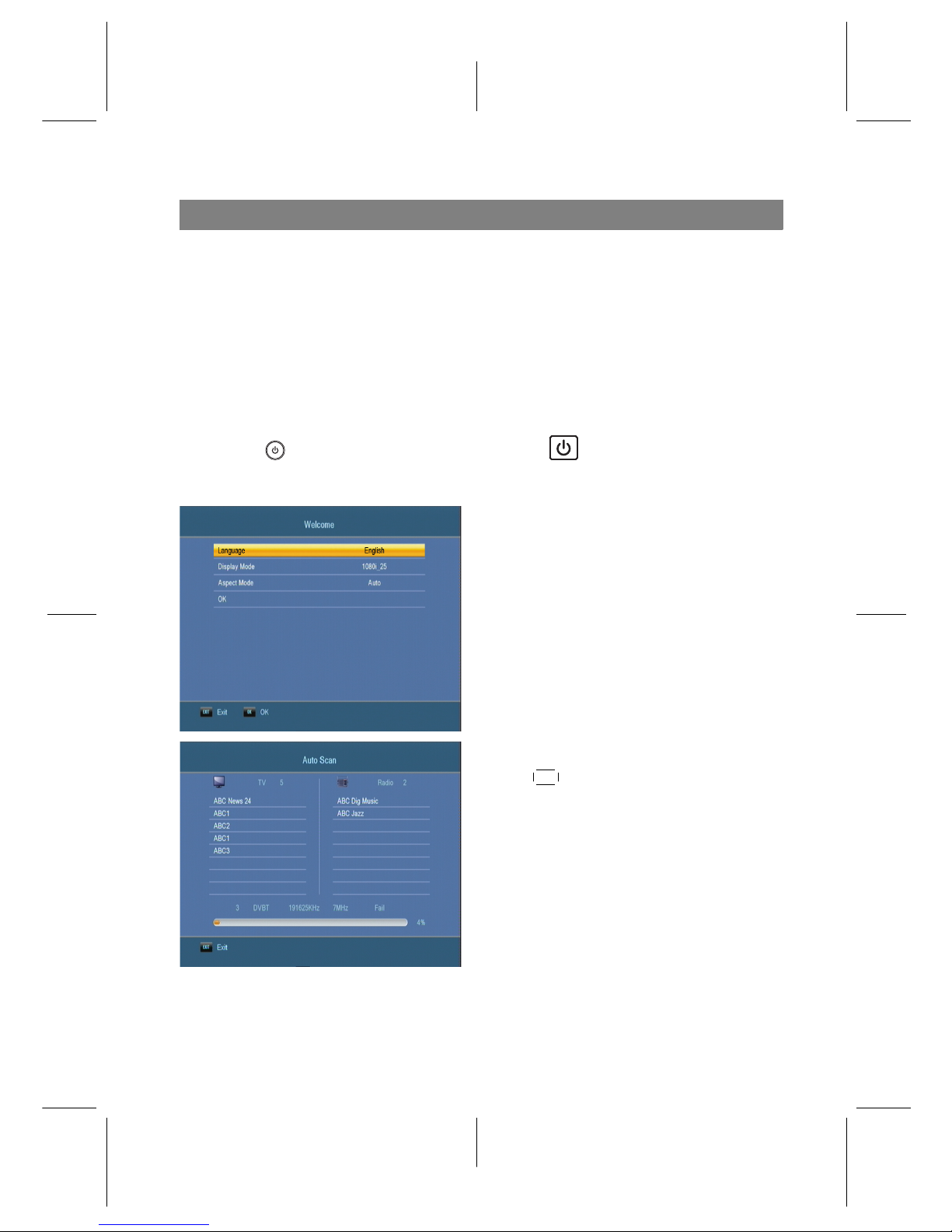

First Time Installation

1 After having connected the appropriate cables from the digital receiver to your

TV, make sure the power cord of the digital receiver is plugged into a wall socket

and turn the unit ON using the switch on the back of the unit.

2 Check that your TV set is turned on.

3 Check that your TV set is on the correct video channel so that you can see the

Menu from the Digital Receiver.

4 Insert the batteries into the remote control.

5 Press the button on the remote control or the button on the top-left side

of the unit to turn the Digital Receiver on.

6 The welcome screen will appear on

your screen.

Set the options as you need.

7 Press 







OK button to start the search.

Now AutoScan will start searching for

services automatically.

8 Once all the channels have been

searched you will be told how many

channels have been found.

By pressing the 







OK button, you will

exit the menu.

Watching TV

1 Now that the service search is com-

plete, press the 







OK button to view the

services list.

2 On the services list, press the 







P+or









P−button to navigate your desired

service. You can also switch to your

desired service by entering its service

number with the numeric buttons.

3 To select a service to watch, press the









OK button.

Electronic programme guide

1 Press the 







GUIDE button to display the

electronic programme guide (EPG).

2 To see detailed information of a desired

programme, put the highlight bar on

the programme with the 







V+or 







V−

button and press the button.

3 To switch to another service, press the









P+or 







P−button.

NOTE

The free to air EPG (Electronic Program Guide) guide does not automatically

populate. To populate the EPG guide on every channel you must visit each ser-

vice/channel every time you turn the unit ON for a few minutes, until the guide

has fully populated for the full seven days. EPG updates can also occur while

you are watching TV and jumping from channel to channel.
