TMG TMG-DT3081 Manuel utilisateur

►www.tmgindustrial.com 0/23 TOLL FREE:1-877-761-2819

►www.tmgindustrial.com 1/23 TOLL FREE:1-877-761-2819

MAIN SPECIFICATIONS :

Assembly size : W9.15 x L24 x H6 (m) / 30 x 78.7 x 19.7 (ft)

Ridge height : 6m / 19.7 ft

Peak clearance : 5.4m / 17.7 ft

Front and back door : 4.27 x 3.96 (m) / 14 x 13 (ft)

Shoulder height : 3.6 m / 11.8 ft

CONCRETE FOUNDATION SIZE SEE BELOW FIGURE.

►www.tmgindustrial.com 2/23 TOLL FREE:1-877-761-2819

PRIOR TO ASSEMBLY

Please read the instructions carefully before installation. It is very important to follow your local safety regulations and

industry standards during installation. Regulations may include but are not limited to:

•

Safety helmets, protective eyewear, and clothing

•

Safety harnesses for all elevated workers

•

Proper ladder, cage, and safety operation

Check all components and parts before installation. All parts are marked with a part number, please refer to the parts list

to ensure you have all parts.

Choose a day with low or no wind to install, it is hard to assemble with heavy wind. Do not make any alterations to the

structure. Do not hang any weight on the frame during installation, including parts. We are not responsible for any

damages or injuries caused by inappropriate installation, unauthorized modifications or extreme weather.

This building is not intended for human occupancy.

It is recommended to use heavy duty duct tapes to tape the tube connection joint spots to protect the cover from damage

and worn. It will help to extend the cover life span.

Check the parts list below to make sure all parts are received prior to assembly.

►www.tmgindustrial.com 3/23 TOLL FREE:1-877-761-2819

FRAME STRUCTURE DIAGRAM.

►www.tmgindustrial.com 4/23 TOLL FREE:1-877-761-2819

TMG-DT3081 PART LIST

PARTS

CODE

GRAPHICAL

DESCRIPTION

LENGTH

QTY

BOX

Peak arch tube

(for 7 middle trusses )

L2570mm

Peak arch tube

(for front and rear truss)

L2570mm

Upper rafter tube

(for middle trusses)

L2921mm

Upper rafter tube

(for front and rear truss)

L2921mm

Shoulder tube

(for middle trusses)

L1757mm

Shoulder tube

(front and rear trusses)

L1757mm

Sidewall tube

(middle trusses)

L2878mm

Sidewall tube

(front and rear left truss)

L2878mm

Sidewall tube

(front and rear right truss)

L2878mm

Roof purlin

(horizontal tube)

L3040mm

Baseplate for front and rear

truss left corners

W260xL520mm

Baseplate for front and rear

truss right corners

W260xL520mm

►www.tmgindustrial.com 5/23 TOLL FREE:1-877-761-2819

Left baseplate of front and

rear door frame

W150xL200mm

Right baseplate of front and

rear door frame

W150xL200mm

Baseplates for middle truss

W260xL480mm

Ratchets

Expansion bolts

φ16x150mm

Ceiling cross bar

(front and rear truss)

L2083mm

Ceiling cross bar

(front and rear truss)

L2233mm

Front and rear vertical door

rail

(left side upper part)

L1984mm

Front and rear vertical door

rail

(right side upper part)

L1984mm

Door center vertical

supporting rod for cross

beam

(front and rear truss)

L1018mm

10L

Front and rear vertical door

rail (left side lower part)

L2625mm

10R

Front and rear vertical door

rail (right side lower part)

L2625mm

Door frame horizontal tube

(front and rear truss)

L1982mm

Bottom tension bar

(front and rear truss)

L1970mm

►www.tmgindustrial.com 6/23 TOLL FREE:1-877-761-2819

Front and rear door hand

winch crossing tube

L1984mm

Top cover tension tube

L1993mm

14A

Top cover tension tube

L900mm

Front and rear roll up door

dropping tubes (to connect

#16)

L2195mm

Front and rear roll up door

dropping tubes (to connect

#15)

L2192mm

Sidewall frame steel tension

cables

φ6xL4290mm

Ridge steel tension cables

(front and rear trusses)

φ6xL3070mm

Middle truss crossing steel

tension cables

φ6xL3990mm

Front and rear truss left and

right steel cables

φ6xL3900mm

Tie down straps

(for #7A)

W38xL800mm

Cable connection plate

L91mm

22A

Pressing plate

W20xL2000mm

Roll up door hand winch

1200LB

23A

Wire rope for front and rear

door hand winch

φ4x15m

23B

Right pulley system for front

and rear doors

L150mm

23C

Left pulley system for front

and rear doors

L150mm

Front and rear vertical door

rail connection plate

L240mm

►www.tmgindustrial.com 7/23 TOLL FREE:1-877-761-2819

24A

Front and rear vertical door

rail end plate (floatable to

keep door rail straight)

L220mm

Tension tube end water plug

φ32mm

Tube clamps

φ48mm

Tapping screw

#12x25mm

Self locking bolt

and nuts

M10x70mm

Strengthened bolt

and nuts

M12x30mm

288

Hex boltand nuts

M10x50mm

Hex bolt and nuts

M10x70mm

Braided rope

L160m

Roof fabric tarp cover

W18.4xL24.6m

Front and rear truss cover

panel

W6.2xL9.1m

Front and rear roll up door

cover panel

W4.2xL4.6m

Front and rear fabric tarp

secure pin

L200mm

Plastic hose (in grooves at

both ends of #33)

φ25xL4m

37A

Connector

(for connection #37)

φ25mm

Scratch resistant tape

L10m

►www.tmgindustrial.com 8/23 TOLL FREE:1-877-761-2819

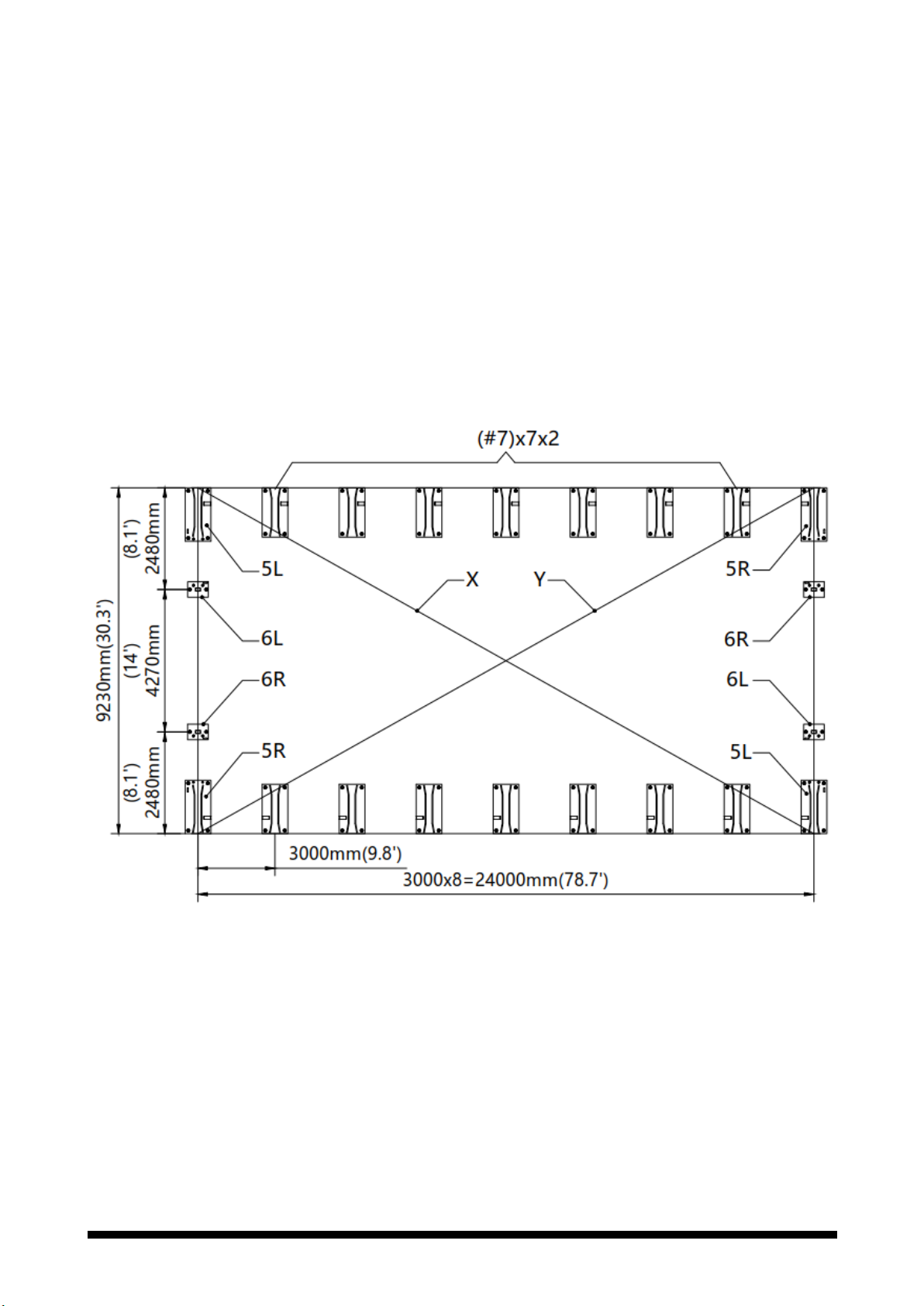

STEP 1 : BASEPLATE POSITIONING AND INSTALLATION.

Installation diagram of expansion bolt.

PARTS

CODE

PART

QTY

PARTS

CODE

PART

QTY

►www.tmgindustrial.com 9/23 TOLL FREE:1-877-761-2819

STEP 2 : ASSEMBLE ALL TRUSSES.

Front and rear trusses.

PARTS

CODE

PART

QTY

PARTS

CODE

PART

QTY

1x2

2x2

1x2

2x2

24x2
