TMG PRO Series Manuel utilisateur

►www.tmgindustrial.com 0/41 TOLL FREE:1-877-761-2819

►www.tmgindustrial.com 1/41 TOLL FREE:1-877-761-2819

MAIN SPECIFICATIONS :

Assembly size : W15.24 x L31.2 x H7.0 (m) / 50 x 100 x 23 (ft)

Outside width : 15.24 m / 50ft, inside width : 14.4 m / 47.4 ft, length : 31.2 m / 100 ft

Ridge peak height : 7.0 m / 23 ft

Peak clearance height : 6.4 m / 21 ft

Roll up door : 4.6 x 4.7 (m) / 15 x 15.4 (ft) (The front and rear doors are the same size).

Shoulder wall clearance height : 2.8 m / 9 ft

PRIOR TO ASSEMBLY

Please go through the whole instruction manual completely. It is very important to follow your local safety

regulations and industry standards during installation. Regulations may include but are not limited to:

Safety helmets, protective eyewear, and clothing

Safety harnesses for all elevated workers

Proper ladder, cage, and safety operation

Check all components and parts before installation. All parts are marked with a part

number, please refer to the parts list to ensure you have all parts.

Choose a day with low or no wind to install, it is hard to assemble with heavy wind. Do not make any alterations to

the structure. Do not hang any weight on the frame during installation, including parts. We are not responsible for

any damages or injuries caused by inappropriate installation, unauthorized modifications or extreme weather.

This building is not intended for human occupancy.

It is recommended to use heavy duty duct tapes to tape the tube connection joint spots to protect the cover from

damage and worn. It will help to extend the cover life span.

Check the parts list below to make sure all parts are received prior to assembly.

►www.tmgindustrial.com 2/41 TOLL FREE:1-877-761-2819

FRAME STRUCTURE DIAGRAM.

►www.tmgindustrial.com 3/41 TOLL FREE:1-877-761-2819

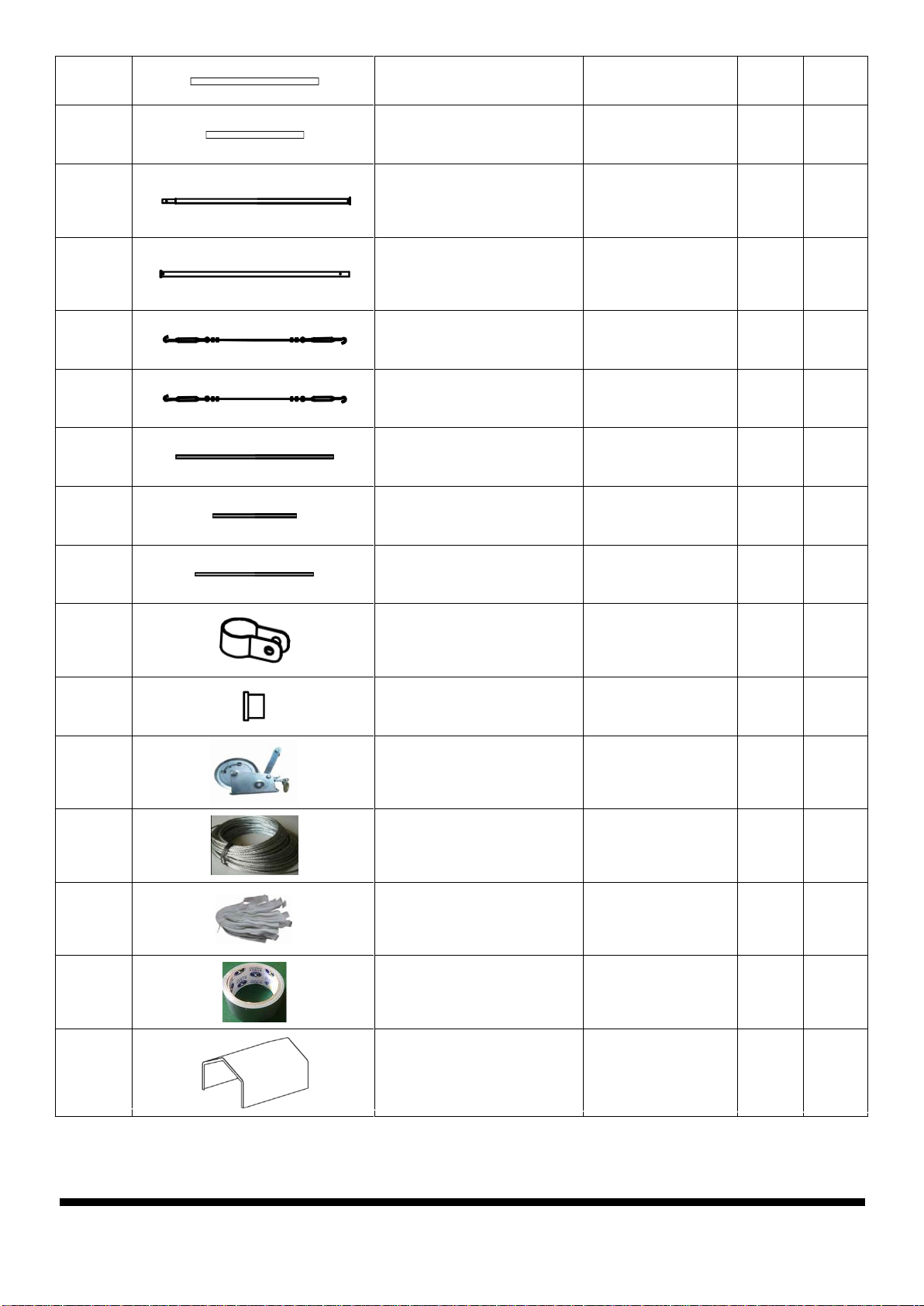

TMG-DT50100-PRO PART LIST

PARTS

CODE

GRAPHICAL

DESCRIPTION

LENGTH

QTY

BOX

Peak arch tube

(for front and rear truss)

L2646mm

Peak arch tube

(for 6 middle trusses )

L2646mm

Upper rafter tube

(for front and rear truss)

L2855mm

Upper rafter tube

(for middle truss)

L2855mm

B/C

Lower rafter tube

(for front and rear truss)

L2855mm

Lower rafter tube

(for middle truss)

L2855mm

Shoulder tube

(front and rear truss)

L2613mm

Shoulder tube

(for middle truss)

L2613mm

D/E

Sidewall tube

(front and rear truss)

L1895mm

Sidewall tube

(for middle truss)

L1895mm

Roof purl in

(horizontal tube)

φ58xL2440mm

143

Front and rear span tube

φ58xL2890mm

Base plate for front and rear

truss left corners

W260xL320mm

►www.tmgindustrial.com 4/41 TOLL FREE:1-877-761-2819

Base plate for front and rear

truss right corners

W260xL320mm

Base plates for middle truss

W260xL280mm

Ratchets

106

Base plates for middle truss

(group 8 truss)

W280xL570mm

Clip

Left base plate of front and

rear door frame

W150xL350mm

Right base plate of front and

rear door frame

W150xL350mm

Front and rear door left and

right column base plate

W150xL200mm

Side door right tube

W200xL2070mm

Side door left tube

W200xL2070mm

Side door

L2005xW925mm

Pressing plate

W20xL1000mm

Pressing plate

W20xL2000mm

Front and rear vertical door

rail connection plate

W69xL240mm

►www.tmgindustrial.com 5/41 TOLL FREE:1-877-761-2819

Front and rear vertical door

rail end plate (floatable to

keep door rail straight)

W60xL218mm

Front and rear vertical door

rail

(left side upper part)

W250xL2376mm

Front and rear vertical door

rail

(right side upper part)

W250xL2376mm

10L

Front and rear vertical door

rail

(left side lower part)

W250xL2660mm

10R

Front and rear vertical door

rail

(right side lower part)

W250xL2660mm

10A

Right lower vertical tubes for

front and rear trusses

φ58xL2198mm

10B

Left and right upper vertical

tubes for front and rear

trusses

φ58xL1867mm

Left lower vertical tubes for

front and rear trusses

φ58xL2198mm

Side door upper tube

(front and rear)

W140xL2061mm

Front and rear door cross

tubes

(left and right)

W140xL2756mm

12A

Front and rear door cross

tubes

(left and right)

W140xL2062mm

Front and rear door cross

beam (left)

W140xL2304mm

13A

Front and rear door cross

beam (right)

W140xL2284mm

13B

Front and rear door center

vertical supporting rod for

cross beam

W140xL1280mm

Front and rear door hand

winch crossing tube

W140xL2761mm

Front and rear fabric panel

tension tubes

φ32xL2700mm

15A

Front and rear fabric panel

tension tubes

φ32xL2200mm

►www.tmgindustrial.com 6/41 TOLL FREE:1-877-761-2819

15B

Front and rear fabric panel

tension tubes

φ32xL750mm

15C

Front and rear fabric panel

tension tubes

φ32xL470mm

Front and rear roll up door

dropping tubes

(to connect #16A)

φ32xL2346mm

16A

Front and rear roll up door

dropping tubes

(to connect #16)

φ32xL2342mm

16B

Middle truss crossing steel

tension cables

φ6xL5900mm

16C

Sidewall frame steel tension

cables

φ6xL4700mm

Tarp cover tension tubes on

both sides

φ32xL1993mm

17A

Tarp cover tension tubes on

both sides

φ32xL1450mm

17B

Tarp cover tension tubes on

both sides

φ32xL970mm

Pipe clamps for front and rear

vertical tubes to connect to

truss frame

φ58mm

Tension tube end water plug

φ32mm

Roll up door hand winch

1200LB

Wire rope for front and rear

door hand winch

φ4xL16m

Tie down straps

(for #6A and front and rear

arches)

W38x800mm

106

Scratch resistant tape

L10m

Roof fabric tarp cover

►www.tmgindustrial.com 7/41 TOLL FREE:1-877-761-2819

24A

Roof fabric tarp cover

Front and rear truss fabric tarp

panel

25A

Front and rear roll up door

fabric tarp panel

Plastic hose

(in grooves at both ends of

#24)

φ25xL4000m

26A

Connector

(for connection #26)

φ25

Tension ropes

(tie to front and back doors)

φ32xL300m

Self locking bolt and nuts

M10x80mm

154

Self locking bolt and nuts

M8x70mm

Hex bolt and nuts

M12x30mm

560

Hex bolt and nuts

M10x90mm

31A

Hex bolt and nuts

M10x100mm

Hex bolt and nuts

M10x50mm

Front and rear fabric tarp

secure pin

φ6x200mm

Expansion bolts φ16

φ16x150mm

136

Cable connection plate

L91mm

Hex bolt and nuts

M10x60mm

Tapping screw

#12x25mm

104

►www.tmgindustrial.com 8/41 TOLL FREE:1-877-761-2819

STEP 1 : BASEPLATE POSITIONING AND INSTALLATION.

PARTS

CODE

PART

QTY

PARTS

CODE

PART

QTY

128

►www.tmgindustrial.com 9/41 TOLL FREE:1-877-761-2819

STEP 2 : INSTALLATION OF FRONT AND REAR 2 GROUP TRUSSES.

PARTS

CODE

PART

QTY

PARTS

CODE

PART

QTY

1x2

2x2

32x2

2x2
