Main Specifications :

-Overall assembled size : W6 x L12 x H3.65 (m) / 19.68 x 39.37 x 11.97 (ft)

-Shoulder height : 2 (m) / 6.56 (ft)

-Front and rear roll up door : 3 x 3 (m) / W9.84 x H9.84 (ft)

Prior to assembly

Please read the instructions carefully before installation. It is important to follow your

local safety regulations and industry standards during installation. Regulations may

include but are not limited to :

- Safety helmets, protective eyewear, and clothing.

- Safety harnesses for all elevated workers.

- Proper ladder, cage, and safety operation.

Check all components and parts before installation. All parts are marked with a part

number, please refer to the parts list to make sure you have all parts.

Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not

make any alterations to the structure. Do not hang any weights on the frame during

installation, including parts. We are not responsible for any damages or injuries

caused by inappropriate installation, unauthorized modifications or extreme weather.

This building is not intended for human occupancy.

It is recommended to tape or add foam/rubber on the frame where joints connect and

where it touches the cover. This will help extend the life span of the cover.

Read the following item list carefully and count the number of items to ensure that all

parts are included prior to setup.

Installation steps

Step 1 : Review the whole structure and choose the proper installation site

Choose a solid flat level ground area to set up the building. Do not install the building

on soft ground, wetland, uneven surfaces, sloped surfaces, or on top of structures that

are not rated to hold its weight.

We strongly recommend that you build the structure on a solid foundation such as

cement and use anchor bolts on all baseplates.

Be aware of the surrounding area. Do not set up the building near snowdrifts, open

flames or exposed electrical wires. Do not keep heat sources near the fabric cover.

▶W W W . T M G I N D U S T R I A L . C O M P 2 / 19 T o l l F r e e : 1 - 877-761-2819

Keep the building surroundings clear at all times.

TMG-ST2041V Part List

Parts

code

Graphical

Description

length

Qty

Peak arch tube

φ48xL1820mm

Upper rafter tube

(middle truss)

φ48xL1934mm

Upper rafter tube

(front truss)

φ48xL1934mm

Shoulder tube

(middle truss)

φ48xL1123mm

Shoulder tube

(front and rear truss)

φ48xL1123mm

Sidewall tube

φ48x1480mm

Roof purlin

(horizontal tube)

φ42x1440mm

Middle truss

connectors

W50xL170mm

126

Front and rear

connectors

W50xL111mm

Self-tapping screws

#12x25mm

Left corner baseplate

(front and rear truss)

W200xL350mm

▶W W W . T M G I N D U S T R I A L . C O M P 3 / 19 T o l l F r e e : 1 - 877-761-2819

Right corner baseplate

(front and rear truss)

W200xL350mm

Door column baseplate

(front truss)

W150xL200mm

Middle truss baseplate

W150xL200mm

Ratchet

Door frame lower tube

(front and rear truss)

φ48xL1980mm

Door frame upper tube

(front and rear truss)

φ48xL1405mm

Door frame horizontal

tube

(front and rear truss)

φ42xL1446mm

Ceiling cross bar

φ42xL1949mm

11A

Two wheel rope pulley

(pre-installed on 2A)

W30xL130mm

11B

One wheel rope pulley

(pre-installed on 2A)

W30xL85mm

Bottom tension bar

(front and rear cover)

φ32xL1300mm

Diagonal bracing bar

(1st and last span)

φ32xL1920mm

13A

Tube clamp

φ48mm

Top cover tension tube

(for both bottom sides)

φ32xL1993mm

2 groups

φ32xL500mm

Door dropping tube

φ32xL1993mm

2 groups

φ32xL1360mm

▶W W W . T M G I N D U S T R I A L . C O M P 4 / 19 T o l l F r e e : 1 - 877-761-2819

Expansion bolt

(not included)

φ14x100mm

Half round head bolt

M8x60mm

162

Hex Bolt

M10x70mm

168

Hex Bolt

M10x30mm

19A

Hex Bolt

M10x50mm

Nylon rope

φ8xL12m

Water plug

φ32mm

Top cover

Front cover panel

Braided rope

φ8xL180m

1 bundle

Ratchet straps

W38xL800mm

Scratch resistant tape

10m

▶W W W . T M G I N D U S T R I A L . C O M P 5 / 19 T o l l F r e e : 1 - 877-761-2819

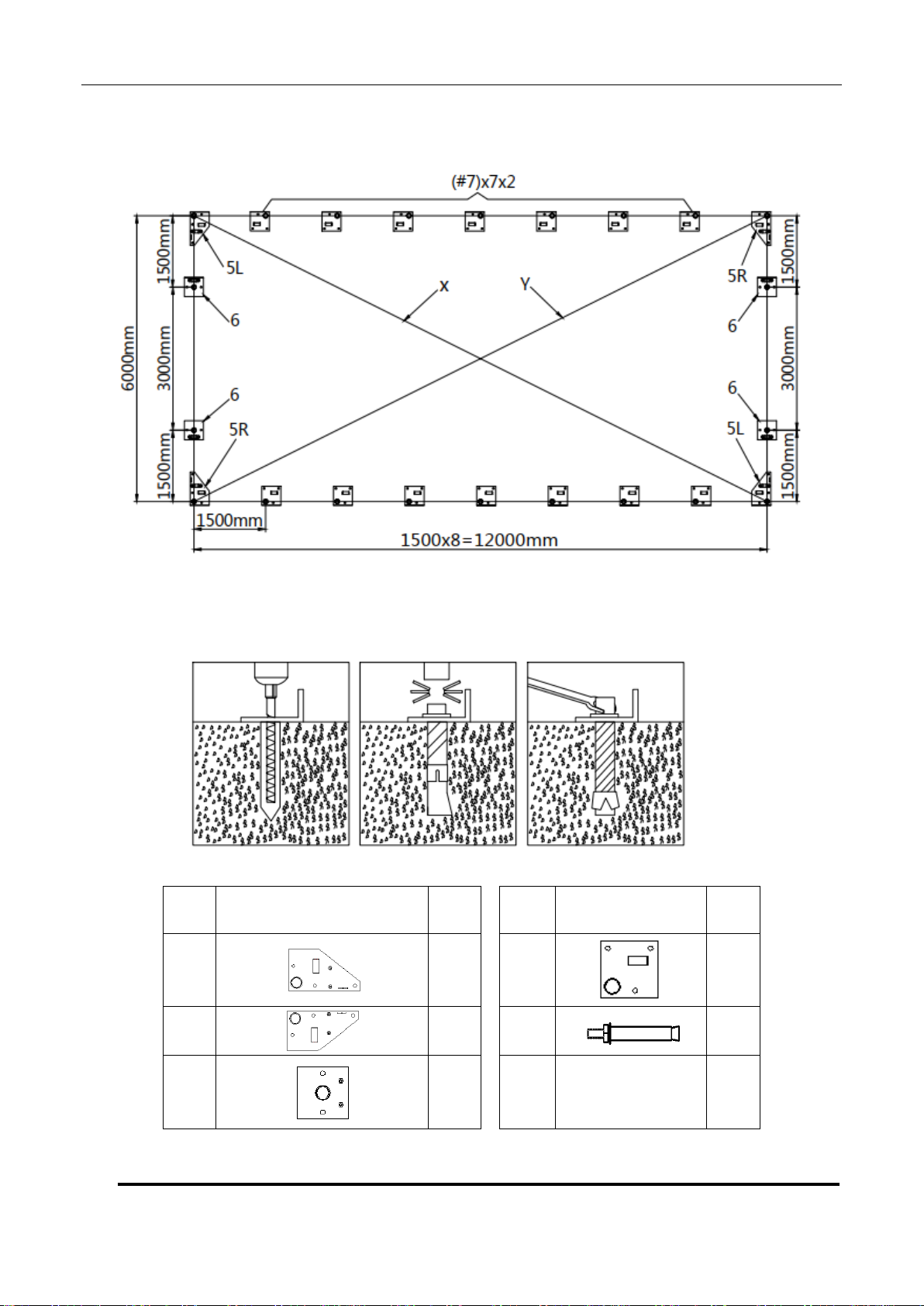

Step 1 : Base plates installation.

Installation diagram of expansion bolt.

NO.

Part

Qty

NO.

Part

Qty

▶W W W . T M G I N D U S T R I A L . C O M P 6 / 19 T o l l F r e e : 1 - 877-761-2819

Step 2 : Install front and rear truss.

NO.

Part

Qty

NO.

Part

Qty

11A

11B

▶W W W . T M G I N D U S T R I A L . C O M P 7 / 19 T o l l F r e e : 1 - 877-761-2819

Step 3 : Install the middle truss.

NO.

Part

Qty

NO.

Part

Qty

▶W W W . T M G I N D U S T R I A L . C O M P 8 / 19 T o l l F r e e : 1 - 877-761-2819

Step 4 : Wrap (#26) around the sharp points of the joint to avoid friction

between the fabric and the interface.

NO.

Part

Qty

▶W W W . T M G I N D U S T R I A L . C O M P 9 / 19 T o l l F r e e : 1 - 877-761-2819

Step 5 : Put up the front and rear truss and the intermediate trusses.

NO.

Part

Qty
