1. Introduction

We live up to the promise of Thermaltake logo in

our unending quest for excellence.

Shall you have any suggestion or comments,

please access our web site :

http://www.thermaltake.com

or e-mail to :

[email protected]

we appreciate your kindly feedback and you will

receive the prompt response from our customer

service team.

Thank you for choosing a quality Thermaltake

Toughpower 850W Cable Management PC Power

Supply. The Toughpower 850W featuring our Embedded

Socket and Modularized Cable Management plus 14cm

cooling fan.We trust that you will find it providing you

with many years of service.

Thermaltake Technologies delivers most solid line of

power supplies built to specifically towards high-end

systems for utmost PC system performance. The leader

in thermal solutions defines Tough as being "able to

withstand great strain and stress without tearing or

breaking" same with their newest and latest line of

ToughPower power supplies.

-Independent voltage circuit

Voltage won't fluctuate and influence each rails. The

particular design for +3.3V, +5V, and +12V that offers

unflappable current delivery under heavy load and

makes voltage output more stable.

170 X 140 mm

-Tough Atomic Energy

Build for the Extreme-

ATX 12V 2.2 & EPS 12V 2.91 Version ATX 12V 2.2 2.91 Version& EPS 12V

Toughpower 850W Cable Management Toughpower 850W Cable Management

-T

ough Atomic Energy

Build for the Extreme-

Toll Free: (800)988-1088

Email: [email protected]

Thermaltake Technology USA

Thermaltake Europe B.V.

Tel:+31-10-409-0150

Email: [email protected]

Tel:+86-10-82883159/3189 ext.16

Email: [email protected]

Thermaltake Beijing Co.Ltd.

Thermaltake Australia and New Zealand Pty Ltd

Tel:+613-9763-1622

Email: [email protected]

Thermaltake Japan Inc.

Email: [email protected]

Should you have any questions regarding the

aforementioned steps, please contact Thermaltake directly.

Failure to follow the proper procedures may cause severe

bodily harm or PC component damage.

For Support or General Inquiries, please contact us at:

Please take the time in familiarize yourself with the

power supply, its connectors and the contents of this

manual before proceeding with the installation of the

power unit. You will need a Phillips crosshead

screwdriver, perhaps your PC case manual and most

certainly your motherboard manual.

-Extremely good voltage regulation ( 3%)

-Industrial grade components (capacitor,

transformer, etc)

-High reliability: MTBF > 120,000 hours

-Extend warranty: 3 years

Most power supplies has only one group regulation choke

with three windings. However, the Toughpower takes on

a different approach. The three (+3.3V, +5V, +12V) rails

are all separate rails with individual windings. This

feature allows the rails to have a tighter load regulation

(3% or better) than the other power supplies. This

feature also helps system voltage stay steady.

The key feature of the Toughpower is the usage of the

highest quality components possible. Therefore,

Toughpower allows the users to enjoy performance

without worrying about the reliability.

Toughpower features an extremely long MTBF (Mean

Time Between Failures): 120,000 hours; which goes

above and beyond all ATX specifications.

With our high quality and solid circuit designs, we are

confident to provide three years of warranty instead of

the one-year industrial standard period.

170 X 140 mm

-Tough Atomic Energy

Build for the Extreme-

ATX 12V 2.2 & EPS 12V 2.91 Version ATX 12V 2.2 2.91 Version& EPS 12V

Toughpower 850W Cable Management Toughpower 850W Cable Management

-T

ough Atomic Energy

Build for the Extreme-

2. Components Check

4 mounting screws

One AC Inputpower cord

2A 4-pin/8-pin +12V

power connector

3Two sets ofwires with

4-pin peripheral power

connector

4Two sets ofwires with

4-pin floppy drive

connector

5Two sets ofwires with

6-pin PCI-Express power

connector

6Two sets ofwires with

5-pin SATA connectors

3. Installation

3.1.1 Do not pull the AC power cord when the power supply is in

use or else damage to components will result.

3.1.2 Do not store the Power Supply in a high humidity and high

temperature environment.

3.1.3 When using an ATX type power supply under testing

conditions where the power supply unit is not installed in a

PC with its components, please follow the steps below:

1)Please take a paper clip and untwist it.

2)Make sure the power supply unit is in the "OFF" position.

3)Locate the 20 or 24 pin motherboard connector from the

power supply unit.

4)Plug one side of the paper clip into the green wire hole.

5)Plug the other side of the paper clip into any of the black

wire holes.

6)Turn on the PSU to see if the power supply fans turn on.

3.1.4 High voltages exist in the power supply. Do not open the

power supply case unless you are an authorized service

technician or electrician.

3.1.5 All warrantees and guarantees shall be voided should there

be a failure to comply with any of the warnings and cautions

covered in this manual.

3.1 Warnings and Cautions

User manual

850W power supply unit

(With one 24-pin main

power connector & two

6-pin PCI-Express

connectors)

170 X 140 mm

-Tough Atomic Energy

Build for the Extreme-

ATX 12V 2.2 & EPS 12V 2.91 Version ATX 12V 2.2 2.91 Version& EPS 12V

Toughpower 850W Cable Management Toughpower 850W Cable Management

-T

ough Atomic Energy

Build for the Extreme-

3.3 Installation Steps

To prevent electrical shocks, please disconnect the power cord

from your existing power supply unit. Toughpower 850W Cable

Management PSU has automatic Voltage Selector Which will

automatically change to 100V-240V PSU .

Installation Steps

3.3.1 Ground yourself to remove any static electricity by briefly

touching your PC cases and then, disconnect the power cord

from your old power supply (if replacing it)

3.3.2 Follow your computer case manual and disassemble the case.

3.3.3 Disconnect all the power connectors from the motherboard

and from the peripheral devices such as case fans, hard

drives, floppy drives. etc.

3.3.4 Remove the existing power supply from your computer case

and replace it with your new Thermaltake Toughpower

850W Cable Management PSU.

3.3.5 Connect the power connectors to the motherboard and

peripheral devices (refer to the rest of this manual to match

the various one-way key-locked connectors to the

motherboard and accessories).

3.3.6 Connect the 6-pin PCI Express connector to PCI Express

graphic card if you need.

Note: Please read the user manual supplied with your graphic card

for detail usage instructions.

3.3.7 Close the computer case.

3.3.8 Make sure your power supply switch is on "OFF" position,

and connect the supplied power cord to your Thermaltake

Toughpower 850W Cable Management PSU.

3.2 Embedded Socketand Modularized

Cable Management

3.2.1 Embedded Socket andModularized Cable Management:

The new embedded socketand modularized cable management

allows user use onlythe cables they needand improve the airflow

in the chassis.

Embedded Socket and ModularizedCable Management Design:

3.2.2 Toughpower850W unit: On thepower supply, youwill find sockets toconnect

with those cables. Userscan choose which wireset they want touse for

devices, graphic card, fans,etc. Inside the package,you will find thefollowing

wire set:

1. One 4-pin/8-pin +12Vconnector

2. Eight 4-pin peripheralpower connectors and two4-pin floppy drive

connectors

3. Eight 5-pin S-ATA connectors

4. Two 6-pinPCI-Express graphic card connectors

170 X 140 mm

-Tough Atomic Energy

Build for the Extreme-

ATX 12V 2.2 & EPS 12V 2.91 Version ATX 12V 2.2 2.91 Version& EPS 12V

Toughpower 850W Cable Management Toughpower 850W Cable Management

-T

ough Atomic Energy

Build for the Extreme-

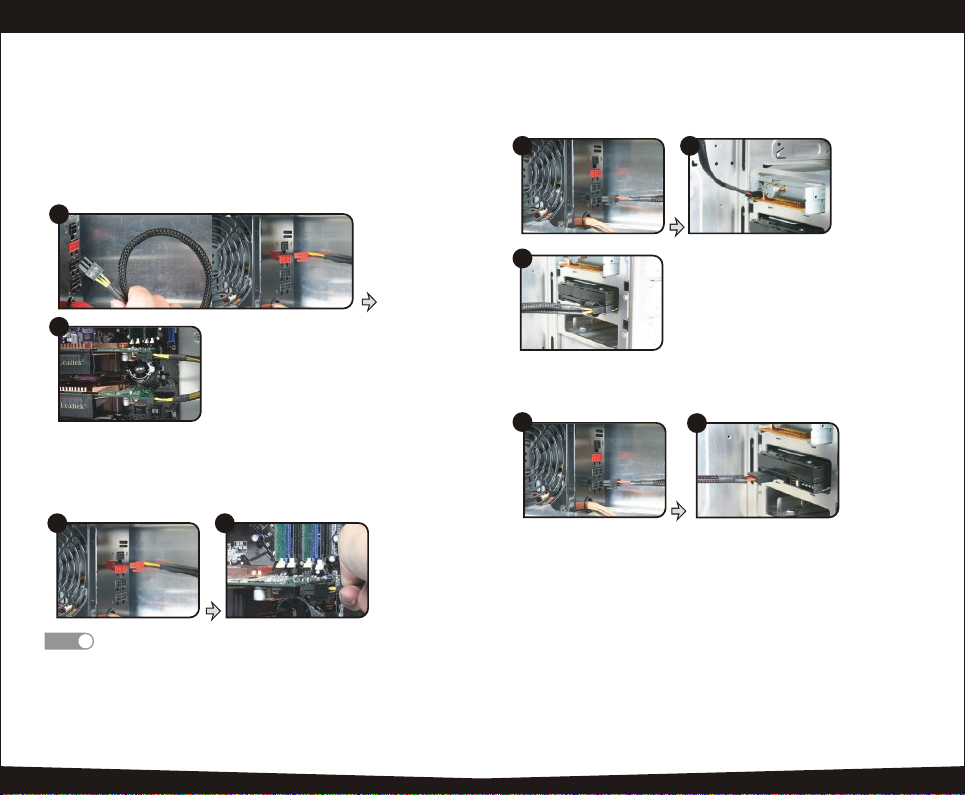

StepStepStep 1

3.4 Power Supply Installation

After install the powersupply unit into thechassis and then connect

the 20+4-pin main powercable to motherboard 20pinor 24 pin socket.

StepStepStep 2

StepStepStep 3

Connect the 4-pin/8-pin +12V auxiliary powerconnector to the

motherboard. (Users can use either 4pins or 8 pins, depending on

the motherboard. Please check with themotherboard user's manual.)

Note: Please check the belowinformation before install your

Dual PCI-Express graphiccards.

The Toughpower850W Cable Management Power Supply hasfour

PCI-Express connectors.

Two ofthe PCI-Express connectors comes out directlyfrom the power

supply unit, the other two PCI-Expressconnectors are modularized

design.

For the belowSLI and CrossFire dual graphic cardmode, We suggest

you use onePCI-Express connector whichcomes out from the power

supply unit and one modularized PCI-Expressconnector for better

performance and stability.

For the QuadGraphic Card mode, We suggest you use twoPCI-Express

connector which comes out from thepower supply unit and two

modularized PCI-Express connectorfor best performance and stability.

NVIDIA SLI Card ATI CrossFire Card

GeForce 7950 GTX

GeForce 7900 GT

GeForce 7800 GTX512MB

GeForce 7800 GTX256MB

GeForce 6800 Ultra

GeForce 6800 GT

GeForce 6800

Radeon X1950 series

Radeon X1900 series

Radeon X1800 series

Radeon X1650 series

Radeon X1600 series

Radeon X1300 series

*Please check Thermaltake websitefor installation instruction

on future graphiccards.

170 X 140 mm

-Tough Atomic Energy

Build for the Extreme-

ATX 12V 2.2 & EPS 12V 2.91 Version ATX 12V 2.2 2.91 Version& EPS 12V

Toughpower 850W Cable Management Toughpower 850W Cable Management

-T

ough Atomic Energy

Build for the Extreme-

If there areS-ATAhard disk drives present, there arealso Serial ATA

connectors available.

StepStepStep 4

Connect the 4-pin power connectors toperipherals such as DVD

burners, hard disk drives, etc. In addition, users can connect the

4-pin floppy power connectors to thefloppy drive.

Second, entry-level SLIor CrossFire dual graphic card modesuch

as NVIDIA 6600 series and ATI X850 series installation:

Connect the two 6-pin modularized PCI-Expressconnector to your

dual graphic cards.

For other entrylevel SLI or CrossFire graphic cards,you can use two 6-

pin modularized PCI-Expressconnectors.

First, high-level SLIor CrossFire dualgraphic card mode installation:

Connect two PCI-Expressconnectors which comes out from power

supply unit and two 6-pin modularizedPCI-Express connectors to your

dual graphic cards.

170 X 140 mm

-Tough Atomic Energy

Build for the Extreme-

ATX 12V 2.2 & EPS 12V 2.91 Version ATX 12V 2.2 2.91 Version& EPS 12V

Toughpower 850W Cable Management Toughpower 850W Cable Management

-T

ough Atomic Energy

Build for the Extreme-

Peripheral Connector (4pin)

Color Signal Pin

Yellow

Black

Red

+12VDC

COM

+5VDC

+12V Connector (8pin)

Color Signal Pin

Black

Yellow

COM

Black COM

+12 DCV

Yellow/Black

+12 DCV

Yellow/Black

4. Product Specification

PCI Express Connector (6 pin)

Main Power Connector

Voltage

+3.3 V

COM

+5 V

COM

+5 V

COM

PWR_ON

+5 Vsb

+12 V3

+3.3 V

Voltage

+3.3 V

-12 V

COM

PS_ON#

COM

N/C

+5 V

COM

Color

Orange

Black

Red

Black

Red

Black

Purple

Yellow

Orange

Color

Orange

Blue

Black

Green

Black

N/C

Red

Black

Color Signal Pin

Yellow 12VDC 1

Yellow 12VDC 2

Yellow 12VDC 3

Black COM 4

Black COM 5

Black COM 6

Gray

4.1 Output Specification

4Color Signal Pin

Yellow +12V DC

Yellow +12V DC 4

Black COM 1

Black COM 2

+12V connector (4 pin)

170 X 140 mm

-Tough Atomic Energy

Build for the Extreme-

ATX 12V 2.2 & EPS 12V 2.91 Version ATX 12V 2.2 2.91 Version& EPS 12V

Toughpower 850W Cable Management Toughpower 850W Cable Management

-T

ough Atomic Energy

Build for the Extreme-

Features:

4.2 Touhgpower 850W PSU Specification

- Stable 850W continuous output (at 50 C operating environment)

- Four independent & dedicated +12V rails(12V1,12V2,12V3,12V4)

provides superior performance for PC system (combined loading of 62A).

- Four 6pin PCI-E connector for Multi-GPU Graphic Cards.

- Supports Dual Core CPU /SLI / CrossFire and the latest Quad SLI

technology.

- Modularized Cable Management to eliminateclutter and improve airflow

inside the case.

- Independent Voltage Circuit: offers unflappable current delivery under

heavy load.

- Strict voltage regulation ( 3%):

provides steady voltage for

system.

- Active Power Factor

Correction (PF>0.99) and high

efficiency (up to 87%).

- Industrial grade components

(capacitor, transformer, etc)

- High reliability: MTBF>120,000

hours.

- Quiet and reliable 14cm ball-

bearing fan.

- Protections: Over Current,

Over Voltage, and Short-Circuit

protection.

- Safety / EMI Approvals:CE,

CB, TUV, FCC, UL, CUL, and

BSMI certified.

up to 87%

16 ms

100VAC - 240VAC

Active PFC

850 Watts

SPECIFICATION

16cm(L)x15cm(W)x8.5cm(H)

115VAC / 12A max.

230VAC / 6A max.

INPUT

DIMENSIONS

W0131

16 dBA at 1300 RPM

2.4 kg

ATX Logic on-off additional power

rocker switch

Black

14cm Fan

SPEED: 2300 RPM(+10%~-10%)

DIMENSION: 140 X 140 X 25 mm

AIR FLOW: 105 CFM

TEMP. AUTO CONTROL

100-500 ms

+5V 7.0 Vmax

+3.3V 4.5 Vmax

+12V 15.6 Vmax

47 - 63 Hz

P/N

Maximum Power

Color

Switches

PFC

(Power Factor

Correction)

Cooling System

Noise

P. G. Delay

Over Voltage

Protection

Recycle AC

to Reset

Unit Size

Net Weight

Input Voltage

Input

Frequency

Range

Input Current

Hold-up Time

Efficiency

Serial ATA Power Connector (5 pin)

Yellow +12VDC

Black COM 2

Red +5VDC 3

Black COM 4

Orange +3.3 VDC 5

Color Signal Pin

Floppy Disk Connector(4 pin)

Color Signal Pin

Red

Black

Black COM

COM

+12VDC

Yellow

+5VDC

170 X 140 mm

-Tough Atomic Energy

Build for the Extreme-

ATX 12V 2.2 & EPS 12V 2.91 Version ATX 12V 2.2 2.91 Version& EPS 12V

Toughpower 850W Cable Management Toughpower 850W Cable Management

-T

ough Atomic Energy

Build for the Extreme-

4.3 Other Specification

4.3.1

4.3.2

4.3.3

4.3.4

4.3.5

4.3.6

4.3.7

4.3.8

4.3.9

Inrush Current:

55A max. when AC input 115Vac at 25 C cold start.

110A max. when AC input 230Vac at 25 C cold start.

Power Efficiency:

80% (min.),up to 87%

115VAC - Full load 80%

230VAC - Full load 87%

Power Factor:

PF>0.9

Note:

The continuous total output power is 850W max.

The combined power of +5V and +3.3V is 180W max.

Peak currents may last up to 12 seconds with not more

than one occurrence per minute.

Total combined +12V output load not exceed 62A.

Hold-Up Time:

16msec (minimum) at 80% of full load at 230Vac input.

Power Good Delay:

100-500 msec.

Power Fail Delay:

>1 msec.

Turn-On Delay Time:

2000 msec max.

Rise Time:

20ms max at full load.

4.4 Protection

When OCP,OVP or short protectionis triggered, the mainoutputs will

be latched off.The main outputs canbe reset by cyclingthe DC remote

on/off or AC power. +5Vsb output isauto recovery when fault

condition removed.

4.4.1 Over CurrentProtection

Notov er240V A foreve ryoutp utvoltage.(Not including 12V output)

4.4.2 Over VoltageProtection

+3.3V output 4.5 Vmax

+5.0V output 7.0Vmax

+12.0V output 15.6 Vmax

Technology Features

Total Output Connector

Cable Application

OUTPUT

Load

Reg.

+3%

- 3%

Min.

Load

0.5A

Max.

Load

30A

Voltage

+3.3V +5V +12V1

+5VSB

+12V2+12V3+12V412V

30A 18A 18A 30A 30A 0.8A 3.0A

2.0A 1.0A 1.0A 1.0A 1.0A 0A 0A

+3%

- 3% +3%

- 3 % +5%

- 3%

+3%

- 3 % +3%

- 3 % +9%

- 5%

Ripple

& Noise

mV 50

mV 240

mV 120

mV 50

Reak

Load

3.5A

-------

All cables are sleevedwith black mesh cablesleeving

Optimum air-flow currents withinthe chassis

Quad +12V Rails and EPS Structure

Eight S-ATA

Connectors

Silent 140mm

Fan

Intelligent Cable Management:

Noise Preventive Silicon Pad -Effectively

reduces vibration noise by as muchas 80%

X1 X8

4-pin/8-pin +12V

Power Connector

4-pin Peripheral

Connector X8 and

Floppy Connector X2

X8 X8 X2

5-pin S-ATA

Connector

6-pin PCI

Express Connector

850W power supply unit

(With one 24-pin main power connector &

two 6-pin PCI-Express connector)

Nickel Black

Housing

170 X 140 mm

Table des matières

Autres manuels Thermaltake Matériel informatique

Thermaltake

Thermaltake TOUGHLIQUID Ultra 420 Manuel utilisateur

Thermaltake

Thermaltake Pacific Ultra Core P6 DP-D5 Plus Manuel utilisateur

Thermaltake

Thermaltake Pacific V-RTX 4080 Plus Manuel utilisateur

Thermaltake

Thermaltake Floe Ultra 240 RGB Manuel utilisateur

Thermaltake

Thermaltake Pacific V-RTX 3080/3090 Plus Manuel utilisateur

Thermaltake

Thermaltake Tai-Chi VB5001SNA Manuel utilisateur

Thermaltake

Thermaltake M360 Plus Manuel utilisateur

Thermaltake

Thermaltake Water 3.0 Extreme S Manuel utilisateur

Thermaltake

Thermaltake TOUGHLIQUID 360 ARGB TRX40 Edition Manuel utilisateur

Thermaltake

Thermaltake Pacific V-RTX 2070 Super Plus Manuel utilisateur

Thermaltake

Thermaltake CL-W279-CU00SW-A Manuel utilisateur

Thermaltake

Thermaltake Riing Silent 12 Sync Manuel utilisateur

Thermaltake

Thermaltake Water 3.0 Ultimate Manuel utilisateur

Thermaltake

Thermaltake M900 XXL RGB Manuel utilisateur

Thermaltake

Thermaltake TOUGHLIQUID Ultra 420 RGB Manuel utilisateur

Thermaltake

Thermaltake C240 Manuel utilisateur

Thermaltake

Thermaltake A2016 Manuel utilisateur

Thermaltake

Thermaltake Level 10 GT Battle Edition VN10008W2N Manuel utilisateur

Thermaltake

Thermaltake UX100 Manuel utilisateur

Thermaltake

Thermaltake TH240 ARGB Sync Manuel utilisateur

Thermaltake

Thermaltake Water 3.0 Riing RGB 360 Manuel utilisateur

Thermaltake

Thermaltake Pacific Core P8 DP-D5 Plus Manuel utilisateur

Thermaltake

Thermaltake Pacific V-RTX 3070 Plus Manuel utilisateur

Thermaltake

Thermaltake Pacific MX2 Plus Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
