Thermaltake CLM360 Manuel utilisateur

PACIFIC CLM360 ULTRA LIQUID COOLING KIT

CL-W335-CU12SW-A

01 x 1 02 x 1 03 x 1 04 x 4 05 x 4 06 x 1

Parts List

This product is intended for installation only by expert users. Please consult with a qualified technician for installation.

Improper installation may result in damage to your equipment. Before you start using this product please follow these basic guidelines:

1. Please carefully read the manual before beginning the installation process !

2. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant.

3. Please remove your graphics card from your motherboard to ensure the safest process and in order to prevent any possible damages to your CPU and motherboard.

4. DO NOT USE any kind of alcohol or alcohol derivatives with this reservoir or the acrylic tube may crack and fail ! Do not clean it using alcohol either !

07 x 1 08 x 1 09 x 1 10 x 4 11 x 4 12 x 4

CPU Water Block

Pump / Reservoir

Fan & Radiator

Accessory

14 x 113 x 3

19 x 2 20 x 8 21 x 1 22 x 1 23 x 8 24 x 1 25 x 1

26 x 1 27 x 1 28 x 1 29 x 1 30 x 1 31 x 1 31 x 132 x 1 33 x 1

15 x 12 16 x 12 17 x 12 18 x 1

PACIFIC CLM360 ULTRA LIQUID COOLING KIT

CL-W335-CU12SW-A

CPU Water Block Installation Guide

www.thermaltake.com

This product is intended for installation only by expert users. Please consult with a qualified technician for installation.

Improper installation may result in damage to your equipment.

Before you start using this product please follow these basic guidelines:

1. Please carefully read through the instruction manual before beginning the installation process.

2. Please remove your graphics card from your motherboard to insure the safest process and in order to prevent any possible damages

to your CPU and motherboard.

3. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant Series.

Intel LGA 1200/115X

AM3/AM2/

AM4

FM2/FM1

AMD

LGA1700

LGA1200/1156/1155/1151/1150

Intel

Intel LGA 1700

45 6

Please make sure the grey

mark is toward to the TT Logo.

03 02 03

PACIFIC CLM360 ULTRA LIQUID COOLING KIT

CL-W335-CU12SW-A

6 7

Out : Circle 1 is designed for liquid outlet

In : Circle 2 is designed for liquid inlet/fill

MB SYNC Installation Guide

CAUTIONCAUTION

1 2

To control the LCD display by

TT RGB PLUS Software,

Please connect the water block

and motherboard with cable G.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including interference that may cause undesired operation.

Installation Guide

1 2

Please make sure the grey

mark is toward to the TT Logo.

AMD

123

01 02

PACIFIC CLM360 ULTRA LIQUID COOLING KIT

CL-W335-CU12SW-A

Installation Guide

CAUTIONS: 1. Make sure there is enough space when you start to set up the LCS product

2. Please use the wrench to install/ uninstall the base parts during all the installation

To ensure a clean loop, flush and rinse your radiators

and water blocks with distilled water before using.

Make sure the fittings are screwed securely when

placing them onto the radiator.

Attach the fittings to the inlet and outlet of the

water block.

Radiator

Fitting Water Block

Installation Walkthrough (Example: A500 TG)

Place the motherboard into the case. Position the radiator. Attach the pump and reservoir into

the chosen locations.

Nut

O-Ring

Packing

Base

Dismantle the fitting by using the wrench

Attach the fans to the radiator

Case Fan

Choose the proper way to mount the pump and

reservoir by referring to the manual

(suggest vertical placement)

Attach fittings onto the pump

and reservoir

Pump / Reservoir

Base

18 20

15 16

PACIFIC CLM360 ULTRA LIQUID COOLING KIT

CL-W335-CU12SW-A

Thermaltake recommends the following steps to be taken after completing your water loop setup

1. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance

while preventing the entire cooling system – copper, brass, nickel, aluminum, and steel – from corrosion.

2. Fill the reservoir with coolant and cycle the power on and off several times while the pump pushing the coolant into the loop.

3. DO NOT let the pump run dry, when there is no liquid entering the pump turn off your power immediately

4. Fill the reservoir to the top as it will prevent air from going into the pump

5. If necessary tilt the system slightly from side to side to bleed the air out of the loop.

6. Place some paper towels under fittings and joining points to test for leaks.

7. Run the loop with the fill port open for about 24 hours to completely bleed the air out of the loop.

Cutting and Attaching the Tubing

Measure the tube length based on the base

part of the fitting, and make (bend) the tubes.

The loop order : Pump Outlet > Water Block

Measure the tube length based on the base

part of the fitting, and make (bend) the tubes.

The loop order : Water Block > Radiator

Measure the tube length based on the

base part of the fitting, and make (bend)

the tubes. The loop order : Radiator >

Reservoir inlet

Fit the C-Pro fitting to the tube according

to the order in the picture below, Install the

tubes and tight the fitting caps.

Finished

4 5

Filling the System

CAUTIONS:

1. Before filling the system, please make sure

that each fitting as well as unused ports are

completely sealed.

2. If there is any case of leaking, immediately

turn off the power and clean the leak

3. If there is any related electronic parts stained

on liquid coolant, make sure to completely

clean and dry the components. And then

make sure they all work well.

After switching off the power supply, connect the PSU

power cord and product cables.

Use the refill bottle to fill coolant into the reservoir

Place your PSU outside of the case and attach it to the pumps 4pin molex

connector, turn on the power of PSU and make the rest of the system fills up.

CA UTIONCA UTION

The O-ring and the packing

with a groove on the inside

diameter must always be

installed towards the top of

the compression nut

Groove

Keep the reservoir cap dry!

Do not allow coolant to

access the wire and

the LED module

Caution!

After adding the recommended coolant, remember to fill the reservoir to only 80%

and leave the fill port cap off. This will help stabilize your internal loop pressure

PACIFIC CLM360 ULTRA LIQUID COOLING KIT

CL-W335-CU12SW-A

Installation Guide

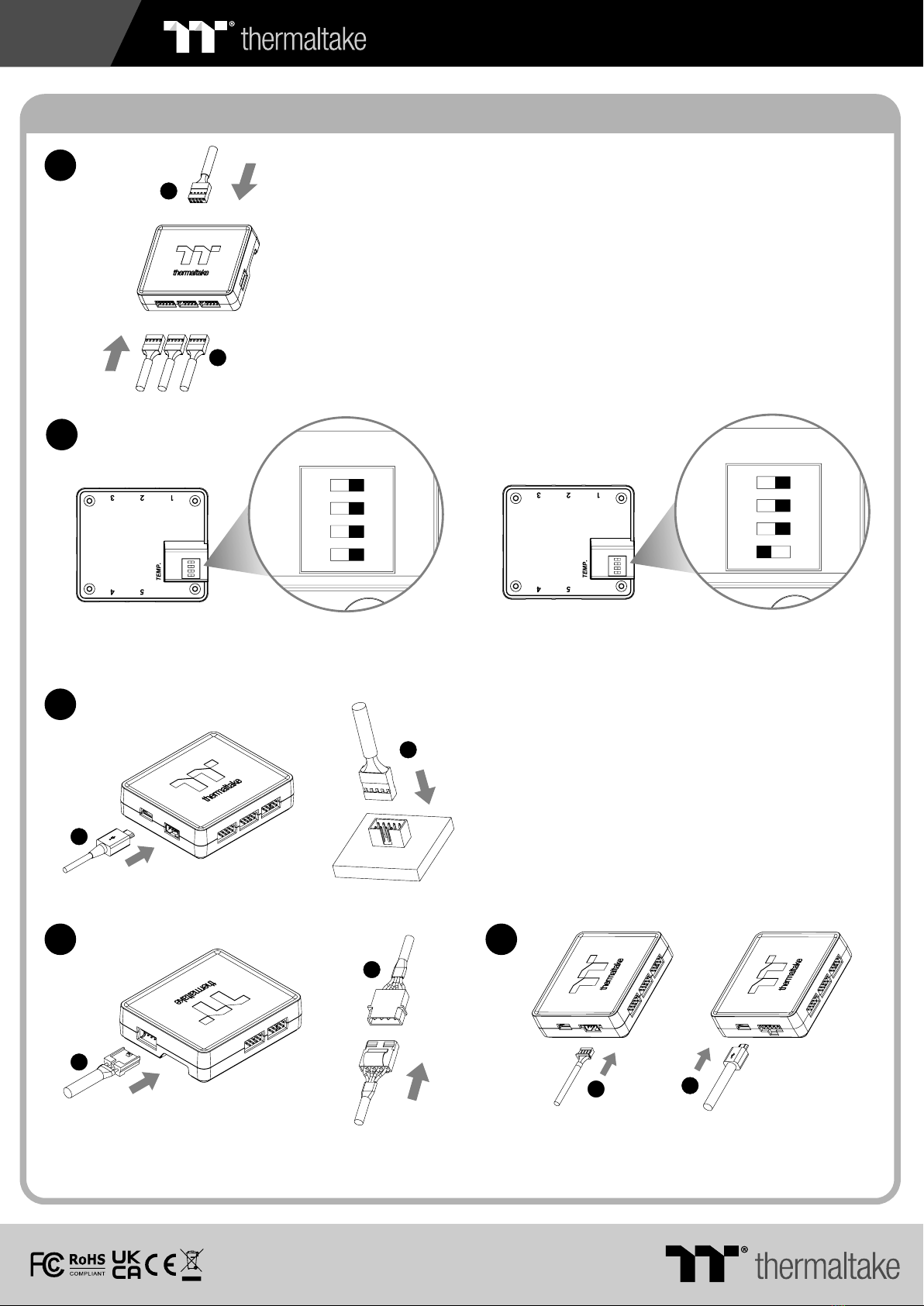

Connect the plug into the port in numerical order,

start with plug one.

Connect the controller cable onto the mainboard

(USB 2.0 9 pin) and controller.

Connect the power cable to the 4pin Molex connecter

and controller.

1 2 3 4

Connect the Bridge Cable to the Controller

Set the DIP switch on the back side of the controller to assign the number of the controller.

1 2 3 4

NO.1 NO.2

www.thermaltake.com

30 30

PACIFIC CLM360 ULTRA LIQUID COOLING KIT

CL-W335-CU12SW-A

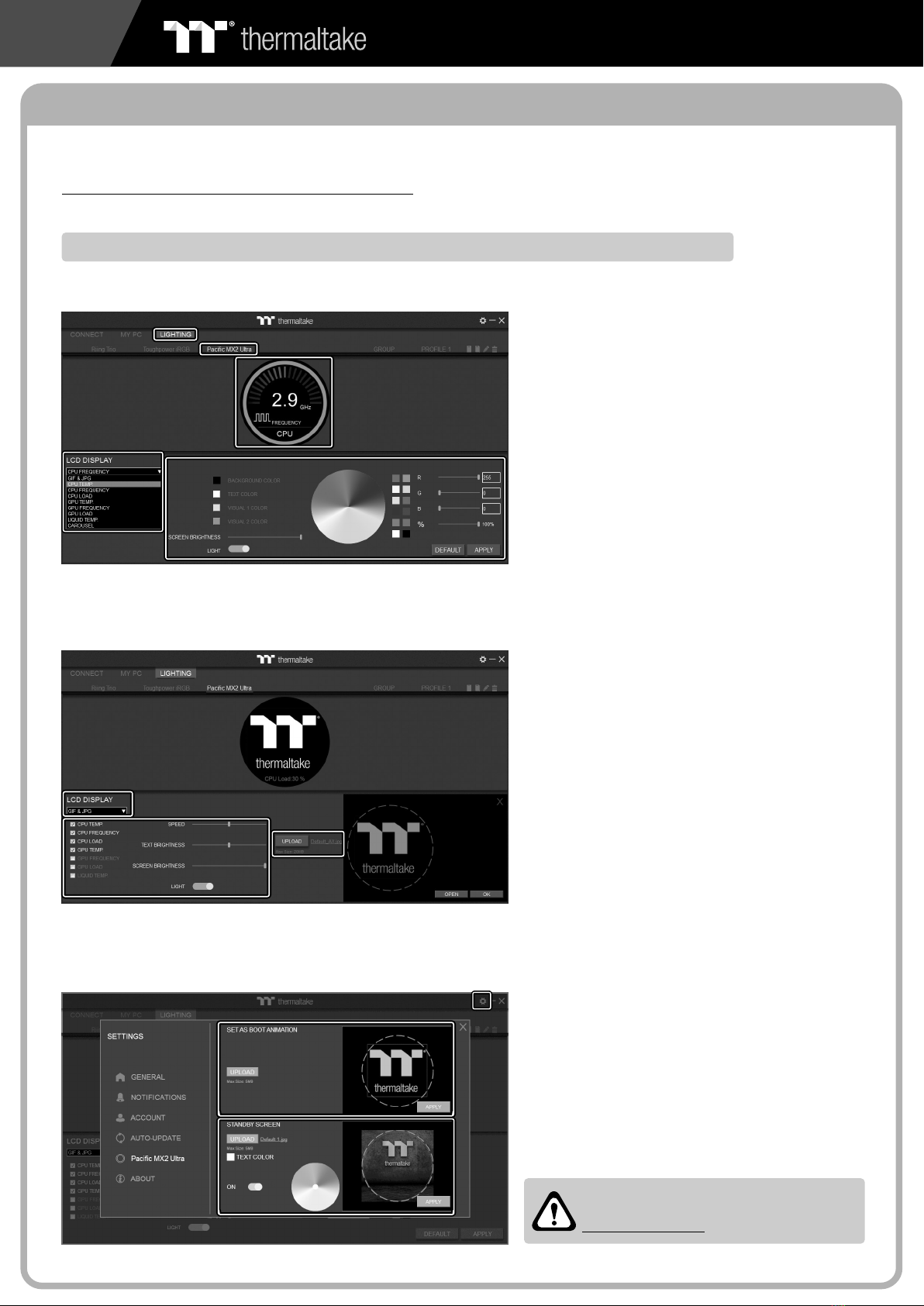

TT RGB Plus Software control interface

Please download TT RGB PLUS from Thermaltake's Official website.

https://www.thermaltake.com/downloads

OS compatibility: Windows 10

LIGHTING

software interface may vary with feature update,

please download the latest user manual from our

www.thermaltake.com

Pacific MX2 Ultra CPU Water Block Software User Interface

A. After installation of TT RGB PLUS, you can select

“TOUGHLIQUID ULTRA” on the “Pacific MX2 Ultra” page.

B. Preset the CPU water block LCD.

C. LCD DISPLAY function list.

• GIF & JPG (Upload picture to LCD display)

• CPU TEMP.

• CPU CLOCK SPEED

• CPU LOAD

• GPU TEMP.

• GPU CLOCK SPEED

• GPU LOAD

• LIQUID TEMP.

• CAROSUEL (Switches between CPU/GPU/Liquid information)

D. LCD visual effect settings.

Set LCD display background, text and visual color,

screen brightness or turn off LCD screen.

SETTINGS

GIF & JPG

A. Select “GIF & JPG” form “LCD DISPLAY”. You

can upload a GIF or JPG file to show the picture

on the LCD screen. (Max size: 20MB)

B. Set the LCD display text information, speed and

brightness, or turn off LCD screen.

C. Click “UPLOAD” to upload the picture. (GIF and

JPG files only)

A. Click the gear icon on the upper right corner to

enter the “SETTINGS” menu.

B. Upload the picture to set as LCD boot animation.

(GIF only, Max size: 5MB)

C. Upload the picture to set as LCD standby screen.

(JPG only, Max size: 5MB)

PACIFIC CLM360 ULTRA LIQUID COOLING KIT

CL-W335-CU12SW-A

TT RGB Plus Software control interface

Please download TT RGB PLUS from Thermaltake's Official website.

https://www.thermaltake.com/downloads

OS compatibility: Windows 10

Connect

software interface may vary with feature update,

please download the latest user manual from our

www.thermaltake.com

Riing Duo RGB Radiator Fan Software User Interface

A. After installation of TT RGB PLUS, you can see several

controllers installed on the “CONNECT” page.

B. Click the controller port to make the Riing Duo LEDs

glow red lighting to pair.

C. Drag & drop to pair the Riing Duo Plus with controller.

D. Show the controller DIP number.

E. Save and reset controller pairing settings.

LIGHTING

A. You can see Riing Duo on “LIGHTING” page.

B. Preview and edit Riing Duo LEDs lighting effect.

C. TT RGB PLUS provides 23 kinds of lighting effects.

PACIFIC CLM360 ULTRA LIQUID COOLING KIT

CL-W335-CU12SW-A

TT RGB Plus Software control interface

Please download TT RGB PLUS from Thermaltake's Official website.

https://www.thermaltake.com/downloads

OS compatibility: Windows 10

Connect

software interface may vary with feature update,

please download the latest user manual from our

www.thermaltake.com

Pacific PR32-D5 Plus Software User Interface

A. After installation of TT RGB PLUS, you can see several

controllers installed on the “CONNECT” page.

B. Click the controller port to make the PR32-D5 Plus

LEDs glow red lighting to pair.

C. Drag & drop to pair the PR32-D5 Plus with controller.

D. Show the controller DIP number.

E. Save and reset controller pairing settings.

LIGHTING

A. You can see PR32-D5 Plus on “LIGHTING” page.

B. Preview and edit PR32-D5 Plus LEDs lighting effect.

C. TT RGB PLUS provides 23 kinds of lighting effects.

Table des matières

Autres manuels Thermaltake Matériel informatique

Thermaltake

Thermaltake CLP0538 Manuel utilisateur

Thermaltake

Thermaltake Pacific W6 AMD T4 Manuel utilisateur

Thermaltake

Thermaltake Extreme Spirit Il Manuel utilisateur

Thermaltake

Thermaltake Pacific Gaming RL240 D5 Manuel utilisateur

Thermaltake

Thermaltake Pacific Core P8 DP-D5 Plus Manuel utilisateur

Thermaltake

Thermaltake TH240 ARGB Sync Manuel utilisateur

Thermaltake

Thermaltake TH240 ARGB Sync Manuel utilisateur

Thermaltake

Thermaltake Pacific V-RTX 4090 Plus Manuel utilisateur

Thermaltake

Thermaltake Pacific A2 Ultra Manuel utilisateur

Thermaltake

Thermaltake TH360 V2 Ultra ARGB Sync Manuel utilisateur

Thermaltake

Thermaltake Pacific W5 Manuel utilisateur

Thermaltake

Thermaltake Pacific MX2 Plus Manuel utilisateur

Thermaltake

Thermaltake Water 3.0 Riing RGB 360 Manuel utilisateur

Thermaltake

Thermaltake CLP0537 Manuel utilisateur

Thermaltake

Thermaltake CPU Cooler Socket 478 Manuel utilisateur

Thermaltake

Thermaltake Pacific V-RTX 2070 Super Plus Manuel utilisateur

Thermaltake

Thermaltake Pacific W5 Manuel utilisateur

Thermaltake

Thermaltake Pacific R240 D5 Manuel utilisateur

Thermaltake

Thermaltake CL-P0540 Manuel utilisateur

Thermaltake

Thermaltake Water 3.0 Extreme S Manuel utilisateur

Thermaltake

Thermaltake C240 Manuel utilisateur

Thermaltake

Thermaltake Pacific V-RTX 3080/3090 Plus Manuel utilisateur

Thermaltake

Thermaltake M900 XXL RGB Manuel utilisateur

Thermaltake

Thermaltake TH360 ARGB Sync Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
