Texas Instruments PGA309EVM Manuel utilisateur

PGA309EVM

Step-by-step example

Art Kay

9-22-2023

Set the jumpers on the test board.

JMP

Position

10

NC

11

Vdut

Power

12

Vexc

17

Emulate

14

10m

15

10m

16

Rt+

2

Vs

1

NC

3

ADS1

9

NC

4

Emulate

5

Emulate

13

Diode

6

Emulate

7

NC

8

ONE to PRG

Set the jumpers on the USB-DAQ

JMP

Position

17

BUS

13

Reg

14

9V

9

5V

11

WP On

6

5V

7

REF

1

EXT

8

GND

10

WP On

3

EE On

2

EXT

4

L

5

L

18

VDUT

Connect Power (6V to 9V) then USB

1. Connect 6V to 9V

DC power here

2. LED should

eliminate as shown.

3. Connect USB

here

Start Software

Should see a quick

update on status

bar and no error

messages.

Select the “4wire_4p096_diode.txt” if needed

This file should be

selected. If it is not, press

the “Select Model File

Emulator File” button and

choose the file.

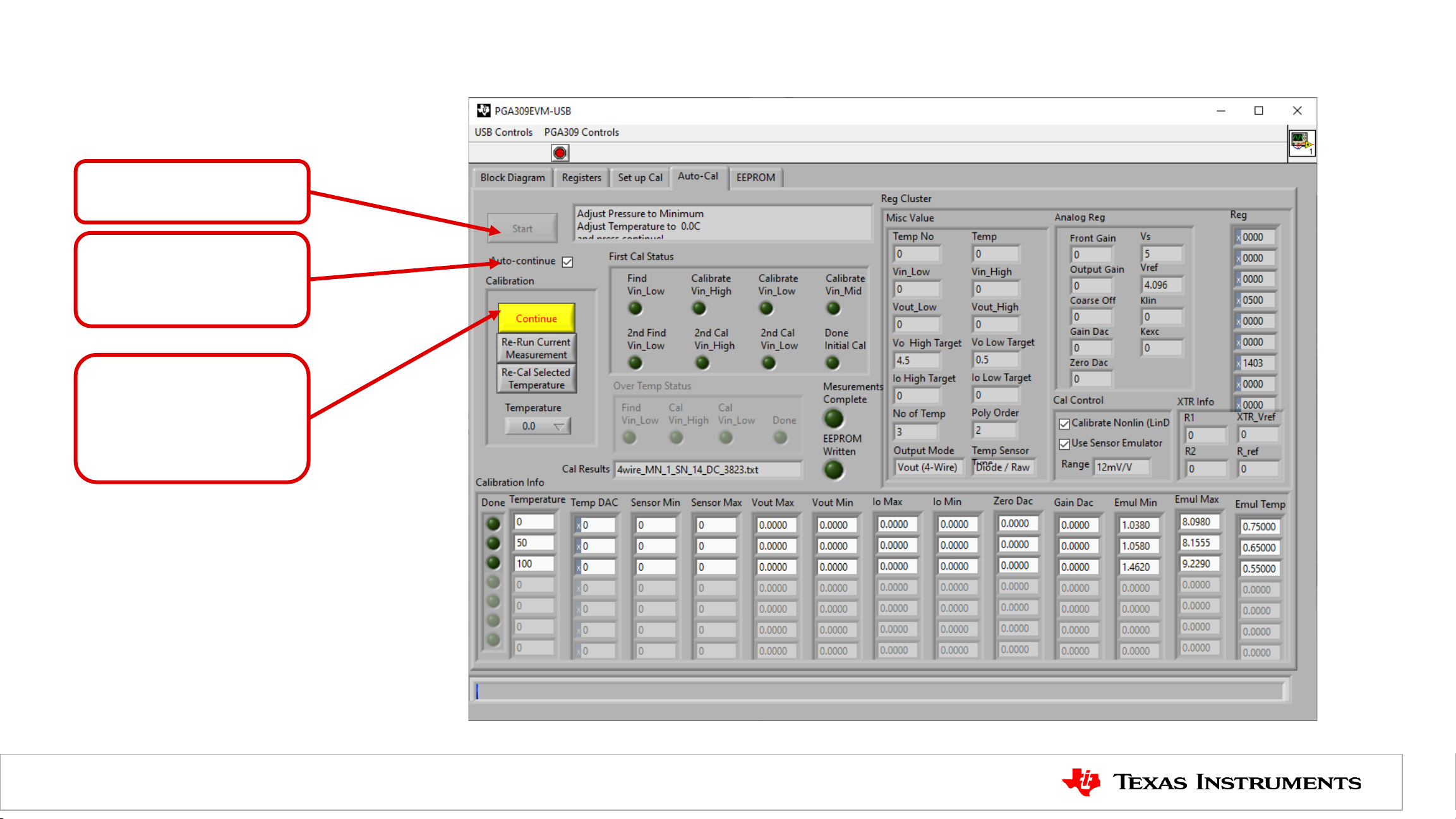

Run Auto-Cal

1. Check “auto-

continue” to speed

up calibration.

2. Press start.

3. Continue should

start to blink. Press

this to initiate

calibration.

Calibration progress

1. Text describing

the current step is

shown here

2. Measured results will update

here. The sensor emulator will

automatically adjust the “sensor”

output according to the current

emulated temperature and

pressure.

Calibration complete

1. Notice that the calibrated

min and max output are

approximately at the target

of 0.5V to 4.5V. This

indicates that the calibration

worked and the hardware is

functioning correctly

Sensor emulator for verification

Press “run sensor emulator”

on the “Set up cal” tab. This

will bring up the tool on the

right. It will take a few

seconds for the data to load.
