User's Guide

DP83867 Dual-Port TSN PCIe Application Interface Card

ABSTRACT

This user's guide describes the design, setup, and function of the DP83867 Dual-Port TSN PCIe Application

Interface Card (AIC). The PCIe AIC supports two Ethernet ports with 1000/100/10 Mb/s and is compliant with the

IEEE 802.3 standard. This reference design supports SGMII for MAC connections.

The AIC card can be interfaced to the Intel Tiger Lake H IoT and Alder Lake S reference design through the

PCIe interface.

Table of Contents

1 Introduction.............................................................................................................................................................................2

1.1 Overview............................................................................................................................................................................ 2

1.2 Hardware Features............................................................................................................................................................ 3

1.3 Software Features..............................................................................................................................................................3

1.4 Block Diagram....................................................................................................................................................................4

2 Board Overview...................................................................................................................................................................... 5

2.1 Components.......................................................................................................................................................................5

2.2 PCIe Header Signals..........................................................................................................................................................6

3 Quick Start...............................................................................................................................................................................7

4 Schematic, Board Layout, and Bill of Materials...................................................................................................................8

4.1 Board Layout .....................................................................................................................................................................8

4.2 Schematic........................................................................................................................................................................ 10

4.3 Bill of Materials.................................................................................................................................................................15

5 Revision History................................................................................................................................................................... 18

Trademarks

All trademarks are the property of their respective owners.

www.ti.com Table of Contents

SNLU317A – SEPTEMBER 2022 – REVISED MAY 2023

Submit Document Feedback

DP83867 Dual-Port TSN PCIe Application Interface Card 1

1 Introduction

1.1 Overview

Figure 1-1. DP83867 Dual-Port TSN PCIe Application Interface Card (Top View)

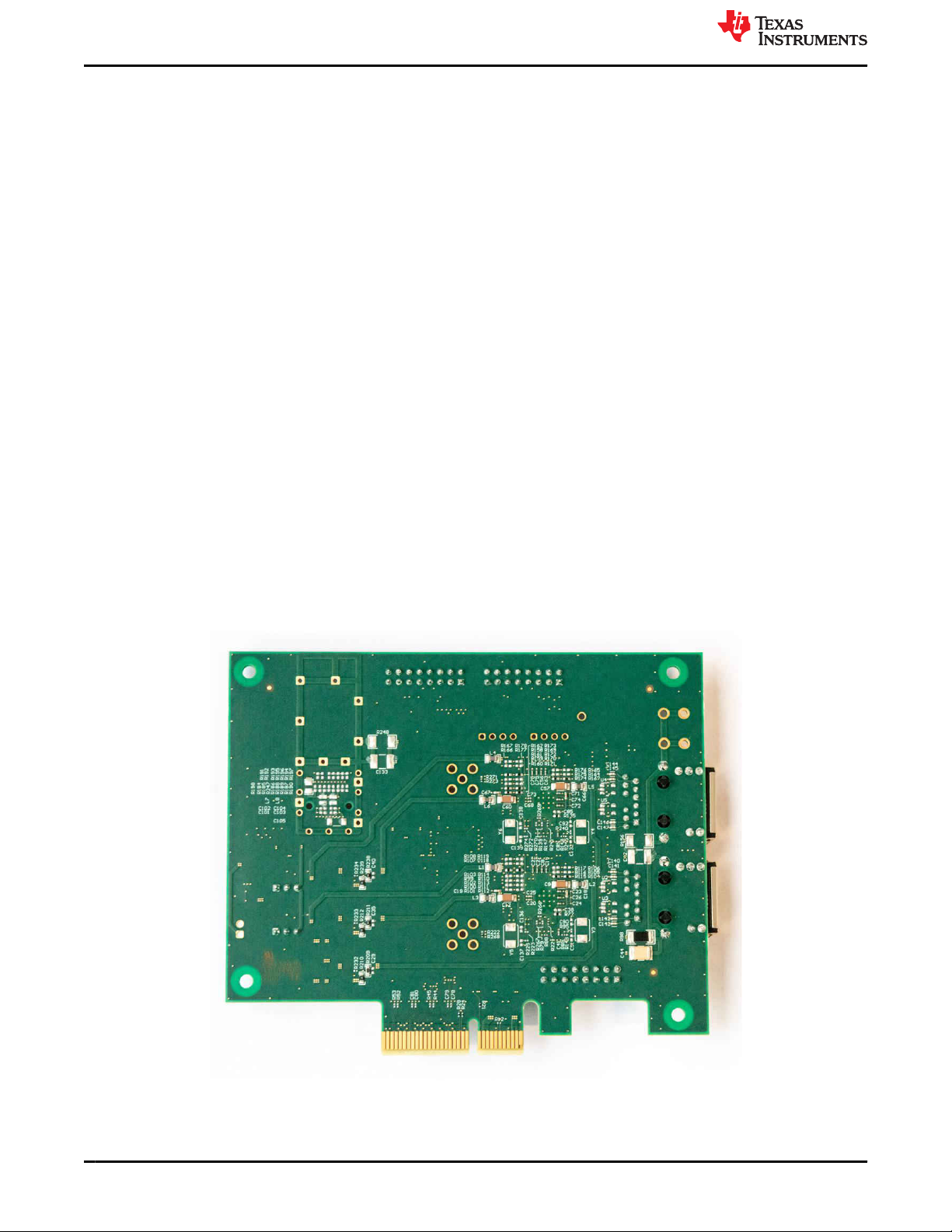

Figure 1-2. DP83867 Dual-Port TSN PCIe Application Interface Card (Bottom View)

Introduction www.ti.com

2DP83867 Dual-Port TSN PCIe Application Interface Card SNLU317A – SEPTEMBER 2022 – REVISED MAY 2023

Submit Document Feedback

The DP83867 Dual-Port TSN PCIe Application Interface Card plugs into the Intel Tiger Lake or Alder Lake

reference design through the PCIe interface connector. This is an easy way to evaluate the functionality of the

DP83867 Ethernet PHY with the Intel CPU reference design.

Note that the PCIe interface connector is used only as a form factor and uses proprietary interface signal

assignment as given by the Intel reference design. The PCIe form factor carries the SGMII signaling for two

Ethernet ports, MDIO/MDC, power supply and control signals.

The AIC supports MDIO access via dedicated a SMI interface over the PCIe interface. The two DP83867 PHYs

use different MDIO addresses to be addressed via the common interface.

For easy testing and development purpose, the AIC card supports several pin headers for signal probing.

The AIC uses the two RJ45 jack LEDs to show PHY link and speed indication with one LED, and PHY data

transfer activity with the second LED.

Note

The AIC card supports resistor and capacitor mounting options to deploy DP83869 Ethernet PHY

instead of DP83867 on each Ethernet interface port by using the same PHY footprint on the PCB.

1.2 Hardware Features

DP83867 Dual-Port TSN PCIe Application Interface Card features:

• Two DP83867 Gbit Ethernet PHYs

• Two port SGMII MAC interface

• Common serial management interface (SMI) with MDIO/MDC signals to access both DP83867 Ethernet

PHYs

• Two RJ45 jack connector with integrated magnetics

• Two LEDs in each RJ45 jack giving status information for different PHY operation modes

• On-board power generation for all PHYs, sourced by 5 V power supply through the PCIe connector

1.3 Software Features

• All Ethernet PHY MDIO registers can be accessed via PCIe interface.

– DP83867 on Ethernet port 1 has MDIO address #0

– DP83867 on Ethernet port 2 has MDIO address #1

www.ti.com Introduction

SNLU317A – SEPTEMBER 2022 – REVISED MAY 2023

Submit Document Feedback

DP83867 Dual-Port TSN PCIe Application Interface Card 3

1.4 Block Diagram

Intel Host Platform

DP83867 Dual-Port TSN PCIe Application Interface Card

DP83867TGL-H

SGMII_INT

SGMII_MDC

SGMII_MDIO

SGMII_RESET

SGMII_AUXTX

SGMII_PPS

SGMII_INT

SGMII_MDC

SGMII_MDIO

SGMII_RESET

SGMII_AUXTX

SGMII_PPS

SGMII TX P/N

SGMII RX P/N

MDIO

MDC

RESET_N

INT_N (OD)

AUXTX / GPIO

PPS / GPIO

XTAL1

XTAL2

MDI[3:0]

GPIO

Port 2

RJ45

SFP Connector

DP83867

SGMII TX P/N

SGMII RX P/N

MDIO

MDC

RESET_N

INT_N (OD)

AUXTX / GPIO

PPS / GPIO

XTAL1

XTAL2

MDI[3:0]

GPIO

Port 1

RJ45

PCIe

RGMII HDR

RGMII TX[3:0]

RGMII RX[3:0]

2x8 HDR

TGL-U

SGMII_INT

SGMII_MDC

SGMII_MDIO

SGMII_RESET

SGMII_AUXTX

SGMII_PPS

SGMII_INT

SGMII_MDC

SGMII_MDIO

SGMII_RESET

SGMII_AUXTX

SGMII_PPS

ADL

SGMII_INT

SGMII_MDC

SGMII_MDIO

SGMII_RESET

SGMII_AUXTX

SGMII_PPS

SGMII 2 TX

SGMII 2 RX

SMB_SDA/MDIO

SMB_SCL/MDC

PLT_RST

SGMII 1 TX

SGMII 1 RX

SGMII_INT

SGMII_MDC

SGMII_MDIO

SGMII_RESET

SGMII_AUXTX

SGMII_PPS

SGMII 1 TX

SGMII 1 RX

SMB_SDA/MDIO

SMB_SCL/MDC

PLT_RST

PET/

PER0

PET/

PER1

SGMII 2 TX

SGMII 2 RX

SMB_SDA/MDIO

SMB_SCL/MDC

PLT_RST

SGMII 1 TX

SGMII 1 RX

Figure 1-3. Block Diagram

Introduction www.ti.com

4DP83867 Dual-Port TSN PCIe Application Interface Card SNLU317A – SEPTEMBER 2022 – REVISED MAY 2023

Submit Document Feedback

2 Board Overview

2.1 Components

Figure 2-1 below gives a quick overview of the AIC board. The marked sections are described in the Table 2-1.

Figure 2-1. Connectors, Jumpers and LEDs

Table 2-1. Component Table

Section Description

1 RJ45 with integrated magnetic G-Bit network connection Port 1 / TSN_0

2 RJ45 with integrated magnetic G-Bit network connection Port 2 / TSN_1

3 DP83867 PHY1 for Port 1

4 DP83867 PHY2 for Port 2

5 25 MHz clock generation for both PHYs

6 Signal connector MISC0 for validation

7 Signal connector MISC1 for validation

8 Signal connector RGMII interface (optional)

9 PCIe interface

10 Power indicator LEDs.

• D10: 3.3V indicator

• D11: VDDIO indicator PHY1

• D12: VDDIO indicator PHY2

• D9: 3.3V indicator for optional SFP+ module

11 VDDIO voltage selector jumper pin-header

• J19: PHY 1

– Pin 1-2: 3.3V

– Pin 2-3: 1.8V (default)

12 VDDIO voltage selector jumper pin-header

• J21: PHY 1

– Pin 1-2: 3.3V

– Pin 2-3: 1.8V (default)

13 Shield/Earth GND for testing.

www.ti.com Board Overview

SNLU317A – SEPTEMBER 2022 – REVISED MAY 2023

Submit Document Feedback

DP83867 Dual-Port TSN PCIe Application Interface Card 5

2.2 PCIe Header Signals

Please refer to the schematics in section Section 4.2 for the PCIe signal assignment and description. The signal

assignment is following the signal layout of the Intel host platform.

2.2.1 MISC0 Signal Header

The MSIC0 signal header is for debug purpose.

Table 2-2. MISC0 Signal Header for PHY1

Pin Number Signal Description

1 MDC PHY1

3 MDIO PHY1

5 Interrupt PHY1

7 AUXTS PHY1 (Start-of-Frame time stamp)

9 PPS PHY1 (not supported by AIC)

11 Reset PHY1

13, 15 Not connected

2, 4, 6, 8, 10, 12, 14, 16 GND

2.2.2 MISC1 Signal Header

The MSIC1 signal header is for debug purposes.

Table 2-3. MISC1 Signal Header for PHY2

Pin Number Signal Description

1 MDC PHY2

3 MDIO PHY2

5 Interrupt PHY2

7 AUXTS PHY2 (Start-of-Frame time stamp)

9 PPS PHY2 (not supported by AIC)

11 Reset PHY2

13, 15 Not connected

2, 4, 6, 8, 10, 12, 14, 16 GND

2.2.3 RGMII Signal Header

RGMII signal header for PHY1 can be used to connect PHY1 via separate cable connection.

Table 2-4. RGMII Signal Header for PHY1

Pin Number Signal Description

1 TXCLK

2 RXCLK

3 TXCTL

4 RXCTL

7 TXDATA_3

8 RXDATA_3

9 TXDATA_2

10 RXDATA_2

11 TXDATA_1

12 RXDATA_1

Board Overview www.ti.com

6DP83867 Dual-Port TSN PCIe Application Interface Card SNLU317A – SEPTEMBER 2022 – REVISED MAY 2023

Submit Document Feedback

Table 2-4. RGMII Signal Header for PHY1 (continued)

Pin Number Signal Description

13 TXDATA_0

14 RXDATA_0

5, 6, 15, 16 GND

3 Quick Start

1. Power down the Intel host platform (Intel Tiger Lake UP3, Tiger Lake H IoT or Alder Lake S).

2. Plug-in the DP83867 Dual-Port TSN PCIe Application Interface Card into the Intel host platform.

3. Power up the Intel host platform.

www.ti.com Quick Start

SNLU317A – SEPTEMBER 2022 – REVISED MAY 2023

Submit Document Feedback

DP83867 Dual-Port TSN PCIe Application Interface Card 7

4 Schematic, Board Layout, and Bill of Materials

4.1 Board Layout

Figure 4-1. Assembly Drawing Top Layer

Schematic, Board Layout, and Bill of Materials www.ti.com

8DP83867 Dual-Port TSN PCIe Application Interface Card SNLU317A – SEPTEMBER 2022 – REVISED MAY 2023

Submit Document Feedback

Figure 4-2. Assembly Drawing Bottom Layer

www.ti.com Schematic, Board Layout, and Bill of Materials

SNLU317A – SEPTEMBER 2022 – REVISED MAY 2023

Submit Document Feedback

DP83867 Dual-Port TSN PCIe Application Interface Card 9

4.2 Schematic
