Teldat SDE Manuel utilisateur

SDE

Installation Manual

Teldat S.A. Manual

SDE 1

Legal Notice

Warranty

This publication is subject to change.

Teldat S.A. offers no warranty whatsoever for information contained in this manual.

Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv-

ery, supply or use of this manual.

Manual Teldat S.A.

2 SDE

Table of Contents

Chapter1 AboutthisGuide.................................. 1

1.1 Supporteddevices................................... 1

1.2 Who should read this manual? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.3 When should this manual be read? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.4 What is included in this manual? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.5 What is not included in this manual? . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.6 How is the information organized? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.7 Technicalsupport.................................... 1

Chapter 2 Components and Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.1 Components...................................... 2

2.1.1 Frontpanel ...................................... 2

2.1.2 Rearpanel....................................... 4

2.2 Installationinarack................................... 4

2.2.1 Standalone ...................................... 4

2.2.2 Wallmounting..................................... 4

2.3 Powersource ..................................... 5

2.4 Connectingthedata................................... 5

2.4.1 SFPports....................................... 5

2.4.2 Connecting for configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.5 Factoryreset...................................... 5

2.5.1 Defaultconfiguration.................................. 6

Chapter3 Compliance..................................... 7

3.1 Manufacturerinformation ................................ 7

3.2 Safetywarnings .................................... 7

3.3 WEEEinformation................................... 7

3.4 REACH........................................ 7

3.5 EC declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.6 Laserproduct ..................................... 8

Appendix A Technical Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

A.1 Troubleshooting.................................... 9

A.2 Updatingthesoftware.................................. 9

A.3 Technicalspecifications................................. 9

A.3.1 Hardwarearchitecture.................................. 9

A.3.2 NIC......................................... 10

A.3.3 Powersupply .................................... 10

Teldat S.A. Table of Contents

SDE i

A.3.4 Dimensionsandweight................................ 10

A.3.5 Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table of Contents Teldat S.A.

ii SDE

Chapter 1 About this Guide

This installation guide for the SDE router contains information on how to correctly install this device in a working en-

vironment.

1.1 Supported devices

The information provided in this installation guide only applies to the SDE router.

1.2 Who should read this manual?

This manual should be read by the support personnel who need to configure, maintain and monitor the device.

1.3 When should this manual be read?

Read this guide as soon as you are ready to familiarize yourself with the device and its components.

This manual will help you understand your new device in greater depth.

1.4 What is included in this manual?

This installation guide contains the following information:

• Technical specifications.

• Power supply requirements.

• A description of the device LEDs and connectors.

• Troubleshooting.

1.5 What is not included in this manual?

This manual does not contain information relative to the device software or its configuration. For information on how

to configure this device, please see the relevant CLI manuals found on the Teldat website at this link: ht-

tp://www.teldat.com

1.6 How is the information organized?

Each chapter focuses on a specific part of the hardware and its components. All descriptive or technical specifica-

tions, and information on a component, can be found in the relevant chapter.

1.7 Technical support

Teldat S.A. offers a technical support service. Device software can be upgraded on a regular basis for maintenance

purposes and when new features are developed.

Contact information:

Web: http://www.teldat.com - Email: [email protected]

Tel.: +34 918 076 565 - Fax: +34 918 076 566

Teldat S.A. 1 About this Guide

SDE 1

Chapter 2 Components and Power Supply

The following chapter provides detailed information on the chassis of the SDE router and its components. This in-

cludes information on:

• Components.

• Assembly.

• Power supply.

• Data connection.

2.1 Components

2.1.1 Front panel

The following figure shows the front panel.

Fig. 1: Front Panel

The front panel components are as follows:

Front panel components

Item Description

1 Left control panel. Holds the system health and system ID, status LED.

2 N/A

3 USB port.

4 VGA port. Allows you to connect a display device to the system.

5 Right control panel. Holds the power button, USB port, iDRAC Direct micro port,

and the iDRAC Direct status LED.

6 Drive slots. Allow you to install drives that are supported on your system.

7 Information tag. The Information Tag is a slide-out label panel that includes sys-

tem information (like the Service Tag, NIC, MAC address, etc.).

The following figure shows the left control panel view

2 Components and Power Supply Teldat S.A.

2 SDE

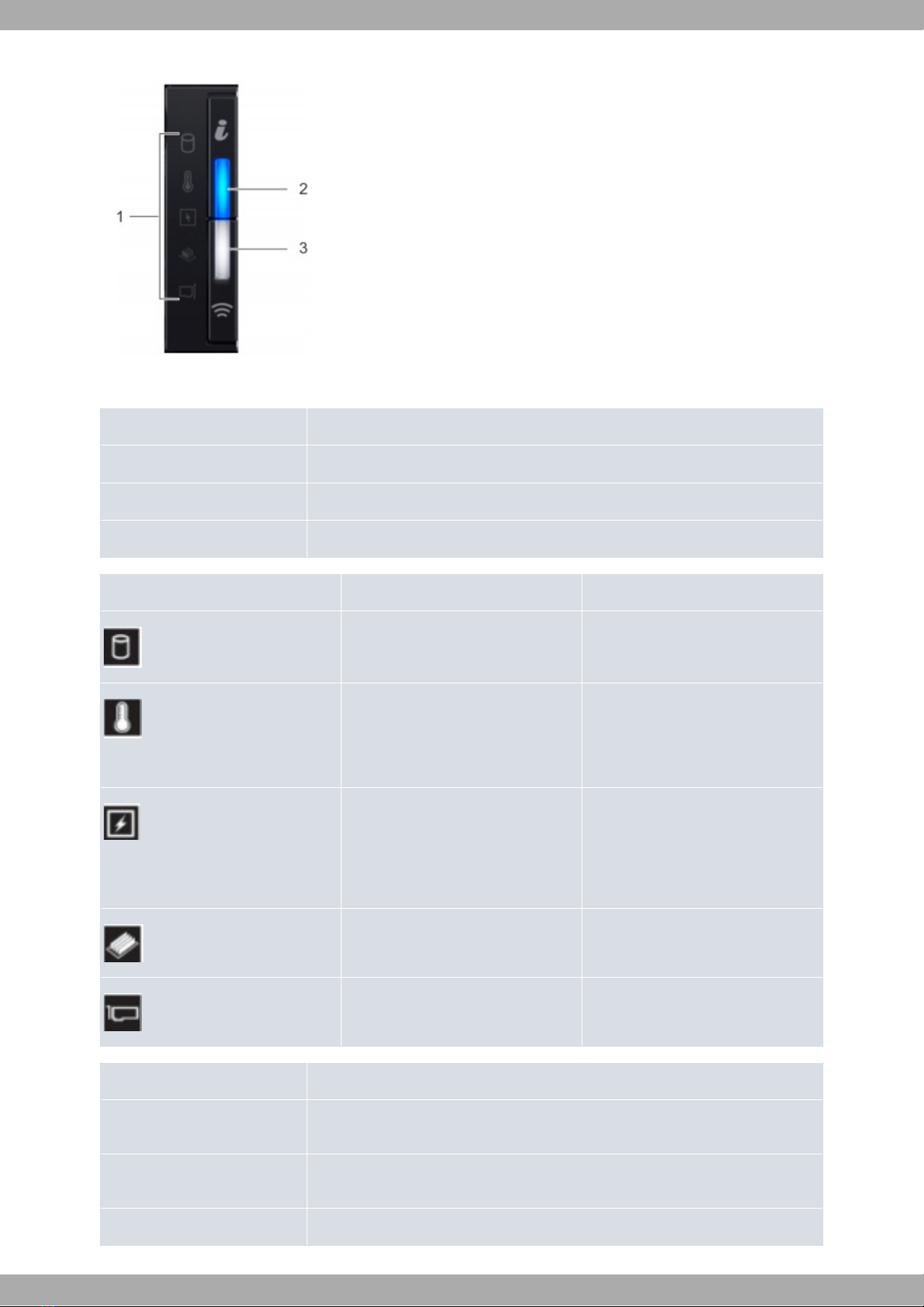

Fig. 2: Left control panel view

Left control panel

Item Description

1 Status LED indicators. They indicate the system's status.

2 System health and ID indicators. They indicate the system's health.

3 N/A

Status LED indicators

Icon Description Condition

Drive indicator The indicator turns solid amber if

there is a drive-related problem.

Temperature indicator The indicator turns solid amber if the

system experiences a thermal error

(for example, when the room temper-

ature is out of range or there is a fan

failure).

Electrical indicator The indicator turns solid amber if the

system experiences an electrical er-

ror (for example, when the voltage is

out of range, or a power supply unit

(PSU) or voltage regulator have

failed).

Memory indicator The indicator turns solid amber if a

memory error occurs.

PCIe indicator The indicator turns solid amber if a

PCIe card experiences an error.

System health and system indicator codes

Code Condition

Solid blue Indicates the system is on, healthy, and that the ID mode is not active. Press the

system health and system ID button to switch to system ID mode.

Blinking blue Indicates that the system ID mode is active. Press the system health and system

ID button to switch to system health mode.

Solid amber Indicates that the system is in fail-safe mode.

Teldat S.A. 2 Components and Power Supply

SDE 3

Blinking amber Indicates that the system is in trouble.

2.1.2 Rear panel

The following figure shows the rear panel.

Fig. 8: Rear panel

The following table provides information and a description of each component:

Rear panel components

Item Description

1 PCIe expansion card slot. The expansion slot(s) enable you to connect PCI Ex-

press expansion cards.

2 Power supply unit (2)

3 NIC SFP ports (4)

4 USB 3.0 port (2)

5 VGA port

6 Serial port

7 iDRAC9 dedicated network port

8 System status indicator cable port. Enables you to connect the status indicator

cable and check the system's status when the CMA is installed.

9 System identification button. The System Identification (ID) button is available on

the front and at the back. Press the button to identify a system in a rack by turning

on the system ID button. You can also use the system ID button to reset iDRAC

and to access BIOS using the step through mode.

2.2 Installation in a rack

The SDE device can be installed in a 19” rack.

2.2.1 Standalone

An SDE device can be placed as a standalone on a flat, stable surface. The adhesive rubber feet must be stuck to

the underside panel to prevent the router from sliding.

Make sure there is enough space around the router (for ventilation purposes) and check that the electricity cables

can reach it.

2.2.2 Wall mounting

The SDE cannot be wall.mounted.

2 Components and Power Supply Teldat S.A.

4 SDE

2.3 Power source

The SDE is powered by means of two internal AC/DC sources. The SDE has two power inputs and two power sup-

plies that operate simultaneously. It can operate each one individually or both at the same time. If SDE is powered by

the two power supplies and one of them fails, the other one acts as a backup.

Warning

The equipment must be used with the power supply provided by the manufacturer.

Workplace Conditions. Main Characteristics

• Avoid humid and/or dusty locations.

• Avoid prolonged exposure to sunlight and other heat sources. The device should not be placed amongst papers,

magazines or other elements that could hinder natural air circulation.

• The device should not be placed close to strong electromagnetic fields, e.g., by speakers, motors, etc.

• Knocks and/or strong vibrations should be avoided during transport, operation and storage.

2.4 Connecting the data

The SDE has the following data connections.

2.4.1 SFP ports

The SDE incorporates 4 10Gbit SFP ports.

Fig. 9: SFP ports (with connected transceivers)

All OSDx interfaces are bridged by default. The system tries to obtain the IP address via DHCP. If no IP address is

obtained, 192.168.1.1 will act as default.

The SSH server is enabled in SDE. Default credentials are:

user: admin

password: admin

2.4.2 Connecting for configuration

To access the SDE device via the local console, a monitor and a keyboard can be connected to it (using the VGA

and USB ports, respectively)

Default credentials are:

user: admin

password: admin

2.5 Factory reset

To perform a factory reset and restore the default configuration, follow these steps:

(a) Enter SDE's local console.

(b) Type the following command: factory-reset now

Teldat S.A. 2 Components and Power Supply

SDE 5

2.5.1 Default configuration

The default configuration of the SDE device is as follows:

set interfaces bridge br0 address dhcp

set interfaces bridge br0 dhcp client fallback 192.168.1.1/24

set interfaces ethernet eth0 bridge-group bridge br0

set interfaces ethernet eth1 bridge-group bridge br0

set interfaces ethernet eth2 bridge-group bridge br0

set interfaces ethernet eth3 bridge-group bridge br0

set service cnm role router

set service cnm url discover.cloudnetmanager.com

set service dns resolver dhcp

set service dns resolver name-server 8.8.8.8

set service ssh

set system login user admin authentication encrypted-password

'$6$GSjsCj8gHLv$/VcqU6FLi6CT2Oxn0MJQ2C2tqnRDrYKNF8HIYWJp68nvXvPdFccDsT04.WtigUONbKYrgKg8d6rEs8PjljMkH0'

set system ntp server address pool.ntp.org

2 Components and Power Supply Teldat S.A.

6 SDE

Table des matières

Autres manuels Teldat Routeur réseau

Teldat

Teldat ATLAS 160 Manuel utilisateur

Teldat

Teldat M2 Manuel utilisateur

Teldat

Teldat H1 RAIL Series Manuel utilisateur

Teldat

Teldat M1 Manuel utilisateur

Teldat

Teldat Regesta Smart PRO Manuel utilisateur

Teldat

Teldat Regesta Smart PLC Manuel utilisateur

Teldat

Teldat C Manuel utilisateur

Teldat

Teldat Router Manuel utilisateur

Teldat

Teldat H1 HSDPA Manuel utilisateur

Teldat

Teldat RS123 Seies Manuel utilisateur

Teldat

Teldat Atlas 250 Manuel utilisateur

Teldat

Teldat H2 RAIL Lite Manuel utilisateur

Teldat

Teldat Atlas-i70 Manuel utilisateur

Teldat

Teldat H2 RAIL Manuel utilisateur

Teldat

Teldat T200 Manuel utilisateur

Teldat

Teldat RXL15000 Manuel utilisateur

Teldat

Teldat REGESTA-PRO-ER Series Manuel utilisateur

Teldat

Teldat ATLAS 60 NW Manuel utilisateur

Teldat

Teldat M2 Manuel utilisateur

Teldat

Teldat iM8 Manuel utilisateur

Teldat

Teldat 3ge Manuel utilisateur

Teldat

Teldat C1+LS Manuel utilisateur

Teldat

Teldat ATLAS 300 Manuel utilisateur

Teldat

Teldat ATLAS 150 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
