Teldat-3Ge Installation Manual

Teldat-Dm 398-I

Teldat S.A. Manual

Teldat-3Ge Installation Manual 1

Legal Notice

Warranty

This publication is subject to change.

Teldat S.A. offers no warranty whatsoever for information contained in this manual.

Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv-

ery, supply or use of this manual.

Manual Teldat S.A.

2Teldat-3Ge Installation Manual

Table of Contents

Chapter1 InstallingtheRouter ................................ 1

1.1 Introduction...................................... 1

1.1.1 Recycling and the Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2 Connections...................................... 3

1.2.1 If the Ethernet cable is POE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.2.2 If the Ethernet cable is not POE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2.3 Connecting the Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2.4 DataConnections.................................... 5

1.3 InstallingtheSIMcard.................................. 8

1.4 MeaningoftheLEDS.................................. 9

Chapter2 Appendices.................................... 11

2.1 Troubleshooting................................... 11

2.2 Updatingthesoftware................................. 11

2.3 Connectors ..................................... 11

2.3.1 LANConnector.................................... 11

2.3.2 ANTConnector.................................... 12

2.3.3 PowerConnector................................... 12

2.4 TechnicalSpecifications................................ 12

2.5 Translated Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Teldat S.A. Table of Contents

Teldat-3Ge Installation Manual i

Table of Contents Teldat S.A.

ii Teldat-3Ge Installation Manual

Chapter 1 Installing the Router

1.1 Introduction

The Teldat-3Ge enabler (Teldat-3Ge ) is an external 3G interface that delivers 3G service to the current corporate

network access infrastructure. This device is particularly suited for 3G installations where:

• The radio signal coverage in the area is fairly poor.

• It is impossible, or not convenient, to supply the current access router with an external 3G interface.

Fig. 1: Teldat-3Ge : External aspect

The Teldat-3Ge is the enterprise access point to the 3G network. This device provides a unique interface with the

access router over the corporate Ethernet LAN infrastructure. This singular approach avoids deployment of expens-

ive and bulky ultra-low-loss coaxial cables, needed to link the access router to an RF antenna (often located far from

interior setups). The Teldat-3Ge is also an external interface and can be fully managed by the current access router,

just as any point to point virtual interface.

The support for POE 802.3af further simplifies Teldat-3Ge installation, since the device can be powered from the

same Ethernet port used for communications with the current access routers.

The following figure summarizes the Teldat-3Ge concept:

Teldat S.A. 1 Installing the Router

Teldat-3Ge Installation Manual 1

Fig. 2: The Teldat-3Ge concept

The Teldat-3Ge has two interfaces: the RF interface providing access to the 3G network, and an Ethernet port,

which interfaces with the router over the LAN infrastructure.

Figure 3 illustrates the basic connection schema:

Fig. 3: The Teldat-3Ge connection diagram

1.1.1 Recycling and the Environment

Please do not, under any circumstances, throw away any Teldat-3Ge with normal domestic waste. Ask your local

town hall for information on how to correctly dispose of them in order to protect the environment against e-waste. Al-

ways respect the current laws regarding waste material.

Anyone found violating the environmental laws will be subject to fines and any additional steps established by law.

All the packing materials (i.e. the cardboard box, plastic and any other packaging) together with the pieces making

up the Teldat-3Ge , must be recycled complying with the current active laws regarding recycling materials.

1 Installing the Router Teldat S.A.

2Teldat-3Ge Installation Manual

The above symbol with a cross over the rubbish container can be seen on the device. This means that, when a

device reaches the end of its life, it must be taken to the official recycling/disposal centers where it must be disposed

of in an environmentally responsible manner and separately from normal domestic waste.

1.2 Connections

Caution

BEFORE INSTALLING THE ROUTER, PLEASE READ THE FOLLOWING INSTRUCTIONS CARE-

FULLY

Workplace Conditions. Main Characteristics

• Excessive cold and heat should be avoided, as should humidity and dust.

• Avoid direct exposure to sunlight and any other heat sources. Do not place the device between papers, magazines

or other items that could hinder natural air circulation.

• Do not place the device near strong electromagnetic fields such as those produced by speakers, motors, etc.

• Avoid knocks and/or strong vibrations during operation, storage and transport.

Warning

The electric current in power cables, telephone lines and communication cables is dangerous.

To prevent electric shocks, before installing, handling or opening the equipment covers, con-

nect and disconnect the cables following the steps set forth in the following section.

1.2.1 If the Ethernet cable is POE

To Connect To Disconnect

Check that the Ethernet cable is not connected to the

device.

Disconnect the Ethernet cable.

Check that the power supply is not connected to the

device

Disconnect the power supply from the device.

Check that the power supply is not connected to the main

electricity supply.

Disconnect the power supply from the main electricity

supply.

If you need redundant power, connect the power supply

to the main electricity supply.

If you need redundant power, connect the power supply

to the device.

Connect the Ethernet cable.

Teldat S.A. 1 Installing the Router

Teldat-3Ge Installation Manual 3

1.2.2 If the Ethernet cable is not POE

To Connect To Disconnect

Check that the power supply is not connected to the

device.

Disconnect the power supply from the device.

Check that the power supply is not connected to the main

electricity supply.

Disconnect the power supply from the main electricity

supply.

Connect the power supply to the main electricity supply.

Connect the power supply to the device.

1.2.3 Connecting the Power Source

1.2.3.1 With External Power Supply

Fig. 4: Connecting the power source

The Teldat-3Ge can be powered by an external AC/DC power source through the Ethernet cable if it complies with

the POE 802.3af standard.

To connect the power supply to the device, please follow the steps set forth in If the Ethernet cable is POE on page 3

above.

Warning

All interconnected communication devices should be plugged to THE SAME GROUNDED

POWER OUTLET, which should, at the same time, be of good quality (lower than 10 ohms).

Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated

supply, or it is independent from the rest (such as lighting, etc.), it is highly recommended that

all data devices should be connected to the same power source. This will avoid operating and

premature aging problems of drivers and other components.

1 Installing the Router Teldat S.A.

4Teldat-3Ge Installation Manual

1.2.3.2 With POE Injector

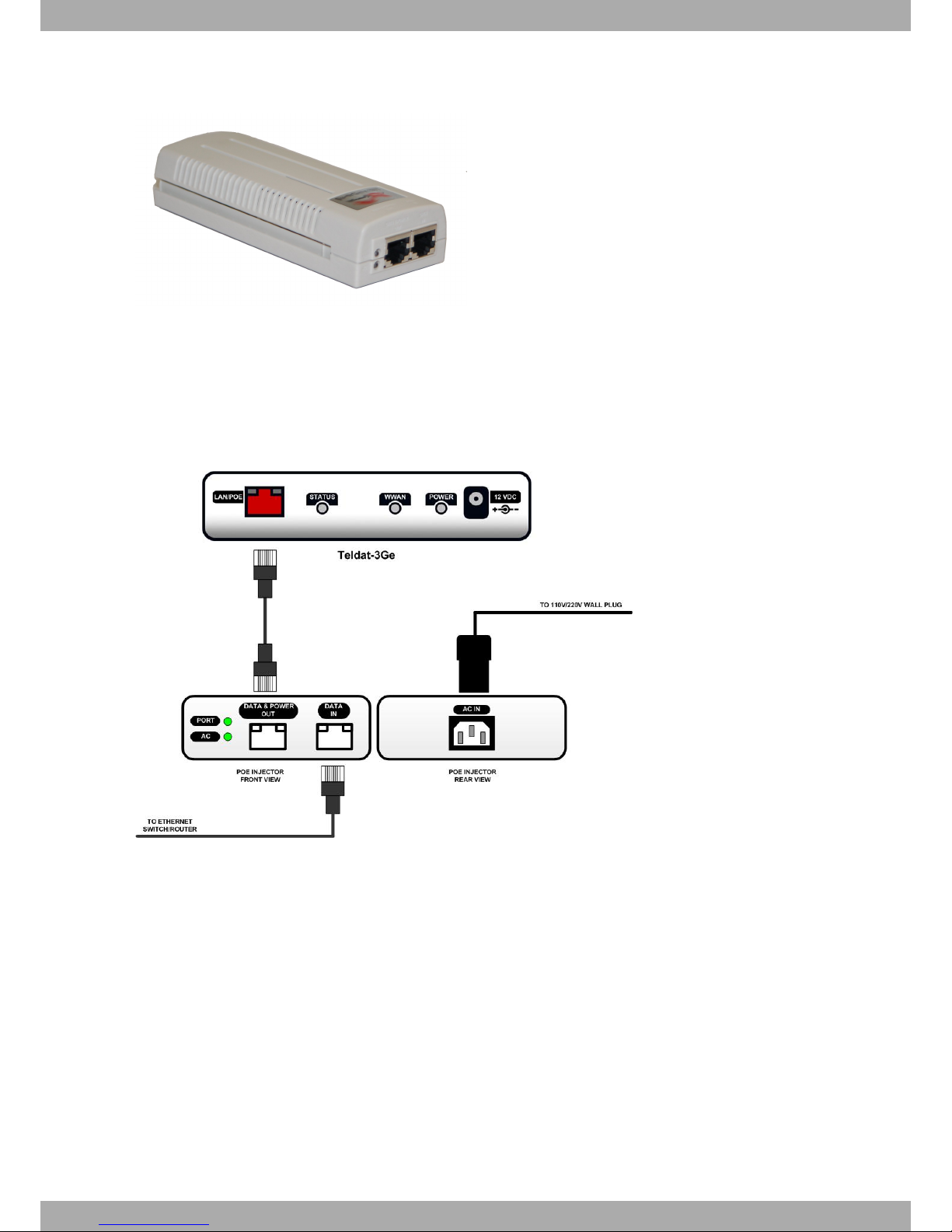

Fig. 5: POE Injector: Aspect

The Teldat-3Ge can be powered through the Ethernet cable, provided it complies with the POE 802.3af standard.

To connect the Ethernet cable with the POE power to the router, please carry out the steps set forth in If the Ethernet

cable is POE on page 3.

Figure 6 shows how to connect the POE injector to the Teldat-3Ge .

Fig. 6: Connecting the power with the POE injector

1.2.4 Data Connections

The Teldat-3Ge has the following available connectors:

1.2.4.1 LAN

Ethernet 10/100BaseT interface to connect to the local area network (LAN). This port is equipped with link status

LEDs: a yellow LED indicates that the physical layer has been established and a green LED indicates frame recep-

tion.

Teldat S.A. 1 Installing the Router

Teldat-3Ge Installation Manual 5

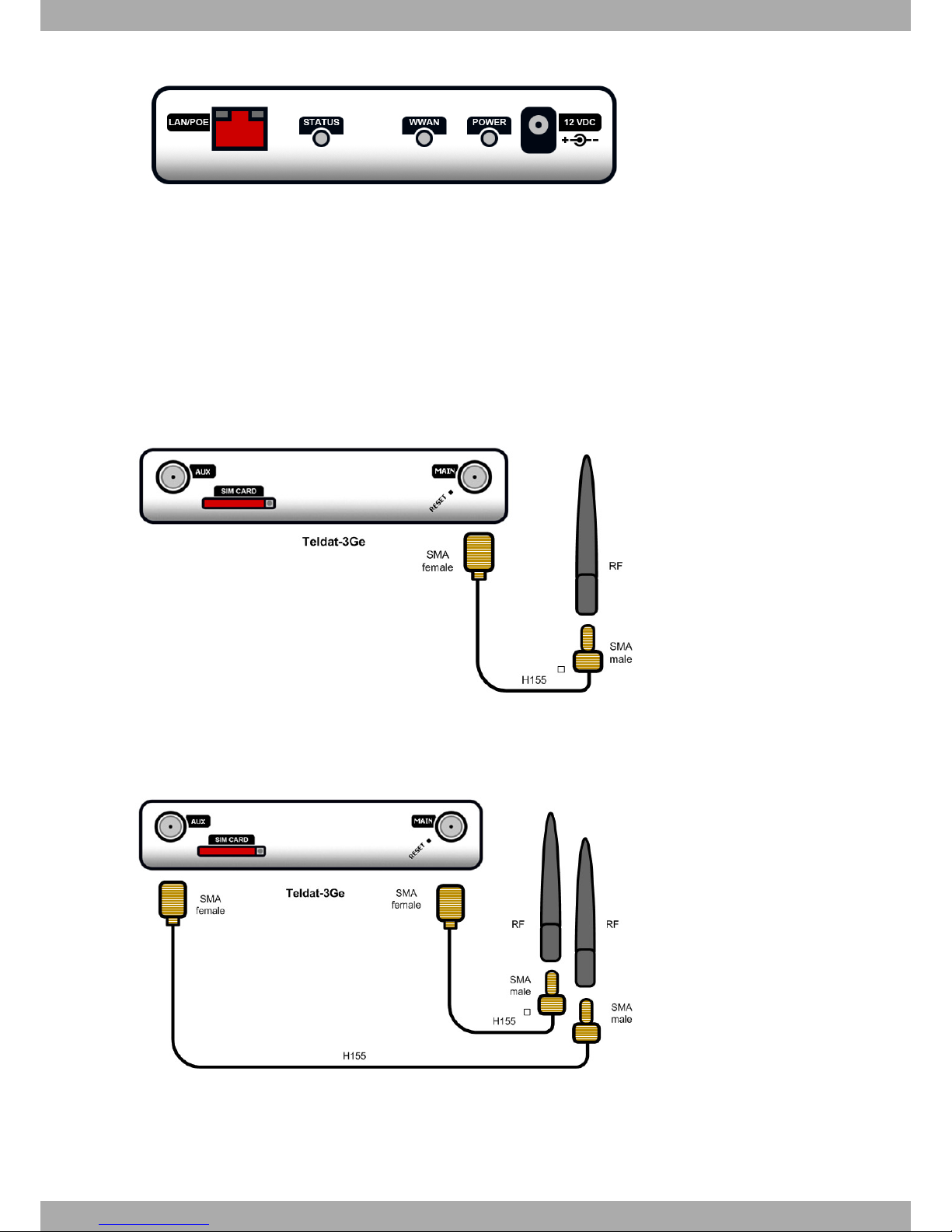

Fig. 7: LAN Connector

1.2.4.2 Connecting the Teldat-3Ge

The Teldat-3Ge has one or two connectors for external SMA RF antennas, which improve the quality of the signal

received and transmitted through the WWAN module.

There are various cellular telephony technologies that use antenna diversity to improve the received signal (HSUPA,

CDMA EV-DO, etc.). Two WWAN connectors can be incorporated for this.

Scenario without diversity

Figure 8 shows the location of the antenna connector on routers that don’t use antenna diversity.

Fig. 8: Rear panel. Antenna connector for Wireless WAN (without diversity)

Scenario with diversity

Figure 9 shows the location of antenna connectors on routers that use antenna diversity.

Fig. 9: Rear panel. Antenna connector for Wireless WAN (with diversity)

In routers with two WWAN antenna connectors ( Main and Aux), we recommend, as a general rule, installing both an-

tennas. You must always ( mandatory) install the Main connector antenna. The Aux connector antenna is optional in

some routers, depending on the technology used (e.g. Sierra Wireless HSUPA or Qisda H20 and H20D). However,

in all cases we recommend installing an antenna in the Aux connector for diversity. In routers where the Aux antenna

1 Installing the Router Teldat S.A.
