Chapter 1 About this manual

This is the installation manual for the Teldat H2 RAIL router. It contains instructions on how to install the device in a

working environment.

1.1 Supported devices

The information in this manual only applies to the Teldat H2 RAIL router.

1.2 Who should read this manual?

This manual should be read by support personnel who need to install, configure, maintain and monitor the device.

1.3 When should this manual be read?

Read this guide as soon as you are ready to familiarize yourself with the device and its components.

This manual will help you understand your new device and all of its capabilities.

1.4 What is in this manual?

This installation guide contains the following:

• A description of the features available on the Teldat H2 RAIL router.

• A description of the technical specifications.

• A detailed description of the power supply requirements.

• A description of the LEDs and connectors on the device.

• Troubleshooting information.

1.5 What is not in this manual?

This manual does not cover device software and configuration. To find out how to configure the device, please read

the relevant protocol manuals to be found in http://www.teldat.com.

1.6 How is the information organized?

Each chapter focuses on a specific hardware part and its components. All information (technical specifications, de-

scriptive information, etc.) relating to a particular component can be found in the chapter dedicated to said compon-

ent.

1.7 Technical support

Teldat S.A. offers a technical support service. Regular firmware upgrades are available for maintenance purposes

and additional features.

Contact information:

Web: http://www.teldat.com

Tel. Nº: +34 918 076 565

Fax: +34 918 076 566

Teldat S.A. 1 About this manual

Teldat H2 RAIL 1

Email: suppor[email protected]

1.8 Related documentation

Teldat Dm748-I Software Updating.

Teldat Dm781-I Cellular Interface.

Teldat Dm812-I GPS.

Note

The manufacturer reserves the right to make changes and/or improvements to any and all parts of the

software and hardware of this product, and to modify the specifications of this manual without prior no-

tice.

The images depicting the device's front and rear panels are for information purposes only. The actual

device may be slightly different.

1 About this manual Teldat S.A.

2Teldat H2 RAIL

Chapter 2 Teldat H2 Rail

2.1 Introduction

This manual shows you how to install and connect the Teldat H2 RAIL router.

Fig. 1: Teldat H2 RAIL: Outer features

2.1.1 Power supply

For further information on the Teldat H2 RAIL power supply, please see Connecting the power supply on page 7.

2.1.2 Hardware monitoring

The LEDs on the front panel are used to monitor the hardware in the Teldat H2 RAIL. These LEDs provide visual in-

formation regarding the state of the hardware components, indicating whether there is connectivity, data flow, etc.

For further information on said LED panel, please see LEDs on page 5.

Teldat S.A. 2 Teldat H2 Rail

Teldat H2 RAIL 3

Chapter 3 Components and power supply

This chapter provides information on the chassis and components of the Teldat H2 RAIL. Said information covers

the following:

• Components.

• Assembly instructions.

• Power supply.

• RESET button.

• Data connection.

• SIM card installation.

3.1 Components

3.1.1 Front panel

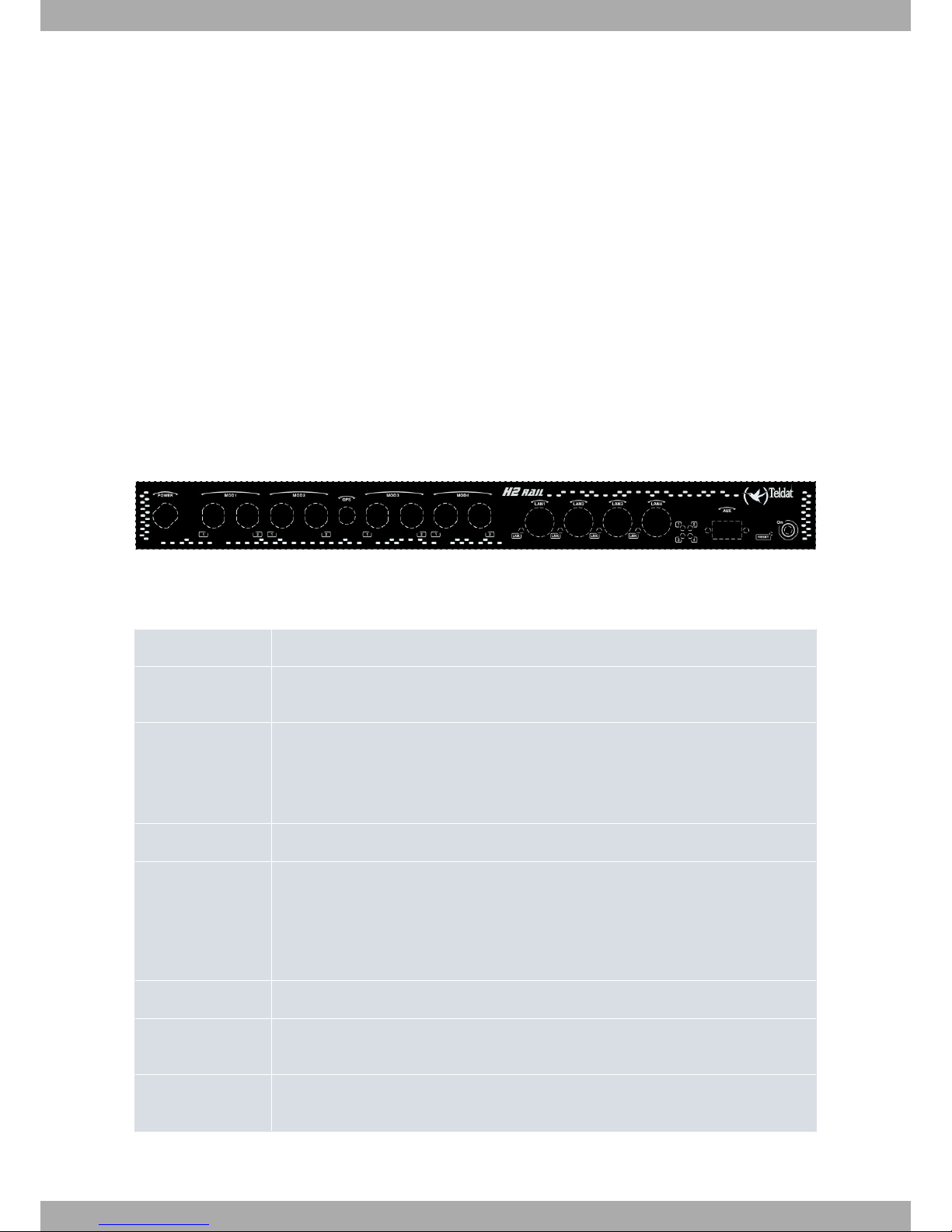

The following image shows the front panel of the device.

Fig. 2: Front panel

The elements on the front panel are described in the following table:

Table 1: Front panel elements

Item Description

POWER Power connection. For further information on the power connection, please see Power

source on page 7

MOD1, MOD2 WWAN antenna connectors.

The interfaces created are cellular1/x and cellular2/x, respectively.

The type of device installed for each position depends on the commercial configuration.

GPS GPS antenna connector.

MOD3, MOD4 WWAN/WLAN antenna connectors.

The interface created is cellular3/x, or wlan3/0, for MOD 3 and cellular4/x, or wlan4/0, for

MOD4.

The type of device installed for each position depends on the commercial configuration.

LAN1..LAN4 LAN connector.

AUX DB9 connector, which provides access to the device local console for configuration and

monitoring purposes.

RESET Reset button. For further information on how the reset button operates, please see RESET

Button on page 8

In addition to the connectors, the front panel also contains a set of LEDs, which provides information on the status of

the router.

3 Components and power supply Teldat S.A.

4Teldat H2 RAIL

3.1.1.1 LEDs

The following image shows the location of the front panel LEDs:

Fig. 3: Teldat H2 RAIL: Front panel

The meaning of each LED depends on the modules installed. Each LED belongs to one of four possible modules.

The following table describes what each LED means:

WWAN module Off -> system stopped.

Red -> interface is unavailable because it is being installed, it isn't enabled

(shutdown), or due to an auto-test failure.

Amber -> idle.

• Rapid blinking. The device has not registered with the network or does not have

enough quality to do so.

• Slow blinking. GSM connection (GPRS).

• Steady. WCDMA (UMTS / HSDPA) connection.

Green -> connected. Blinking: connection data activity.

WLAN module Red -> interface down.

Green -> interface up.

Blinking (green/red) -> activity/maintenance.

3.1.2 Rear panel

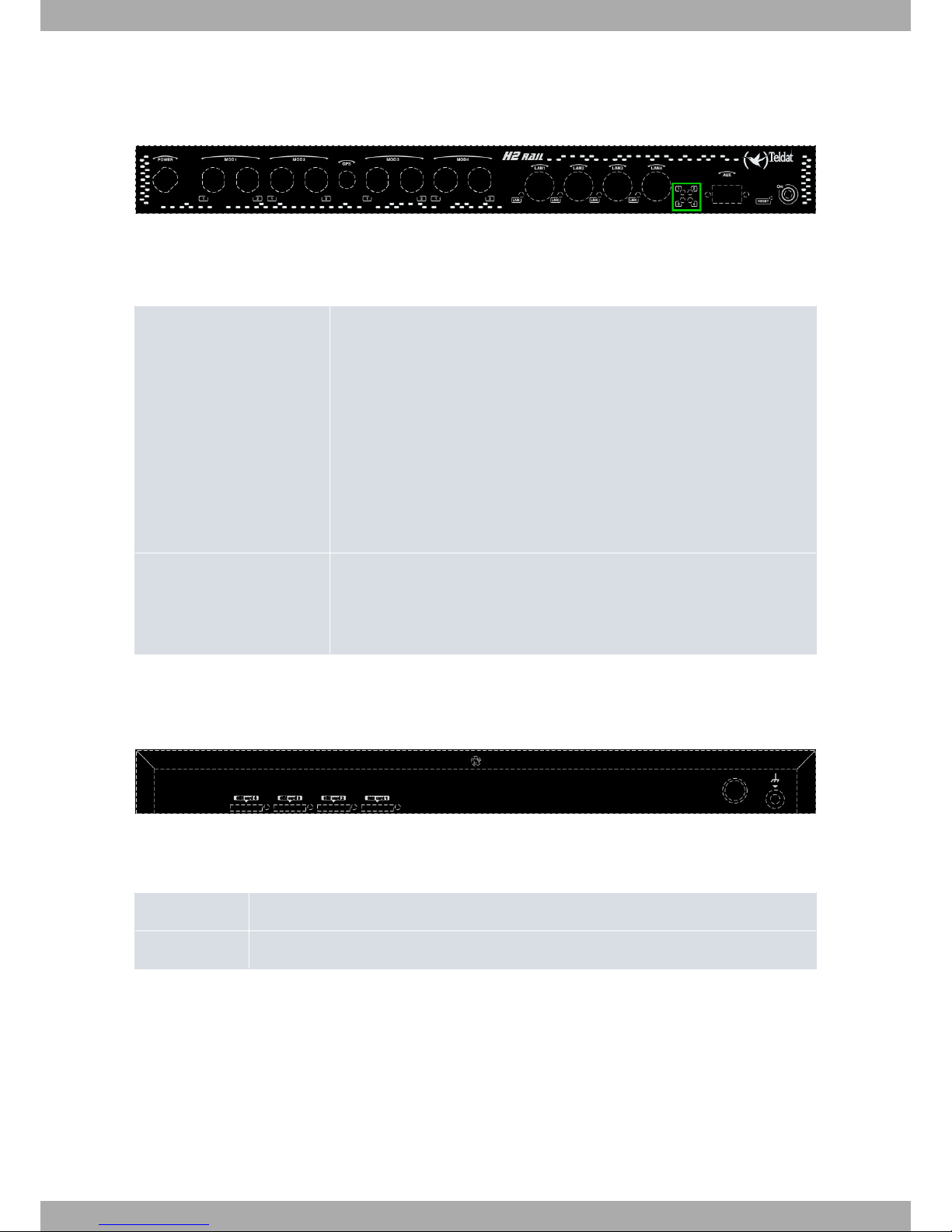

The following image shows the Teldat H2 RAIL rear panel, where you can see the rest of the connectors.

Fig. 4: Rear panel

The elements on the rear panel are as follows:

Table 3: Rear panel elements

Item Description

SIM card 1..4 SIM trays

Each SIM is assigned to its WWAN module. If, however, the device only has one WWAN module installed, said mod-

ule can handle both SIM 1 and SIM 2 (DualSim Option).

3.2 Mounting options

The Teldat H2 RAIL is designed to be installed in a 19-inch rack.

Teldat S.A. 3 Components and power supply

Teldat H2 RAIL 5

Note

The equipment is intended to be both handled and installed by qualified service personnel. If not, the

device may be damaged and malfunction.

There are two brackets, with slots attached to the front panel, to hold the device firmly in place.

3.2.1 Assembly: Recommendations

Insert the router into a 19-inch rack and align the brackets in the rack.

We recommend securing the unit to the rack using the screws and nuts provided. This will ensure the device is se-

curely mounted.

Fig. 5: Mounting screws

3.2.2 Outline drawing

The following outline drawing provides installation instructions:

3 Components and power supply Teldat S.A.

6Teldat H2 RAIL
