Teldat C1+L Manuel utilisateur

Teldat C1+L Router

Installation Manual

Teldat S.A. Manual

Teldat C1+L Router 1

Legal Notice

Warranty

This publication is subject to change.

Teldat S.A. offers no warranty whatsoever for information contained in this manual.

Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv-

ery, supply or use of this manual.

Manual Teldat S.A.

2Teldat C1+L Router

Table of Contents

I ImportantInformation................................ 1

Chapter1 InstallingtheRouter ................................ 2

1.1 Introduction...................................... 2

1.2 Connections...................................... 3

1.2.1 PowerSourceConnection................................ 4

1.2.2 DataConnections.................................... 4

1.2.3 ConfigurationConnection................................ 7

1.3 MeaningoftheLEDs.................................. 9

1.4 RSTPushbutton.................................... 9

1.4.1 Procedure to ignore the current configuration and to establish the default configuration . . . . 10

1.4.2 Procedure to force start up in BOOT mode . . . . . . . . . . . . . . . . . . . . . . . . 11

1.4.3 Procedure to force start up in BIOS mode . . . . . . . . . . . . . . . . . . . . . . . . 13

Appendix A Technical Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

A.1 Troubleshooting................................... 17

A.2 SoftwareUpdating.................................. 17

A.3 Connectors ..................................... 17

A.3.1 LANConnector.................................... 18

A.3.2 DSLConnector.................................... 18

A.3.3 ANTConnectors................................... 18

A.3.4 USBConnector.................................... 18

A.3.5 ConfigurationConnector................................ 19

A.4 TechnicalSpecifications................................ 19

Appendix B Regulatory compliance and safety information . . . . . . . . . . . . . . . . . 21

B.1 Recycling and the Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

B.2 Translated Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

B.3 ComplianceInformation................................ 22

B.3.1 Compliance Information for Teldat C1+L Routers Relevant to the European Union and Other Countries

Following the EU Directive 1999/5/EC (R&TTE Directive) . . . . . . . . . . . . . . . . . 22

Teldat S.A. Table of Contents

Teldat C1+L Router i

Table of Contents Teldat S.A.

ii Teldat C1+L Router

I Important Information

Caution

The manufacturer reserves the right to make changes and improvements to the appropriate features in

both the software and hardware of this product, modifying the specifications of this manual without prior

notice.

The images presented on the front and back panels of the devices are provided as an information

guideline. Some small modification can exist in the actual device.

Warning

The equipment is intended to be installed by Service Personnel and only handled by qualified person-

nel. If not, the device may be damaged and malfunction.

This device contains elements that are sensitive to electrostatic surges and shocks. Therefore, it is es-

sential when handling the equipment that an antistatic wriststrap is connected to the device chassis and

that this is placed on an antistatic mat. Furthermore, it is crucial to avoid any kind of contact between

the device components and necklaces, bracelets, rings, ties etc.

Teldat S.A. Important Information

Teldat C1+L Router 1

Chapter 1 Installing the Router

1.1 Introduction

The Teldat C1+L router is a general purpose router with a wide application area: personal environments, SOHO/

SME and corporative, covering access needs using ADSL, ADSL2+ (over PSTN) and 3G access thanks to the USB

interface where 3G USB modems can be connected. As for local area networks (LAN), it incorporates both a 4 port

Ethernet LAN Switch and an integrated Wireless LAN module.

The Teldat C1+L router is perfectly adaptable to a wide variety of IP scenarios: from providing simultaneous access

to Internet for private LAN users and/or for the corporation through Virtual Private Networks (VPNs) to the adaptation

of teleprocess networks and SNA support. The most common applications are as follows:

• ADSL access router.

• ADSL access router with 3G backup.

Fig. 1: ADSL access router

Fig. 2: ADSL access router with 3G backup

This manual shows you the way to install and connect these devices.

1 Installing the Router Teldat S.A.

2Teldat C1+L Router

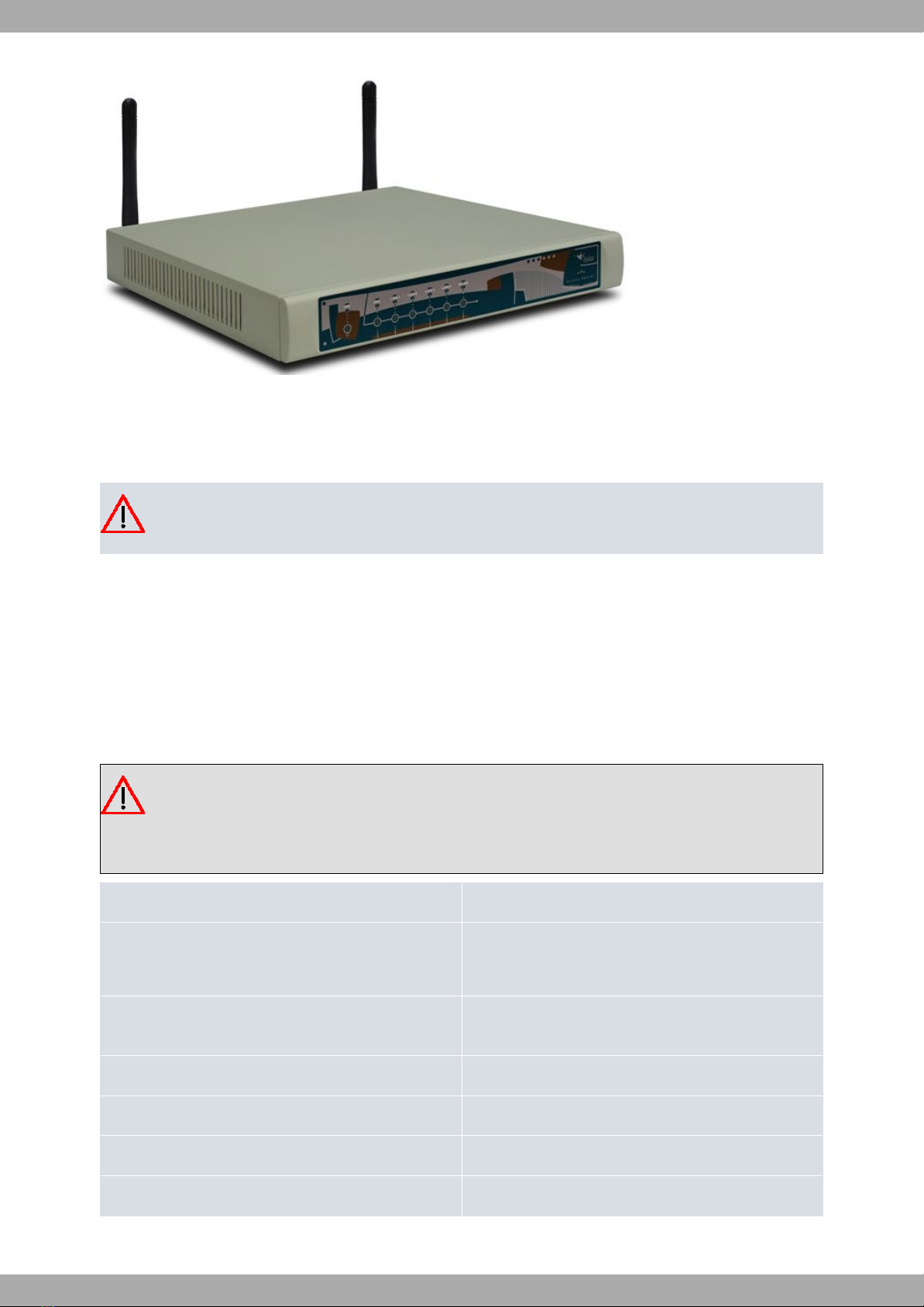

Fig. 3: Teldat C1+L : External aspect

1.2 Connections

Caution

Before connecting the router, please read the following instructions carefully.

Workplace Conditions. Main Characteristics

• Excessive cold and heat should be avoided, as should humidity and dust.

• Direct exposure to sunlight should be avoided as well as other heat sources. The device should not be placed

amongst papers, magazines or other elements that could hinder natural air circulation.

• The device should not be placed very close to strong electromagnetic fields such as speakers, engines, etc.

• Knocks and/or strong vibrations should be avoided during transport, operation and storage.

Warning

The electric current in power cables, telephone lines and communication cables is dangerous. To pre-

vent electric shocks, before installing, handling or opening the equipment covers, connect and discon-

nect the cables as follows:

To Connect To Disconnect

Make sure that the device power switch is in the OFF po-

sition

Place the device power switch in the OFF position

Check that the power supply is not connected to either

the main electricity supply or the device

Disconnect the power supply from the main electricity

supply

Connect all data cables Disconnect the power supply from the device

Connect the power supply to the device Disconnect the data cables

Connect the power supply to the main electricity supply

Place the device power switch in the ON position

Teldat S.A. 1 Installing the Router

Teldat C1+L Router 3

1.2.1 Power Source Connection

The Teldat C1+L router is powered with an external AC/DC source.

To avoid electric shocks, residual current circulation and other unwanted effects, also affecting communications, the

following is recommended:

Warning

All interconnected communication devices should be plugged to THE SAME GROUNDED POWER

OUTLET, which should at the same time be of good quality (lower than 10 ohms).

Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated supply

or it is independent from the rest (such as lighting, etc.); it is highly recommended that all data devices

should be connected to the same power source. This will avoid operating and premature aging prob-

lems of drivers and other components.

Fig. 4: Connecting the power with an external source

To connect the power source to the device, follow the steps listed in the earlier table: ensure that the switch is OFF

(0) and the power supply is NOT connected to the main electricity supply; find the 12 V DC connector, which is loc-

ated on the rear panel of the device, and plug it into the power source.

1.2.2 Data Connections

The Teldat C1+L router has the following available connectors:

1.2.2.1 4 port Ethernet Switch (connectors LAN1..4)

The Teldat C1+L router has a 410/100BaseT switch incorporated with an automatic MDI/MDIX to connect to the loc-

al area network (LAN).

Please pay close attention to the labeling. This is important in order to avoid mixing up the switch with other types of

ports.

1 Installing the Router Teldat S.A.

4Teldat C1+L Router

Fig. 5: LAN switch ports (4)

1.2.2.2 ADSL/ADSL2+ connection over PSTN (DSL connector)

The Teldat C1+L router has a DSL connector to connect to an ADSL/ASDL2+ network over PSTN. This is a female

RJ11 connector with 4 wires. The central pair is used for data transmission/reception.

For connection, you can use the telephone cable with male RJ11connectors that are provided with the device.

Fig. 6: DSL Connector (ADSL and ADSL2+)

The splitter

The Full Rate ADSL (ITU G.dmt or G.922.1) operating mode uses a higher transmission capacity that does not allow

the use of telephones directly connected to the same line; it is necessary to use a mechanism known as “splitter”,

which separates the band frequencies for voice telephony from those used for the ADSL connection to transmit data.

This way, interferences between the telephone service and ADSL service are avoided (and vice-versa).

A typical installation with a splitter is shown in Fig. 7 on page 6 .

Teldat S.A. 1 Installing the Router

Teldat C1+L Router 5

Fig. 7: ADSL installation with a splitter

The micro-filters

The G. Lite (ITU G.922.2) operating mode uses reduced transmission power which allows the use of telephones dir-

ectly connected to the same line by using a device known as a “micro-filter”. This device ensures that the ADSL sig-

nal does not reach the telephone and that undesired signals generated by the telephone do not interfere with the AD-

SL signal.

A typical installation with micro-filters is shown in Fig. 8 on page 6 .

Fig. 8: ADSL installation with micro-filter

1.2.2.3 Wireless LAN connection (ANT connectors)

The Teldat C1+L router has two RF antenna connectors to connect an external antenna to improve the quality of the

signal received and transmitted by the Wireless LAN module. This module is internal and can be activated by pur-

chasing the corresponding software license. To assemble and disassemble the antennas provided with the device,

just screw them into the connectors, labeled ANT, which are located on the rear of the device.

1 Installing the Router Teldat S.A.

6Teldat C1+L Router
