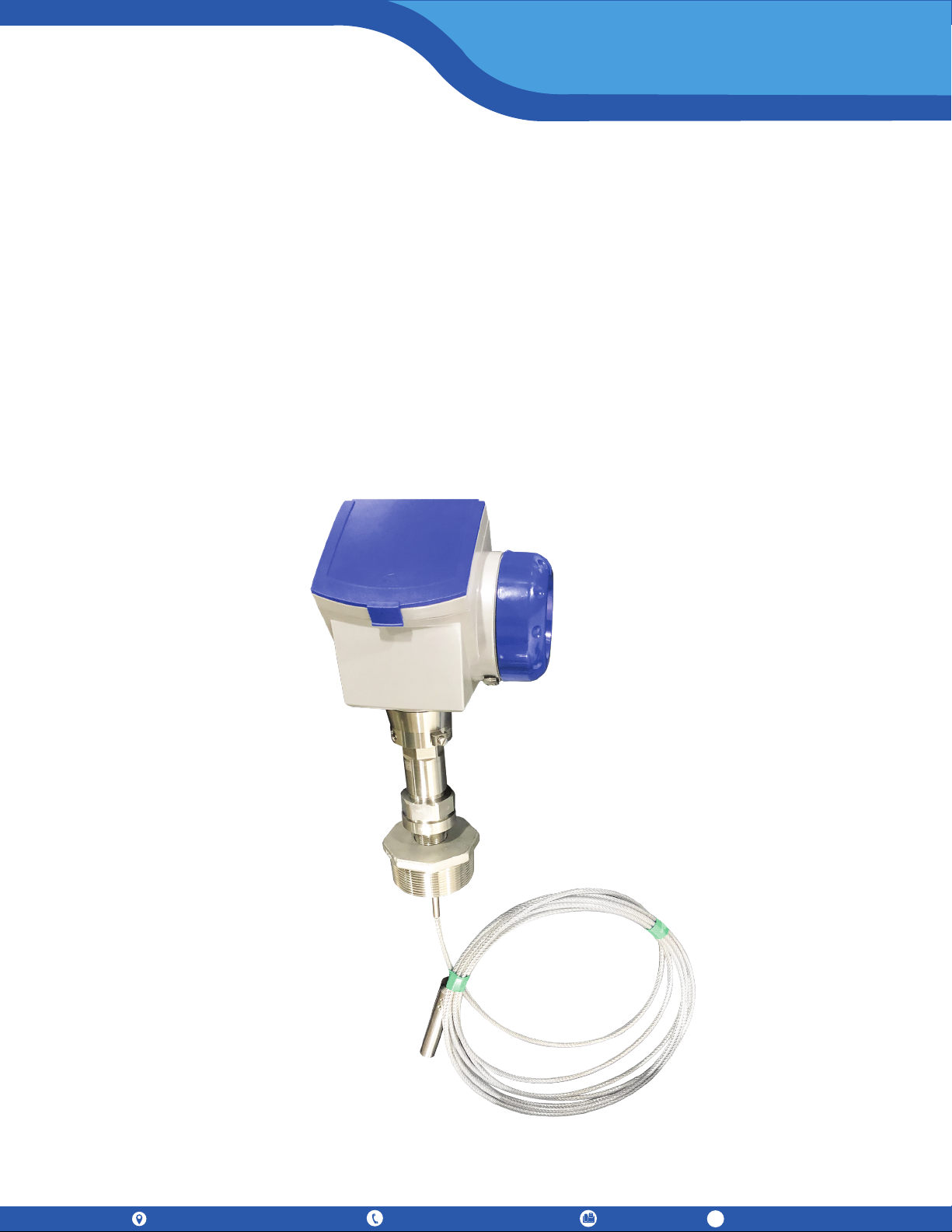

Tek-Flex 4100A

Explosion Proof Guided Wave Radar Level Transmitter

Quick Start Guide

796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 |+1 847 655 7428 +1 847 655 6147 www.tek-trol.com



1. Before You Begin

This guide provides basic guidelines to assist you in quickly getting started. Go to our website to download the

full User Guide for detailed installation, maintenance, troubleshooting and safety precautions.

The user must take note of the safety instructions in this operating instructions manual, the country

specic installation standards as well as all prevailing safety regulations and accident prevention rules.

The instrument must only be operated in a technically awless and reliable condition. The operator is

responsible for trouble-free operation of the instrument. During the entire duration of use, the user is

obliged to determine the compliance of the required occupational safety measures with the current valid

rules and regulations and also take note of new regulations.

2. Unpack

One Tek-Flex 4100A Explosion Proof Guided Wave Radar Level Transmitter

3. Dimensional Drawing

NEMA 4 (IP66) Enclosure

NEMA 7 Enclosure

1½ " NPT

MOUNTING THREAD

1½ " NPT

4.25" (0.35 ft) 4.25" (0.35 ft)

8.5" (0.70 ft)

½" NPT

Flange OptionStandard

1 2

1" NPT Mounting

Thread

4.3"

(0.35 ft) (0.35 ft)

4.3"

(0.5 ft)

Technology Solutions

Tek-Bar 3100

Tek-Flex 4100A

4. Mounting

•

Minimum nozzle diameter should be 2” from the probe at initial installation.

•

Probes should not contact metallic tank walls, obstructions or structures.

•

If using cable probes, take into account the possibility of cable sway encroaching clearance requirements of

agitators and augers. If this possibility occurs, secure a ring or mounting connection to the cable weight and

to the vessel oor.

Note: The Tek-Flex 4100A will come factory set for mounting to a metallic ange or tting unless otherwise

instructed at time of order.

Tek-Flex 4100A with 1½" NPT mounting in liquids, slurries or solids applications.

Flange Mount

Nozzle Mount

Quick Start Guide

796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 |+1 847 655 7428 +1 847 655 6147 www.tek-trol.com



To mount a anged transmitter, bolt the transmitter’s ange to the ange pipe on the wall of the tank.

The transmitter can be mounted to a tank nozzle using the appropriate ange.

Flange Mounting

Flanged Tank Connection

Threaded Mount

Mounting on a Bypass/Bridle

Technology Solutions

Tek-Bar 3100

Tek-Flex 4100A

Transmitters with threaded process connectors can be screwed to tanks or nozzles with threaded bosses.

Tek-Flex 4100A transmitter can be successfully installed in a new or existing bypass pipe, bridle, or a side

pipe as shown in the gure. This type of installation is often simple and allows the addition of radar level

measurement to an otherwise busy installation.

Threaded Tank Connection

Bypass Installation

Tank roof mounting using a Threaded Connection

Tank Roof

Mounting on a Non-Metallic Container

Mounting on a non-metallic vessel

Mounting in concrete silos

Quick Start Guide

796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 |+1 847 655 7428 +1 847 655 6147 www.tek-trol.com



In case of non-metallic container, the Tek-Flex 4100A should be mounted with a metal plate of minimum 8”

(0.66 ft) diameter. Use metal shielding for the conduit connections.

Mounting in Concrete Silos

In case of concrete silos, the Tek-Flex 4100A should be mounted with a metal plate of minimum 8” (0.66 ft)

diameter.

Technology Solutions

Tek-Bar 3100

Tek-Flex 4100A

5. Power Supply

1 2 3 4 5 6 7 8 9 10

4-20mA-

4-20mA+

DC IN +

DC IN -

IS+

COMMS

Sinking 4-20mA from user

device (max 750ohm)

Sinking 4-20mA from

Tek-Flex 4100A (max 250 ohm)

Power Supply DC In +

DC In -

4-20 mA -

4-20 mA +

IS+

Communication

Output (Sinking)

Output (Sourcing)

Quick Start Guide

796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 |+1 847 655 7428 +1 847 655 6147 www.tek-trol.com



Before connecting power in an explosive atmosphere, ensure the instrument is installed in accordance

with intrinsically safe or non-incendive eld wiring practices.

Verify that the operating atmosphere of the transmitter is consistent with the appropriate hazardous

locations certications.

6. Communication

7. Conguration

The Tek-Flex 4100A Level Transmitter leaves Tek-Trol’s factory pre-congured to the customer's application

settings, but if adjustments need to be made in the eld the RS485 Communication Tool is recommended.

RS485 Communication can be connected in the A & B terminals (COMMS) as shown below:

For any conguration related queries, please contact Tek-Trol technical support.

1 2 3 4 5 6 7 8 9 10

4-20mA-

4-20mA+

DC IN +

DC IN -

IS+

COMMS

(RS485)

Note: For additional information for display, please contact Tek-Trol technical support.

Powering the Tek-Flex 4100A for the rst time:

•

Conrm if the Tek-Flex 4100A is mounted within the recommended specications.

•

Conrm the wiring is correct and all connections are as shown above

•

Apply power to the Tek-Flex 4100A.

•

The Tek-Flex 4100A will take up to 30 seconds to warm up and stabilize upon initial start-up. It will then

perform a scan to locate the level which will take approximately 1 sec or less. Once the load sequence is

complete and the Tek-Flex 4100A has taken the rst measurement, the analog output indicates the material

level (factory default) or distance measurement. If the proper analog output is not achieved, please contact

your Tek-Trol representative for further instructions.
