Customer Manual

409-32023

02 MAR 15 Rev B

SAFETY

PRECAUTIONS

READ THIS FIRST!..............................................2

1. INTRODUCTION ..................................................................................................................3

1.1. Declaration of Incorporation ........................................................................................3

1.2. Smart Applicator Machine Integration Kit ....................................................................3

1.3. Smart Applicator Precision Controller Integration Kit ..................................................4

1.4. Smart Applicator Direct Integration Kit ........................................................................5

2. RECEIVING INSPECTION AND INSTALLATION ...............................................................5

2.1. Receiving.....................................................................................................................5

2.2. Hardware Installation...................................................................................................5

2.3. Software Installation ..................................................................................................10

2.4. Integration of Hardware and Software.......................................................................20

3. SYSTEM III PRECISION CONTROLLER OPERATION ....................................................21

3.1. Controller Screen, Navigation, and Operation...........................................................22

3.2. Feeder Calibration.....................................................................................................24

3.3. I/O Interface Settings.................................................................................................25

3.4. Terminal Selection.....................................................................................................26

3.5. Run Page Data..........................................................................................................28

3.6. Applicator Page Data ................................................................................................29

3.7. Feeder Data ..............................................................................................................31

3.8. Precision Controller ...................................................................................................31

4. SYSTEM III TERMINAL SERVO FEEDER OPERATION AND CALIBRATION ...............34

4.1. Feeder Operation ......................................................................................................34

4.2. Feeder Calibration.....................................................................................................35

5. TERMINATION QUALITY ..................................................................................................37

6. MAINTENANCE .................................................................................................................40

6.1. Normal Preventive Maintenance and Lubrication......................................................40

6.2. System III Feeder Maintenance ................................................................................40

6.3. Clearing Jammed Terminal Strip...............................................................................41

6.4. Precision Controller Maintenance .............................................................................41

7. RESTRICTION ON HAZARDOUS SUBSTANCES (RoHS) INFORMATION....................41

8. REVISION SUMMARY .......................................................................................................41

Smart Applicator Machine Integration Kits 2161651-[ ]

With Precision Controller Integration Kits 2161650-[ ]

and Direct Integration Kits 2161655-[ ]

ORIGINAL INSTRUCTIONS

Downloaded From Oneyac.com

409-32023

Rev B

2 of 41

SAFETY PRECAUTIONS —AVOID INJURY

Safeguards are designed into this application equipment to protect operators and maintenance personnel from

most hazards during equipment operation. However, certain safety precautions must be taken by the operator

and repair personnel to avoid personal injury, as well as damage to the equipment. For best results, application

equipment must be operated in a dry, dust-free environment. Do not operate equipment in a gaseous or

hazardous environment.

Carefully observe the following safety precautions before and during operation of the equipment:

Always wear approved eye protection while operating

equipment.

Always wear appropriate ear protection while using

equipment.

Moving parts can crush and cut. Always keep guard(s)

in place during normal operation.

Always insert power plug into a properly grounded

receptacle to avoid electrical shock.

Always turn off the main power switch and disconnect

the electrical cord from the power source when

performing repair or maintenance on the equipment.

Never insert hands into installed equipment.

Never wear loose clothing or jewelry that may catch in

moving parts of the equipment.

Never alter, modify, or misuse the equipment.

TOOLING ASSISTANCE CENTER

CALL TOLL FREE 1-800-722-1111 (CONTINENTAL UNITED STATES AND PUERTO RICO ONLY)

The Tooling Assistance Center offers a means of providing technical assistance when required.

In addition, Field Service Specialists are available to provide assistance in the adjustment or repair of the

application equipment when problems arise which your maintenance personnel are unable to correct.

INFORMATION REQUIRED WHEN CONTACTING THE TOOLING ASSISTANCE CENTER

When calling the Tooling Assistance Center regarding service to equipment, it is suggested that a person

familiar with the device be present with a copy of the manual (and drawings) to receive instructions. Many

difficulties can be avoided in this manner.

When calling the Tooling Assistance Center, be ready with the following information:

1. Customer name

2. Customer address

3. Person to contact (name, title, telephone number, and extension)

4. Person calling

5. Equipment number (and serial number if applicable)

6. Product part number (and serial number if applicable)

7. Urgency of request

8. Nature of problem

9. Description of inoperative component(s)

10. Additional information/comments that may be helpful

Downloaded From Oneyac.com

409-32023

Rev B

3 of 41

Figure 1

1. INTRODUCTION

This customer manual covers the system III smart applicator integration kits used with Komax leadmakers with

mci 722 terminators only. See Figure 1.

When reading this manual, pay particular attention to DANGER, CAUTION, and NOTE statements.

DANGER

Denotes an imminent hazard that may result in moderate or severe injury.

CAUTION

Denotes a condition that may result in product or equipment damage.

NOTE

Highlights special or important information.

Reasons for re-issue of this customer manual are provided in Section 8, REVISION SUMMARY.

NOTE

Dimensions in this customer manual are in metric units [with U.S. customary units in brackets]. Figures are not drawn to scale.

1.1. Declaration of Incorporation

Check Declaration of Incorporation 2217124 prior to putting the machine into operation.

1.2. Smart Applicator Machine Integration Kit

The machine integration kit consists primarily of a connection box and software to integrate the host machine

with precision controller integration kits and/or applicator direct integration kits.

System III Precision Controller

Installed on Komax Leadmaker

with mci 722 Terminator

Komax is a trademark.

Downloaded From Oneyac.com

409-32023

Rev B

4 of 41

1.3. Smart Applicator Precision Controller Integration Kit

The precision controller integration kit consists primarily of a precision controller, system III terminal servo

feeder, and the hardware that attaches the controller and feeder to the appropriate Komax leadmaker.

The system III terminal servo feed assembly can be used in conjunction with system III applicators and

Ocean applicators to provide the means for feeding terminals into the applicator for crimping. These

applicators can then be used on select leadmakers.

NOTE

Optional feeder calibration block 1901063-1 is recommended.

The system III terminal servo feeder and system III precision controller are shown in Figure 2.

System III Terminal Servo Feeder Specifications

Weight

1.66 kg [3.67 lb]

Length

206 mm [8.1 in.]

Depth

51 mm [2.0 in.]

Height

102 mm [4.0 in.]

Electrical

Supplied by the external power supply or leadmaker base machine

Temperature

4 to 40°C [40 to 104°F]

Relative Humidity

95% maximum non-condensing

Stroke

42 mm [1.66 in.] maximum

Speed

300 mm/sec max [11.8 in./sec max]

Adjustment Increment

0.020 mm [0.0008 in.]

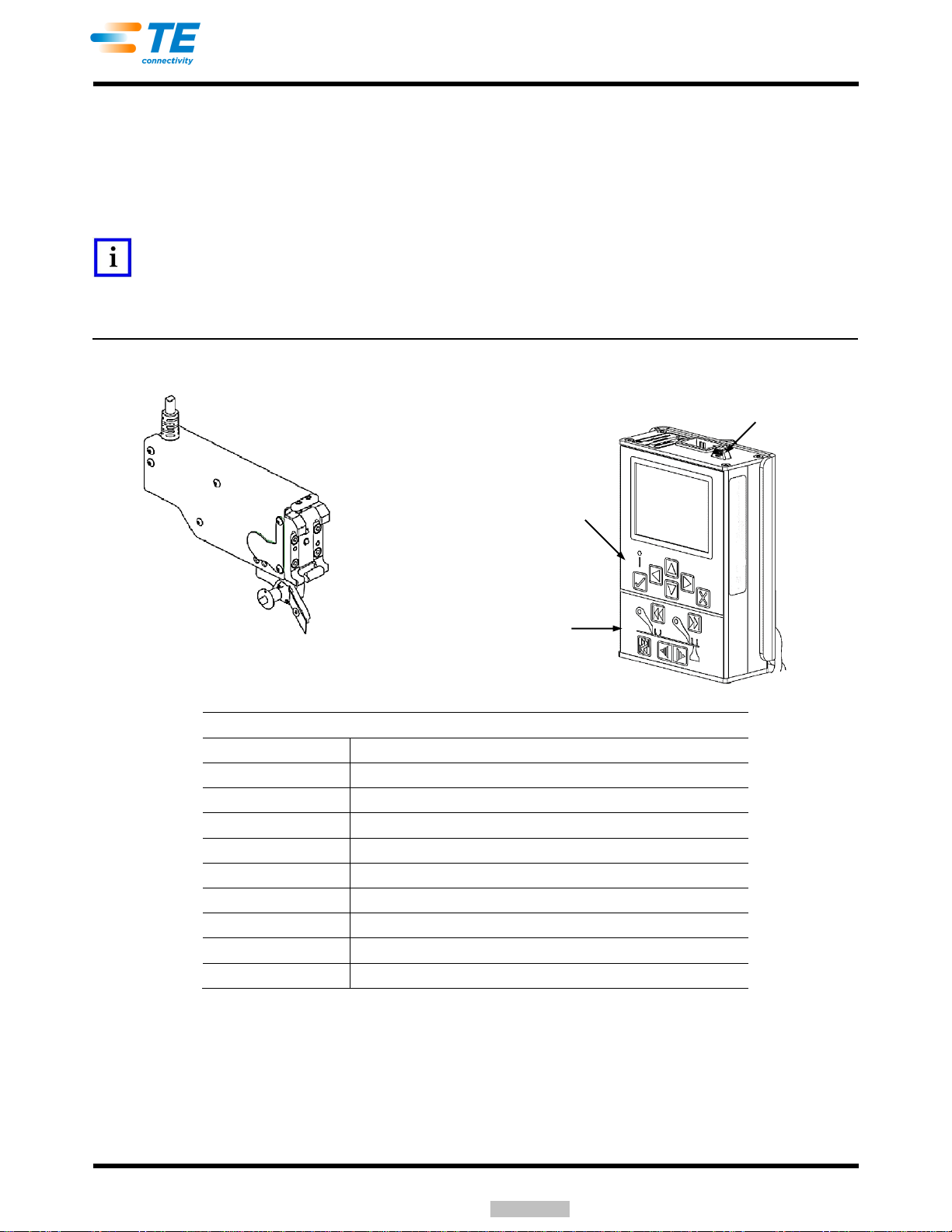

Figure 2

System III Terminal Servo Feeder

System III Precision Controller

USB Software

Update Port

Navigation Keys

(For Controller Screen)

Feeder Control Keys

Downloaded From Oneyac.com

409-32023

Rev B

5 of 41

1.4. Smart Applicator Direct Integration Kit

The direct integration kit consists of cabling, which connects the smart applicator to the Komax leadmaker. This

kit is typically used when no servo feed applicators are used. This kit allows direct reading of data from

mechanical-feed and/or pneumatic-feed applicators.

The system III precision controller (shown in Figure 2) is responsible for controlling the feeder assembly and

displaying the applicator information through a series of controller navigation and feeder control keys. A

description of the key operation is provided in Paragraph 3.1.

2. RECEIVING INSPECTION AND INSTALLATION

NOTE

Refer to assembly drawing 2161650 or 2161655 located in the print pack. These drawings contain installation information, part

numbers for components and assemblies, application information, and optional components that may be ordered separately

as required. When received, the kit should be checked against the assembly drawing to verify that it is correct for the

application, complete, and not damaged. Contact the Tooling Assistance Center at 1-800-722-1111 with any questions or to

report any problems.

2.1. Receiving

Each kit is thoroughly inspected during and after assembly. Prior to packaging and shipping, a final series of

tests and inspections is made to ensure proper functioning of the kit. The following inspection should be

performed as a safeguard against potential problems generated in transit:

1. In a well-lighted area, carefully uncrate the kit, and inspect each component as it is removed from the

crate.

2. Thoroughly inspect each component for evidence of damage that may have occurred in transit. If any

of the components are damaged, file a claim against the carrier and notify TE immediately.

Keep this manual and all drawings with the kit for the benefit of operation and maintenance personnel.

The controller and feeder should be inspected at regularly scheduled intervals, depending on care, degree of

operator skill, and environmental conditions.

2.2. Hardware Installation

NOTE

Hardware installation consists of installing the machine integration kit, precision controller integration kit(s), and/or direct

integration kit(s).

Installation of Machine Installation Kit

Refer to drawing 2651651 from the machine documentation package. This drawing contains hole cut-outs

and installation instructions for the machine installation kit. This kit must be installed before the hardware

and software can be integrated.

Installation of Machine Integration Kit with Precision Controller Integration Kit onto Komax Leadmaker

1. Remove the side covers (see Figure 3) from the existing terminating unit, and install modified side

cover 2-509805-3. Refer to drawing 2161650. See Figure 4.

NOTE

The side covers wrap around the terminator. Be careful not to damage the communication cable that is connected to the

panel. This cable must be unplugged, then reconnected when installing the modified side cover.

2. Install the adapter plate, feeder holder, cable cradle, and ball lock pins. Refer to Figure 4.

3. Install the system III precision controller onto the side of the terminator.

a. Route the power cable and the communication cable along the side of the terminator and through

the height adjustment mechanism.

b. Route the cable along the back side of the terminator. See Figure 4 and Figure 5.

Downloaded From Oneyac.com

409-32023

Rev B

6 of 41

Figure 3

Figure 4

Side Cover (Ref)

Ball Lock Pin

Cable Cradle

Adapter Plate

Feeder Holder

Run Power Cable and

Communications Cable

Through Here

Modified Side Cover

System III

Precision Controller

Note: Refer to Drawing

2161650 for additional

photos.

Downloaded From Oneyac.com

409-32023

Rev B

7 of 41

Figure 5

c. Remove the access cover, and run the cable into the machine. See Figure 5. Run the power cable

into the main electrical box. See Figure 6.

NOTE

Excess cable can be wire-tied and left in the wire way as shown in Figure 5.

d. Connect the power cable to the power block and machine ground as shown in Figure 6. Refer to

schematic 2161898 in documentation package 2161819.

The Ethernet communication cable is connected in the connection box as shown in Figure 7.

Figure 6

Power and Communication Cables

Routed Along Back Side of Terminator

Access Cover Removed

Cable Run Into Machine

Note: Cover Removed for Clarity

Excess Cable in Wire Way

Power Block Located on Right Side

of Main Electrical Box

Ground Connections

on Bottom of

Electrical Cabinet

Power Cable

Downloaded From Oneyac.com

409-32023

Rev B

8 of 41

Figure 7

4. Route the trigger cable into the back of the terminator, and connect the trigger cable to the air feed

cable. See Figure 8.

5. Remove the air feed cable from the back of the terminator. See Figure 8.

6. Cut and splice both air feed cable and the trigger cable as shown in Figure 8. Connect both cables to

the connector block on the terminator. Make sure to maintain polarity.

Figure 8

Air Feed Cable

Trigger Cable

Splices

Air Feed Cable

and Trigger Cable

Spliced Together

Computer Communications Cable

Connected to USB Port

on Main Computer

Ethernet Communications Cable

2 Kits Shown Installed

Downloaded From Oneyac.com

409-32023

Rev B

9 of 41

See schematic 2161898 for connection. Ensure that the black wire (-) goes to the (-) and the red wire

(+) goes to the (01). Refer to Figure 9.

Figure 9

Installation of Direct Integration Kit

1. Install the cable cradle. Refer to drawing 2161655. See Figure 10.

NOTE

Make sure to use the existing hardware.

2. Install the phone cable through the machine and into the connection box. See Figure 10. Remove the

machine access panel to aid in fishing cables through the machine.

Figure 10

3. Connect the phone cable to the adapter, and then to the USB hub. See Figure 11.

4. Connect the cable probe to the phone cable using the inline coupler. See Figure 11.

Black Wire

Red Wire

Cable Cradle

Fish Cable Through Machine

Access Panel Removed

Phone Cable

Connection Box Supplied with

Machine Integration Kit

Downloaded From Oneyac.com

409-32023

Rev B

10 of 41

Figure 11

2.3. Software Installation

1. Verify that the TopWin software version on the machine is:

12.4 or newer for Komax leadmaker A355, A355S, A356

13.2 or newer for Komax leadmaker G263

13.3 or newer for Komax leadmaker A488S

14.1 or newer for Komax leadmaker A477, A488

14.2 or newer for Komax leadmaker Z633

2. Install the TE server application on the machine by copying the file

“ApplicatorDataSetup_Version_5.0.6.exe” (or newer) to the machine.

When this file is executed, it will install the TE server application and necessary utilities.

During the installation:

—the installer must accept the software license agreement,

—the software license agreement must be accepted by the operator,

—and the installer must have administrator’s rights to install the programs.

During installation, the following will happen:

a. ErrorLogService will install,

b. DNSDiscoverService will install,

c. TE InterfaceII dll will install,

d. Postgres database will install and build the database,

e. Shortcuts will be created in the START menu in "Start->All Programs->ApplicatorData", and

f. A program will enable all the ports necessary in the firewall to allow the TEServerApp and utilities

to operate properly.

USB Hub

Adapter

Phone Cable

2 Kits Shown

Installed

Back Right Side

of Terminator

Cable Probe

Inline Coupler

TopWin is a trademark.

Downloaded From Oneyac.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TE Connectivity Outils de sertissage

TE Connectivity

TE Connectivity FDH 3000 864 Manuel utilisateur

TE Connectivity

TE Connectivity 2844594-1 Manuel utilisateur

TE Connectivity

TE Connectivity PRO-CRIMPER III Manuel utilisateur

TE Connectivity

TE Connectivity SDE-SA 2379968-1 Manuel utilisateur

TE Connectivity

TE Connectivity CERTI-CRIMP 90066-7 Manuel utilisateur

TE Connectivity

TE Connectivity 2390075-1 Manuel utilisateur

TE Connectivity

TE Connectivity 2362810-1 Manuel utilisateur

TE Connectivity

TE Connectivity PRO-CRIMPER III 58521-1 Manuel utilisateur

TE Connectivity

TE Connectivity 58425 Series Manuel utilisateur

TE Connectivity

TE Connectivity 2844461-2 Manuel utilisateur

TE Connectivity

TE Connectivity 2063624-1 Manuel utilisateur

TE Connectivity

TE Connectivity 90281-1 Manuel utilisateur

TE Connectivity

TE Connectivity 2386894-1 Manuel utilisateur

TE Connectivity

TE Connectivity 90017-3 Manuel utilisateur

TE Connectivity

TE Connectivity PRO-CRIMPER III Manuel utilisateur

TE Connectivity

TE Connectivity SDE-SA Manuel utilisateur

TE Connectivity

TE Connectivity 2063574-1 Manuel utilisateur

TE Connectivity

TE Connectivity 2380840-1 Manuel utilisateur

TE Connectivity

TE Connectivity 2391481-2 Manuel utilisateur

TE Connectivity

TE Connectivity MQS 3-1579014-9 Manuel utilisateur

TE Connectivity

TE Connectivity PRO-CRIMPER III Manuel utilisateur

TE Connectivity

TE Connectivity 2390882-1 Manuel utilisateur

TE Connectivity

TE Connectivity PRO- CRIMPER III Manuel utilisateur

TE Connectivity

TE Connectivity 46754-2 Manuel utilisateur

Manuels Outils de sertissage populaires d'autres marques

Panduit

Panduit CT-1000 Guide de l'administrateur

JST

JST CS 10 Manuel utilisateur

molex

molex 63811-5100 Manuel utilisateur

Danfoss

Danfoss ET4200 Manuel utilisateur

Tyco Electronics

Tyco Electronics PRO-CRIMPER III Manuel utilisateur

molex

molex 63825-3000 Manuel utilisateur

Tyco Electronics

Tyco Electronics 69156-1 Manuel utilisateur

CRH

CRH CRL CBLHCT1 Manuel utilisateur

Emerson

Emerson Klauke ES 105CFM Manuel utilisateur

KIMBALL MIDWEST

KIMBALL MIDWEST 27-798 Mode d’emploi

Danfoss

Danfoss ET4350 Manuel utilisateur

Milwaukee

Milwaukee M18 Manuel utilisateur

HOGERT

HOGERT HT1P169 Manuel utilisateur

Textron

Textron ESG105L Manuel utilisateur

Tyco Electronics

Tyco Electronics 90035-3 Manuel utilisateur

Emerson

Emerson Klauke ES 20RMCCFB Manuel utilisateur

Continental Refrigerator

Continental Refrigerator PC150HD Manuel utilisateur

Tyco Electronics

Tyco Electronics CERTI-CRIMP 90418-1 Manuel utilisateur
