TDK HHM Series HHM1713E2 Manuel utilisateur

(1/2)

001-01 / 20080106 / e751_hhm1713e2.fm

• All specifications are subject to change without notice.

Multilayer Chip Baluns

For Bluetooth & 2.4GHz W-LAN

HHM Series HHM1713E2

SHAPES AND DIMENSIONS

CIRCUIT DIAGRAM

RECOMMENDED PC BOARD PATTERNS

Line width be designed to match 50Ωcharacteristic impedance depending on

PCB material and thickness.

ELECTRICAL CHARACTERISTICS

Conformity to RoHS Directive

0.6±0.1

0.8±0.1

0.3±0.1

0.1±0.1 0.25±0.1

1.6±0.1

654

123

Dimensions in mm

0.55±0.1 1 Unbalanced port

2 GND or DC feed+ RF GND

3 Balanced port

4 Balanced port

5 GND

6 N.C.

Terminal functions

123

564

Unbalanced

input

50Ω

Balanced

output

200Ω

0.250.250.3

0.5

0.85

0.2

0.3

0.950.15

ø0.3 Through-hole

Unbal port Bal port

Dimensions in mm

Land

Unbalanced impedance 50Ω

Balanced impedance 200Ω

Frequency range 2400 to 2500MHz

Unbalanced port return loss 10dB min.

Phase imbalance at balanced port 180±10deg.

Amplitude imbalance at balanced port 0±1.7dB

Insertion loss 1.2dB max.

Temperature range Operating –40 to +85°C

Storage –40 to +85°C

Packaging style and quantities 4000pieces/reel

•Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and

specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.

(2/2)

001-01 / 20080106 / e751_hhm1713e2.fm

• All specifications are subject to change without notice.

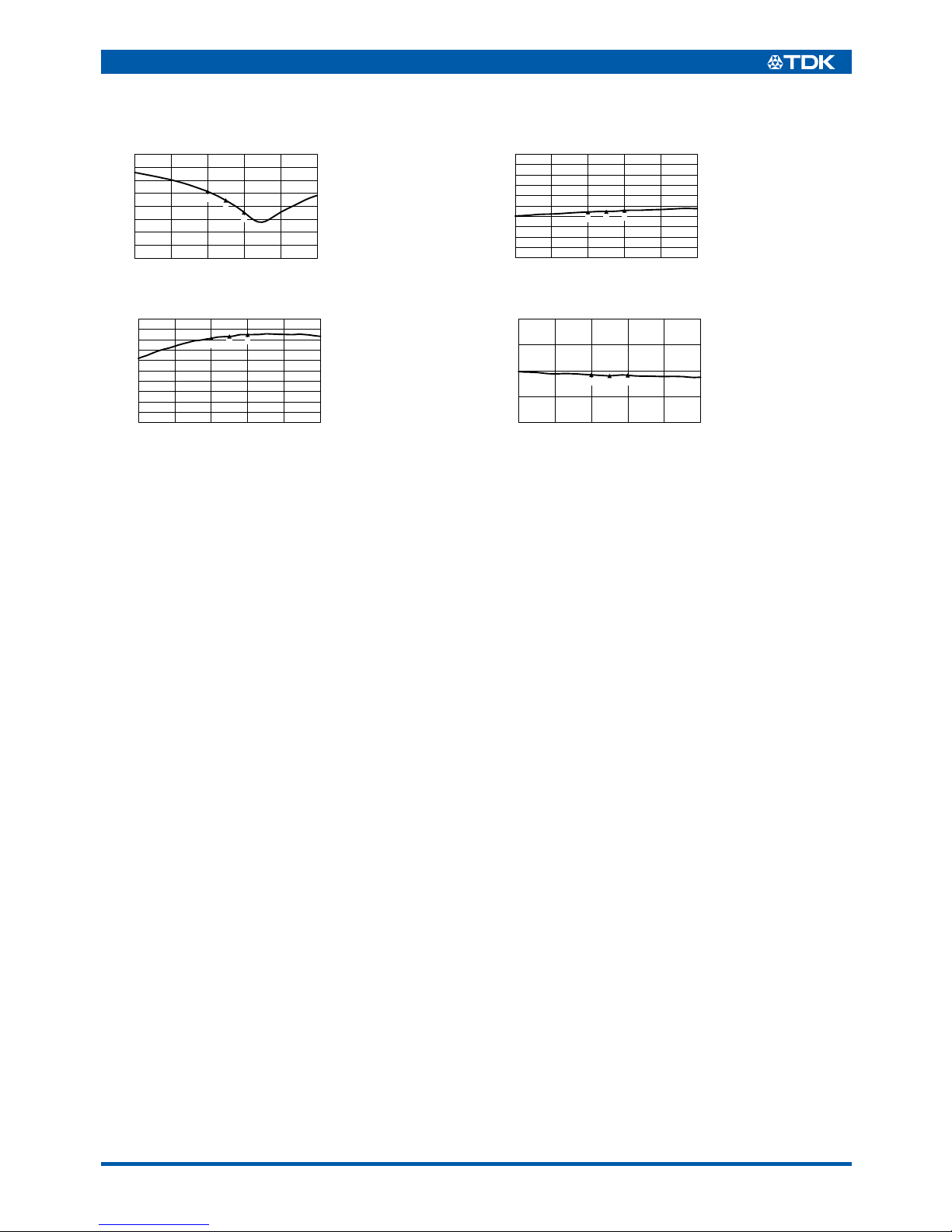

FREQUENCY CHARCTERISTICS

Unbalance 50Ω/Balance 200Ω

RETURN LOSS

INSERTION LOSS

AMPLITUDE BALANCE

PHASE BALANCE

–25

2200 2700260024002300 2500

–20

–30

–15

–10

–5

–40

–35

Return loss(dB)

Frequency(MHz)

1: 2400.0MHz

–14.31dB

2: 2450.0MHz

–17.74dB

3: 2500.0MHz

–22.32dB

–5.0

–4.0

–4.5

–3.0

–3.5

–2.0

–2.5

–1.0

–1.5

–0.5

Insertion loss(dB)

2200 2700260024002300 2500

Frequency(MHz)

1: 2400.0MHz

–0.94dB

2: 2450.0MHz

–0.85dB

3: 2500.0MHz

–0.76dB

123

–4

–5

–2

–3

–1

Amplitude balance(dB)

1: 2400.0MHz

–0.59dB

2: 2450.0MHz

–0.54dB

3: 2500.0MHz

–0.44dB

2200 2700260024002300 2500

Frequency(MHz)

123

160

170

180

190

200

Phase balance(deg.)

1: 2400.0MHz

178.43deg.

2: 2500.0MHz

178.06deg.

3: 2500.0MHz

178.28deg.

2200 2700260024002300 2500

Frequency(MHz)

123
