Symmons 2DIV-BODY-NS Manuel

Model Numbers

Dual Outlet Diverter, Non-Sharing

Operation & Maintenance Manual

2DIV-BODY-NS

Dual outlet diverter valve with no shared functionality.

Features male 1/2" IPS and 1/2" sweat inlet/outlet

connections (in common plane), dened detents, 2 discreet

positions and stringer mounts. Components made from

lead free metal construction.

Speciﬁcation

Warranty

Limited Lifetime - to the original end purchaser in

consumer/residential installations.

5 Years - for industrial/commercial installations.

Refer to www.symmons.com/warranty for complete

warranty information.

Compliance

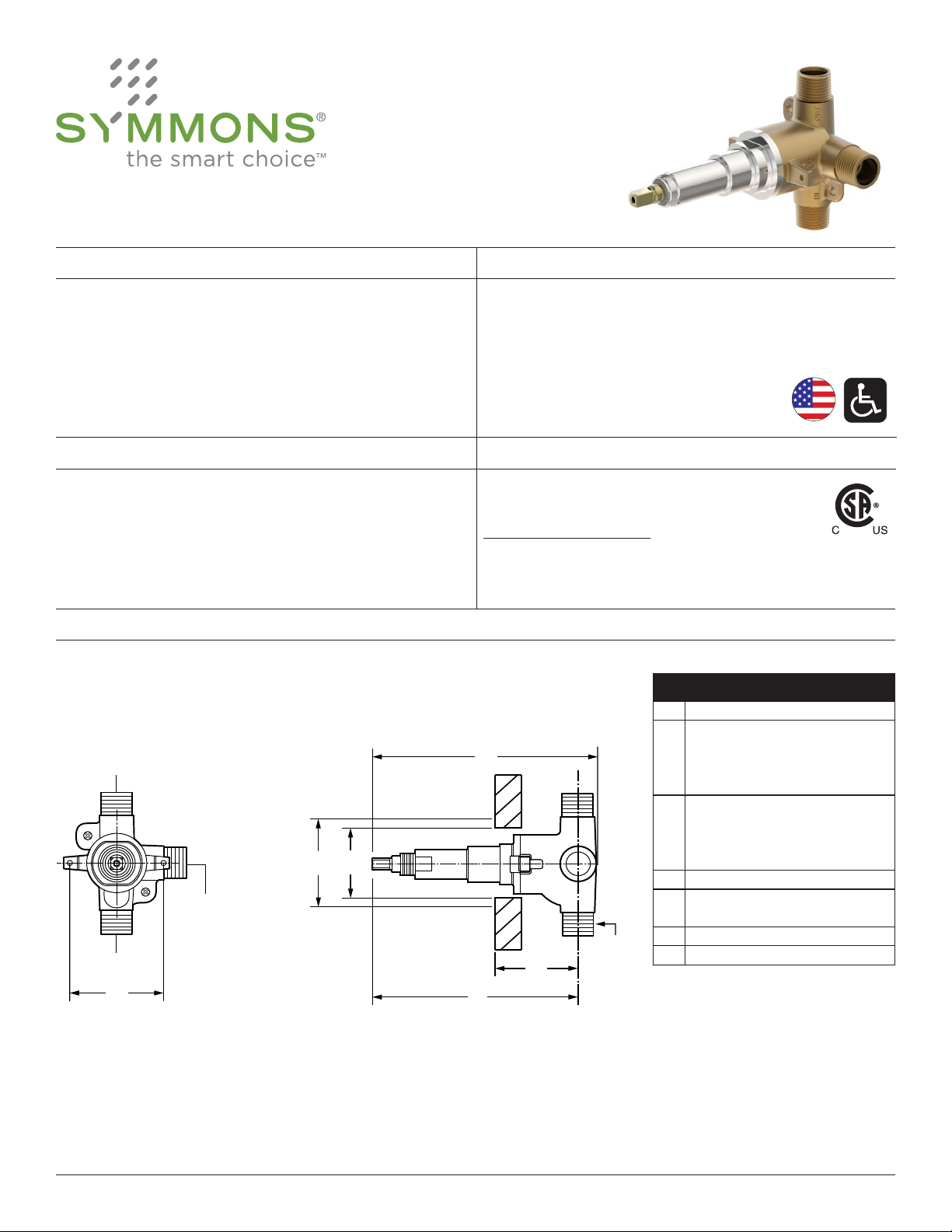

Dimensions

Notes:

1) Figure is determined by style of trim attached to shower valve. See rough-in

dimension drawing for shower valve application with diverter valve.

2) Dimensions subject to change without notice.

2DIV-BODY-NS

Dual Outlet Diverter, Non-Sharing

-ASME A112.18.1/CSA B125.1

For California Residents

WARNING: This product contains chemicals known to

the State of California to cause cancer, birth defects, or

other reproductive harm.

Measurements

A 2-5/8", 67 mm

Screwless Escutcheons

Hole Size

Min. Ø 3", 76 mm

Max. Ø 3-1/4", 83 mm

Screw Escutcheons

Hole Size

Min. Ø 1-3/4", 44 mm

Max. Ø 2", 51 mm

D 5-3/4", 146 mm

E(3x) 1/2" male IPS &

(3x) 1/2" sweat

F See note 1

G 5-3/8", 137 mm

ININ

OUTOUT

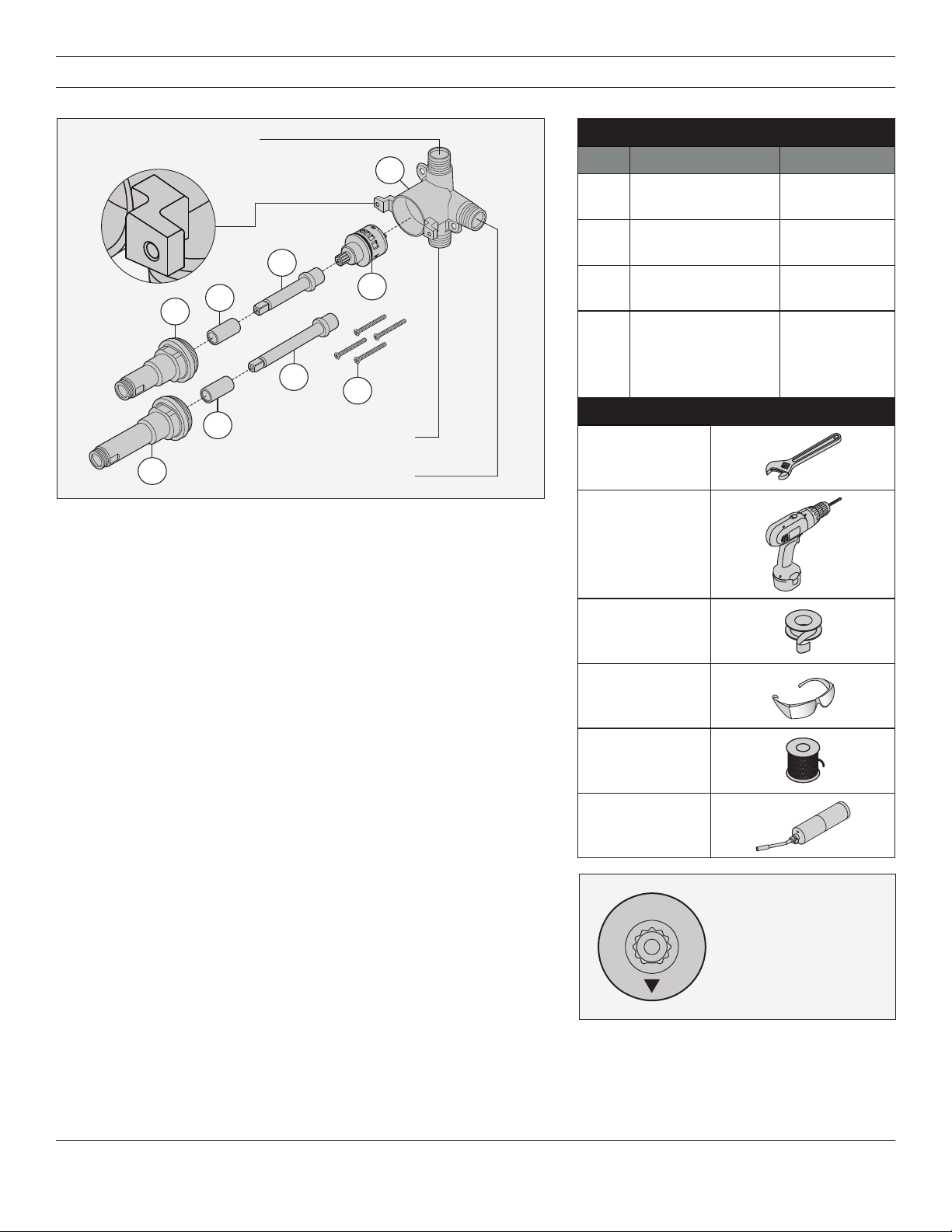

Parts Breakdown

Replacement Parts

Item Description Part Number

Cap Assembly

Spacer

RTS-DIVCAP-

C Cartridge Extender RTS-DIVEXT-

D Cartridge RTS-2DIV-NS

Spacer

1" Cap Extender

1" Cartridge Extender

4" Mounting Screws

RTS-DIV-1EXT-

Tools Required

Adjustable

Wrench

Drill (optional)

Plumber Tape

Safety Glasses

Solder

Torch

FROM SHOWER VALVE

DIVERTER FUNCTION 1

DIVERTER FUNCTION 2

Important:

Cartridge (D)

must be installed

with arrow

facing down.

Installation

1) Reference rough-in dimension for

shower application with diverter

for proper installation of diverter

valve.

5) Sweat 1/2" copper tubing from

inlet port on diverter valve

to water source. Sweat 1/2"

copper tubing from outlet ports

to desired accessories.

Important: Do not plug

outlet ports. Do not use

diverter as shut-off valve.

2) Shut-off water supplies.

4) Secure stringer mounts on diverter

valve (E) to wood blocking for

support.

6) Turn on water supplies to ush

plumbing lines free of debris

Check for leaks.

3) Position diverter valve (E) so port

marked IN is facing down.

Optional: Apply plumber tape to

male IPS threads on the inlet and

outlet ports of diverter valve. Install

1/2"-14 NPT copper ttings to the

inlet and outlet ports. Connect

outlets to desired accessories.

Note: Securing stringer mounts is

necessary for applications where

PEX, or other non rigid tubing, is

used to install diverter valve.

Note: Diverter valve can be installed

in wall with shower valve or in an

adjoining wall to shower valve.

Important: Do not expose

diverter valve to heat for

longer than 2 minutes when

sweating in copper tubing.

Doing so may damage the

internal components of

the valve and will void the

product warranty.

Operation

POSITION 1

1) Cartridge is factory set to divert

to function 1.

2) Turn handle to position 2 to divert

to function 2.

POSITION 2

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

Problem Cause Solution

Diverter valve will not divert water.

Foreign matter in water supply may

cause blockages in plumbing lines and

the diverter valve cartridge.

Remove cartridge from diverter valve.

Flush lines free of foreign matter.

Inspect cartridge for debris. Replace

cartridge if necessary.

Water is leaking from the face of the

diverter valve.

Cap assembly is not fully sealed to

diverter valve.

Remove cap assembly. Inspect

threads for debris. Reinstall cap

assembly to diverter valve at

lbf-in of torque.

Diverter trim will not install to diverter

valve.

Diverter valve body rough-in is too

deep.

Use RTS-DIV-1EXT-NS to extend

diverter stem 1 inch.

Maintenance (Cartridge Replacement)

1) Remove cap assembly (A) from

diverter valve by turning coun-

terclockwise. Remove cartridge

extender (C) and cartridge (D).

3) Orient new cartridge (D) with

arrow facing down. Align pegs on

cartridge (D) with indents inside

diverter valve (E).

Inspect cartridge for debris.

Replace cartridge if necessary.

4) Align spindle extender (C) with

broach on cartridge (D). Install

spindle extender (C) and cap

assembly (A) to cartridge (D).

Secure cap assembly (A) by

turning clockwise.

Notes:

1) Use caution not to dislodge

cartridge from valve body when

installing cap assembly (A).

2) Tighten cap assembly (A) to

5 lbf-in of torque.

Troubleshooting Chart

Note: Spacer (B) will be seated

inside cap assembly (A).
