Symbol WSS 1000 Manuel utilisateur

WSS 1000

Quick Reference

1997 SYMBOL TECHNOLOGIES, INC. All rights

reserved.

Symbol reserves the right to make changes to any product

to improve reliability, function, or design. Symbol doesnot

assume any product liability arising out of, or in

connection with, the application or use of any product,

circuit, or application described herein.

No license is granted, either expressly or by implication,

estoppel, or otherwise under any patent right or patent,

covering or relating to any combination, system,

apparatus, machine, material, method, or process in

which Symbol products might be used. An impliedlicense

only exists for equipment, circuits, and subsystems

contained in Symbol products.

Symbol Technologies, Inc.

One Symbol Plaza

Holtsville, N.Y. 11742-1300

Introduction

The WSS 1000 is a wearabledataentry systemconsisting of

a laser bar code scanner (RS 1) worn on the operator’s

fingers, and a wrist computer (WWC 1000) worn on the

operator’s forearm.

The detachable components work equally well for right-

and left-handed individuals. Detachable personal mounts

allow multiple operators to share both ring scanner and

wrist computer without having to use the same mount.

About This Guide

This guide presents information on system components,

assembling the system, battery installation and charging,

attaching the system, using the keyboard and scanner, and

disassembly for use by others.

Quick Reference

Parts of the WSS 1000 System

Keyboard

Display

Speaker

Battery

Latch

Power

Switch

Battery

Charging

Contacts

Lithium-Ion

Battery

WWC 1000 Top

WWC 1000 (Wrist Computer) Front

Adjustable

Straps Snap-On

Bar

WWC 1000 Wrist Mount

Scan

Window

Scan

Trigger

Mount Release

Button

Scan/Decode LED

Interface Port

RS 1 (Ring Scanner) Front

RS 1 Back

RS 1 Moun

Ring Mount Straps

Quick Reference

Installing and Charging the Battery

The wrist computer and scanner are powered by a

Lithium-Ion battery pack. The pack provides power for a

typical 8-hour shift.

Note: Before using the wrist computer, install and ful-

ly charge the Lithium-Ion battery pack.

To install the battery pack in the WWC 1000:

1. Insert the battery pack, base first, in the battery

compartment.

2. Line up the pack’s locking mechanism with the

notch inthe battery compartment wall by slidingthe

battery latch, and press the pack into place.

3. Release the battery latch to lock in place.

Battery

Latch

Notch

Battery

Compartment

BatteryPack

Base

Charging the Battery in WWC 1000

To charge the Lithium-Ion battery in the WWC 1000:

1. Place the WWC 1000 in the cradle as shown below:

2. The cradle’s CHARGING light illuminates (RED) if

the WWC 1000 is properly seated and the battery is

charging.

3. Thebatteryrequires approximately 2hoursto charge

fully. The CHARGING light changes to GREEN

when the battery is fully charged.

4. To remove the WWC 1000 from the cradle, tilt the

WWC 1000 upward and pull out.

Formore information on the CS 1000 Cradle,refer to

the CS 1000 4-Slot Cradle QRG, p/n 70-17661-0X.

Quick Reference

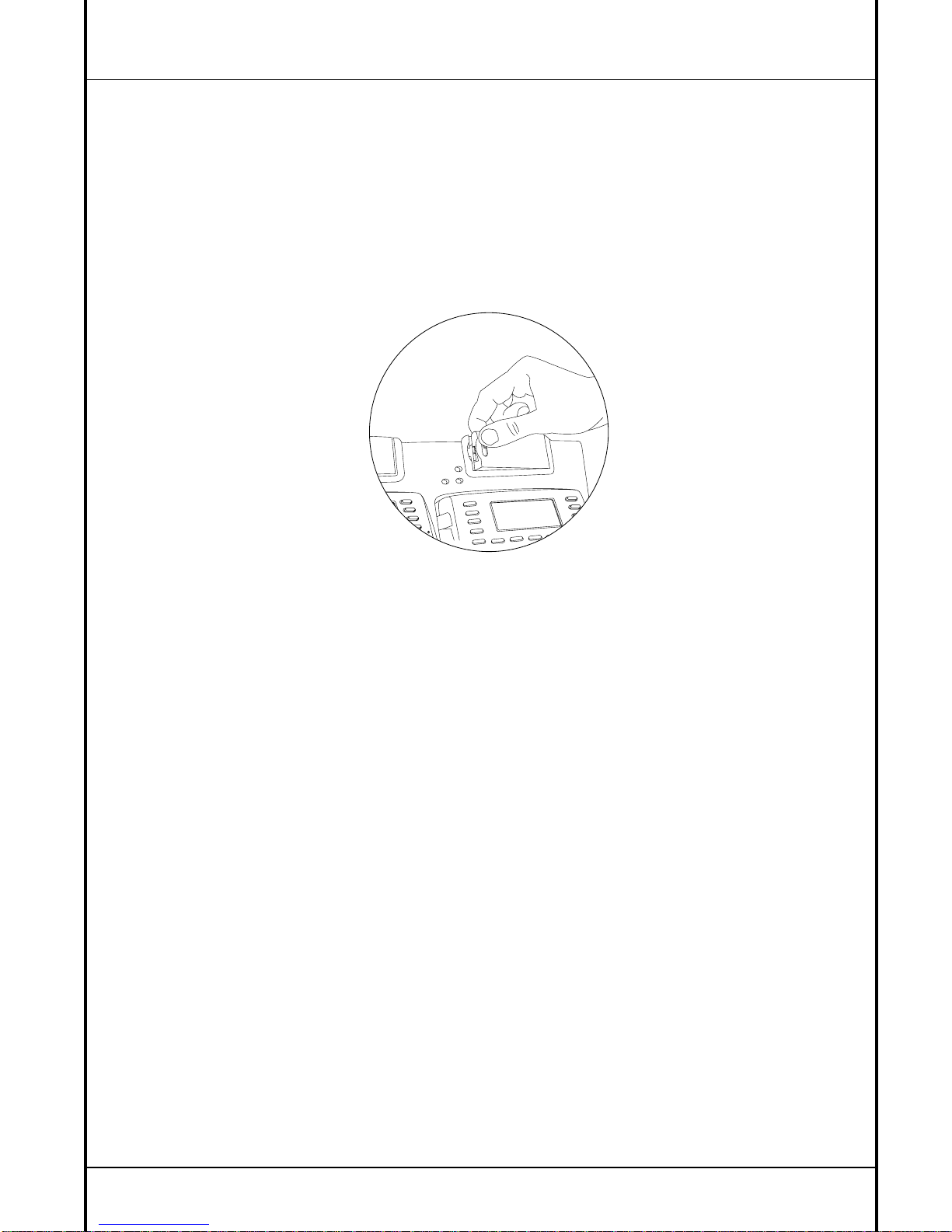

Charging the Spare Battery

Spare battery packs can be charged separate from the

WWC 1000. To charge a spare battery pack in the cradle:

1. Insert the pack in the cradle’s spare charging slot.

2. The CHARGING light illuminates red.

3. The spare pack is charged in approximately two

hours, even if the WWC 1000 is charging at the same

time. The CHARGING light changes to green when

the battery is fully charged.

Assembling the WSS 1000 System

To assemble the WWC 1000 (wrist computer):

1. Place the WWC 1000 wrist computer onto the wrist

mount, facing you. Be sure the mount is oriented so

that the longer strap will be further up the forearm.

2. Snap the bar over the WWC 1000 using the snaps on

either side of the mount. The straight part of the bar

should lay across the front of the WWC 1000; the

curved part in back.

Quick Reference

Note: Thesnaps on the wrist mount act as a tear-away

device allowing the wrist computer to detach

from the mount if it catches on an object.

To assemble the RS 1 (ring scanner):

1. Adjust the strap of the ring mount to fit your right or

left index and middle fingers:

a. Slip the mount onto your right or left index and

middle fingers, oriented so the trigger is next to

your thumb.

b. If necessary, adjustthe strap so thatthe mount fits

comfortably.

c. Remove the mount.
