SWELLPRO GC3-T Manuel utilisateur
GC3-T
User Guide
Visit www.swellpro.com for the latest version of this manual and firmware updates for
your drone and accessories.
v Beta 1.0 –Oct. 2021
©2021 SwellPro All Rights Reserved 2
NOTICE
THIS IS THE BETA VERSION OF THE USER GUIDE. SOME PARTS
OF THE USER GUIDE MIGHT BE CHANGING THROUGH
THE PRODUCT IMPROVEMENT. PLEASE ALWAYS
CHECK AND COMPARE THE VERSION NUMBER TO
SEE IF THERE IS A LATEST VERSION OF THIS USER
GUIDE ON OUR WEBSITE.
https://www.swellpro.com/splash-drone-4.html#download
3©2021 SwellPro All Rights Reserved
Thank You
Thank you for purchasing the GC3-T waterproof 3-axis Gimbal Thermal Camera. We
have designed and manufactured the GC3-T to the highest quality standards.
Like any precision equipment, long-life and trouble-free operation rely on proper care
and maintenance. With proper care and maintenance, you should enjoy your product for
many years. It is important to familiarize yourself with the features of this unique
product by carefully studying this manual.
Visit www.SwellPro.com for the latest manuals, firmware, and tips. Refer to the Version
Information section at the end of this manual, which details additions and corrections
to this manual.
Using this Manual
This document is designed to be printed or viewed on a computer or mobile device. If
used electronically, you can search directly for terms like "Propeller" to find references.
Additionally, you can click on any topic in the Table of Contents to navigate directly to
that topic.
FAQ
The user guide is the best companion while using the product. For the
specific problem using the product, the FAQ can be another great
resource for you to look at. Go to the SwellPro website, look for
support >product support > the product > FAQ to find the FAQ page.
https://www.swellpro.com/news/product-support.html
Video Tutorials
Visit and subscribe to the SwellPro YouTube channel for tutorial videos and product
information. Scan this QR code with your camera phone to go to our channel.
©2021 SwellPro All Rights Reserved 4
Social Media
Join our SwellPro Facebook page to meet other people who share their adventures with
SwellPro. www.facebook.com/SwellPro/
Register Product Warranty
Please register your product as soon as possible to ensure warranty coverage.
https://www.SwellPro.com/info/register.html
Download the SDFly App
For Apple devices, download the SDFly app on the AppStore. For Android devices,
download the SDFly app on the Google Play Store or scan the QR code to download and
install the app.
5©2021 SwellPro All Rights Reserved
Content
NOTICE 2
Thank You 3
Using this Manual 3
FAQ 3
Video Tutorials 3
Social Media 4
Register Product Warranty 4
Download the SDFly App 4
Content 5
Precaution 7
Product Overview 8
In the Box 9
Product Diagram 10
Installation 11
Install the Gimbal 11
Install the SD Card 11
Camera Status Indicator 12
Control 13
Gimbal Control 13
Gimbal Button 13
Camera Control 14
Calibration 14
SDFly App 16
Main Interface 16
Thermal Camera Setting 18
Appendix 21
7©2021 SwellPro All Rights Reserved
Precaution
READ AND UNDERSTAND ALL PRECAUTION INFORMATION BEFORE
USING THIS PRODUCT. Failure to follow these safety instructions may
result in permanent damage to the product.
Do not point the thermal camera to strong energy sources, such as sun, laser beam, or
lava. The observed object's temperature should not exceed 800℃, as the high energy
radiation is harmful to the thermal camera.
Do not place the camera near any heat sources, such as fire, engines, heating, or inside
the vehicle under prolonged sunlight exposure.
The ideal working temperature is -20℃~ 50℃.
Do not touch thermal camera lens with your fingers or any other object, as oil or other
substance covering the lens leads to blurred images and inaccurate temperature
detection.
Do not use alcohol or alkaline detergent to clean the camera lens, as it can erode the
surface and coating on the lens. Instead, use a clean, dry, soft cloth to clean the lens.
Do not frequently power on/off the camera, as it might shorten the product lifespan.
Wait for at least 1 min in between the power on/off.
Do not insert or unplug the microSD when the camera is on, as it might cause files loss
or hardware issues.
Ensure to press the rubber microSD card cover firmly in place to prevent water ingress
in use.
Do not disassemble the camera. If you have any issues with the camera, contact
SwellPro Support.
©2021 SwellPro All Rights Reserved 8
Product Overview
GC3-T Waterproof 3-axis Gimbal Thermal Camera features both a high resolution
thermal infrared camera and a full HD low-light camera with a dimmable LED flashlight,
which can provide both infrared and visible light imaging simultaneously and allow for a
quick switch between the two.
The thermal infrared camera features high resolution (640 x 512), high sensitivity (≤
50mk@f/1.0), wide range (-20℃to 500℃) infrared thermal imaging. Powerful enough
for missions ranging from search & rescue, security detection, precision agriculture to
various industrial inspections, such as routine power line inspection, roofing and solar
panels maintenance, bridge defect detection, etc.
The low-light camera can capture full HD imaging in the dark environment when the
regular camera cannot return any images. When operating in complete darkness, the
dimmable LED flashlight still gives you the confidence to maintain the vision. With the
low light camera, whenever you find the object of interest using the infrared thermal
camera, you can always switch back to give a visual confirm of the object.
With the SwellPro waterproofing technology and the compatibility with the powerful
SplashDrone 4 flight flatform, you will get excellent aerial thermal imaging in any harsh
weather conditions.
9©2021 SwellPro All Rights Reserved
In the Box
©2021 SwellPro All Rights Reserved 10

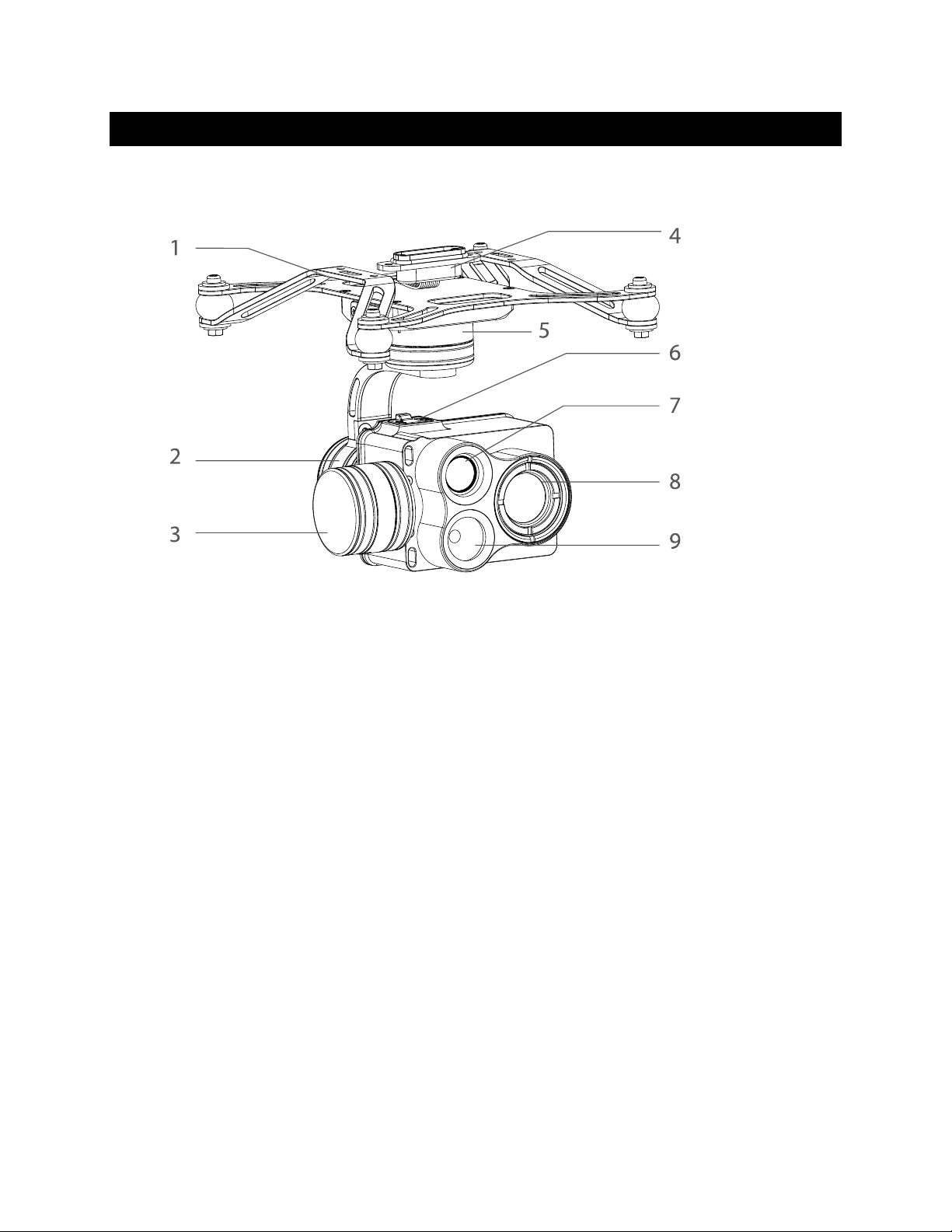

Product Diagram
1. Gimbal Mount
4. Gimbal Connector
2. Roll Motor
5. Pan Motor
3. Tilt Motor
6. microSD Card Slot
7. Low light Camera
8. Infrared Thermal Camera
9. Dimmable LED Flashlight
