SWELLPRO FPV Goggle Manuel utilisateur

SwellPro FPV Goggle

User Manual

Visit www.swellpro.com for the latest version of this manual and firmware updates for

your drone and accessories.

V1.0 –2021.05

2©2021 SwellPro

Contents
CONTENTS..............................................................................................2
PRODUCT OVERVIEW ..............................................................................3
In the Box..............................................................................................................................3
Product Diagram ...................................................................................................................4
Keys Description ...................................................................................................................5
OSD Interface........................................................................................................................6
OPERATION.............................................................................................6
Quick Start ............................................................................................................................6
Menu settings .......................................................................................................................7
Channel Searching ................................................................................................................7
Recording .............................................................................................................................8
Playback View.......................................................................................................................8
Deploy...................................................................................................................................9
SPECIFICATIONS...................................................................................10
List of channels................................................................................................................... 10
Specifications ..................................................................................................................... 10
Version Information............................................................................................................. 11




Product Overview

GL1 is the carefully crafted FPV Goggle by SwellPro. It features smooth, high-definition

wireless graphics transmission to give you an immersive fly experience. The modular,

easy-to-assemble design allows you to enjoy the visual experience in different forms.

More flight and operation guides are available on www.swellpro.com.

In the Box

FPV Goggle GL1 x1

5.8G Antenna x2

USB Charging Cable x1

Instruction Manual x1

Product Diagram

[1] Search/ Delete

[8] Record indicator

[2] Antenna ports: RP-SMA male

[9] Band adjustment / Forward

[3] Charging indicator

[10] Micro USB charging port

[4] Micro SD slot

[11] OFF

[5] Menu / Power

[12] Headphone jack

[6] Channel adjustment/Back

[13] Display module

[7] Record ON/OFF

[14] Headset module

Detach the displace and headset modules: hold displace module [13] tight with one of

your hands. Push down the headset module [14] using the other hand. The displace

module can be used separately on the remote control or a triple to your preference.

Keys Description

Search [1]

Automatic-searching: in preview, press the search key to search channels, the screen

will display "AUTO SEARCHING…", when the searching is complete, the screen will show

the channel information. If the display is flickering, press the Search key to search the

channels again until the display is clear and stable.

OFF [11]

Press the OFF key with a pin to power off when experiencing a system crash.

MENU / POWER [5]

Power ON/OFF: Press and hold the MENU key for 2 seconds to power on the device. To

power off the device, press and hold the MENU key for 2 seconds and the device is

going to shut down.

Menu: in preview, press the MENU key to enter the menu settings and then press the

MENU key to cycle through settings.

CH+ [6]

Channel adjustment: in the preview, press the CH+ key to turn the channel from CH-1 to

CH-8.

Decrease values: Under the menu settings, press the CH+ to decrease values.

Go back/play backward: in playback view, press CH+ to select the previous file. In video

playback, press the CH+ to play backward.

REC [7]

Recording: In preview, press REC to start recording and then press again to stop

recording.

Play/Pause: in video playback view, press REC to play and pause the video.

Band+ [9]

Band adjustment: in the preview, press Band+ to switch between bands A, B, E, F, and R.

Increase values: Under the menu settings, press Band+ to increase the value.

Next file/fast forward: in playback view, press Band+ to go to the next file. In video

playback, press Band+ to go fast forward.

OSD Interface

Preview Interface

[1] Wireless signal strength

[2] Channels

[3] Signal frequency

[4] Recording indicator

[5] Battery level

Operation

Quick Start

•Charge GL-1 with the included USB charging cable to fully charge (when

charging, the charging indicator turns red; when fully charge, and the charging

indicator turns green).

•Install 2 included antennas, if you need to record videos, install the memory card.

•Press and hold the Power key for 3 seconds to power on the device.

•Press the Search key to auto search and configure the channel.

Menu settings

In preview, press the MENU key to enter the menu settings, where you can configure

system settings. Press the MENU key to circle through different settings.

Playback view: under menu settings, press CH+ or Band+ to go to playback view to

browse the recorded videos.

Menu settings:

DVR

Brightness

Contrast

Color

Sharpness

Backlight

Volume

REC Size

VGA/D1/HD

REC Sound

On /OFF

REC Time

OFF/3min/5min/10min

Format

Language

Chinese / English

Default

Version

Channel Searching

If you don't know the exact channel of the

transmitter, in preview, press the Search

key to auto-search the channel.

Automatic search interface

If you know the exact channel of the

transmitter, in preview, adjust the band by

pressing the Band+ key, then press the CH+

key to find the exact channel.

Manual search interface

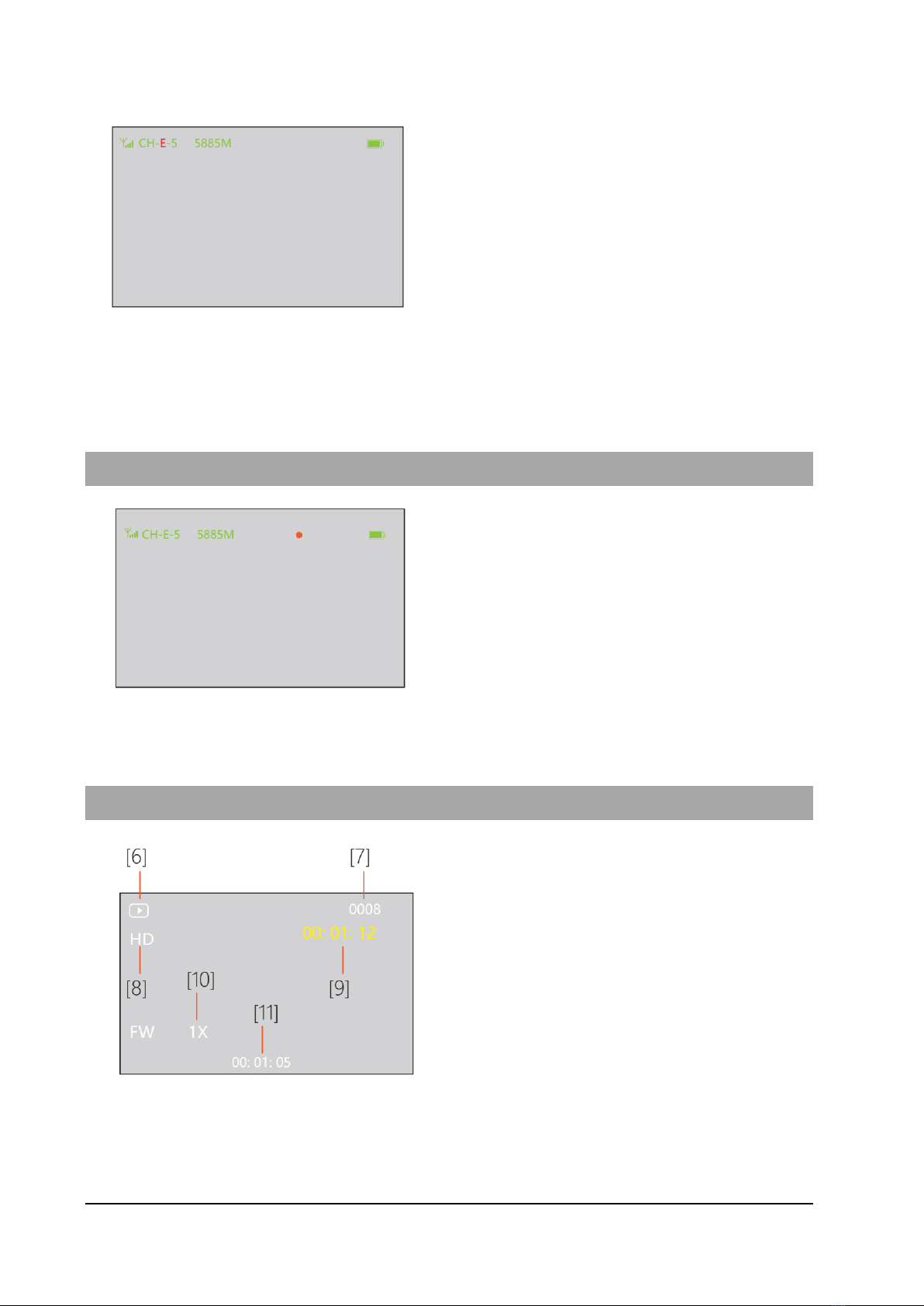

Recording

In preview, press REC to start recording, red

dot indicates recording is in process. Press

again to finish recording.

The recording interface

Playback View

[6] Playback mode

[7] File number

[8] File properties

[9] Video length

[10] Fast forward or backward

[11] Video timeline

Playback interface

Press MENU to enter the menu settings. On DVR, press CH+ to enter playback mode.

· Switch files: press CH+ to switch files.

· Delete files: press the Search key to pop up "Delete?", then press the Search key again

to confirm the deletion of the current file. If you want to cancel the deletion, press the

CH+ key to dismiss.

· Play/Pause: Press the REC key to start playing the video, press the REC key again to

pause.

· Fast forward/backward: press Band+ to play 1x, 2x, 4x, 8x forward. Press CH+ to play

1x, 2x, 4x, 8x backward.

Deploy

FPV Goggle Mode

Use the Goggle as a whole to get the

immersive FPV flight experience.

Remote Control Stand

Detach the display module from the

headset. The display module can be

mounted to the remote control using the

FD1 remote control connector.

Tripod Mode

The displace module can also be mounted

to any tripod using the M6 tripod screw.

Specifications

List of channels

Unit: MHz

Band

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

5865

5845

5825

5805

5785

5765

5745

5725

5733

5752

5771

5790

5809

5828

5847

5866

5705

5685

5665

5645

5885

5905

5925

5945

5740

5760

5780

5800

5820

5840

5860

5880

5658

5695

5732

5769

5806

5843

5880

5917

Specifications

GL1

Screen Size

Resolution

800*480

Display Ratio

16:9

Brightness

300 cd/m²

Transmission Delay

Less than 20ms

Lens

8x Fresnel lens with a transmittance of 92%.

Antenna

RP-SMA male x2

USB

Charging only (max current is 500mA).

Card Slot

TF card with a maximum storage of 64G (C10 recommended).

Recording Resolution

VGA/D1/HD configurable

REC Sound

ON/OFF

Recording time

OFF/3min/5min/10min

Frame rate

30 fps

Compression format

MJPEG

Video Format

AVI

Language

English / Chinese

Charging

DC 5V/2A

Battery

3.7V/2000mAh

DVR on: battery life is approximately 2.5 hours

DVR off: battery life is approximately 3.5 hours

Power

Preview mode: The device operates at 3.7V, 400mA

REC mode: The device operates at 3.7V, 620mA

Dimensions

180mm * 140mm * 84mm

Weight

About 393 g
