Sven RX-G955 Manuel utilisateur

www.sven.ﬁ

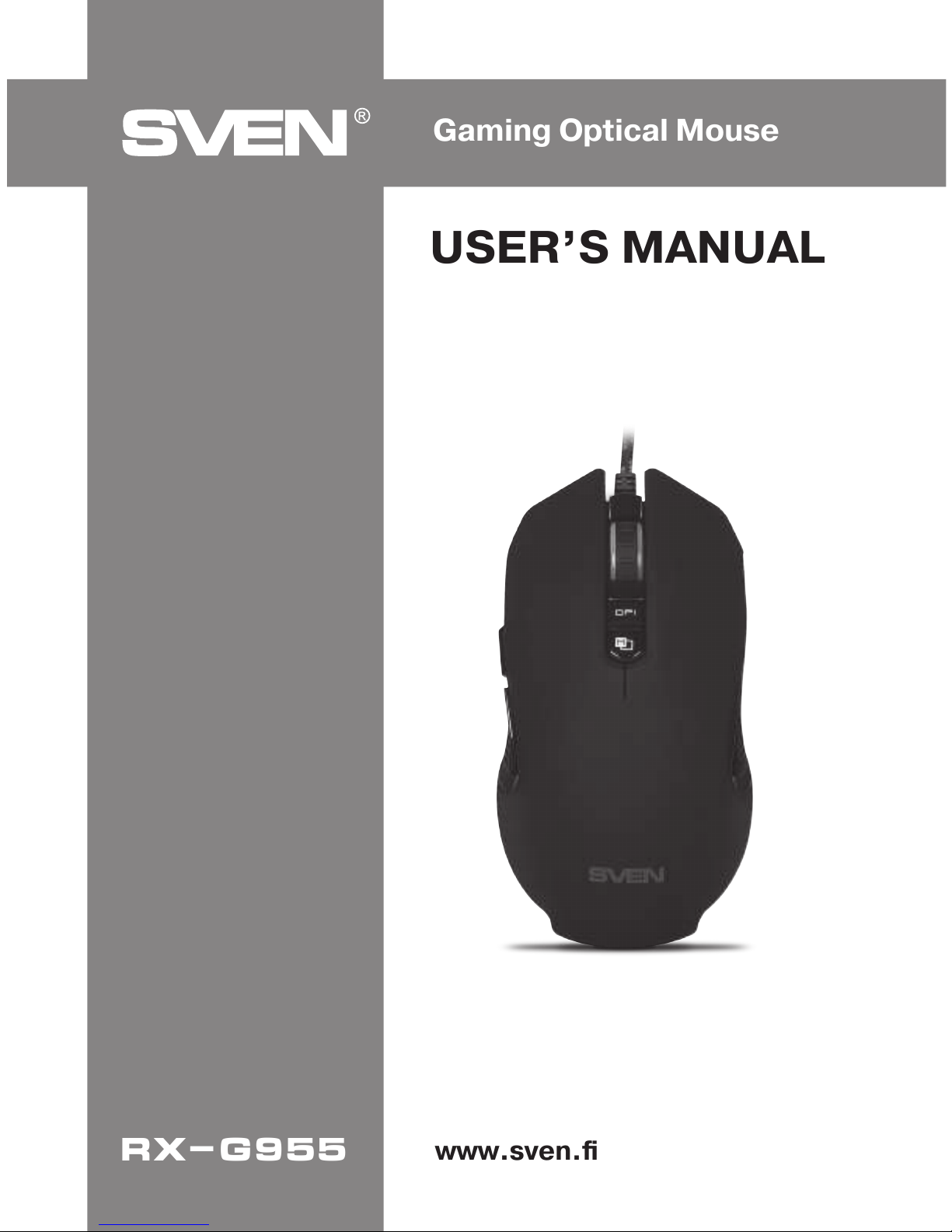

USER’S MANUAL

Gaming Optical Mouse

RX-G955

Congratulations on your purchase of the Sven mouse!

Please read this User’s Manual before using the unit and retain this User’s

Manual in a safe place for future reference.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted eﬀorts to make this Manual more exact, some dis-

crepancies may occur. The information of this Manual is given on “as is” terms.

The author and the publisher do not bear any liability to a person or an

organization for loss or damages which have arisen from the information

contained in the given Manual.

BUYER RECOMMENDATIONS

• Shipping and transportation equipment is permitted only in the original

container.

• Does not require special conditions for realization.

• Dispose of in accordance with regulations for the disposal of household and

computer equipment.

APPOINTMENT

RX-G955 gaming mouse is an input device. It is designed for entering

(entering) information into the computer, as well as controlling the operation of

the computer.

PACKAGE CONTENTS

• Gaming mouse — 1 pc

• Operation Manual — 1 pc

• Warranty card — 1 pc

ENG

Gaming Optical Mouse

SPECIAL FEATURES

• Optical sensor Avago 3050

• Non-slip coating Soft Touch

• Programmable buttons

• Braided cable

• Acceleration to 20G

• RGB backlight

• Polling rate up to 1000Hz / Response rate up to 1ms

SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8/10.

• Free USB port.

PREPARATION TO WORK

• Connect the gaming mouse to an available USB connector on the PC.

• After connecting to the USB port, the PC will automatically recognize the

device.

• To use the built-in mouse memory, adjust the buttons and backlight, you

need to install the software (downloaded from the website www.sven.ﬁ).

Connect the mouse to the free USB port of your PC, run the previously

downloaded SVEN RX-G955.exe ﬁle to install the driver, follow the installer’s

advice.

• After installation, the program will automatically detect the presence of the

mouse. You can call up the control window using the icon in the taskbar or in

the Windows system tray. The program is completely in English, although it

requires special knowledge of the language – a person more or less familiar

with computer technology will not be diﬃcult to understand.

RX-G955

ENG

User’s Manual

Key Assignments and Mouse Settings

The "Key Setting" ﬁeld is used to conﬁgure the basic mouse functions, for

maximum convenience in the game.

Initially, all mouse buttons are set to their default settings. However, the user

can change the keys functions. The only key that can not be reassigned is the

key with the number 7 "Switch mode" (not active, highlighted in gray),

switching modes "Mode1", "Mode2", "Mode3". You can reassign the buttons

by clicking on the menu items, thus pop-up menu, in which you can redeﬁne

the keys, assign a macro (pre-conﬁgured shortcut options), bind buttons to

the multimedia button.

Key Assignment ��

• Left Button – left mouse button

• Right Button – right mouse button

• Middle Button – mouse wheel button

• Forward – next browser page

• Back – previous browser page

• DPI – submenu, DPI + (resolution increase), DPI- (decrease resolution), DPI

Loop (change resolution cyclically)

ENG

Gaming Optical Mouse

• Three click – press the button three times

• Multimedia – opens a submenu. The standard

commands for managing the media player are

collected (detailed description below)

• Fire key – selection of hot keys

• Key combination – key combination

• Macro – setting up macro commands

• DPI Lock – allows you to select the resolution

of the sensor (DPI) from 400 to 4000 from the

pop-up list. Holding the button, during the game,

will switch the resolution of the mouse, which

allows you to more accurately aim at shooting,

for example from a sniper riﬂe

• Disable – resets all default settings

"Multimedia" settings

This section allows you to conﬁgure the controls for

playing multimedia objects. If you select "Multime-

dia", a submenu appears. The following are the

controls that it includes.

• Media Player – launches a media player.

• Play/Pause – starts / stops the playback of the

media ﬁle.

• Next – go to the next track.

• Previous – go to the previous track.

• Stop – stops the playback of the media ﬁle.

• Mute – turn oﬀ the sound.

• Volume up – increase the volume.

• Volume down – decrease the volume.

• Email – starting the mail client.

• Calculator – start the calculator.

• Explorer – launch My Computer.

• Home page – open the browser (if not open),

if the browser is open, then opens the home page.

ENG

User’s Manual RX-G955

"Fire key" settings

The "Fire key" parameter allows you to assign keyboard functions, mouse

buttons. To select a keyboard key, click the area with the letter "A", select

"Keystroke", a window will appear in which all keystrokes will be displayed. You

can also adjust the input speed and the number of symbol repetitions.

"Key combination" settings

The keyboard shortcuts speed up the work and allows you to send a

combination of pressed buttons on the keyboard in one click. Enter a

combination of keys from the keyboard (one or more) in the "Tips" window,

then press "OK", and the mouse button performs the function of key

combination from the keyboard.

ENG

Gaming Optical Mouse

Mouse response setting

This parameter allows you to adjust the speed of

moving the pointer on the screen, the speed of

scrolling and the speed of double-clicking.

• Report Rate – in the mouse response speed

setting area, the user can choose how many times

per second the mouse will inform the operating

system of its position – 125, 500, 1000 Hz.

• Mouse sensitivity – a measure of how fast your

cursor moves (sight). Setting the checkbox

"Improve pointer precision", allows increasing the

accuracy of the pointer (sight).

• Scrolling speed – the speed of scrolling the

contents of the window with the mouse wheel,

setting the "Scroll one page" checkbox allows you

to scroll the contents on a page by page.

• Double-click speed – the double-click speed.

Backlight control and sensor resolution (DPI)

The "Advanced" tab allows you to adjust the resolution of the sensor (DPI) by

moving the slider to the left or right, the color in the box corresponds to the

resolution of the sensor, clicking on the color squares allows you to highlight

the color of the mouse wheel illumination. In the "LED" area, you can adjust

the brightness and mouse backlight modes.

In the "LED" area, you can select the mouse backlight mode. Only four modes:

"Steady" – constantly lit with one color; "Breathe" – breathable mode: the

brightness changes smoothly, the brightness change speed can be set to

4.6,8 seconds; "Neon" – the breathing mode in combination with the change

of colors; "OFF "– turn oﬀ the backlight.

ENG

User’s Manual RX-G955

ENG

Gaming Optical Mouse

Macro tab

The "Macros" tab allows you to create exact sequences of keystrokes and

buttons. This tab also allows you to conﬁgure macros and super-long macros

for the right tasks. Assigning a macro to a key allows you to easily perform

complex operations.

To create a macro, click the "New macro" button, enter any macro name in the

opened window and click "OK". The name of the entered macro appears in the

"Macro list" window, the names of the macro commands are created in a

similar way. Then in the "Macro list" window select the macro name with the

mouse from the list and click the "Start record" button. Then you must

successively press the key combination, the pressed keys will be displayed in

the "Key list" window. To end the recording, click the "Stop record" button.

PROFILE

The proﬁle is a convenient way to organize all user settings, allows you to

quickly change and immediately load all pre-conﬁgured settings. When

selecting the proﬁle switching function ﬁve proﬁles are available:

1. Click button with Proﬁle name: “Proﬁle1” – “Proﬁle5”.

2. Set up required mouse settings.

3. Click “Apply” button and your Proﬁle will be saved

Parameter, measurement unit

OS compatibility

Type of mouse

Resolution, dpi

Q-ty of buttons

Interface

Conformity with

Сable length, m

Dimensions, mm

Weight, g

Value

Windows XP/Vista/7/8/10

optical

600/800/1000/1200/1600/1800/

2000/2600/3000/3600/4000

7 + 1 (scroll wheel)

USB

FCC, CE, ЕАС

127 × 40 × 67

148

ENG

User’s Manual RX-G955

Technical support is on www.sven.ﬁ.

Notes:

• Technical speciﬁcations given in this table are supplemental information and

cannot give occasion to claims.

• Technical speciﬁcations are subject to change without notice due to the im-

provement of SVEN production.

TECHNICAL SPECIFICATIONS

TROUBLESHOOTING

Problem

The mouse is not

working.

Solution

1. Disconnect the mouse from the PC and check

connector pins for possible damage. If there is no

external damage found and connector pins are OK,

connect the mouse to the PC.

2. Address your nearest authorized service center.

Model:

RX-G955

Импортер в России: OOO «РЕГАРД», 109052,

РФ, г. Москва, ул. Нижегородская, д. 86, корп. Б.

Уполномоченная организация в России:

ООО «РТ-Ф», 105082, г. Москва, ул. Фридриха

Энгельса, д. 75, стр. 5.

Условия гарантийного обслуживания смотрите

в гарантийном талоне или на сайте www.sven.ﬁ.

Гарантийный срок: 12 мес. Срок службы: 2 года.

Производитель: «СВЕН ПТЕ. Лимитед»,

176 Джу Чиат Роуд, № 02-02, Сингапур, 427447.

Произведено под контролем «Свен Скандинавия

Лимитед», 48310, Финляндия, Котка,

Котолахдентие, 15. Сделано в Китае.

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,

№ 02-02, Singapore, 427447. Produced under the

control of Oy Sven Scandinavia Ltd. 15, Kotolah-

dentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.

Gaming Optical Mouse

RX-G955
