Sharkoon FireGlider Manuel utilisateur

RUSH FIREGLIDER/FIREGLIDER BLACK

Manual

RUSH FIREGLIDER/FIREGLIDER BLACK

ENGLISH

Content

1. Features

2. Speciﬁcations

3. Package content

4. The Mouse at a glance

5. Connecting to a PC

6. Installing the software

7. The mouse editor

7.1 Launching the mouse editor

7.2 The user interface (main window)

7.3 The further menus

7.3.1 DPI settings

7.3.2 Pulldown menus

7.3.3 Mouse gestures

7.3.4 Macro manager

7.3.4.1 Overview

7.3.4.2 The tabs “Loop”, “Key”, “If” and

“Equ”

7.3.4.3 Command icons

7.3.4.4 The record function

7.3.4.5 Macro play back mode

7.3.4.6 Time control

7.3.4.7 Absolute/relative movements

7.3.5 Further functions

RUSH FIREGLIDER/FIREGLIDER BLACK

ENGLISH

Dear customer!

Congratulations for purchasing one premium quality

SHARKOON product.

For a long life time and to take full advantage of this product we

recommend that you read this manual completely.

Have a good time with our product!

SHARKOON Technologies GmbH

1. Features

• Lasermousewith7buttons(6ofthemfreely

programmable)

• DPIswitchwithcolordisplay(6steps)

• Weighttuningsystem(max.19.5g)

• On-boardmemoryformacros

• Smoothrunningandnelyadjustablescrollwheel

• Ergonomicdesignforconvenienthandling

• Specialgripareasoffermaximumcontrol

• Idealforprofessionalapplicationsandgaming

• Supportedoperatingsystems:Windows2000,XP,

 XP(x64)andVISTAx86

2. Speciﬁcations

Max.DPI/CPI:   3600

DPI/CPIstepping:  100–400–600–800–1200–1600–2000

      –2500–3600

Max.acceleration: 20G

Mouseweightmax.: 135g

Mouseweightmin.: 118g

Lasersensor:   AgilentADNS-6010

Connector:   USB(cablelength:1.8m)

Powerinput:   5V-60mA

RUSH FIREGLIDER/FIREGLIDER BLACK

ENGLISH

3. Package content

• RushFireglider

• CDwithsoftwareandmanual(asPDF)

Note:

If you are missing any of the items listed above, please contact

customer service via e-mail at suppor[email protected] or call:

+ 49 (0) 6403 – 775 6100

4.The mouse at a glance

A – Button1:leftmousebutton

B – Button2:double-clickbut-

ton (freely programmable)

C – Button3:rightmousebut-

ton (freely programmable)

D – Button4:middlemouse

button and scroll wheel

(freely programmable)

E – Button5:DPIselector

(freely programmable)

F – Button6:freelyprogram-

mable

G – Button7:freelyprogram-

mable

Caution laser!

Avoid direct eye contact with the laser beam!

RUSH FIREGLIDER/FIREGLIDER BLACK

ENGLISH

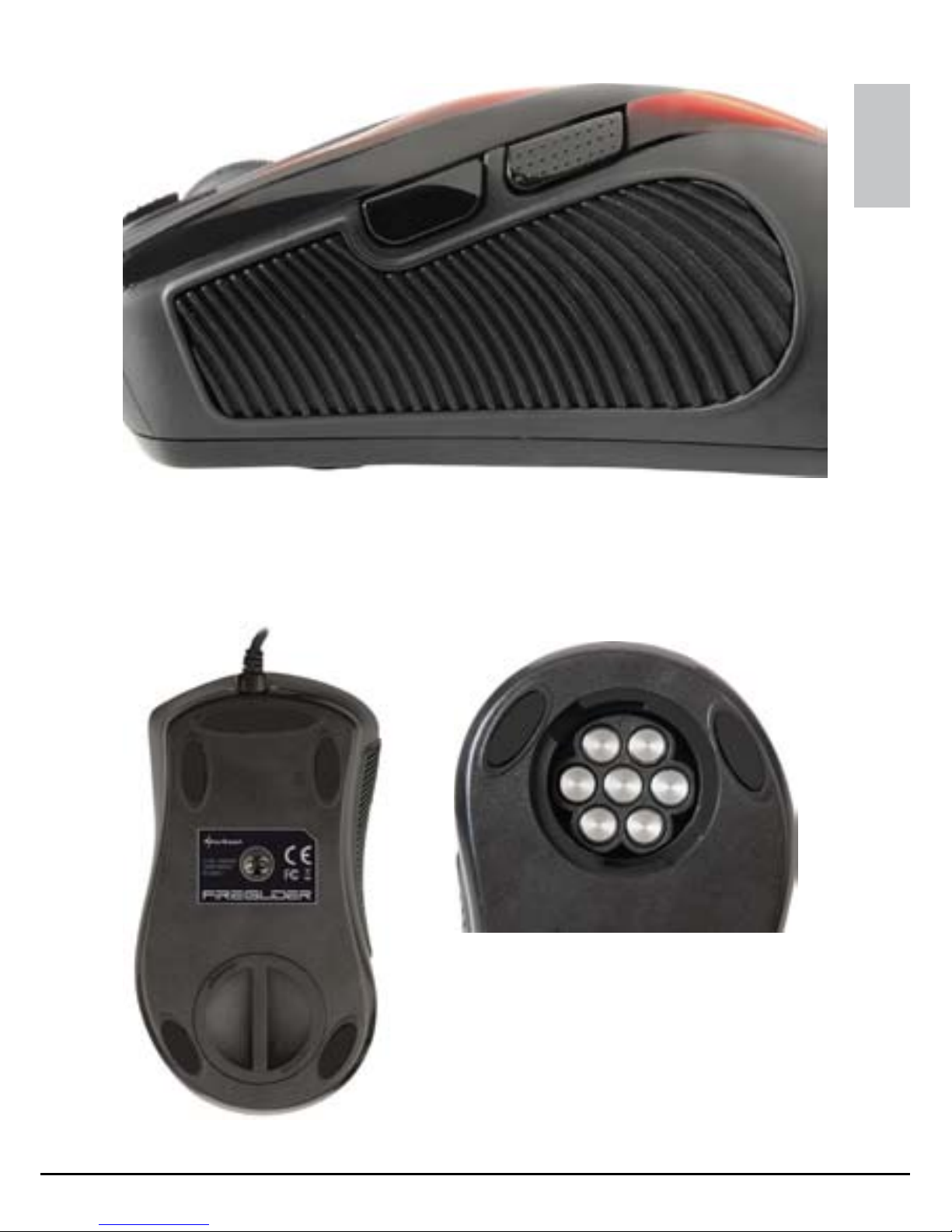

A – Button6:freelyprogrammable

B – Button7:freelyprogrammable

C – Griparea

A – Weighttuningsystem

  (max.19.5g)

B – Mouseslides

RUSH FIREGLIDER/FIREGLIDER BLACK

ENGLISH

5. Connecting to a PC

1. Plug the mouse’s USB connector to an available USB

connector of your PC.

2. The operating system will automatically recognize the mouse

and install all needed drivers.

3. If your mouse is not recognized, disconnect it and try

 anotherofyourPC’sUSBconnectors.

6. Installing the software

1. Before installing the included software, remove all other

installed mouse software from your system.

2. PuttheincludedToolsCDintoyourCD/DVDdrive.

3. OpentheCD/DVDdrive’sfolder(e.g.D:).

4. Choose the directory “MouseGeneral…” and start

 “setup.exe”(g.1).

5. TheInstallShieldWizardwillbelaunched(g.1).

ﬁg. 1

 Continuebyclicking“Next”orpress“Cancel”toabortthe

installation.

RUSH FIREGLIDER/FIREGLIDER BLACK

ENGLISH

6. Start the installation process by clicking “Install” (ﬁg. 2).

 “Back”bringsyoutothepreviouswindow,“Cancel”stops

the installation process.

7. After the installation is successfully completed, the following

window will be displayed (ﬁg. 3).

ﬁg. 3

ﬁg. 2

RUSH FIREGLIDER/FIREGLIDER BLACK

ENGLISH

 Bychoosing“LaunchMouse Editor” the mouse editor will

be launched right after completing the installation process

by clicking “Finish”.

7. The mouse editor

7.1 Launching the mouse editor

1. Start the application by double-clicking the symbol on the

desktop or the respective icon in the task bar (ﬁg. 4).

ﬁg. 4

RUSH FIREGLIDER/FIREGLIDER BLACK

ENGLISH

7.2 The user interface (main window)

A – Filemenu:seebelowg.5

B – Prole menu: 2 scripts can be stored on the mouse’s

internal memory, select them from the dropdown menu

(ﬁg. 6)

C – Minimizewindow

D – Closewindow/application

E – Buttonconguration:differentfunctionsmaybeassig-

ned to all the mouse buttons, select the functions from

the respective dropdown menu (see below 7.3.2)

F – Function description: use this text area to describe the

respective button’s function

G – Byclickingthisbuttontransferalladjustmentsmadein

the mouse editor to the mouse

A B

RUSH FIREGLIDER/FIREGLIDER BLACK

ENGLISH

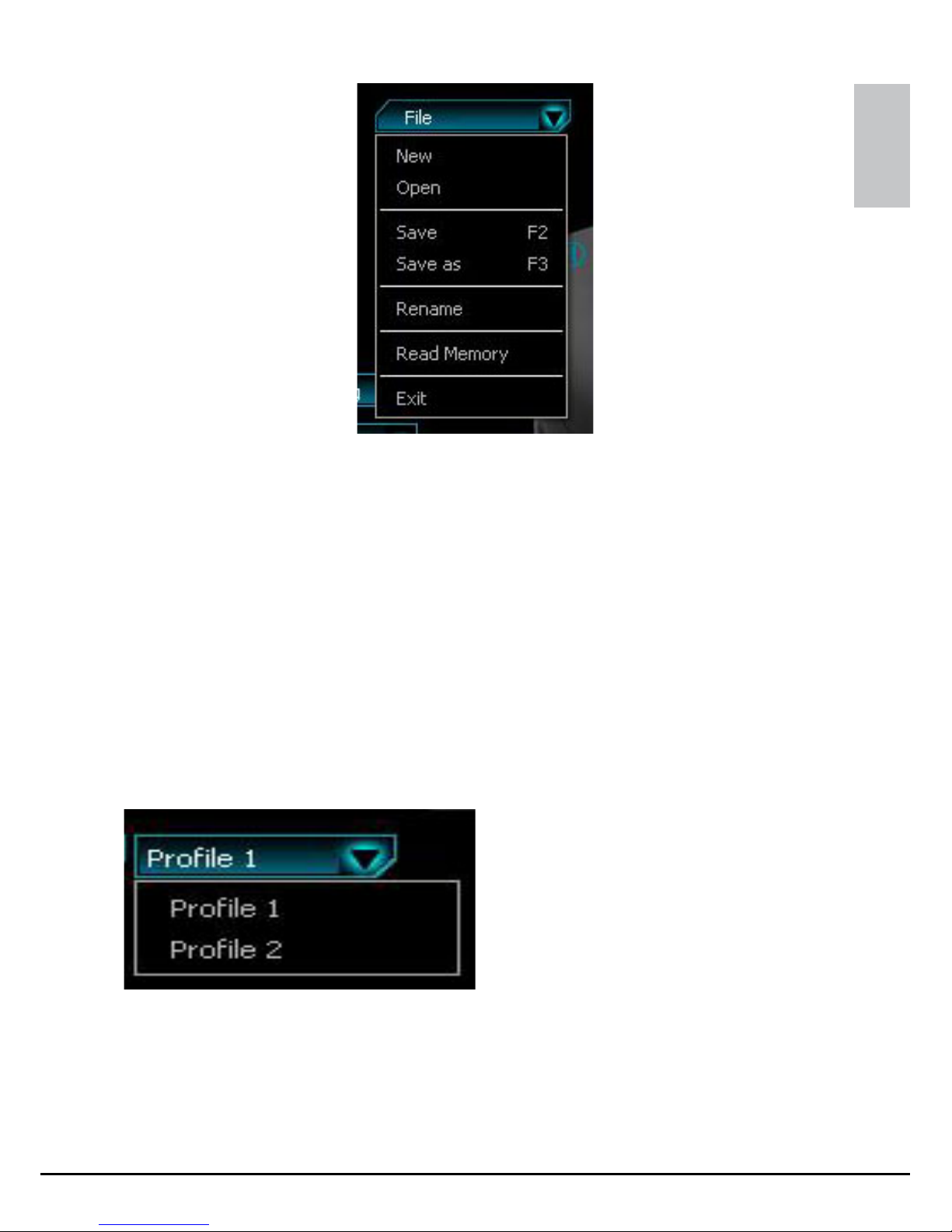

ﬁg. 5 (ﬁle menu)

ﬁg. 6 (proﬁle menu)

New   – createsanewprole

Open   – opens/loadsanexistingprole

Save   – saves the current prole under its existing

name

Saveas  – savestheproleunderanewname

Rename  – changestheprole’sname

Readmemory– reads the current prole from the internal

mouse memory

Exit   – closestheapplication

Open the list by clicking the ar-

row.

Select between Proﬁle 1 and

Proﬁle 2.
