Sven RX-G850 Manuel utilisateur
www.sven.fi
USER’S MANUAL
Gaming Mouse
RX-G850
ENG
2
Gaming Mouse
Congratulations on your purchase of the Sven mouse!
COPYRIGHT
© SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights
reserved.
TRADEMARKS
All trademarks are the property of their legal holders. The information of this
Manual is given on “as is” terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damages which have arisen
from the information contained in the given Manual.
BUYER RECOMMENDATIONS
• Shipping and transportation equipment is permitted only in the original
container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and
computer equipment.
APPOINTMENT
RX-G850 gaming mouse is an input device. It is designed for entering
(entering) information into the computer, as well as controlling the operation
of the computer.
PACKAGE CONTENTS
• Gaming mouse — 1 pc
• Operation Manual — 1 pc
• Warranty card — 1 pc
SYSTEM REQUIREMENTS
• ОS Windows
• Free USB port
Technical support is on www.sven.fi.
ENG
3
Rx-G850
User’s Manual
PREPARATION TO WORK
• Connect the gaming mouse to an available USB connector on the PC.
• After connecting to the USB port, the PC will automatically recognize the
device.
• To use the adjust the buttons and backlight, you need to install the
software (downloaded from the website www.sven.fi). Run the previously
downloadedfile to install the driver, follow the installer’s advice.
• After installation, the program will automatically detect the presence of the
mouse. You can call up the control window using the icon in the taskbar or in
the Windows system tray.
KEY ASSIGNMENTS AND MOUSE SETTINGS
“Profile 1” and “Profile 2” are used to adjust the basic functions of the
mouse, for maximum convenience in the game. Initially, all mouse buttons
have default settings (as shown below). However, the user can change the
functions of these keys.
You can reassign mouse buttons by clicking in the box to the left of menu
items, thereby causing a context menu where you can override keys, assign
a macro (pre-configured keyboard shortcuts), assign a multimedia key to a
function (volume control, volume control, mute volume control).
Warning!
The row under number 1 (Left Key) can be reassigned to another function only
if the function (Left Key) is assigned to another key, otherwise the software
will produce an error message.
ENG
4
Gaming Mouse
Save and reset settings
The “RESET” button resets the settings. The “APPLY” button saves the
settings.
Switching between Profile 1/Profile 2
This mouse has the ability to switch between modes A and B. For example,
in “Profile 1”, standard mouse buttons are assigned, and in “Profile 2” you
can assign multimedia commands.
Default button assignments
1. Left Click – left mouse button
2. Right Click – right mouse button
3. Fire Key – mouse wheel button
4. Wheel Click – mouse wheel button
5. DPI + – DPI increase
6. DPI - – DPI reduction
7. Forward – next browser page
8. Backward – previous browser page
Changing key functions
Button functions can be changed to a different value.
The numbering of the mouse keys corresponds to the
list numbers on the left. By clicking on menu items, you
can call up a menu with reassignable features.
• Button – standard mouse key.
• Advance – special mouse functions.
•DPI – DPI resolution changes.
•Fire Key – to emulate left-clicking with
advanced settings.
•AIM – long press this button to set the
minimum DPI resolution, it is convenient for
precise aiming in games.
•LED Switch – changing backlight.
•LED ON/OFF – turning on/off the back-
light.
•Profile Switch – switches between
“Profile 1” and “Profile 2”, modes,
provided that in “Profile 2”, the command
“Profile 1” is assigned to the same button.
ENG
5
Rx-G850
User’s Manual
•Disable – key off.
• Media – media player functions.
•Play/Pause – Play/Pause.
•Stop – stop.
•Previous Track – previous track.
•Next Track – next track.
•Volume + – volume increase.
•Volume - – volume decrease.
•Mute – mute.
• Website – browser functions.
•Home – home page.
•Search – search.
•Backward – previous browser page.
•Forward – next browser page.
•Stop – stop download.
•Refresh – refresh.
•Favorites – favorites.
• PC – PC functions.
•My Computer – My Computer.
•Calculator – calculator.
•Desktop – desktop.
• Customise – user key, you can set any key or combination from the keyboard
“Ctrl”, “Shift”, “Alt”, “Win” and any button.
• Macro – setting up macro commands.

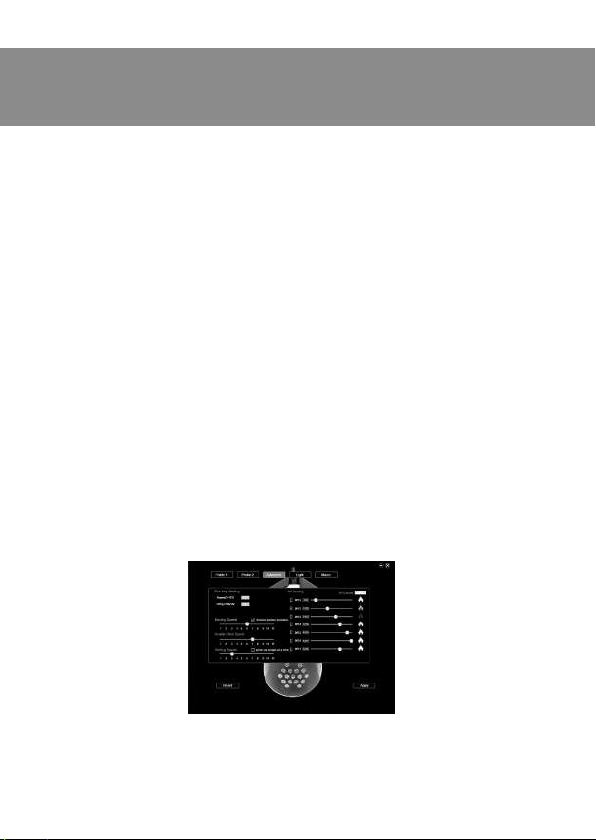

Tab “Advanced”
ENG
6
Gaming Mouse
• Fire Key Setting – “Fire Key” button settings. “Repeat” specifies the
number of repetitions when you press a key. “Firing Interval” – click interval.
• Moving Speed – cursor speed control. A tick is installed “Enhance pointer
precision” increases the accuracy of the mouse pointer.
• Double click speed – double click speed.
• Rolling Speed – rolling speed. A tick is installed “Scroll one screen at a
time” scrolls the page at once.
• DPI Setting – DPI setting. Clicking on the image “Torch”, you can select the
DPI mode illumination color.
Tab “Light”
• LED Status –turning on/offff the backlight.
• LED Brightness –backlight brightness full/half.
• LED Mode –mouse backlight modes.
• Breathing Speed –speed control for changing modes.
Macro editor
A macro is a sequence of events, consisting of pressing and releasing the
keyboard keys, mouse buttons, and the time intervals between them.
Macro editor is split into two parts. In tht “Macro List” area there is a list of
macros and in tht “Content”, area a list of commands of the selected macro
is displayed.
ENG
7
Rx-G850
User’s Manual
• Creating a macro name
Hover your mouse over the “Macro List”,right-click, select “New Macro”.
In the “Macro Name”, window, enter macro name and click “OK”. The
macro name will appear in list.
Macro recording
Click on the macro name “Macro List” –row with the name under it glows in
blue. Press “Record”, key, then you can type a sequence of characters from
the keyboard, if necessary, you can also emulate the click of a mouse button.
“Stop” button stops recording commands.
• More options for macros
In the lower right corner, there are options for latency and macro responses
to pressing macro button.
•Record Delay –delay between commands will be generated by the duration
of pressing a key at the command recording stage.
•Delay Setting – delay is entered in ms (milliseconds).
•No Delay – no delay between commands.
•Stop until the key release – entering macro will continue until the macro
button is pressed.
•Stop after the macro is over – stop will only occur after the macro command
is fully entered.
ENG
8
Gaming Mouse
TECHNICAL SPECIFICATIONS
Parameter, measurement unit Value
Q-ty of buttons 7 + 1 (scroll wheel)
OS required Windows
Interface USB
Resolution, DPI 500-6400
Сable length, m 1.8
Dimensions, mm 128*66*42
Weight, g 136
Notes. Technical specifications given in this table are supplemental
information and cannot give occasion to claims. Technical specifications
and package contents are subject to change without notice due to the
improvement of SVEN production.
Gaming Mouse
RX-G850
Model: RX-G850
Импортер в России: OOO «Регард», 105082,
г. Москва, ул. Фридриха Энгельса, д.75, стр. 5.
Уполномоченная организация в России:
ООО «РТ-Ф», 105082, г. Москва, ул. Фридриха
Энгельса, д. 56, стр. 1. Условия гарантийно-
го обслуживания смотрите в гарантийном
талоне или на сайте www.sven.fi. Гарантий-
ный срок: 12 мес. Срок службы: 5 лет.
Производитель: «СВЕН ПТЕ. Лимитед», 176
Джу Чиат Роуд, № 02-02, Сингапур, 427447.
Произведено под контролем «Свен Сканди-
навия Лимитед», 48310, Финляндия, Котка,
Котолахдентие, 15. Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat
Road, № 02-02, Singapore, 427447.
Produced under the control of Oy Sven Scan-
dinavia Ltd. 15, Kotolahdentie, Kotka, Finland,
48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
