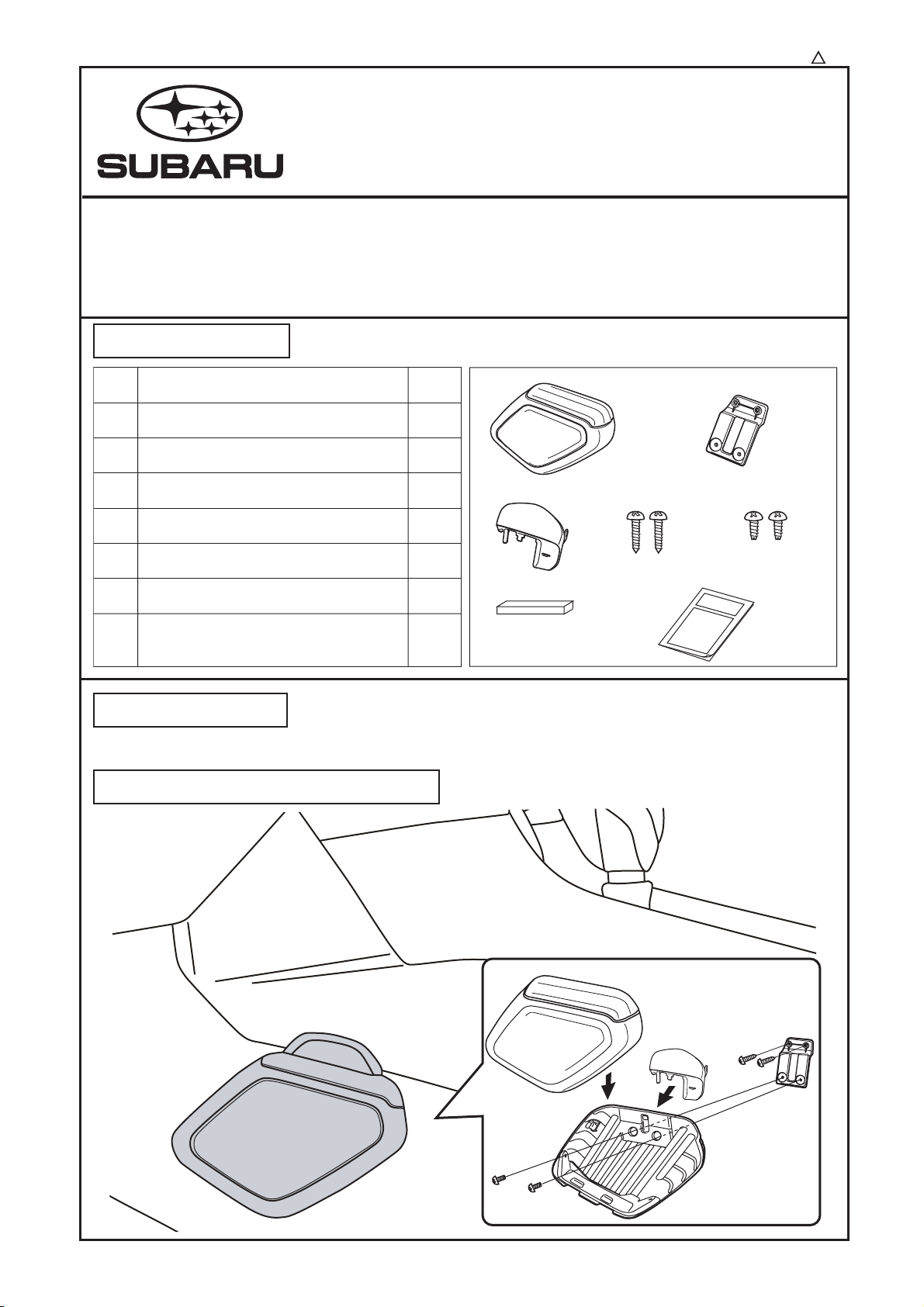

Subaru J2010FL020 Manuel utilisateur

Genuine Part Number: J2010FL020

Target Vehicles:

Component Parts

Installation Tools

Electric drill ( 5.5),Cross head screwdriver,Marker,Scissors,Kevlar gloves,Cutter,Tape

Installation Completion Drawing

GARBAGE BOX

No.

(1)

(2)

(3)

(4)

(5)

(6)

Garbage box(box and back panel)

Bracket

Garnish

Screw M5x20

B1 Screw M5x10

Sealer 13x110

Quantity

Part Name

(7)

Installation Instruction,and

Pattern Paper

(1) (2)

(3) (5)

(6) (7)

(4)

IMPREZA(from October 2016)

SUBARU XV(from April 2017)

FORESTER(from July 2018)

Installation Manual

FJ-

㸰

Installation procedure for

IMPREZA (from October 2016),

SUBARU XV(from April 2017),

FORESTER(from July 2018)

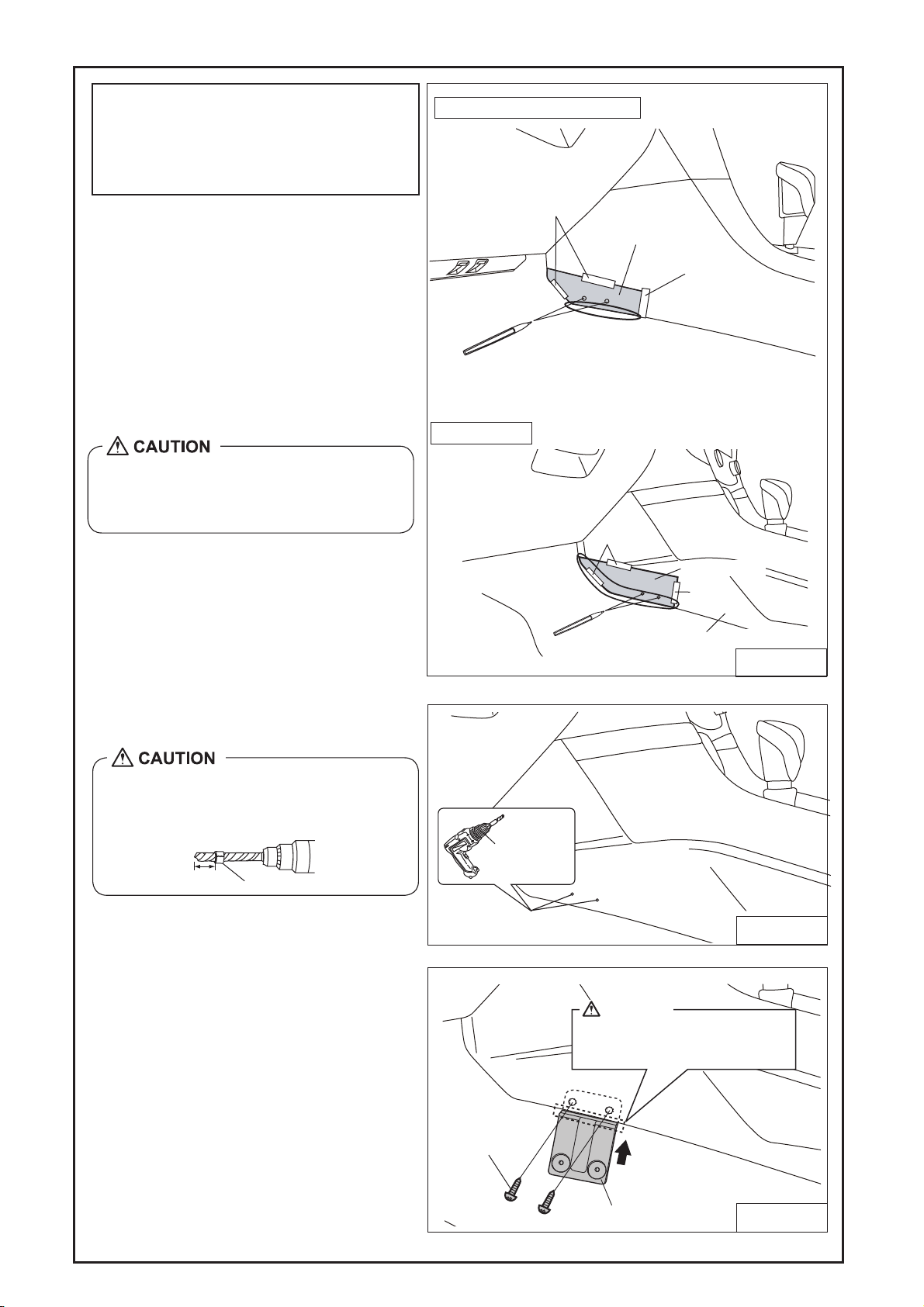

1. Cut out the pattern papers, attached

to the owner’s manual and installation

manual, along the cut line.Use each

corresponding pattern paper as follows:

IMPREZA and SUBARU XV on page 5,

and FORESTER on page 6.

2. As shown in the illustration to the

right, align the pat ter n paper with

t h e s i d e p a n e l , a n d s e c u r e w i t h

tape. T h en, m ake a mar k at each

m a r k e d l o c a t i o n w i t h a m a r k e r.

(Fig. 1)

As shown in the Fig. 1, make sure to align

the lower end of the pattern paper, indi-

cated with an oval, with the lower edge of

the side panel.

3. Remove the pattern paper, and drill a

hole at each marked location. (Fig. 2)

Be sure to attach a stopper to the drill bit

to prevent it from penetrating through the

product. Set the length between the stop-

per and the drill tip at approx. 5mm.

5mm Stopper

4. Inse r t th e (2) bra cket b et ween th e

s i d e p a n e l a n d t h e f l o o r c a r p e t ,

and align the holes. Then, secure

with the (4) screws M5x20 (2 pcs.).

(Fig. 3)

Fig. 1

Side panel

Floor carpet

(2)Bracket

(4)Screw M5x20

FORESTER

Tape

Side panel

Maker (Mark x 2)

Pattern paper

ᅗ㸫㸱

ࢧ࢖ࢻࣃࢿࣝ

ࣇࣟ࢔࣮࢝࣌ࢵࢺ

ղࣈࣛࢣࢵࢺ

մࢺࣛࢫࢱࢵࣆࣥ㸰

㸦㹋㸳㸰㸮㸧

ࣈࣛࢣࢵࢺ࡜ࢧ࢖ࢻࣃࢿࣝ➃ᮎ࡟

㝽ࡀ↓࠸஦ࢆ☜ㄆࡋ࡚ࡃࡔࡉ࠸ࠋ

㝽ࡀ࠶ࡿ࡜ࠊᮏయྲྀ௜ᚋ࡟ࢢࣛࡘࡃ

ྍ⬟ᛶࡀ࠶ࡾࡲࡍࠋ

㸟ὀព

Electric drill

Drill 2 holes (φ5.5)

Check that there is no gap between the

bracket and the edge of the side panel.

Leaving a gap can cause the product to

come loose after installation.

CAUTION

Fig. 2

Fig. 3

Side panel

Pattern paper

Tape

IMPREZA and SUBARU XV

Maker (Mark x 2)

㸱

Fig. 6

Fig. 5

Fig. 7

(3)Garnish

Groove

(1)Box

(1)Back panel

Support

Rib

Side panel

9. (3)Garnish

(6)Sealer

(1)Back panel

Hang on the

back of the

side panel.

(1)Back panel

(5)B1 Screw x 2(M5x10)

Cross section a-a

8. Apply the (6) sealer to the upper part

of the underside of the (3) garnish.

(Fig. 5)

Apply the sealer so that it does not show

from the upper part of the garnish.

9. Install the (3) garnish to the (1) back

panel. (Fig. 6)

10.H a n g t h e ( 3) g a r n i s h r i b o n t h e

back of t he sid e panel, an d align

the holes in the (1) back panel and

the (2) bracket. Then, secure with

the (5) B1 screws M5x10 (2 pc s.).

(Fig. 6)

11. Align the groove on the (1) box with the

support of the (1) back panel, and press

on the (1) box to the (1) back panel.

(Fig. 7)

Aligning the groove with the support

back panel. Do not use excessive force.

This can result in damage to the product.

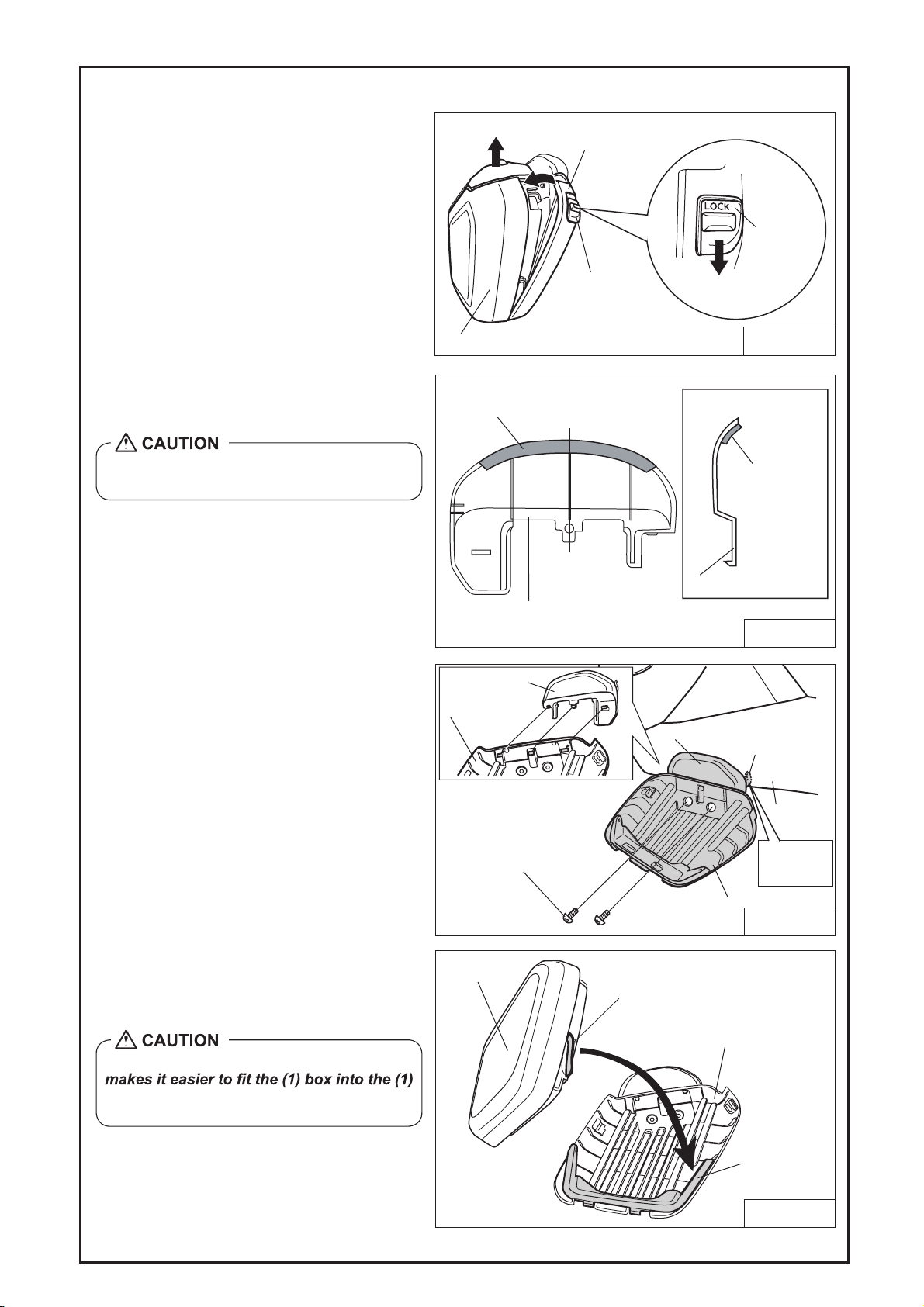

5. With the (1) box cover closed, slide the

lock button down until it clicks to unlock.

(Fig. 4)

6. Open the (1) box. (Fig. 4)

7. Raise the box to remove it. (Fig. 4)

Fig. 4

5.Unlock

Lock button

(1)Box

(1)Back panel

㸲

Fig. 8

Lock button

Press fit

(1)Box

Lock

Lock button

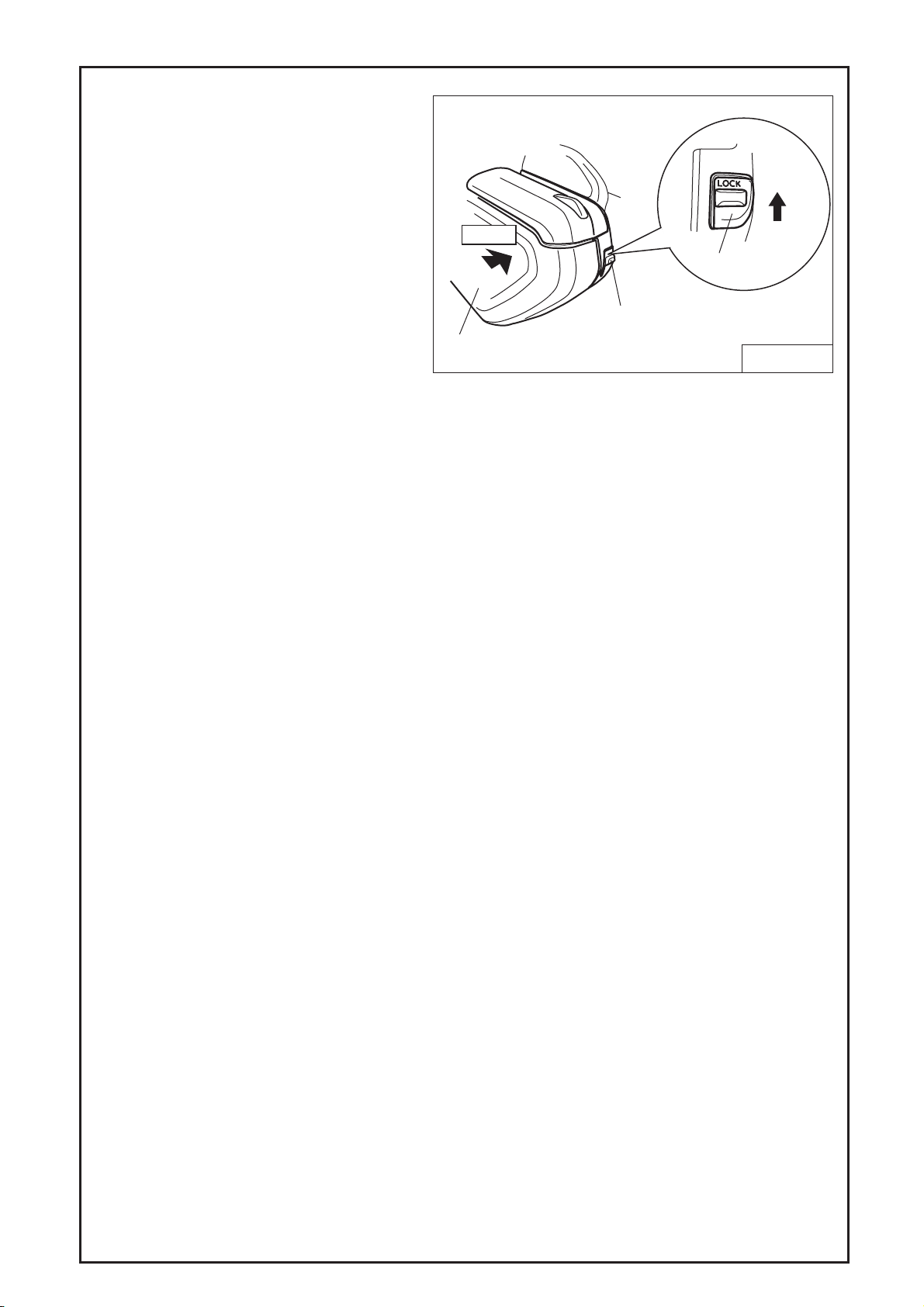

12.P r e s s f i t t h e (1) b o x a g a i n s t t h e

console, and lock it with the lock button.

(Fig. 8)

㸳

10in

109

76543210

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

25cm

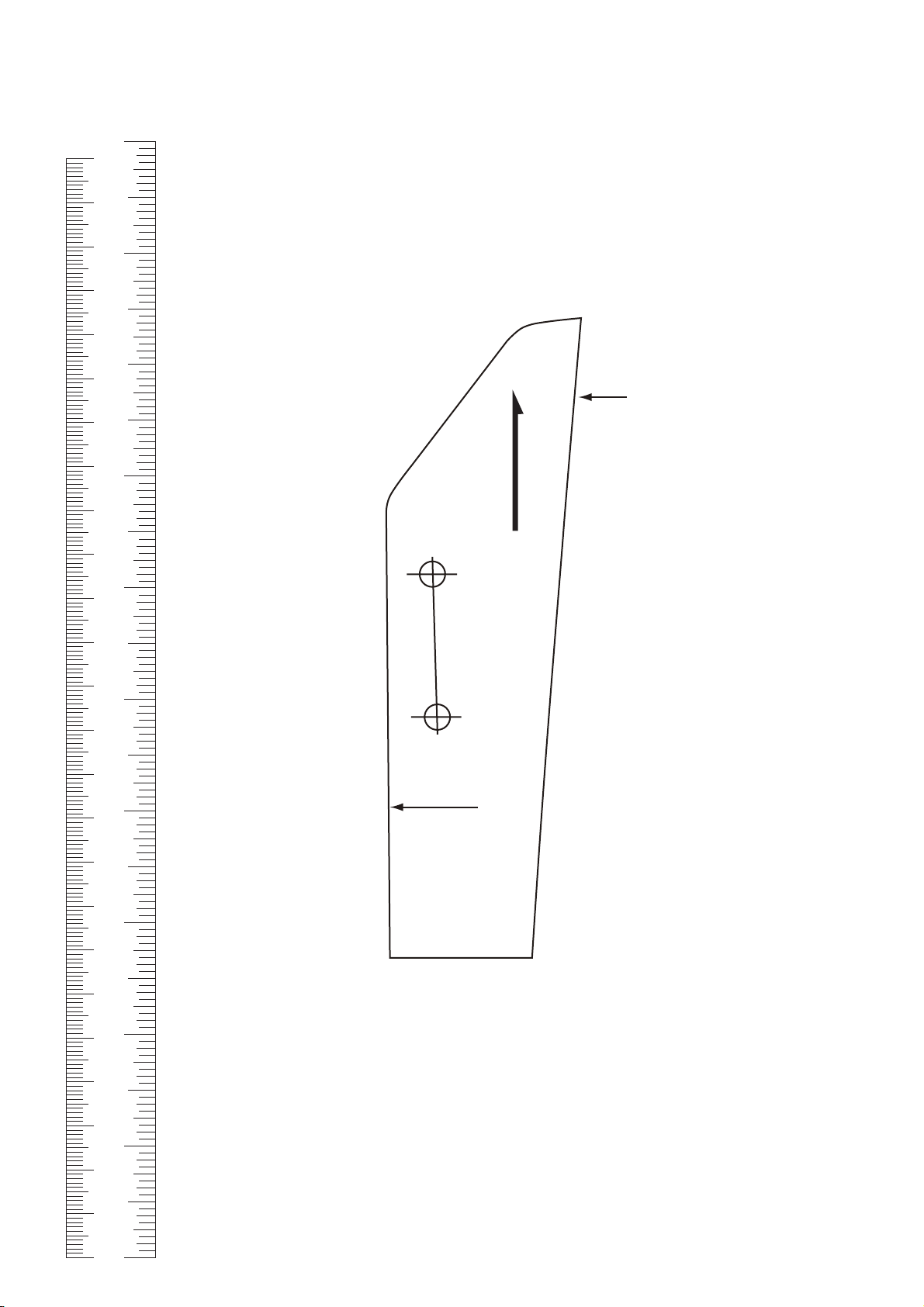

Pattern paper for installation holes (for IMPREZA and SUBARU XV)

Vehicle front

Cut line

Align this line with the edge of the side panel.

㸴

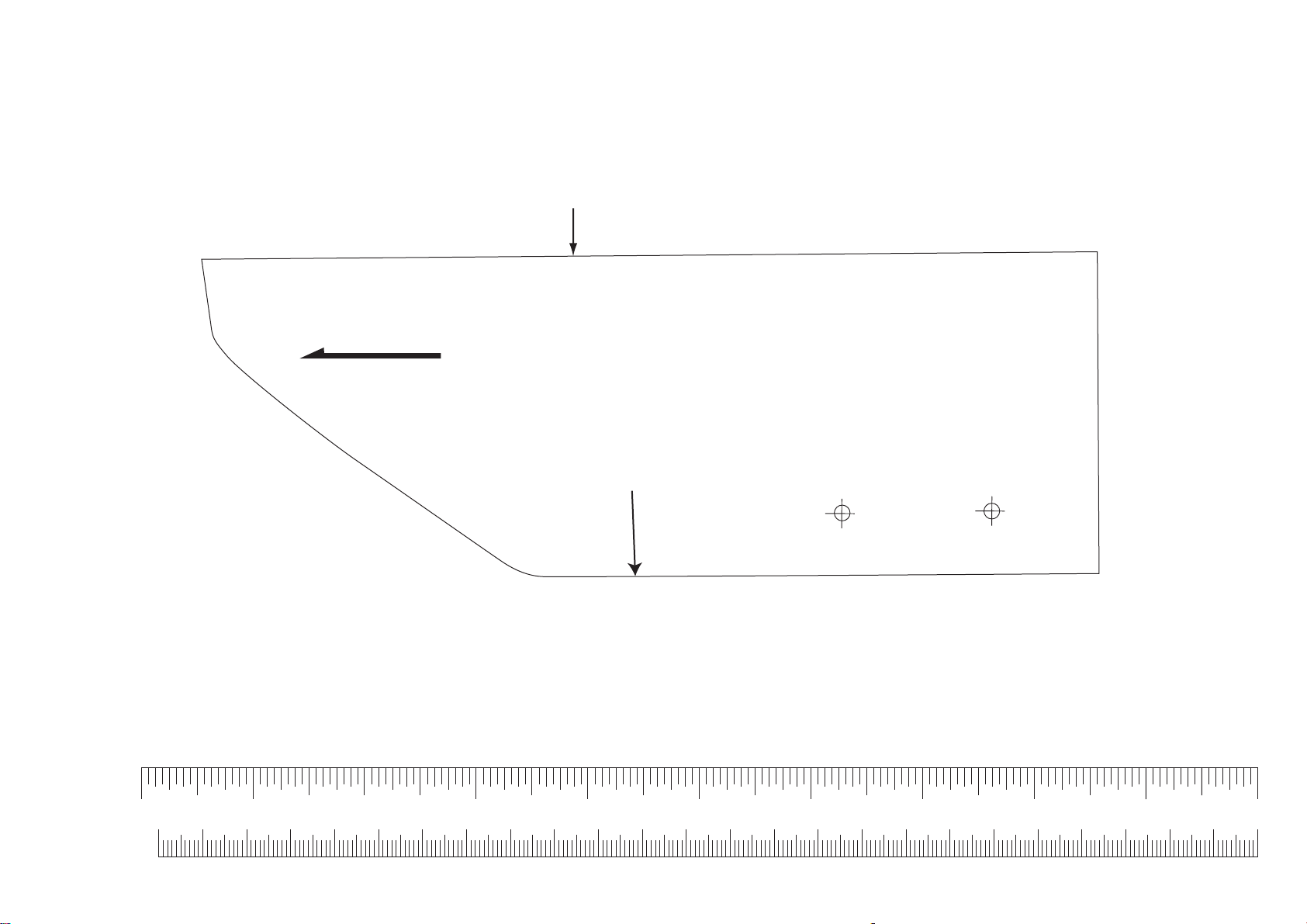

Pattern paper for installation holes (for FORESTER)

10in

109

76543210

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

25cm

Cut line

Align this line with the edge of the side panel.

hicle front
