Subaru H621SFG501 Manuel utilisateur

DESCRIPTION: Im

reza inte

ration kit for iPod

PART NUMBER: H621SFG501

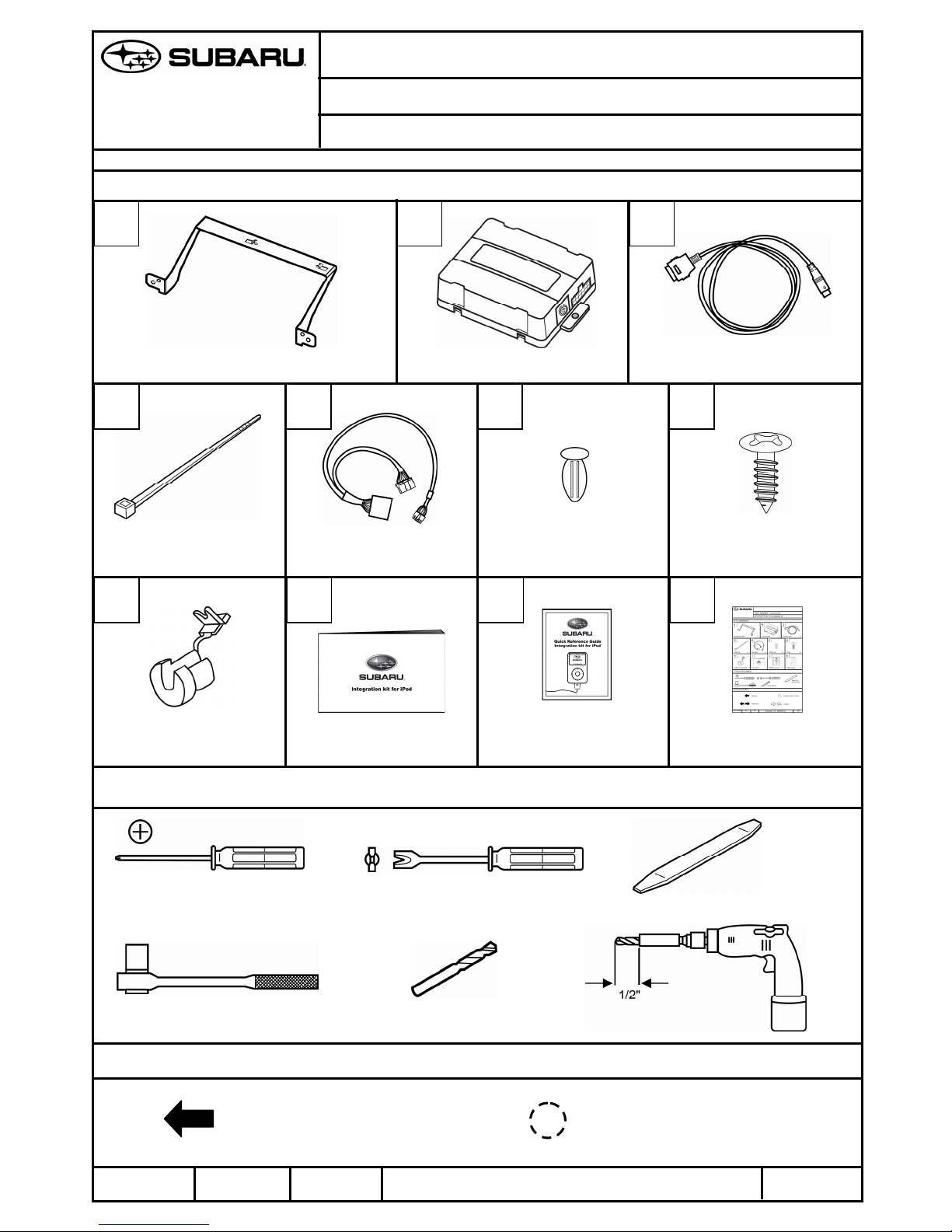

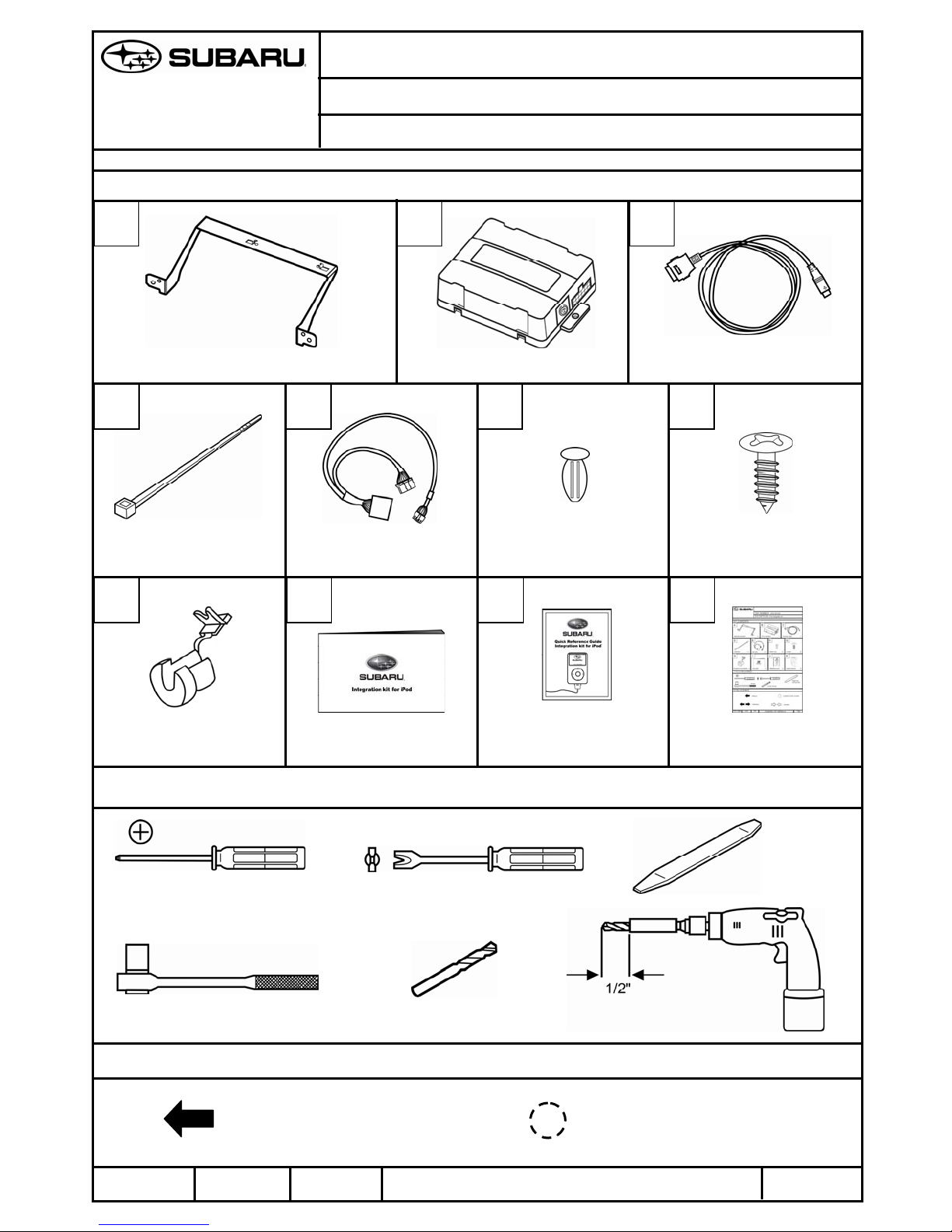

KIT CONTENTS:

Mounting bracket 1x iPod interface 1x iPod dock cable 1x

B C

D E G

Console bin grommet 1x

User guide 1x Quick reference

guide 1x

Cable tie 5x Bus cable 1x Plastic clip 2x

Screw 2x

Install manual 1x

TOOLS REQUIRED:

Nylon trim

removal tool

10 mm

Drill with drill stop

14 mm drill bit (9/16”)

ICON LEGENDS:

PART NUMBER

SPN0000267 A

ISSUE

v1.1

DATE

01/14/08 SUBARU OF AMERICA PAGE

1/5

: Remove/Disconnect : Location of clip or screw

1 2

3 4

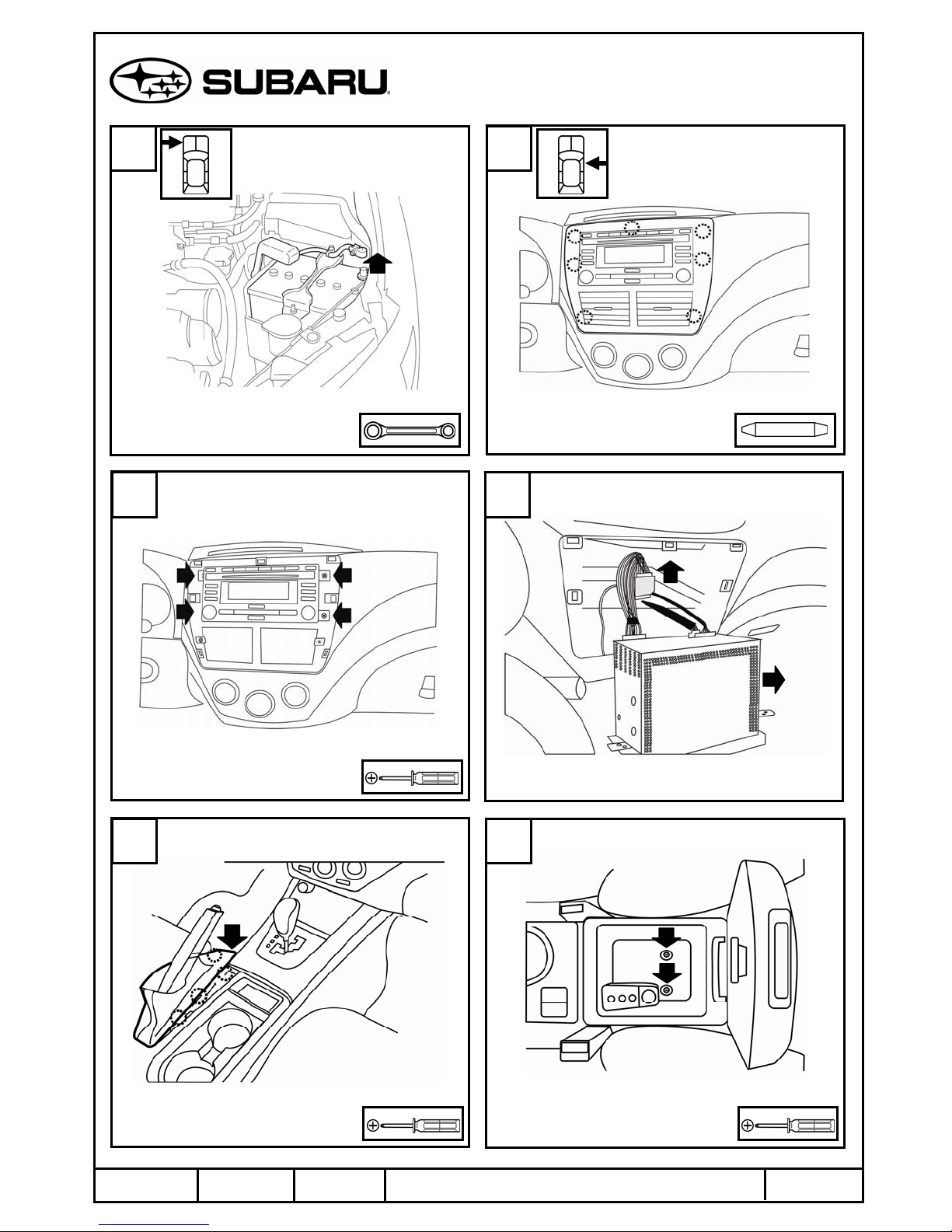

For STI models, remove liner

from bottom of console bin.

Carefully remove parking brake

boot. Remove console screw.

Remove 4 radio screws. Carefully disconnect wire harnesses and remove radio.

Note: Ignition should be off

when disconnecting negative

battery terminal.

Starting from bottom, pry

carefully along edges to

remove trim panel.

SUBARU OF AMERICA PAGE

2/5

DATE

01/14/08

PART NUMBER

SPN0000267 A

ISSUE

v1.1

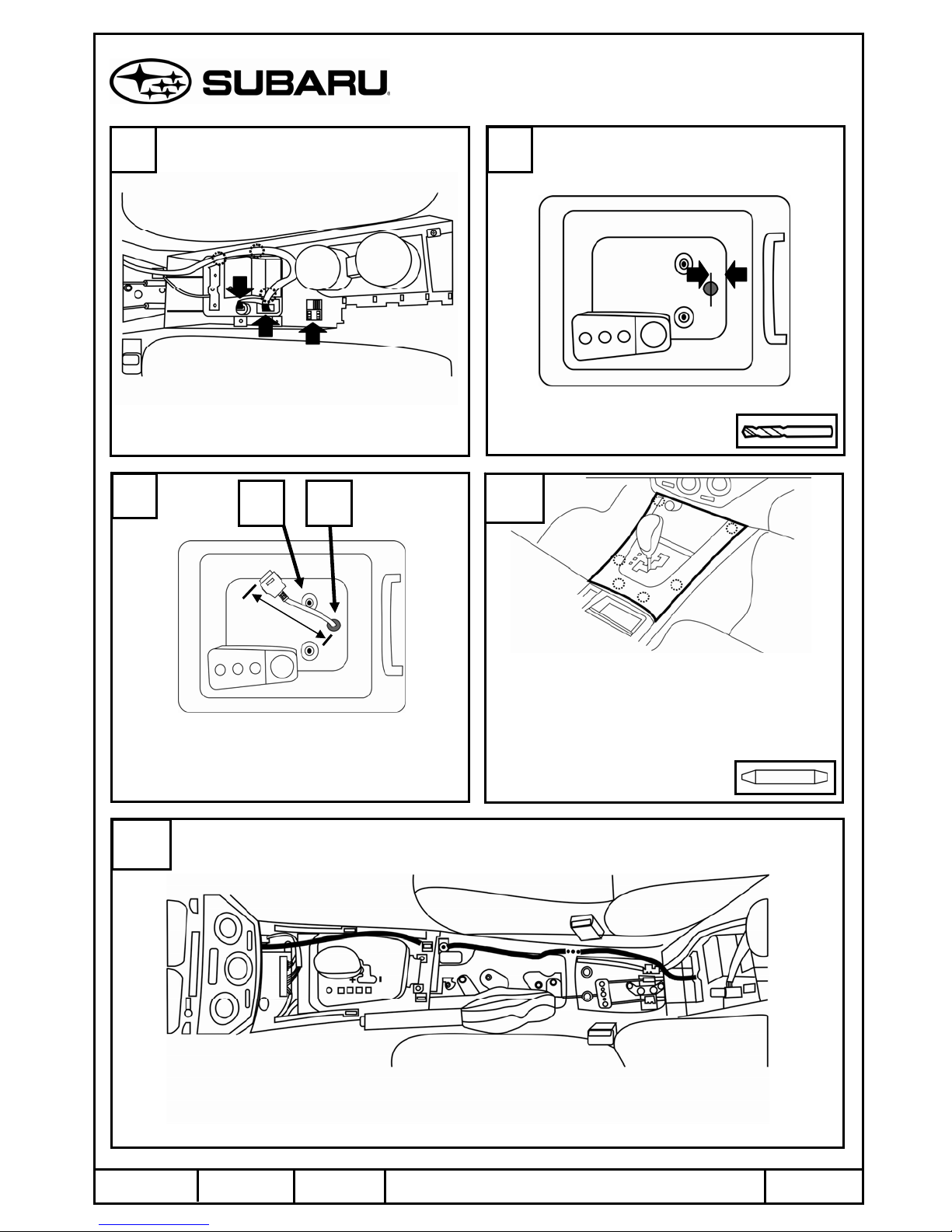

Remove 2 screws from console bin.

Note: It is recommended to drill from the

underside of the console to prevent damage

to the console bin from the drill.

Using a 14 mm (9/16 inch) drill bit,

drill a hole in console bin, about 19

mm (¾ inch) from back edge.

¾”

Feed dock cable (C) through hole, leaving 8-9” in

the console bin. Secure cable to console bin with

grommet (H). Place console back in position as

shown in slide 7.

Tilt console back. Disconnect wire harness and

remove console from vehicle. Note: For STI

models, wire routing and connections will differ

slightly.

C H

8”

Pry gently around edges to remove trim panel. For

STI models, disconnect electrical connection. Note:

Gear selector must be in “N” with parking brake

set, ignition off and vehicle on level ground. For

manual transmission vehicles, shift knob must be

removed by unscrewing in a counter clockwise

direction.

Route dock cable towards front of vehicle as shown. Dock cable should be routed behind HVAC

controls and up to the radio opening.

PART NUMBER

SPN0000267 A

ISSUE

v1.1

DATE

01/14/08

SUBARU OF AMERICA PAGE

3/5

PART NUMBER

SPN0000267 A

ISSUE

v1.1

DATE

01/14/08 SUBARU OF AMERICA PAGE

4/5

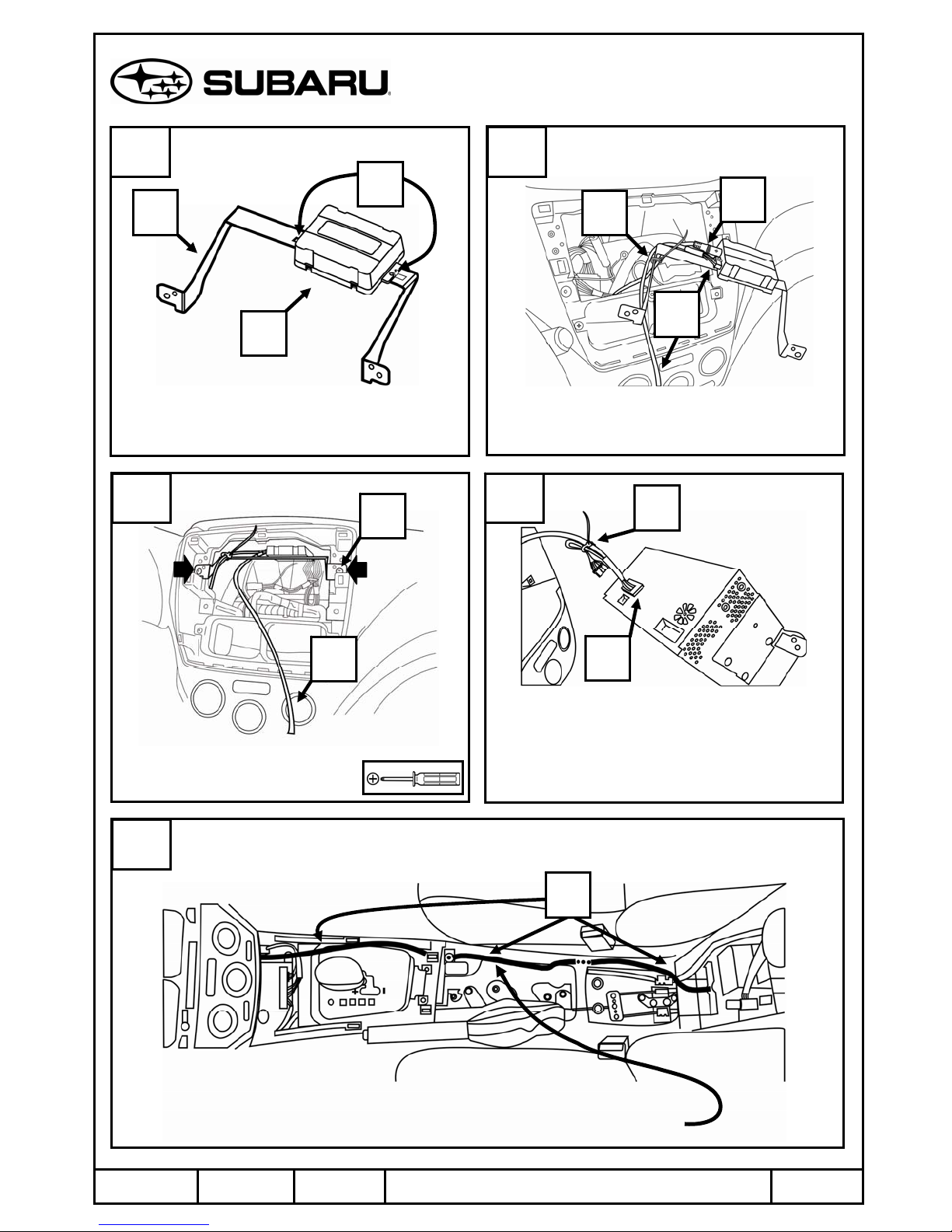

Use screws (G) to attach

bracket/module assembly to

vehicle as shown.

Connect bus cable (E) to radio. Use the “Y” harness

to reconnect any factory harness occupying the bus

connector, when applicable. Reseat all other

connections removed in step 4, secure the unused

portion of the harness with a cable tie (D) and

reinstall radio.

Secure dock cable with cable ties (D). Extra cable length should be bundled in this area.

Attach module (B) to bracket (A) as shown. Insert

plastic clips to (F) placing from the bottom up.

Connect dock cable (C) to module. Secure dock cable

to bracket leg with cable tie (D). Connect bus cable

(E) to module and route behind bracket as shown.

–

1 in cut

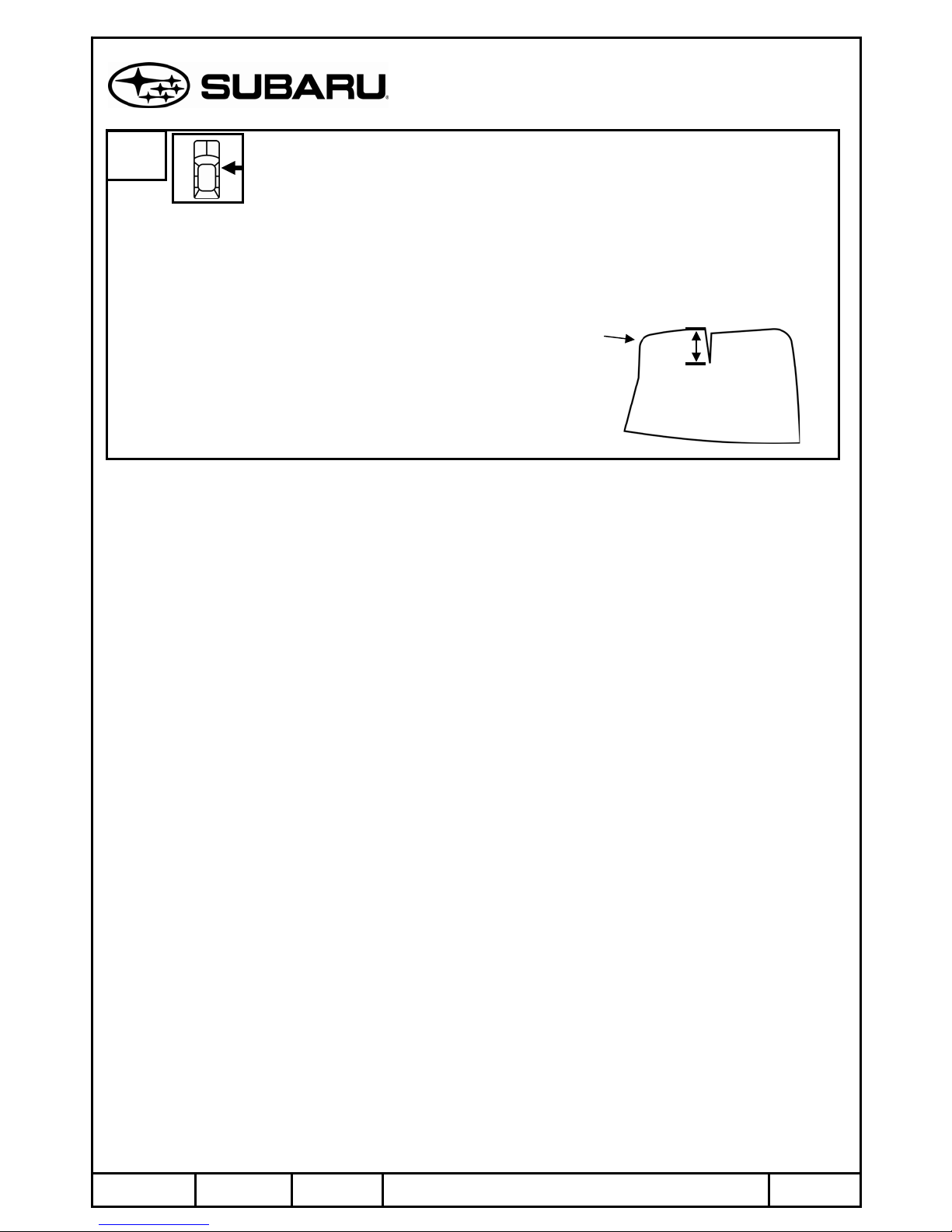

To provide wire harness access through the

liner on STI models:

1) Fold pad in half to find pad center

2) At rear edge of pad (edge with two

rounded corners) cut 1 inch long slit

into pad

3) Reinstall pad to console bin

Perform iPod kit post installation check,

reassemble vehicle by following steps 1-7, 10 in

reverse.

For STI models, cut console bin liner as shown at

right.

For operation, consult User manual.

Rounded

corner

PART NUMBER

SPN0000267 A

ISSUE

v1.1

DATE

01/14/08 SUBARU OF AMERICA PAGE

5/5

DESCRIPTION: Foreste

inte

ration kit for iPod

PART NUMBER: H621SFG501

KIT CONTENTS:

Mounting bracket 1x iPod interface 1x iPod dock cable 1x

B C

D E G

Console bin grommet 1x User guide 1x

Cable tie 5x Bus cable 1x Plastic clip 2x

Screw 2x

Quick reference

guide 1x Install manual 1x

TOOLS REQUIRED:

Nylon trim

removal tool

10 mm

Drill with drill stop

14 mm drill bit (9/16”)

ICON LEGENDS:

PART NUMBER

SPN0000582

ISSUE

v1.0

DATE

01/14/08 SUBARU OF AMERICA PAGE

1/5

: Remove/Disconnect : Location of clip or screw

1 2

3 4

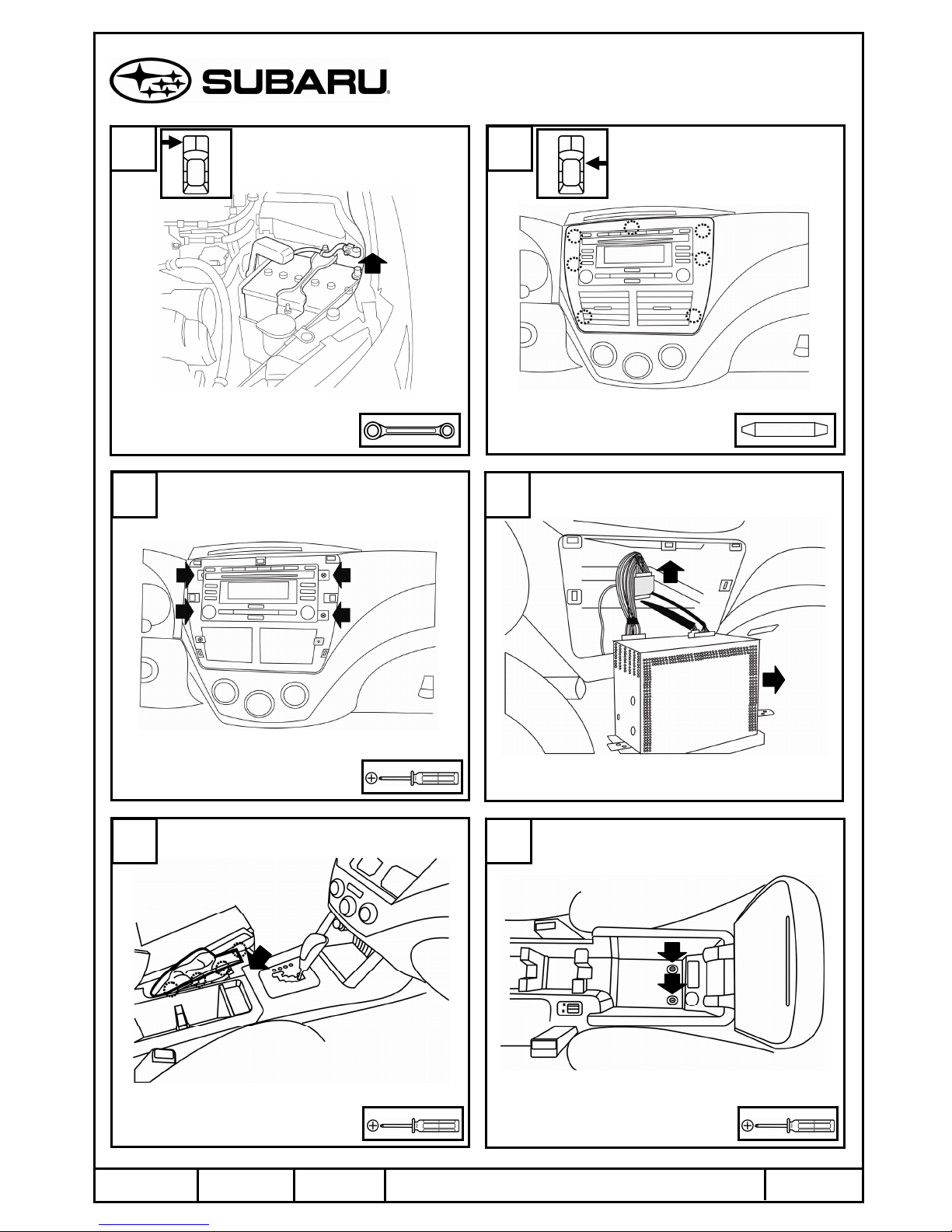

Remove 2 screws from console

bin.

Carefully remove parking brake

boot. Remove console screw.

Carefully disconnect wire harnesses and remove radio.

Remove 4 radio screws.

Note: Ignition should be off

when disconnecting negative

battery terminal.

Starting from bottom, pry

carefully along edges to

remove trim panel.

SUBARU OF AMERICA PAGE

2/5

DATE

01/14/08

ISSUE

v1.0

PART NUMBER

SPN0000582

Remove 2 screws from console bin.

PART NUMBER

SPN0000582

ISSUE

v1.0

DATE

01/14/08

SUBARU OF AMERICA PAGE

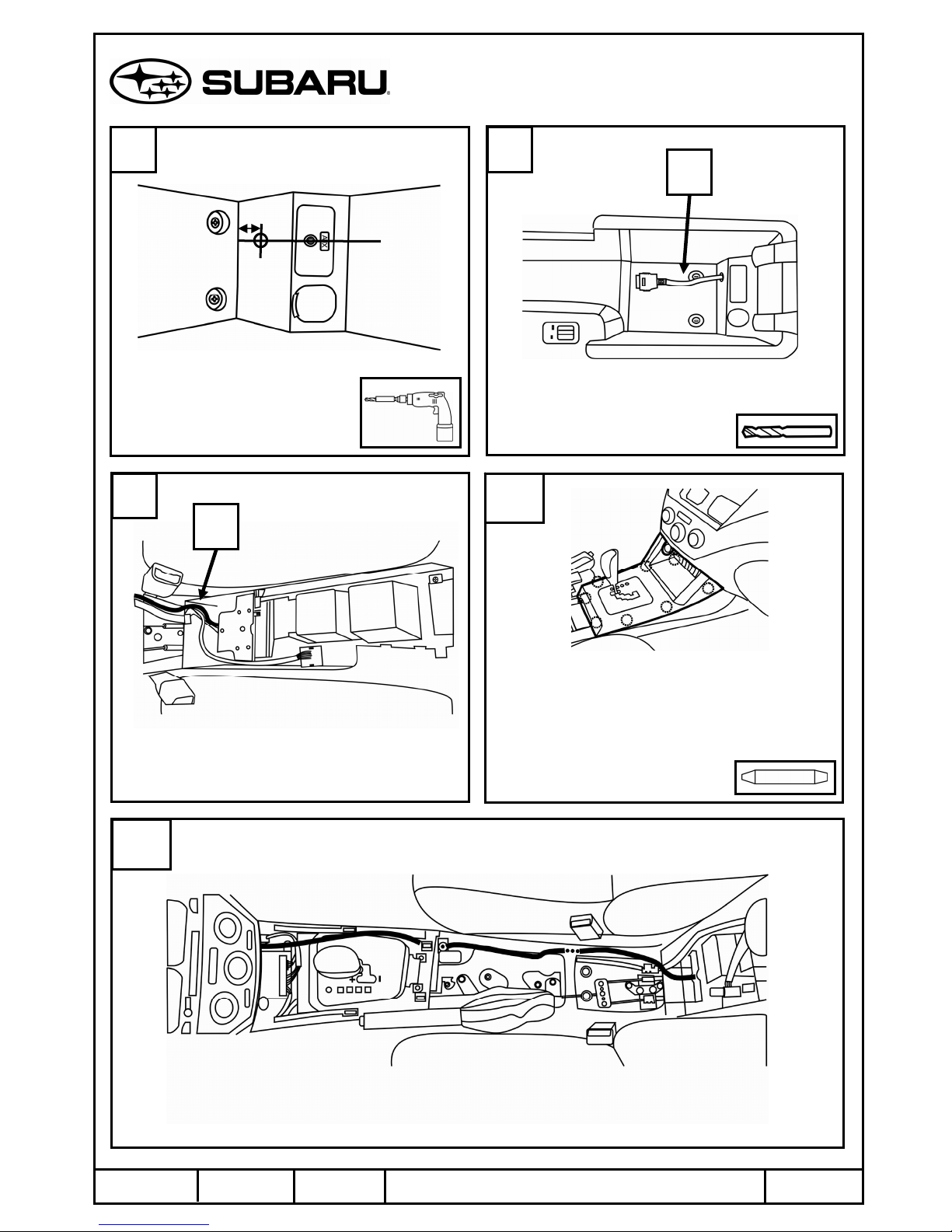

Feed dock cable (C) through hole

and tilt console upright as shown

in slide 9.

1”

(25mm)

Using 14 mm (9/16”) drill bit and

drill stop set to ½” drill a hole in

console bin as shown. Caution:

failure to use drill stop may result

in damage to vehicle.

Route dock cable towards front of vehicle as shown. Dock cable should be routed behind HVAC

controls and up to the radio opening.

Pry gently around edges to remove

trim panel. Note: Gear selector must

be in “N” with parking brake set,

ignition off and vehicle on level

ground. For manual transmission

vehicles, shift knob must be removed

by unscrewing in a counter

clockwise direction.

Route dock cable from bottom of console bin

along existing wire harnesses as shown (C).

3/5

PART NUMBER

SPN0000582

ISSUE

v1.0

DATE

01/14/08 SUBARU OF AMERICA PAGE

4/5

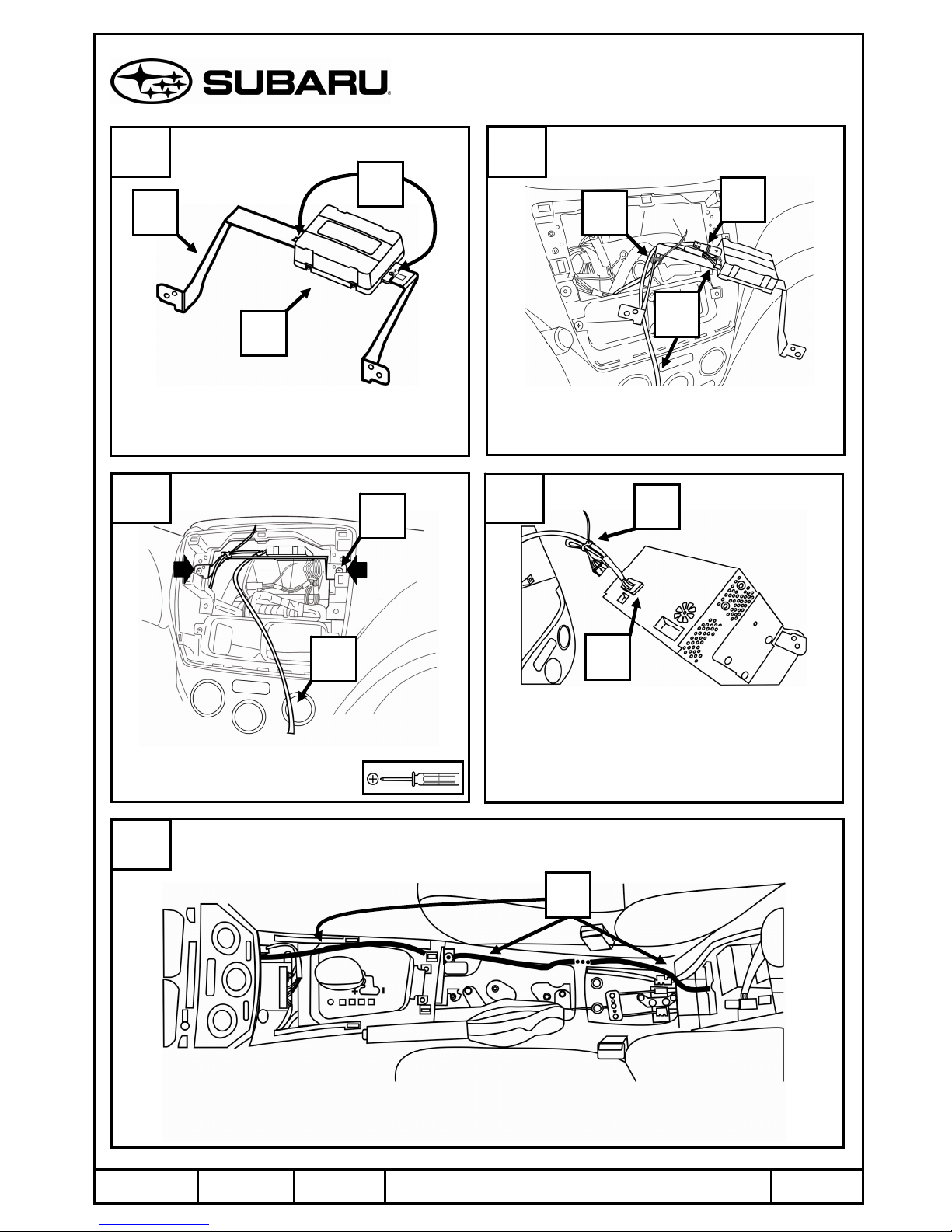

Secure dock cable with cable ties (D).

Connect bus cable (E) to radio. Use the “Y” harness

to reconnect any factory harness occupying the bus

connector, when applicable. Reseat all other

connections removed in step 4, secure the unused

portion of the harness with a cable tie (D) and

reinstall radio.

Use screws (G) to attach

bracket/module assembly to

vehicle as shown.

Attach module (B) to bracket (A) as shown. Insert

plastic clips to (F) placing from the bottom up.

Connect dock cable (C) to module. Secure dock cable

to bracket leg with cable tie (D). Connect bus cable

(E) to module and route behind bracket as shown.

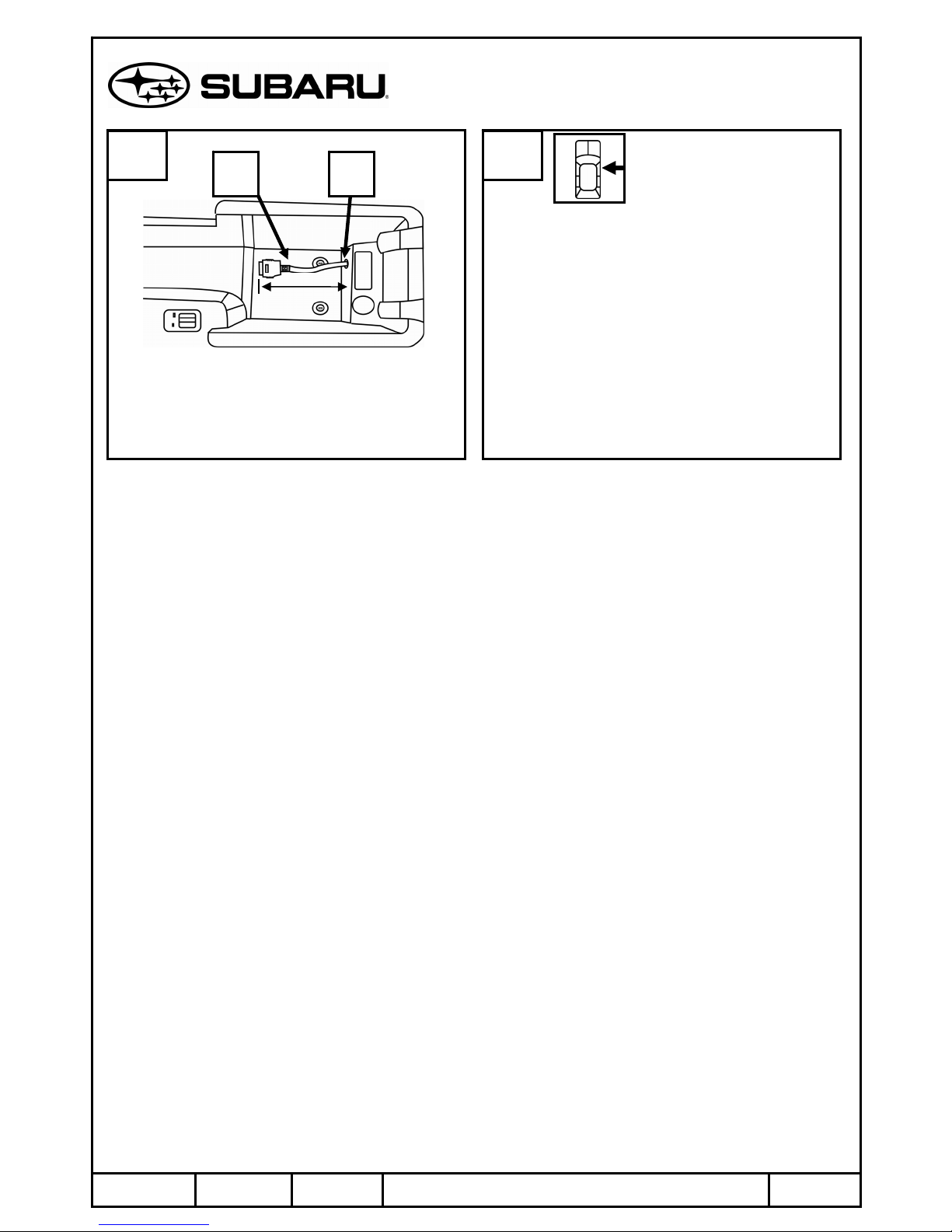

Lower the console back into position.

Gently remove excess slack from dock

cable (C). Secure into console bin with

grommet (H), as shown.

13-15”

C H

Perform iPod kit post installation check,

reassemble vehicle by following steps 1-

6, 8-10 in reverse.

For operation, consult User manual.

PART NUMBER

SPN0000582

ISSUE

v1.0

DATE

01/14/08 SUBARU OF AMERICA PAGE

5/5
