Subaru SEDEYA6001 Manuel utilisateur

Welcome

Thank you for choosing this Subaru product which has been carefully

designed and developed to complement the Subaru vehicle model

range.

We recommend that you should read this manual carefully BEFORE

commencing the installation and then keep it for reference in case you

should ever need to remove this device.

IMPORTANT:

Once the product has been installed, it will require a specific

pairing process to match the users phone/s.

Examples of this procedure are shown in the User Manual

provided with this kit but as new phones are constantly entering

the market, please consult the vehicle importer for latest

information.

- 2 -

English

- 3 -

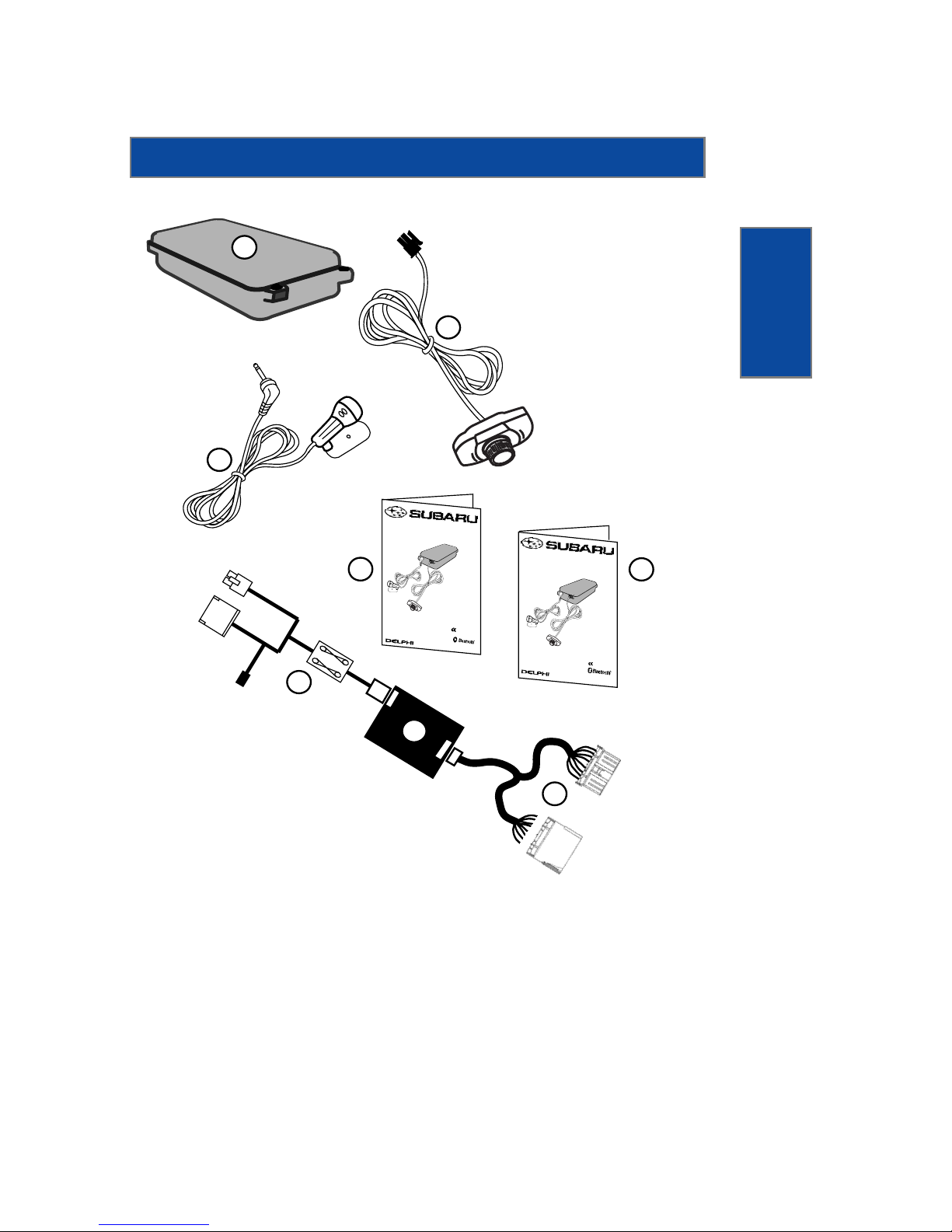

Kit Contents

1. Control unit

2. Command keypad

3. Microphone with fixing kit

4. Installation manual

5. User manual

6. Control unit connection harness

7. Radio mute unit

8. Radio connection harness

English

Ref:SEDEYA6001

- 4 -

English

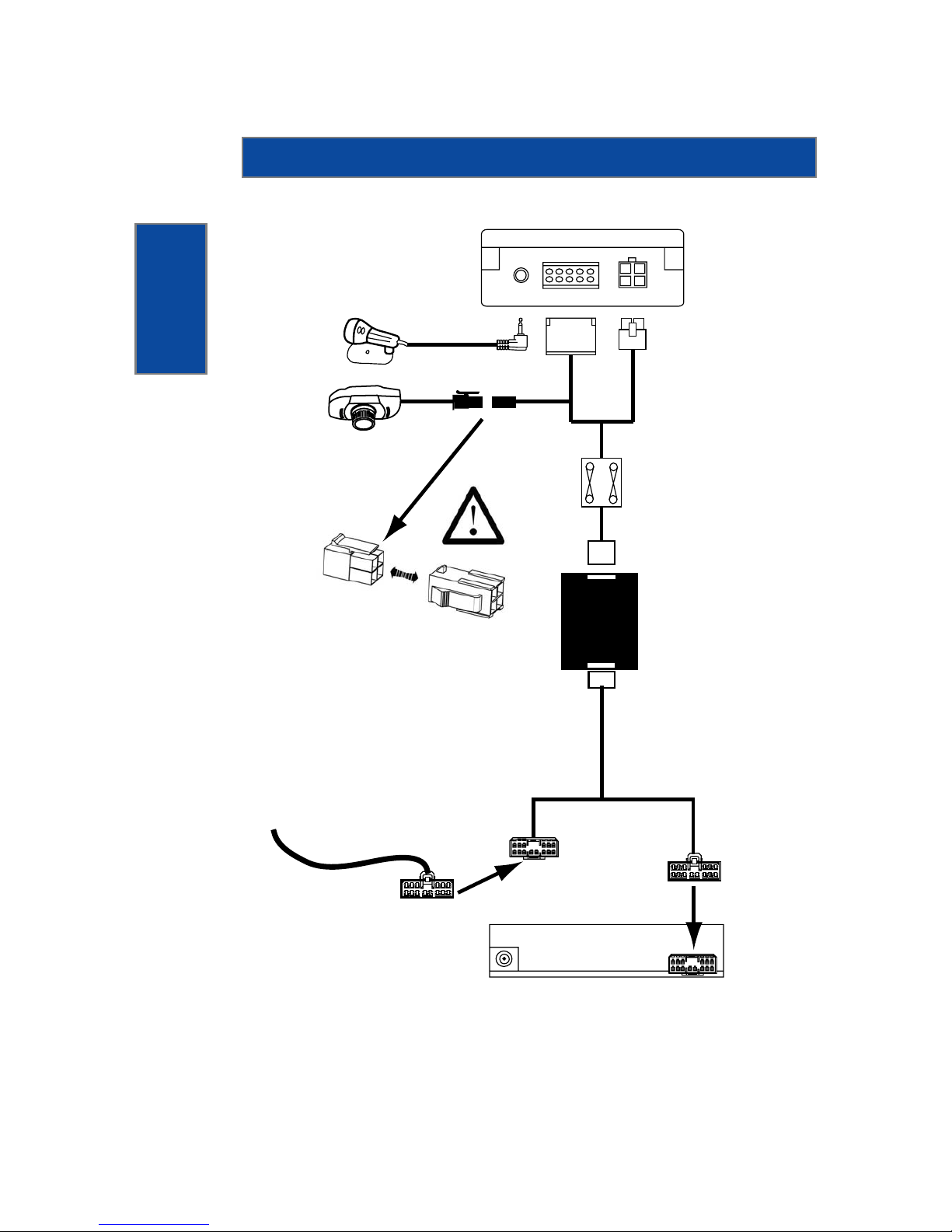

Wiring diagram

AUTORADIO

VEHICLE WIRING

HARNESS

FUSES x2

- 5 -

Installation instructions:

English

1: Disconnect the battery

Before commencing the installation, disconnect the vehicle battery following normal

vehicle guidelines.

Remove the vehicle radio following the procedures described in the vehicle

workshop manual. Ensure any radio codes etc are noted and any alarm

disconnection procedures are followed.

2: Choose suitable component locations:

2.1: The control unit:

See vehicle specific installation information later in this manual for detailed

locations for the system control unit but observe the following general rules:

- Do not position the unit near source of extreme heat or the air conditioning

unit.

- Protect the unit from exposure to direct sunlight

- Do not enclose the unit in a metallic box as this will adversely effect the

Bluetooth connection.

The control unit can be mounted using several fixing methods:

- Cable ties

- Double sided adhesive tape (The fixings are not provided in the kit)

- Screws

When using screws, be careful when drilling holes and be careful not to

overtighten the screws when fixing the unit.

- 6 -

Installation instructions (cont.)

English

2.2: The microphone:

The microphone should be mounted between the sunvisor and the rear view mirror

and pointed towards the driver.

Remove the adhesive part of the Velcro tape and stick in the chosen location.

Position the microphone on the Velcro tape.

3: Connecting the components:

Once all the components shave been suitably located, they can be connected

together.

3.1: Microphone:

Plug the mini-jack connector of the microphone into the corresponding connector of

the control unit.

3.2: Command keypad:

Connect the command keypad to the corresponding connector on the control unit

wiring harness (Fig.6 on the wiring diagram).

NOTE: Observe label on harness to ensure correct connection.

3.3: Radio connection:

Remove the vehicle wiring harness from the rear of the vehicle radio and

interconnect the radio connection harness (Fig.8 on the wiring diagram) between

the radio and the vehicle harness.

4: Reassembly & Reconnecting the battery:

Once all the components have been connected, tidy up any excess wiring and

secure with cable ties where necessary. Reassemble all the trim panels and

vehicle components and reconnect the battery following normal reconnection

procedures.

Clean any dirty marks from the trim.

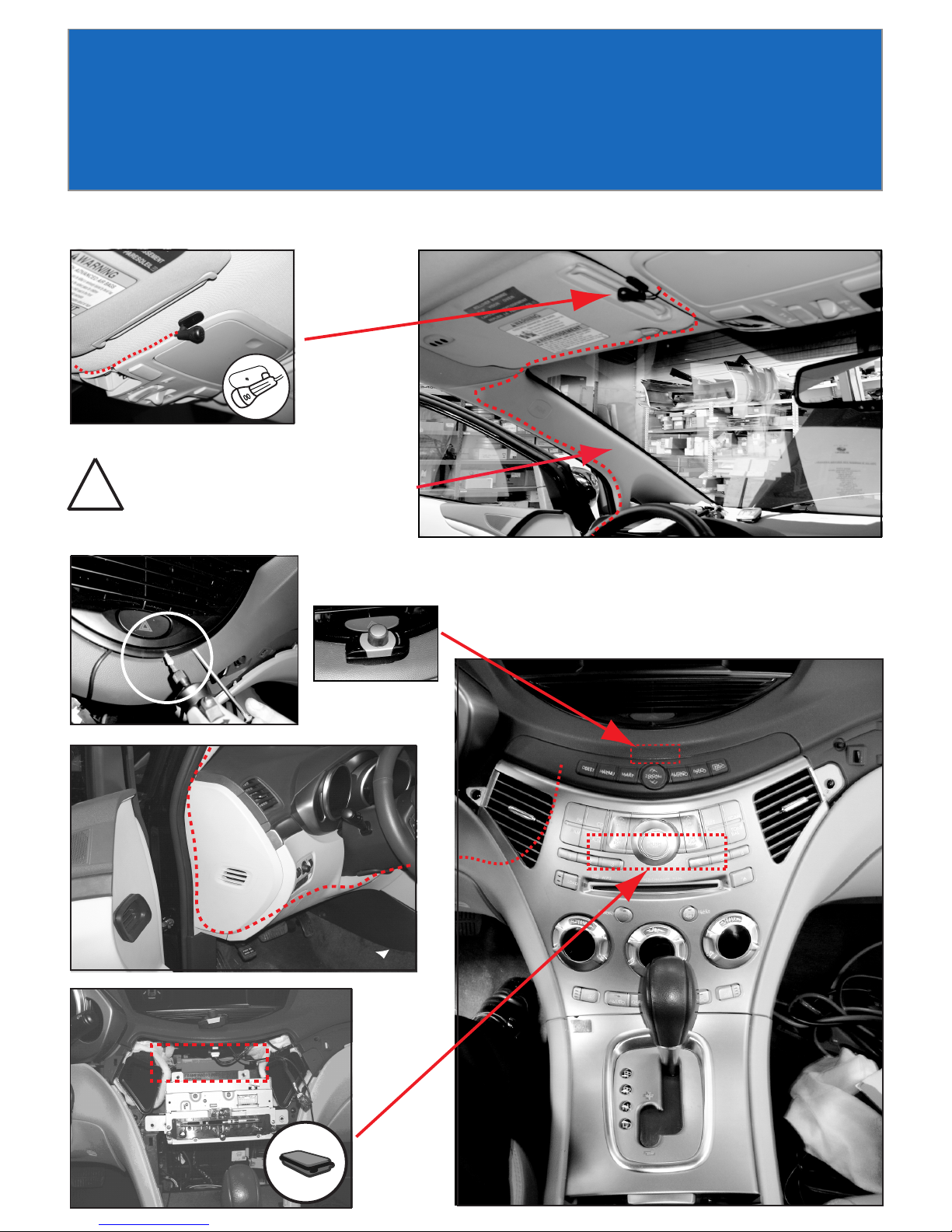

5:B9 TRIBECA - 2007>

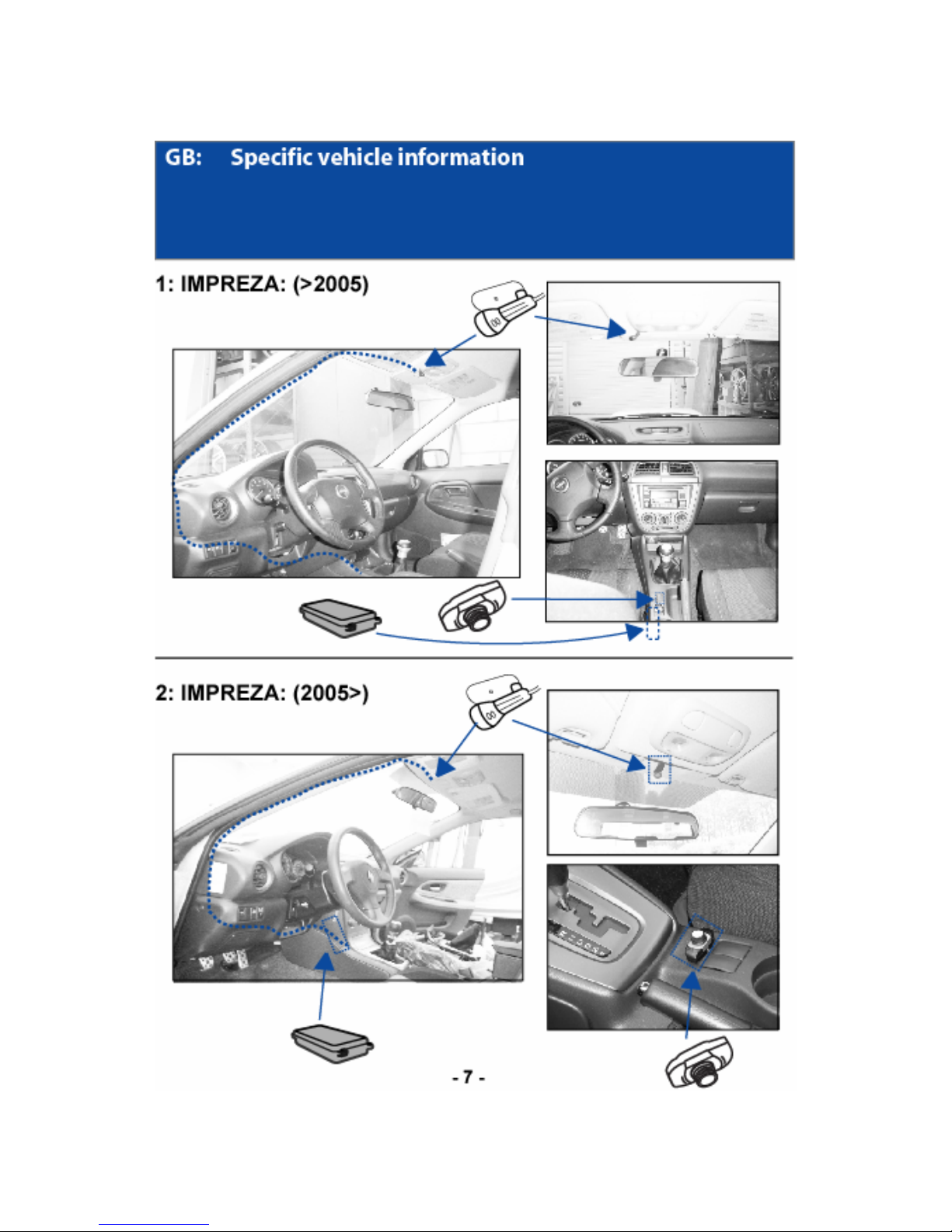

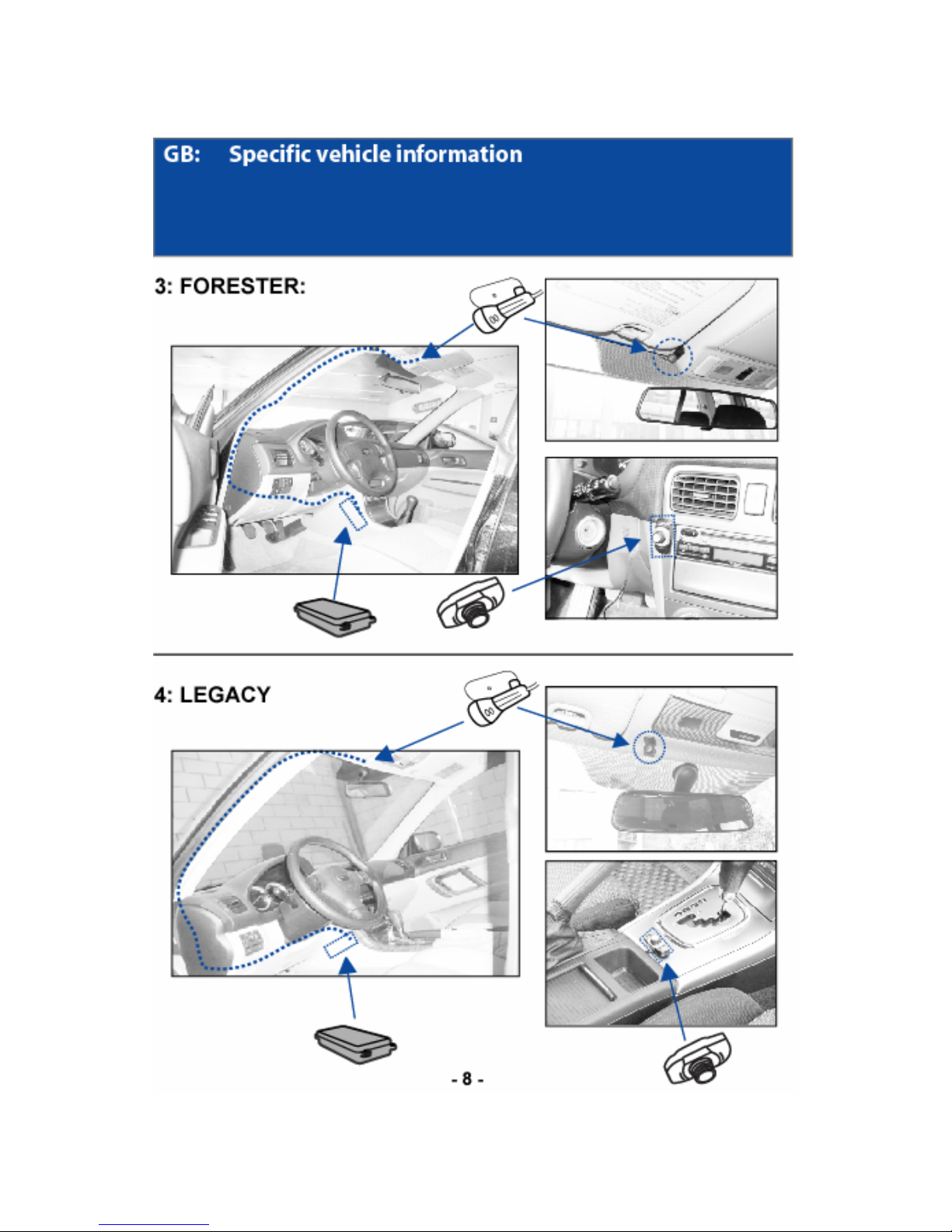

GB:Specific vehicle information:

F:  Information spécifique au véhicule

D:  Fahrzeug spezifische information

I:  Informazione specifiche del veicolo

DO NOT REMOVE TRIM PANEL

NE PAS ENLEVER LE PANNEAU D'ÉQUILIBRE

ORDNUNG VERKLEIDUNG NICHT ENTFERNEN

NON RIMUOVERE IL PANNELLO DI CORNICE
