Subaru 2013 BRZ Manuel utilisateur
2013
BRZ
Consumer Electronics/
Bluetooth®& Audio Technology
Quick Reference Guide
1146074_13a_Bluetooth_QRG_030812.indd 2 3/8/12 2:53 PM
3
Bluetooth Basics
• The hands-free system may not operate properly under the following conditions:
o The cell phone is turned off.
o The cell phone is not connected to the hands-free system.
o The cell phone is not in the phone call area.
o The battery of the cell phone has run down.
o The cell phone is behind the seat or in the glove box.
o A metal material covers or touches the cell phone.
• Depending on the type of cell phone that is used, the screen on the cell phone may remain
illuminated while the ignition switch is in the “ON” position. If this occurs, consult your cell
phone manual to adjust the cell phone settings.
• Depending on the setting of the cell phone, the dial lock function may be activated after
making a call. Deactivate the automatic dial lock function of the cell phone before using the
hands-free system. Do not perform this operation while driving.
• Depending on the type of cell phone that is used, operation and the sound volume
may vary.
• Depending on the type of cell phone that is used, not all phone functions may be
compatible with your vehicle.
• When the ignition switch is turned to the “LOCK/OFF” position during a call, the call may be
disconnected or continued on the cell phone, depending on the type of cell phone that is
used. Note that operation of the cell phone may be necessary if the call is continued on the
cell phone.
1146074_13a_Bluetooth_QRG_030812.indd 3 3/8/12 2:53 PM
4
• Do not speak at the same time as the other party during a call. If you and
the other party speak at the same time, it may be difcult for the other party
to hear your voice and vice versa. This is normal.
• The receiver sound volume should be set as low as possible. Otherwise,
the party you are calling may notice an undesirable echo sound.
• Speak clearly and loudly.
• Your voice may be difcult to be heard by the receiving party under the
following conditions:
o Driving on a rough road.
o Driving at a high speed.
o Driving with a window open.
o When air from the ventilator blows directly toward the microphone.
o When the sound coming from the ventilator is loud.
o When the cell phone is positioned too closely to the microphone.
• The sound quality may degrade due to the inuence of the cell phone that is
connected to the system or the circumstances of the Bluetooth network.
• When another Bluetooth device is simultaneously connected, noise may be heard
in the voice coming from the hands-free phone.
1146074_13a_Bluetooth_QRG_030812.indd 4 3/8/12 2:53 PM
5
Bluetooth for AM/FM Stereo with
HD RadioTM, Single Disc CD Player
and Navigation System
Pairing Your Cell Phone
Press the AUDIO button; then touch the “Info” soft key on the touch screen.
Then touch “Bluetooth.”
AUDIO button
1146074_13a_Bluetooth_QRG_030812.indd 5 3/8/12 2:53 PM
6

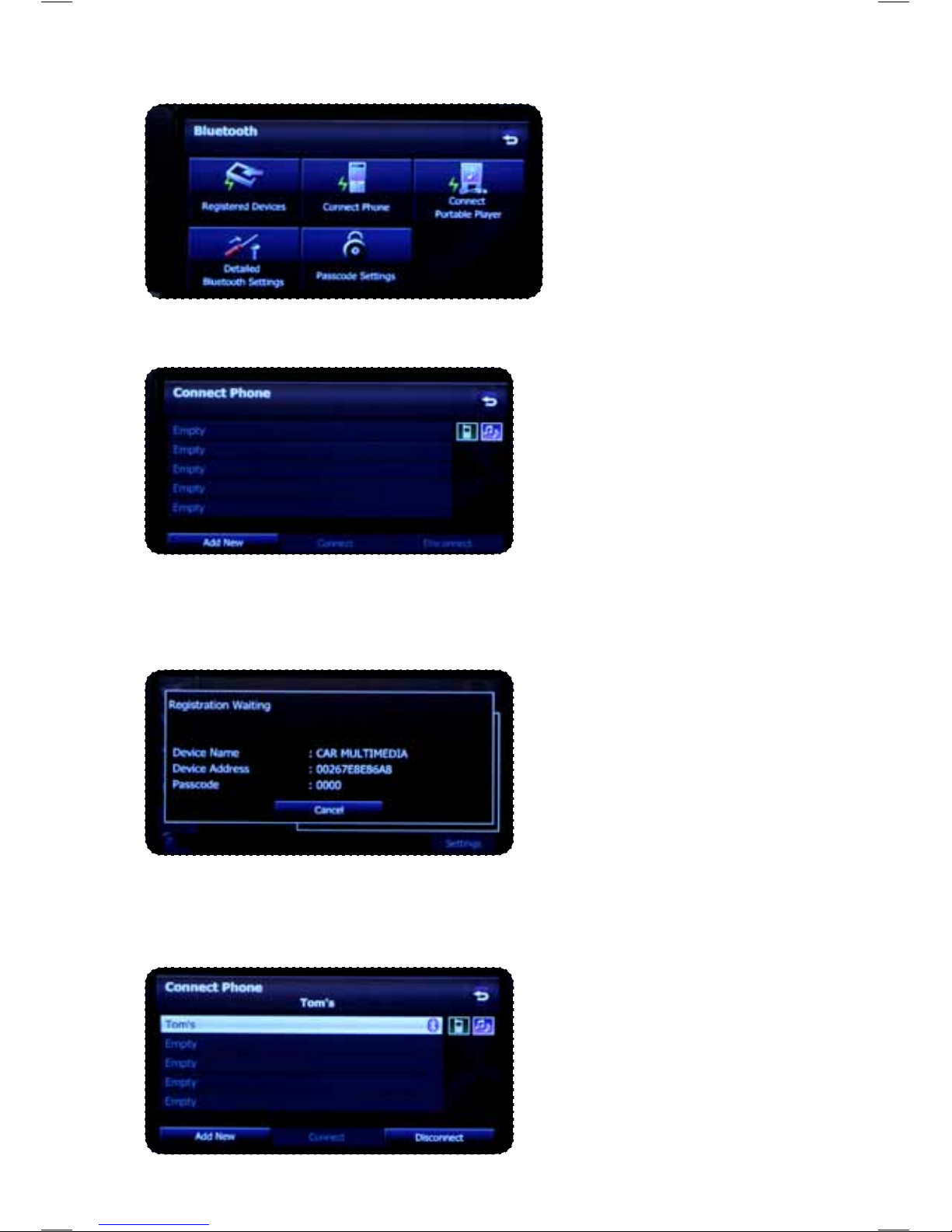

Now touch “Registered Devices.”
A pass-key pairing number will appear on the screen. Put your phone into Bluetooth
pairing mode and pair your phone to the system using the pass-key provided.
When the phone is successfully paired, the screen will show the phone’s
name on the list.
Touch “Add New.”
1146074_13a_Bluetooth_QRG_030812.indd 6 3/8/12 2:53 PM
7

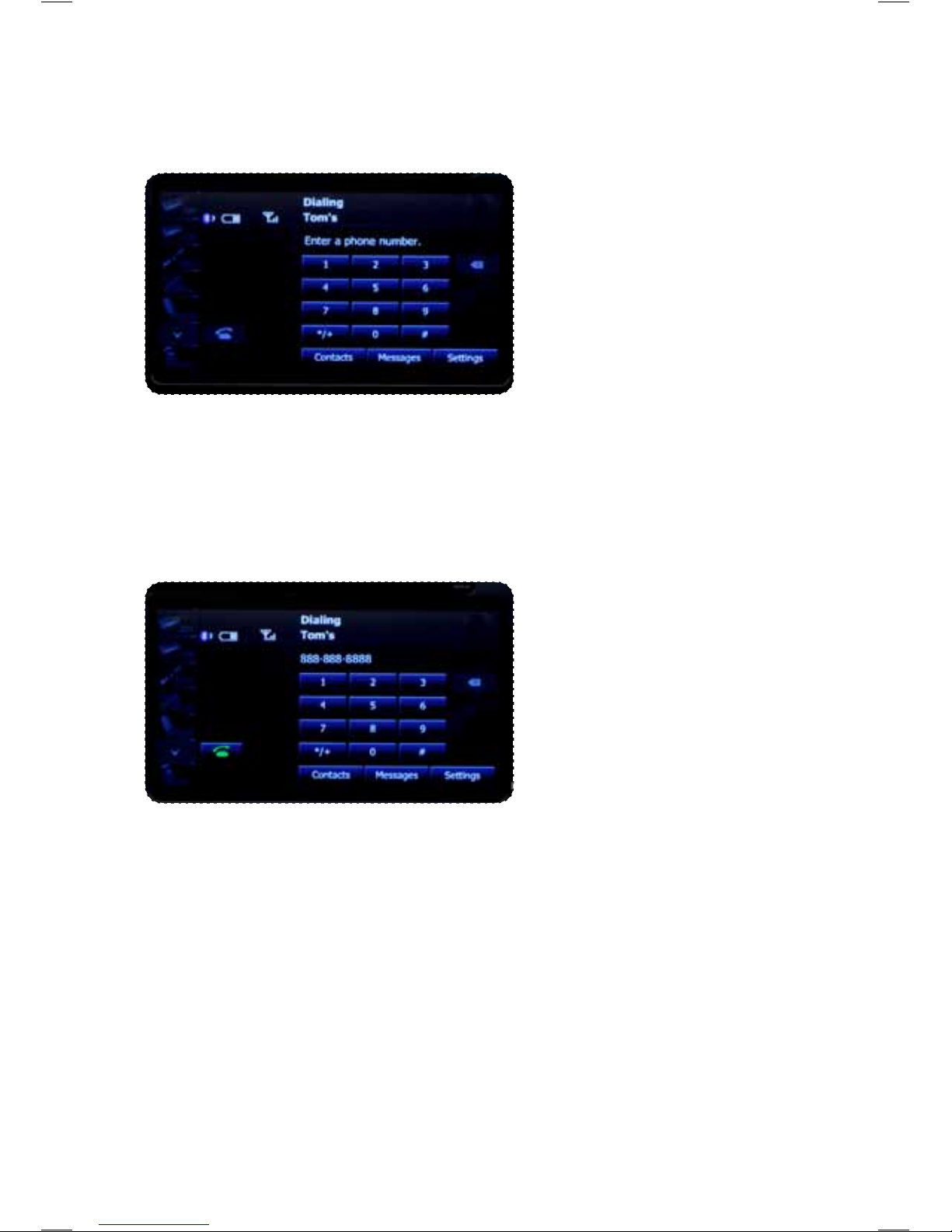

Touch the numbers for the phone number you wish to call. When complete, touch
the green “Phone” soft key to make the call.
Making a Call
Press the AUDIO button; then touch the “Phone” soft key. A numeric keypad will
be displayed.
.
1146074_13a_Bluetooth_QRG_030812.indd 7 3/8/12 2:53 PM
8
During a Call
Receiving a Call
Transfer – Touch to switch
the phone conversation back
to your cell phone.
Mic Level – Touch to change
the volume of the call.
Red phone symbol –
Touch this to end a call.
Dial Tone – Touch to enable
numeric key input.
When a call comes in, the incoming call screen appears automatically.
Touch the green “Phone” soft key to answer the call.
Touch “Disconnect” to
decline the incoming call.
1146074_13a_Bluetooth_QRG_030812.indd 8 3/8/12 2:54 PM
MSA5B1309A
Printed in USA 03/12
All information contained within this Consumer Electronics/Bluetooth®& Audio Technology
Quick Reference Guide was accurate at the time of publication. We reserve the right to
change features, operation and/or functionality of any vehicle specication at any time
without incurring any obligation to make the same or similar changes to products previously
sold. Your Subaru dealer is the best source for the most current information. For detailed
operating and safety information, please consult your Owner’s Manual.
1146074_13a_Bluetooth_QRG_030812.indd 1 3/8/12 2:53 PM
