StarTech.com SV431USBAE Manuel utilisateur

Manual Revision: 08/13/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SV431USBAE

4 Port Rack Mountable USB VGA KVM

Switch with Audio & USB 2.0 Hub

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Console Connection...............................................................................2

Connecting Slave Computers...............................................................3

Operation ................................................................................................4

Front Panel................................................................................................................................................... 4

Auto Scan..................................................................................................................................................... 4

Optional: Rack Mount Installation ...................................................................................................... 5

Specications..........................................................................................6

Technical Support ..................................................................................7

Warranty Information............................................................................7

Instruction Manual

Introduction

This Rack Mountable USB KVM Switch supports high resolution video applications (up

to 1920x1440 pixels supported) and audio switching between connected computers,

and provides an integrated USB 2.0 hub that lets the selected computer have access

shared high speed USB peripherals.

Providing control of up to four computers from a single USB keyboard and mouse

peripheral set, the switch features a sturdy all metal chassis and can be rackmounted

in a server rack/cabinet using an optional Rackmount Bracket kit (SV431RACK) -

minimizing clutter and saving space.

Packaging Contents

• 1x 4 Port USB KVM Switch With Audio

• 1x Pack Rubber Feet

• 1x Power Adapter

• 1x Manual

System Requirements

Console Side

• One VGA, SVGA or Multisync monitor

• One USB keyboard

• One USB mouse

Computer Side

• One HDB15 male-to-female VGA cable for monitor

• One USB A-B cable with Type-A and Type-B plug for USB devices

Instruction Manual

Installation

PC BIOS Notice: The following BIOS setup changes are necessary for PC users but are

not required for Mac users:

1. In STANDARD CMOS, set HALT ON ERROR to ALL BUT KEYBOARD.

2. In PNP AND PCI SETUP, set PNP OS INSTALLED to YES and set the USB IRQ

to ENABLED.

Please Note: SV431USBAE is capable of switching between computers while

maintaining USB mouse and keyboard control. If you plan to share other peripherals

such as a CCD camera, printer or scanner, you must shut down the corresponding

driver on the computer from which KVM control is being switched.

Because port switching is equivalent to unplugging the USB cable from one computer

and plugging it in on another, some USB drivers continuously check attached USB

peripherals and do not accept plug and play functionality.

Console Connection

Before installation, please ensure that all devices and computers to be connected to

the KVM Switch have been turned o.

1. Connect the monitor that will be used to the Console VGA port on the rear panel

of SV431USBAE.

2. Connect a USB keyboard and a USB mouse to any two of the Console USB ports as

shown below:

USB Device 1 USB Device 2

Instruction Manual

Connecting Slave Computers

1. Connect the VGA port located on the rear panel of SV431USBAE to the VGA port

provided by the video connection on the desired computer, using an HDB15 male

to female cable. Please note the PC Port number, for steps 2 and 3.

2. Using a USB A-B Cable, connect the USB port that corresponds with the PC port

used in step 1, to the USB port on the corresponding computer, as shown below.

3. Optional: Using an audio cable (Speaker and Mic), connect the Speaker and Mic

ports provided by the PC port used in step 1 on SV431USBAE to the Speaker and

Mic ports located on the computer.

4. Repeat steps 1-4 as necessary for each computer you wish to connect. Once all

computers have been connected, you can turn on all devices and computers.

Audio Cable

(Speaker and Mic)

USB Patch Cable for

Mouse and Keyboard

Male-to-Female

HDDB15 for VGA

Instruction Manual

Operation

Front Panel

1. Online and Selected LEDs: When the LED turns green, the connected computer is

powered on. When a computer is selected, the corresponding (red) LED

will illuminate.

2. Pushbuttons: Each computer has a button associated with it on the front panel

for selection

Auto Scan

Auto Scan automatically scans through the connected computers individually, in a

xed interval

Please note: Keyboard and Mouse are not operable during Auto Scan.

To activate Auto Scan, press down the 3and 4buttons (on the front panel)

simultaneously. To exit Auto Scan, tap any one of the pushbuttons.

To change the Scan Time interval, press both front panel buttons

1 and 2 simultaneously.

The switch will beep 1, 2, 3 or 4 times for Scan Times of 3, 8, 15 or 30

seconds respectively.

Instruction Manual

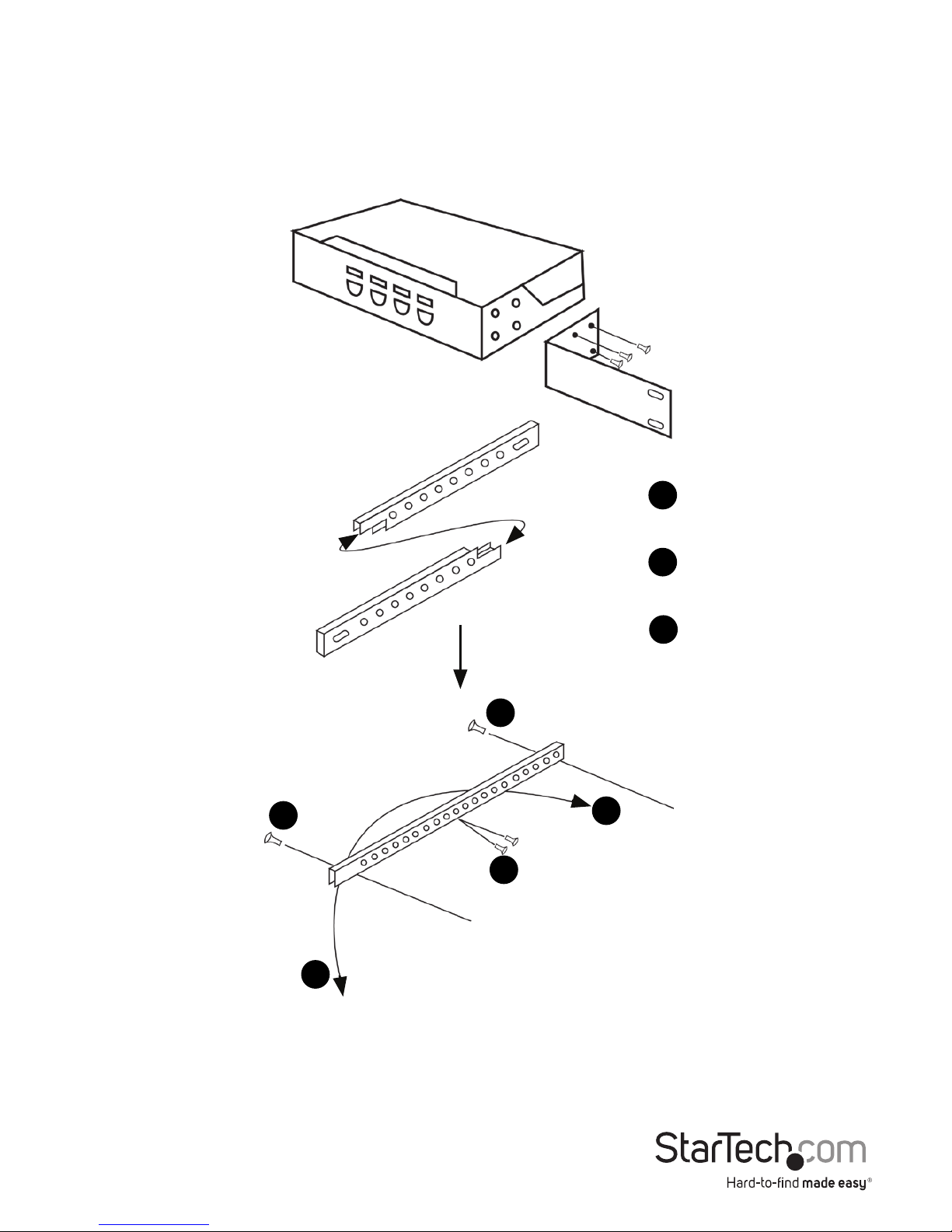

Optional: Rack Mount Installation

The following illustration depicts how to attach optional mount brackets and cable

support for rack mounting SV431USBAE. To do so, you may wish to use SV431RACK

(please see Accessory Products from StarTech.com for further information).

To the Rack Cabinet

back post

USB or Monitor

cables to switch

Two screws secure

the cable support

Instruction Manual

Specications

Computers Supported 4

Front Panel Push Buttons 4

Hot Plug-and-Play Supported Yes

Automatic Scan Interval 3, 8, 15, 30 seconds

Cable Length (Max) 30M (100ft) for VGA 5M (15ft) for USB

Computer ON-LINE LED 4

Computer Selected LED 4

Resolution Supported 1920 x 1440, DDC2B

Computer Peripheral Connector

Monitor

USB Type B x 4

HDB-15 Male x 4

SPEAKER Jack x 4

MIC Jack x 4

Console Peripheral Connector

Monitor

USB Type A x 4

HDB-15 Female x 1

SPEAKER Jack x 1

MIC Jack x 1

Weight (g) / (oz.) 1000 / 35.27

H x W x D (mm) / (in.) 44 x 220 x 130 / 1.7 x 8.7 x 5.1

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a three year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.
