StarTech.com SV231HDMIUA Manuel utilisateur

HDMI KVM Switch

2-Port USB HDMI KVM Switch

with Audio and USB 2.0 Hub

SV231HDMIUA

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 1

Front View....................................................................................2

Rear View ....................................................................................2

Hardware Installation...................................................................3

Driver Installation.........................................................................4

Operation......................................................................... 4

Front Panel ..................................................................................4

HotKey Control ............................................................................5

Alternative Hotkey Commands ....................................................7

Speciﬁcations.................................................................. 9

Technical Support........................................................... 10

Warranty Information...................................................... 10

Introduction

Packaging Contents

1 x SV231HDMIUA switch•

1 x Power Adapter•

1 x Set of rubber feet•

1 x Instruction Manual•

System Requirements

HDMI and USB enabled systems•

HDMI enabled display device•

Standard 104-key wired USB keyboard•

Standard 3-button wired USB mouse•

Installation

NOTE: Prior to the installation, please power off all devices that will be

connected to this system.

Ensure that all devices you will connect are properly grounded.

Place cables away from ﬂuorescent lights, air conditioners, and

machines that are likely to generate electrical noise.

If you experience any problems using a USB KVM switch, the following

BIOS setup changes may be necessary for PC users (not necessary

for Mac users):

Set HALT ON ERROR to ALL BUT KEYBOARD.•

In PNP AND PCI SETUP, set PNP OS INSTALLED to YES and set•

USB IRQ to ENABLED.

Different systems may use different naming, so contact your system

manufacturer for further assistance with these settings.

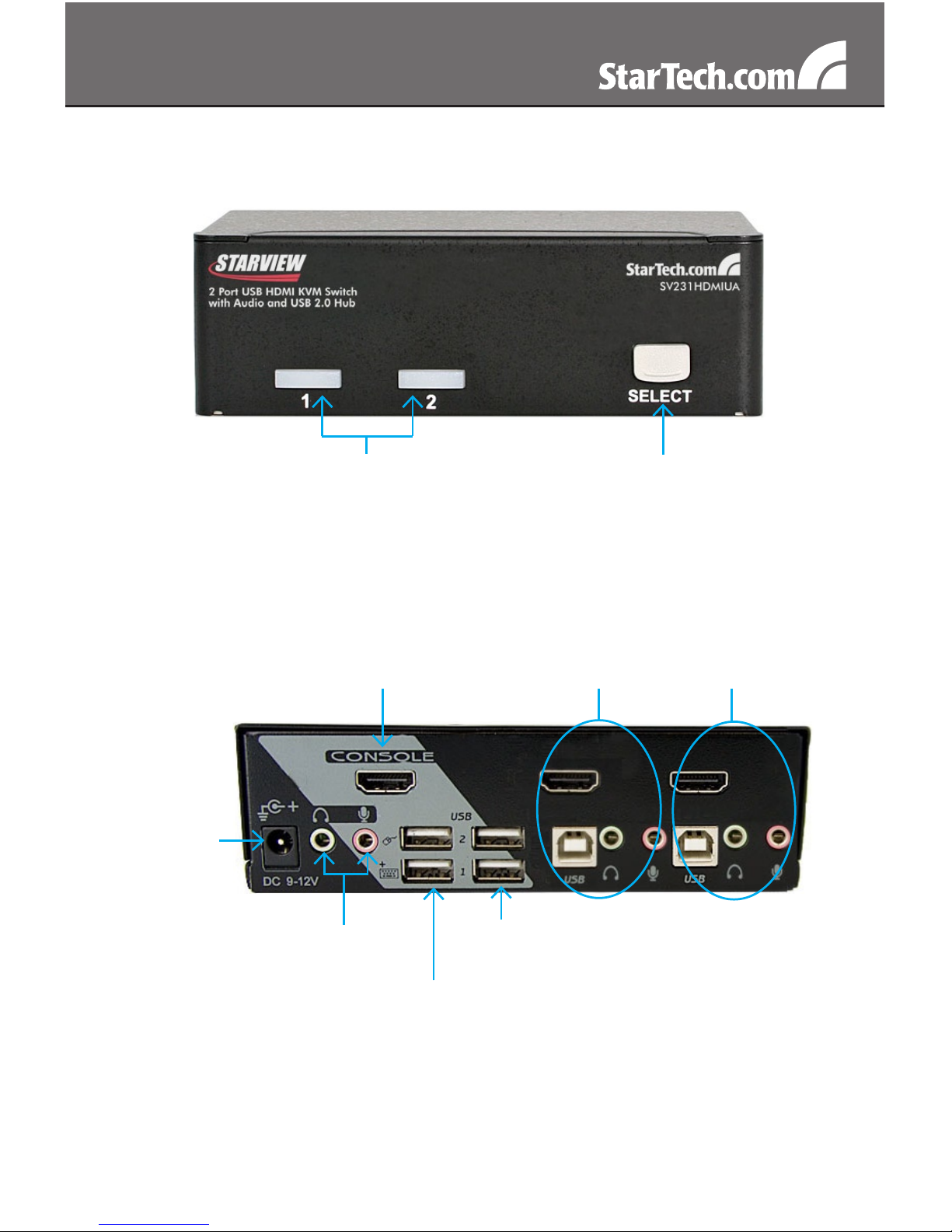

USB keyboard

and mouse

ports

USB Hub

ports

Console HDMI

port

Power

connector

3.5mm Speaker/MIC

connectors

PC2 port PC1 port

Port Link/Selection

LED

Port Selection

button

Front View

Rear View

Hardware Installation

Plug a monitor/display into the Console HDMI connector; plug a1.

USB keyboard and a USB mouse into the dedicated USB keyboard

and mouse ports on the KVM switch.

Use a male-to-male HDMI video cable to connect the HDMI2.

connector on the computer’s/devices’ video card, to one of the

KVM’s PC ports (ie. PC1)

Use a USB type A-B Cable to connect the KVM’s USB port (type B,3.

square connector) for the PC port used in Step 2, and the USB port

on the computer/device (type A, ﬂat connector).

Use a male-to-male 3.5mm mini-jack audio cable to connect the4.

speaker and microphone connectors on the computer/device to the

KVM’s speaker/mic ports for the PC port used in Step 2.

Repeat for Steps 2 thru 4 for each PC port on the KVM switch, or5.

each computer/device you wish to use on the KVM.

OPTIONAL:6. Connect any other USB peripherals you wish to share

between the connected computers/devices to the extra USB Hub

ports on the Console side.

Connect the external power adapter from a wall outlet to the power7.

connector on the rear panel of the KVM switch.

*Console setup

Power up the ﬁrst computer/device and wait for it to fully boot and8.

test keyboard/mouse functionality.

Once operation has been successfully conﬁrmed, switch to the next9.

port and power up that computer/device and conﬁrm.

Once completed for all computers/devices connected to the KVM10.

switch, you should be able to switch between any ports freely.

Driver Installation

No driver installation is required for the KVM switch, as the keyboard

and mouse use generic USB keyboard/mouse drivers that are already

installed on any operating system that fully supports USB.

Operation

Front Panel

PC Link/Selection LED

The LED turns green when the connected computer is powered-on.

The corresponding LED will also illuminate red when that PC port is

currently selected.

Port Selection Button

Pushing the front panel “Select” button toggles between the PC ports

on the KVM switch.

HotKey Control

A Hotkey command is a short keyboard sequence for selecting a

computer, activating computer scan, etc. A hotkey sequence starts

with two left <CTRL> keystrokes ( successively within 0.2 seconds )

followed by one or two more keystrokes. A built-in buzzer generates a

high-pitch beep for correct hotkey command; otherwise, one low-pitch

beep is generated for errors and the bad key sequence will not be

forwarded to the selected computer.

NOTE: Press and hold Left <SHIFT> and press <NumLock> twice,

then release Shift followed by pressing left <CTRL> once, which will

enable / disable the hotkey feature.

To select a computer:

Left <CTRL> + Left <CTRL> + 1

(Example: Selects the computer at port 1.)

Left <CTRL> + Left <CTRL> + 2

(Example: Selects the computer at port 2.)

NOTE: Do not use the keypad on the right-side of the keyboard.

Auto Scan

The KVM automatically scans through the powered-on computers in

sequence on a ﬁxed time interval (see Scan Time below).

Note: The keyboard and mouse are not operable during Auto Scan.

To start Auto Scan:

Left <CTRL> + Left <CTRL> + F1

To abort the Auto Scan mode, press the left <CTRL> key twice. When

Auto Scan detects any keyboard or mouse activity, it suspends the

scanning till the activity stops; it then resumes with the next computer

in sequence. The length of the Auto Scan interval (Scan Rate) is

adjustable, see below.

Manual Scan allows users to manually switch back and forth between

power-on computers.

Left <CTRL> + Left <CTRL> + F2

To select the previous or the next computer, press <UP> or <DOWN>

arrow keys. To abort the Manual Scan, press any other key.

Scan Time

Four options are available for users to set the Scan Time duration, it

Includes 3, 8, 15 and 30 seconds.

Note: Scan Time is set to 3 seconds by default.

To adjust Scan Rate, set the scan time of duration before switching to

the next computer:

Left <CTRL> + Left <CTRL> + F3

The KVM Switch generates 1 to 4 beeps indicating a scan time

duration for 3, 8, 15 or 30 seconds respectively.

Audio Stick

There are two options for Audio Stick: ON and OFF. When ON, audio

selection follows computer selection. When OFF, the current port’s

audio is used for all other ports. It is useful if you want to listen to a

particular computer’s audio signal while operating other computers.

Press Left <CTRL> + Press Left <CTRL> + Press F5

The KVM switch beeps once or twice corresponding to ON and OFF

respectively.

To change which port the audio is following to the currently selected

port, press the following hotkey:

Press Left <CTRL> + Press Left <CTRL> + Press A

USB-Port Rule

There are two settings for USB-Port Rule: ON or OFF.

When set to ‘ON’, the USB Hub port follows computer selection.

When set to ‘OFF’, the USB Hub port stays on the currently selected

PC port.

USB 1: pressing the hotkey below to turn ON/OFF the USB-Port Rule:

Left <CTRL> + Left <CTRL> + F7

To change the port that the USB hub stays on to the currently selected

port, press the following hotkey:

Left <CTRL> + Left <CTRL> + U

NOTE: Please make sure that linking procedure of USB device has

been accomplished before switching to the next computer.

Alternative Hotkey Commands

In addition to the Left <CTRL> + Left <CTRL> hotkeys, there are two

alternative hotkey sequences available.

For the following operations, users may press <ScrollLock> twice1.

instead of pressing left <CTRL> twice.

To select a computer:

<ScrollLock> + <ScrollLock> + 1

(Example: Select the computer at port 1.)

<ScrollLock> + <ScrollLock> + 2

(Example: Select the computer at port 2.)

NOTE: Do not use the keypad at the right of the keyboard.

Autres manuels pour SV231HDMIUA

Table des matières

Autres manuels StarTech.com Changer

StarTech.com

StarTech.com POEINJ4G Manuel utilisateur

StarTech.com

StarTech.com StarView SV231 Manuel utilisateur

StarTech.com

StarTech.com ICUSB23216F Manuel utilisateur

StarTech.com

StarTech.com 8STSV211HDUA4K Manuel utilisateur

StarTech.com

StarTech.com ST3504USB Manuel utilisateur

StarTech.com

StarTech.com SV211DPUA4K Manuel utilisateur

StarTech.com

StarTech.com ST124WGB Manuel utilisateur

StarTech.com

StarTech.com 35BAYFWUSB Manuel

StarTech.com

StarTech.com DS152M Manuel du système

StarTech.com

StarTech.com SV831DUSBUK Manuel utilisateur

StarTech.com

StarTech.com D86A2-2-PORT-8K-KVM Manuel utilisateur

StarTech.com

StarTech.com ST7CU35122 Manuel utilisateur

StarTech.com

StarTech.com ICUSB2324 Manuel utilisateur

StarTech.com

StarTech.com SV231DVGAU2A Manuel utilisateur

StarTech.com

StarTech.com IES1G52UP12V Manuel utilisateur

StarTech.com

StarTech.com DisplayPort SV231QDPU34K Manuel utilisateur

StarTech.com

StarTech.com P2DD46A22-KVM-SWITCH Manuel utilisateur

StarTech.com

StarTech.com HB30A3A1CST Manuel utilisateur

StarTech.com

StarTech.com VS221HDQ Manuel utilisateur

StarTech.com

StarTech.com SV221NANOU Manuel utilisateur

StarTech.com

StarTech.com VS221HD4K Manuel utilisateur

StarTech.com

StarTech.com ST4300PBU3 Manuel utilisateur

StarTech.com

StarTech.com ST122VGA Manuel utilisateur

StarTech.com

StarTech.com ENTERPRISE CLASS SV1653DXI Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
