StarTech.com SV231DVIUA Manuel utilisateur

Manual Revision: 08/11/2011

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

For the most up-to-date information, please visit: www.startech.com

SV231DVIUA

2 Port DVI USB KVM Switch with Audio

and USB 2.0 Hub

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com.

Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to

which this manual applies by the third-party company in question. Regardless of any direct

acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges

that all trademarks, registered trademarks, service marks, and other protected names and/or

symbols contained in this manual and related documents are the property of their respective

holders.

Instruction Manual i

Table of Contents

Introduction........................................................................................................................................................1

Packaging Contents ................................................................................................................................1

System Requirements ............................................................................................................................1

Front View......................................................................................................................................................2

Rear View........................................................................................................................................................2

Installation............................................................................................................................................................3

Hardware Installation..............................................................................................................................3

Driver Installation......................................................................................................................................4

Operation .............................................................................................................................................................5

Front Panel ....................................................................................................................................................5

HotKey Control...........................................................................................................................................5

Alternative Hotkey Commands........................................................................................................7

Change Leading Hotkey.......................................................................................................................7

Specications.....................................................................................................................................................8

Technical Support ...........................................................................................................................................9

Warranty Information....................................................................................................................................9

Instruction Manual 1

Introduction

The 2-Port DVI USB KVM Switch with Audio and USB 2.0 Hub lets you control two USB enabled,

DVI capable computers from a single monitor and peripheral set (keyboard, mouse and

speakers) and up to two additional USB peripherals connected through the USB hub ports.

Featuring convenient hot-key and front panel push-button switching options and high-

resolution support up to 1920x1200, the KVM switch is perfect for applications where central

control of two high-resolution computer systems is required. Ideal for multimedia applications,

this KVM switch supports audio and microphone switching, allowing you to switch between

audio/mic channels either independently or simultaneously when switching between

computers for KVM control.

The DVI USB KVM switch also features an integrated USB 2.0 hub which allows you to use shared

USB peripherals from the control point as if the devices were connected directly to the slave

computers - an economical solution that lets you use USB peripherals between computers

(when selected) without the expense of buying individual peripherals for each slave computer.

Packaging Contents

• 1 x KVM Switch

• 1 x Universal Power Adapter

• 1 x Set of rubber feet

• 1 x Instruction Manual

System Requirements

• DVI and USB enabled computer systems

• DVI enabled display device (i.e. monitor, projector, HDTV, etc)

• A standard 104-key wired USB keyboard

• A standard 3-button wired USB mouse

Instruction Manual 2

Front View

Rear View

Port Selection/Link

Port Selection Button

Instruction Manual 3

Installation

NOTE: Prior to the installation, please power o all devices that will be connected to this system.

Ensure that all devices you will connect are properly grounded.

Place cables away from uorescent lights, air conditioners, and machines that are likely to

generate electrical noise.

If you experience any problems using a USB KVM switch, the following BIOS setup changes may

be necessary for PC users and not necessary for Mac users:

Set HALT ON ERROR to ALL BUT KEYBOARD.

In PNP AND PCI SETUP, set PNP OS INSTALLED to YES and set USB IRQ to ENABLED.

Dierent systems may use dierent naming, so contact your system manufacturer for further

assistance with these settings.

Hardware Installation

1. Plug a monitor into the Console side DVI connector using a standard male/male DVI cable;

plug a USB keyboard and a USB mouse into the dedicated USB keyboard and mouse ports

on the KVM switch.

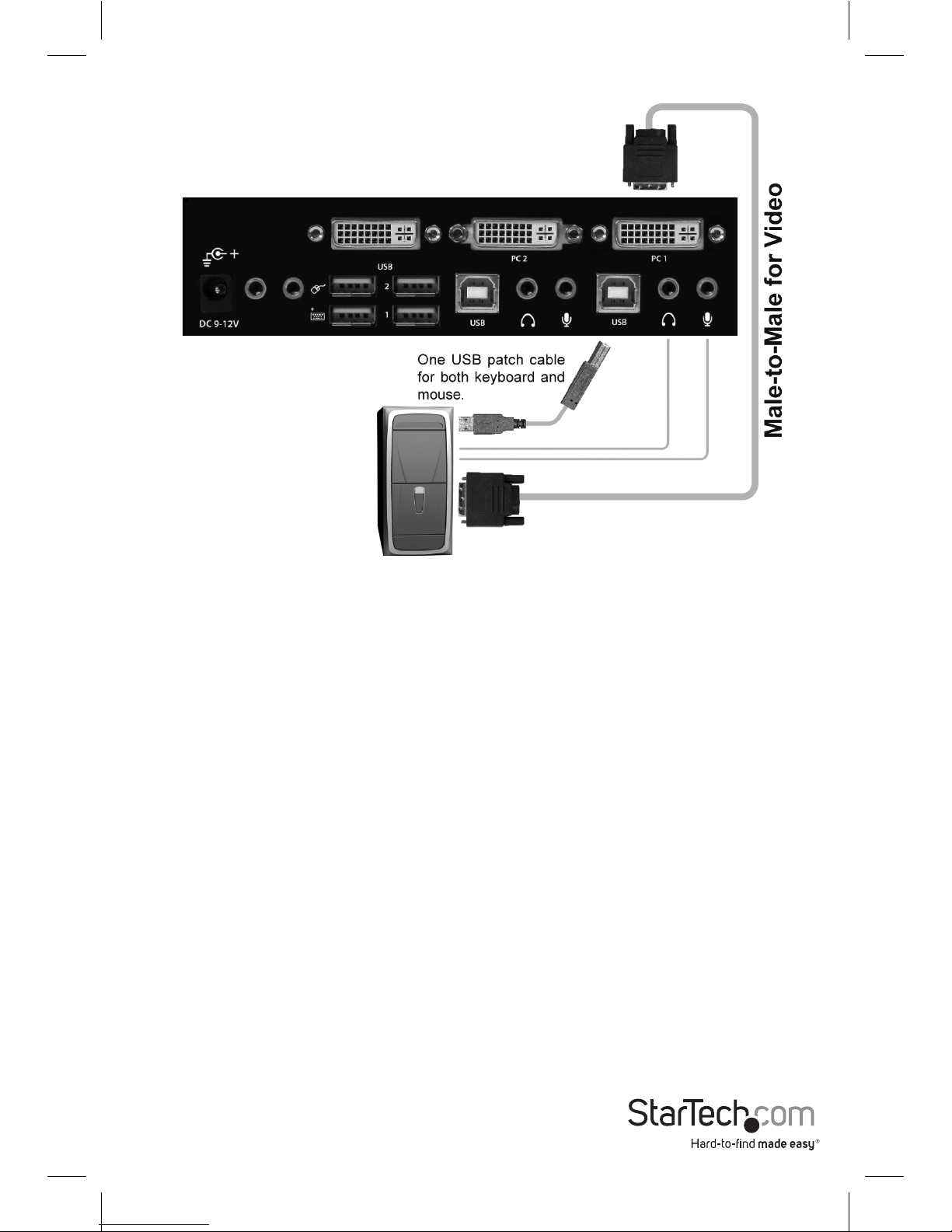

2. Use a male/male DVI video cable to connect the DVI connector on the computer’s video

card, to one of the KVM’s PC ports (i.e. PC1). A dedicated DVI, USB and audio 4-in-1 KVM

cable can be used (i.e. StarTech.com ID: USBDVI4N1A6 or DVID4N1USB6).

NOTE: Ensure you are using the same type of DVI cabling throughout the installation (i.e.

DVI-D (digital) or DVI-I (analog/digital)). Mixing or using the incorrect type can result in

problems with the video.

3. Use a USB type A-B Cable to connect the KVM’s USB port (type B, square connector) for

the PC port used in Step 2, and the USB port on the computer (type A, at connector).

Instruction Manual 4

4. Repeat for Steps 2 and 3 for each PC port on the KVM switch, or each computer you wish

to use on the KVM.

5. OPTIONAL: Connect any other USB peripherals you wish to share between the connected

computers/devices to the extra USB Hub ports on the Console side.

6. Connect the external power adapter from a wall outlet to the power connector on the

rear panel of the KVM switch. The Power LED should light up solid and/or the LED for the

selected PC port.

7. Power up the rst computer/device and wait for it to fully boot and test keyboard/mouse

functionality.

8. Once operation has been successfully conrmed, switch to the next port and power up

that computer/device and conrm.

Driver Installation

No driver installation is required for the KVM switch, as the keyboard and mouse uses native USB

keyboard/mouse drivers that are already installed on all operating systems that fully support

USB.

Instruction Manual 5

Operation

Front Panel

Port Selection/Link LED

The LED turns green when the connected computer is powered-on. The corresponding LED will

also illuminate red when that PC port is currently selected.

Port Selection Button

Pressing the front panel “Select” button toggles between the PC ports on the KVM switch.

HotKey Control

A Hotkey command is a short keyboard sequence for selecting a computer, activating computer

scan, etc. A hotkey sequence starts with two left <CTRL> keystrokes (successively within 0.2

seconds) followed by one or two more keystrokes. A high-pitch beep will be generated for each

correct hotkey command; otherwise, one low-pitch beep is generated for errors and the bad key

sequence will not be forwarded to the selected computer.

NOTE: Press and hold Left <SHIFT> and press <NumLock> twice, then release <SHIFT> followed

by pressing left <CTRL> once, which will enable / disable the hotkey feature.

To select a computer:

Left <CTRL> + Left <CTRL> + <1>

(Example: Selects the computer at port 1.)

Left <CTRL> + Left <CTRL> + <2>

(Example: Selects the computer at port 2.)

NOTE: Do not use the keypad on the right-side of the keyboard.

Auto Scan

The KVM automatically scans through the powered-on computers in sequence on a xed time

interval (see Scan Time below).

To start Auto Scan:

Left <CTRL> + Left <CTRL> + <F1>

To abort the Auto Scan mode, press the left <CTRL> key twice.

NOTE: When Auto Scan detects any keyboard activity, it suspends the scanning until the

activity stops; it then resumes with the next computer in sequence. The length of the Auto

Scan interval (Scan Rate) is adjustable, see below.

Instruction Manual 6

Manual Scan

Allows users to manually switch back and forth between powered-on computers.

Left <CTRL> + Left <CTRL> + <F2>

To select the previous or the next computer, press <UP> or <DOWN> arrow keys. To abort the

Manual Scan, press any other key.

Scan Time

Four options are available for users to set the Scan Time duration, it Includes 3, 8, 15 and 30

seconds.

Note: Scan Time is set to 3 seconds by default.

To adjust Scan Rate, set the scan time of duration before switching to the next computer:

Left <CTRL> + Left <CTRL> + <F3>

The KVM Switch generates 1 to 4 beeps indicating a scan time duration for 3, 8, 15 or 30

seconds respectively.

Audio Lock

There are two options for Audio Lock: ON and OFF.

When ON, audio selection follows computer selection. When OFF, audio selection stops

following computer selection. It is useful if you want to listen to a particular computer’s audio

signal while operating other computers.

Left <CTRL> + Left <CTRL> + <F5>

The KVM switch beeps once or twice corresponding to ON and OFF respectively.

To change which computer port the audio stays on to the currently selected port, press the

following hotkey:

Left <CTRL> + Left <CTRL> + <A>

USB-Port Rule

There are two settings for USB-Port Rule: ON or OFF.

When set to ‘ON’, the USB Hub port follows computer selection.

When set to ‘OFF’, the USB Hub port stays on the currently selected PC port.

Press the hotkey below to turn ON/OFF the USB-Port Rule for USB 1 and USB 2:

Left <CTRL> + Left <CTRL> + <F7>

To change the PC port that the USB hub stays on to the currently selected PC port, press the

following hotkey:

Left <CTRL> + Left <CTRL> + <U>

NOTE: Please make sure that installation of the USB device has been accomplished before

switching to the next computer.

Instruction Manual 7

Alternative Hotkey Commands

In addition to the Left <CTRL> + Left <CTRL> hotkeys, there are two alternative hotkey

sequences available.

1. For the following operations, users may press <ScrollLock> twice instead of pressing left

<CTRL> twice.

To select a computer:

(Example: Select the computer at port 1.)

(Example: Select the computer at port 2.)

NOTE: Do not use the keypad at the right of the keyboard.

2. For those keyboards that do not have or support <ScrollLock>, please press and HOLD the

Left <SHIFT> and press <NumLock> twice instead of pressing Left <CTRL> twice.

To select a computer:

hold Left <SHIFT> + press <NumLock> + press <NumLock>

then release <SHIFT> + press <1>

Example: Select the computer at port 1.)

hold Left <SHIFT> + press <NumLock> + press <NumLock>

then release <SHIFT> + press <2>

(Example: Select the computer at port 2.)

NOTE: Do not use the keypad at the right of the keyboard.

Change Leading Hotkey

The default leading hotkey sequence involves pressing the left <CTRL> twice in succession

(e.g. left <CTRL> + left <CTRL>). This can be changed to the right <CTRL> key instead, to avoid

accidental activation due to using the left <CTRL> key for functions such as Copy/Paste.

To change the leading hotkey sequence to Right <CTRL>:

Left <CTRL> + Left <CTRL> + hold <ALT> + press Right <CTRL>

All hotkey commands that previously required pressing the Left <CTRL> will be switched to

requiring the right <CTRL> instead.

To change the leading hotkey sequence back to Left <CTRL>:

Right <CTRL> + Right <CTRL> + hold <ALT> + press Left <CTRL>

Table des matières

Autres manuels StarTech.com Changer

StarTech.com

StarTech.com ST3300U3S Manuel du système

StarTech.com

StarTech.com POEINJ2GI Manuel utilisateur

StarTech.com

StarTech.com DuraView RACKCONS1708 Manuel utilisateur

StarTech.com

StarTech.com 8STICUSB23216FD Manuel utilisateur

StarTech.com

StarTech.com IES5102 Manuel utilisateur

StarTech.com

StarTech.com SV431HU34K6 Manuel utilisateur

StarTech.com

StarTech.com StarView SV231USB Manuel utilisateur

StarTech.com

StarTech.com ICUSB23216F Manuel utilisateur

StarTech.com

StarTech.com IES101002SFP Manuel utilisateur

StarTech.com

StarTech.com SV441DUSBI Manuel utilisateur

StarTech.com

StarTech.com SV431USBAEGB Manuel utilisateur

StarTech.com

StarTech.com SV231DD2DUA Manuel utilisateur

StarTech.com

StarTech.com C2-DD46-UA2-CBL-KVM Manuel utilisateur

StarTech.com

StarTech.com HB30C3A1GEA Manuel utilisateur

StarTech.com

StarTech.com SV831DVIU Manuel utilisateur

StarTech.com

StarTech.com STARVIEW SV431DVIUAHR Manuel utilisateur

StarTech.com

StarTech.com 35BAYUSB3S4 Manuel du système

StarTech.com

StarTech.com DS52000 Manuel utilisateur

StarTech.com

StarTech.com IES101G2SFPW Manuel utilisateur

StarTech.com

StarTech.com STARVIEW SV215MICUSBA Manuel utilisateur

StarTech.com

StarTech.com 5G7AIBS-USB-HUB-NA Manuel utilisateur

StarTech.com

StarTech.com SV231DPUA Manuel utilisateur

StarTech.com

StarTech.com CAB831HD Manuel utilisateur

StarTech.com

StarTech.com SV215MICDVIA Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
