EOC110K

EOC110R

10/100 Mbps Ethernet Over Coaxial LAN

Extender Kit - 2.4km

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ...........................................................................................1

System Requirements.............................................................................................................................. 1

Package Contents ..................................................................................................................................... 1

Front View.................................................................................................................................................... 2

Rear View...................................................................................................................................................... 2

Installation ..............................................................................................3

Hardware Installation .............................................................................................................................. 3

Driver Installation...................................................................................................................................... 3

Cable Lengths .........................................................................................4

Specications..........................................................................................5

Technical Support ..................................................................................6

Warranty Information............................................................................6

Instruction Manual

Introduction

The StarTech.com EOC110K Ethernet over Coax extender kit allows you to span a

10/100 network over extremely long distances (up to 1.2km) while still maintaining

high speed network connectivity. Allowing Ethernet connections over existing Coaxial

cable with little to no modication, providing a perfect solution for a broad range of

applications, including connecting isolated user stations from the same or separate

building, or overcoming infrastructure obstacles and distances (e.g. older stone/

concrete architecture) where new wiring or wireless may be impossible.

System Requirements

• 10/100Mbps compatible Ethernet network/equipment

• Coaxial cabling (RG-59/6/7/11)

• Available AC power outlet at converter box locations

Package Contents

• 2 x Ethernet over Coax converter box*

• 2 x Power Adapter*

• Instruction Manual

*EOC110R only contains one unit

Instruction Manual

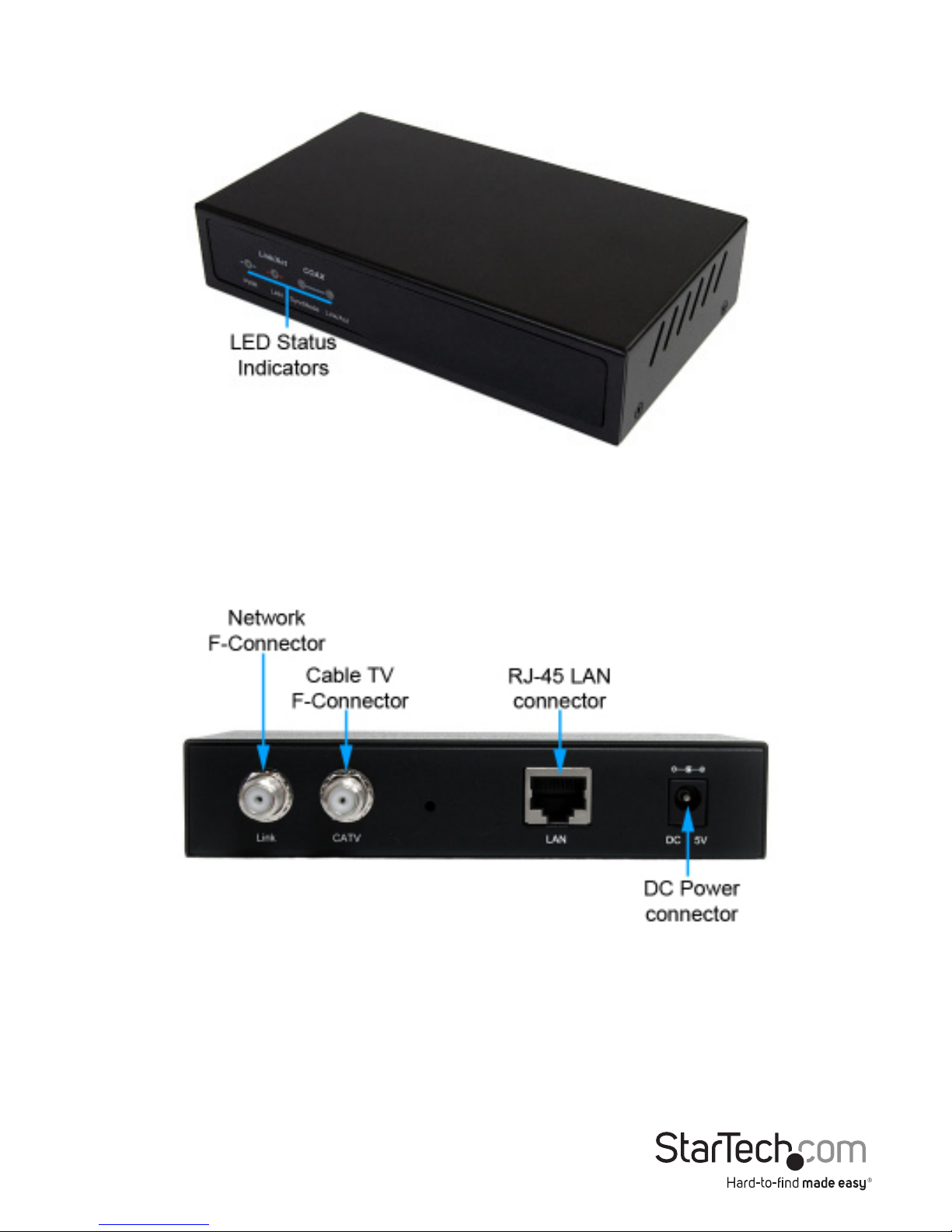

Rear View

Front View

Instruction Manual

Installation

Hardware Installation

NOTE: Both of the converter boxes in the EOC110K kit are identical, so they can be

installed at either end, in any order.

1. At one of the locations for the converter box, connect an RJ45 Ethernet cable from

the existing Ethernet network or computer network adapter to the “LAN”port on

the converter box.

2. Connect the coax cable to the “Link” F-Connector on the converter.

3. OPTIONAL: If also transmitting analog cable TV signals over the coax line, connect

the CATV F-Connector to a TV or TV receiver. Digital cable TV signals are not

supported.

4. Connect the included power adapter. The power LED should light up solid. The

LAN Link/Act LED should light up solid when successfully connected to an Ethernet

device on the “LAN” port.

5. Setup additional converter boxes by following the same Steps 1~4 for each location.

6. Once all units are setup, they should be able to automatically locate one another

over the coax cabling. The Coax Link and Sync LEDs should stay solid once

communication is established. The Coax Link LED will ash during communication.

7. The devices plugged into the “LAN” ports should now be able to communicate with

one another freely.

Driver Installation

No driver or software installation is required for these converters on any connected

computer systems.

Instruction Manual

Cable Lengths

Maximum bandwidth (Mbps) based on coaxial cable type and length.

Distance RF

Bandwidth RG-59 RG-6 RG-7 RG-11

100m ~ 700m

< 30MHz

144 144 144 144

800m 128 144 144 144

900m 112 144 144 144

1000m 96 128 144 144

1100m 80 128 144 144

1200m 64 112 128 144

1300m 80 128 144

1400m 80 128 144

1500m 64 112 144

1600m 96 128

1700m 80 128

1800m 80 128

1900m 64 112

2000m 112

2100m 96

2200m 80

2300m 80

2400m 64

Instruction Manual

Specications

Transmission Standards ITU G.9954, IEEE802.3, IEEE802.3u,

IEEE802.3x

Connectors

(per unit)

2 x F-Connector female

1 x RJ45 female

1 x DC Power

LEDs

(per unit)

1 x Power

1 x LAN Link/Activity

1 x Coax Link/Activity

1 x Coax Sync

Compatible Cabling RG-59, 6, 7, 11

Maximum Distance 2400m (RG-11)

Power Adapter 5VDC, 2000mA, center positive,

type M plug

Operating Temperature 0°C ~ 55°C (32°F ~ 131°F)

Storage Temperature -10°C ~ 65°C (14°F ~ 149°F)

Humidity 10% ~ 90% RH

Dimensions (per unit) 280.0mm x 138.0mm x 76.8mm

Weight (per unit) 320g

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
