StarTech.com STUTPEALR Manuel utilisateur

Manual Revision: 01/31/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

STUTPEALR/STUTPEALRGB

ST124UTPEA/ST128UTPEA

STUTPEA4X

VGA Video Extender over Cat 5 Remote

Receiver with Audio

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ...........................................................................................1

Features ........................................................................................................................................................ 1

Package Contents ..................................................................................................................................... 1

Hardware Guide .....................................................................................2

Local Unit - Front View............................................................................................................................. 2

Hardware Guide - Continued ...............................................................3

Remote Unit - Front View ....................................................................................................................... 3

Remote Unit - Rear View......................................................................................................................... 3

Hardware Guide - Continued ...............................................................4

Line Splitter - Rear View .......................................................................................................................... 4

Line Splitter - Front View ........................................................................................................................ 4

Specications..........................................................................................6

Local Unit ..................................................................................................................................................... 6

Remote Unit................................................................................................................................................ 6

Specication - Continued .....................................................................7

Line Splitter Unit (STUTPEA4X) ............................................................................................................ 7

Specications - Continued....................................................................8

Distance/Resolutions............................................................................................................................... 8

Wiring Information and Coding........................................................................................................... 8

Technical Support ..................................................................................9

Warranty Information............................................................................9

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com video extension solution. The ST124UTPEA/

ST128UTPEA and STUTPEALR(GB) combine to create a cost eective method of

providing high quality video (with audio) to remote locations over Cat5 UTP cabling.

Features

• Supports resolutions of up to1024x768 @ 60 Hz refresh rate at maximum extension

distance; higher resolutions available with shorter cable runs

• Delivers VGA video and audio to monitors located up to 300m / 950ft away

• Can be used with a four port line splitter

Package Contents

ST124UTPEA/ST128UTPEA/STUTPEA4X

• LocalVGAVideoandAudioExtender•

• Power Adapter

• 2 x Rack Rails

• Screw kit for rack rails

• Instruction Manual

STUTPEALR(GB)

• Instruction Manual

• Long Range UTP Receiver

• Power Adapter - Class 2 Transformer

Instruction Manual

Hardware Guide

Local Unit - Front View

ST124UTPEA

ST128UTPEA

ST124UTPEA

ST128UTPEA

1Input Power Jack

2VGA Output (HD-15 Female Connector)

3VGA Input (HD-15 Female Connector)

4AUDIO Input

5MIC Input

6MIC GAIN - adjust volume of microphone

7CAT5 OUT (RJ-45 Connectors): ST124UTPEA x 4

ST128UTPEA x 8

Power LED

1 2 3 4 5 6 7

*ST124UTPEA shown

Instruction Manual

Hardware Guide - Continued

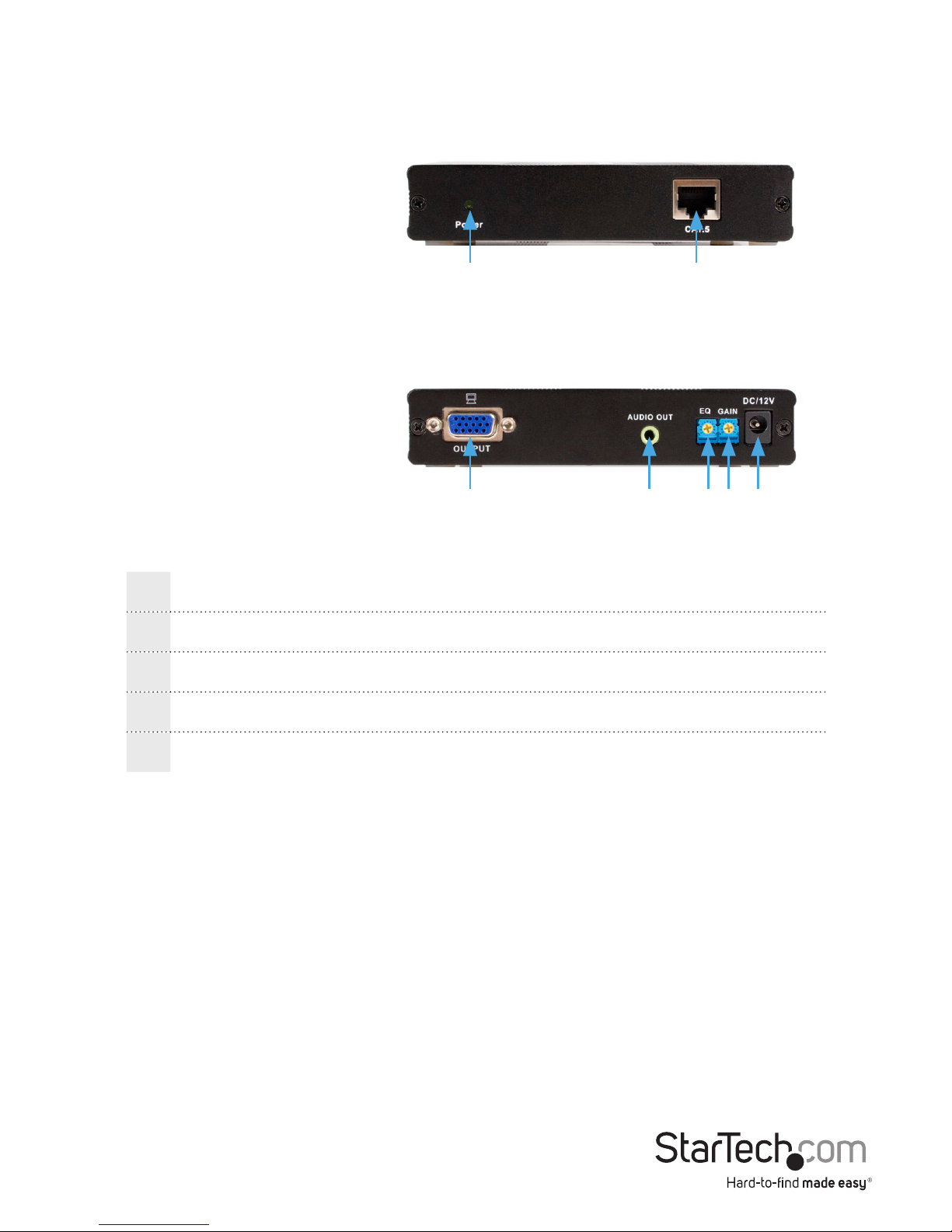

Remote Unit - Front View

STUTPEALR(GB)

Remote Unit - Rear View

STUTPEALR(GB)

1 VGA Output (HD-15 Female Connector)

2 Audio Output

3 EQ - Equalization length adjust (Adjust to sharpen images)

4 GAIN - Adjust Brightness

5 Input Power Jack

Power LED

1 2 3 4 5

CAT5 Connector

Instruction Manual

Hardware Guide - Continued

Line Splitter - Rear View

Line Splitter - Front View

1 VGA Output (HD-15 Female Connector)

2 CAT5 Input

3 EQ - Equalization length adjust (Adjust to sharpen images)

4 GAIN - Adjust Brightness

5 Power LED

6 Input Power Jack

7 CAT5 Output ports

1 2 3 4 5 6

Instruction Manual

1. Turn o the VGA signal source device (computer).

2. Connect the local unit (ST124UTPEA/ST128UTPEA) HD-15 female INPUT connector

to the signal source (computer) using an HD-15 male to male cable.

3. Connect the AUDIO IN connector of the local unit (ST124UTPEA/ST128UTPEA) to the

Audio Out port of the audio source (computer sound card), using a 3.5mm audio cable.

4. Optional: Connect a compatible microphone cable to the MIC IN connector on the

local unit (ST124UTPEA/ST128UTPEA).

5. Connect a VGA monitor to the local unit (ST124UTPEA/ST128UTPEA) 5. HD-15

female OUTPUT using an HD-15 male to male cable.

6. Connect the Local Unit (ST124UTPEA/ST128UTPEA) 6. CAT5 OUT port to the Remote

Unit (STUTPEALR(GB)) using CAT5 cable.

Optional: If you will be using the STUTPEA4X Line Splitter, connect the Local Unit

(ST124UTPEA/ST128UTPEA) CAT5 OUT port to the Line Splitter using CAT5 cable. Once

the Line Splitter has been connected, you have the option of connecting to up to four

remote units (STUTPEALR(GB)) using CAT5 cable.

7. Once each of the Remote Units have been connected to either a Local 7. Unit

(ST124UTPEA/ST128UTPEA) or Line Splitter (STUTPEA4X), connect a VGA monitor to

the HD-15 OUTPUT connector provided by the remote units as necessary.

8. Connect the Remote Unit 8. AUDIO OUT port to the device you will be using to

distribute audio (i.e. stereo receiver, amplier etc.)

9. Connect the power cord on all units (Local, Line Splitter, Remote).9.

10. Turn on the monitor and PC and audio amplier.

When situating the Local and Remote Units, please review the maximum distance

capability oered by each component (found in the Specications section

Instruction Manual

Specications

Local Unit

Function ST124UTPEA ST128UTPEA

VGA in Connector HD-15 Female x1

VGA out Connector HD-15 Female x1

Audio in Connector 3.5mm Stereo Jack x1

MIC in Connector 3.5mm Stereo Jack x1

RJ-45 Connector 4 8

Max. Resolution 1280x1024 60Hz

Cable Distance 300m (Max.)

Power Adapter (Min.) DC 12V, 1250mA

Weight 600g 660g

Dimensions (LxWxH) 220x119.5x41mm

Remote Unit

Function STUTPEALR

STUTPEALRGB

VGA In/Out Connector HD-15 Female x1

Audio In/Out Connector 3.5mm Stereo Jack x1

RJ-45 Connector 1

Max. Resolution 1280x1024 60Hz

Cable Distance 300m (Max.)

Power Adapter DC 12V, 600mA

Weight 296g

Dimensions (LxWxH) 130x110.5x25mm

Instruction Manual

Specications - Continued

Line Splitter Unit (STUTPEA4X)

Function STUTPEA4X

RJ-45 In Connector 1

RJ-45 Out Connector 4

Max. Resolution 1280x1024 60Hz

Cable Distance 300m (Max.)

Power Adapter (Min.) DC 12V, 1250mA

Weight 322g

Dimensions (LxWxH) mm 200x111x25
