StarTech.com STUTPRXWAL Manuel utilisateur
VGA Video Extender
over CAT5
VGA Wall Plate Video Extender
over CAT5 Receiver
STUTPRXWAL
STUTPTXWAL
STUTPWALL
Instruction Manual
VGA Wall Plate Video Extender
over CAT5 Transmitter
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a particu-
lar installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the receiver•
is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and
do not represent an endorsement of a product or service by StarTech.com, or an en-
dorsement of the product(s) to which this manual applies by the third-party company in
question. Regardless of any direct acknowledgement elsewhere in the body of this doc-
ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,
service marks, and other protected names and/or symbols contained in this manual and
related documents are the property of their respective holders.
i
Table of Contents
Introduction..................................................................... 1
Packaging Contents.....................................................................1
System Requirements .................................................................1
Installation....................................................................... 2
Transmitter Unit (STUTPTXWAL) ................................................2
Receiver Unit (STUTPRXWAL) ...................................................3
Hardware Installation...................................................................4
Wiring Information and Coding...................................... 5
Distances and Resolutions ............................................ 6
Adapter Output Polarity.................................................. 6
Specifications.................................................................. 7
Technical Support........................................................... 8
Warranty Information...................................................... 8
1
Introduction
Packaging Contents
1 x STUTPTXWAL (transmitter) or STUTPRXWAL (receiver)•
* both units included in STUTPWALL kit
1 x Power Adapter•
* 2 included in STUTPWALL kit
1 x User Manual•
1 x Terminal Block adapter for power adapter•
* 2 included in STUTPWALL kit
System Requirements
Open wall receptacle for unit installation•
Available power outlet•
Both Transmitter (STUTPTXWAL) and Receiver (STUTPRXWAL)•
units
2
Installation
Transmitter Unit (STUTPTXWAL)
Front View
* picture may vary from actual product
DE-15 Female Connector•
Power LED•
Control H/V signal inverting switch•
The default setting of H-INV is “OFF”. If H-INV is set to “ON”, the•
horizontal signal output is adjusted. H-INV on the receiver must
also be set to “ON”.
The default setting of V-INV is “OFF”. If V-INV is set to “ON”, the•
vertical signal output is adjusted. V-INV on the receiver must also
be set to “ON”.
Use this setting when noise or sync issues are detected in the•
signal transfer.
3

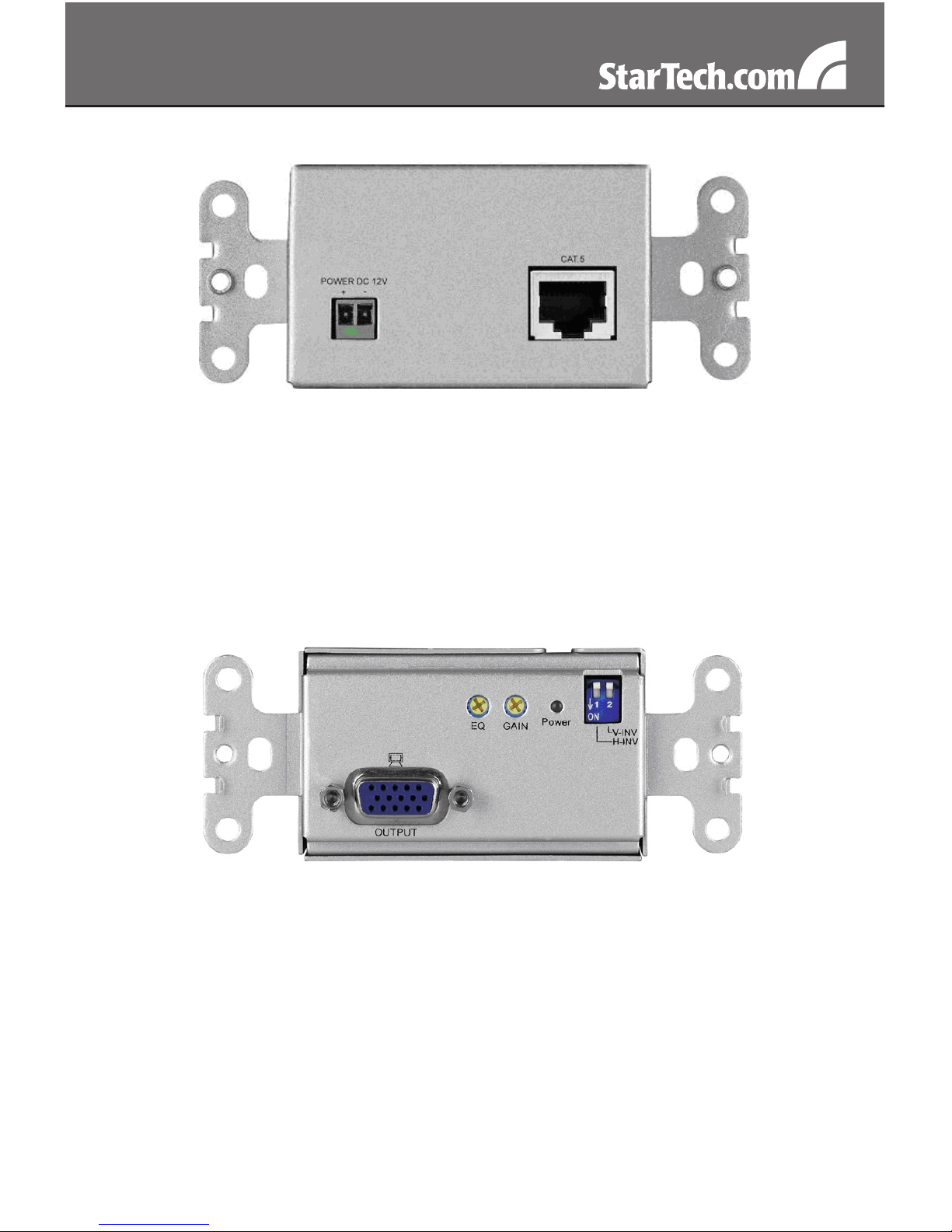

Rear View
* picture may vary from actual product
Power Connector•
RJ-45Female Connector•
Receiver Unit (STUTPRXWAL)
Front View
* picture may vary from actual product
DE-15 Female Connetor•
EQ – Equalization length adjust (Adjust sharpness)•
GAIN – Adjust brightness•
Power LED•
Control H/V signal inverting switch•
4
The default setting of H-INV is “OFF”. If H-INV is set to “ON”, the•
horizontal signal output is adjusted. H-INV on the transmitter
must also be set to “ON”.
The default setting of V-INV is “OFF”. If V-INV is set to “ON”, the•
vertical signal output is adjusted. V-INV on the transmitter must
also be set to “ON”.
Use this setting when noise or sync issues are detected in the•
signal transfer.
Rear View
* picture may vary from actual product
Power Connector•
RJ-45Female Connector•
Hardware Installation
Turn off the PC and remote monitor.1.
Connect STUTPTXWAL Transmitter unit DE-15 female input2.
connector with DE-15 male to male cable to PC video card.
Connect STUTPTXWAL Transmitter and STUTPRXWAL Receiver3.
unit together with CAT5 cable.
Connect STUTPRXWAL Receiver unit DE-15 female connector with4.
DE-15 male to male cable to monitor.
Connect the power adapter on each unit.5.
Turn on the monitor and PC.6.
5
Wiring Information and Coding
Conductor RJ45 Pin Conductor Colour Code
Pair 1
5 White-Blue
4 Blue
Pair 2
1 White-Orange
2 Orange
Pair 3
3 White-Green
6 Green
Pair 4
7 White-Brown
8 Brown
6
Distances and Resolutions
CAT5/CAT5e
50m 1920x1200
100m 1600x1200
180m 1280x1024
200m 1024x768
300m 800x600
CAT6
30m 1920x1440
50m 1280x1024
100m 800x600
Adapter Output Polarity
Pin Output Level Conductor Colour
1 +12V Black-White
2 RTN (-) Black
7
Specications
Video Connector 15-pin D-Sub (DE-15)
Rear Connectors RJ45
Terminal Block
Maximum Resolution 1920x1200 at 60Hz
Maximum Distance 300 meters at 800x600
Power Adapter Output 12VDC, 600mA
Material Metal
Color White
Weight 165 g (transmitter)
170 g (receiver)
Dimensions 78.2 mm x 41.2 mm x 52.8 mm
